Hood
Hints Working in the engine compartment
Never attempt to perform any service or
repair operations on your vehicle without the
necessary professional technical training.
If you are unfamiliar with the statutory guide‐
lines, have any work on the vehicle performed
only by a service center.
If work is not carried out properly, there is a
danger of subsequent damage and related
safety hazards.◀
Never reach into the engine compart‐
ment
Never reach into spaces or gaps in the engine
compartment; otherwise, there is a risk of in‐
jury, e.g., from rotating or hot parts.◀
Fold down wiper arm
Before opening the hood, ensure that the
wiper arms are against the windshield, or this
may result in damage.◀
Opening the hood1.Pull lever, arrow 1.
Hood is unlocked2.After the lever is released, pull the lever
again, arrow 2.
Hood can be opened.Indicator/warning lights
When the hood is unlocked, a Check Control
message is displayed.
Closing the hood Hood open when driving
If you see any signs that the hood is not
completely closed while driving, pull over im‐
mediately and close it securely.◀
Danger of jamming
Make sure that the closing path of the
hood is clear; otherwise, injuries may result.◀
Let the hood drop from a height of approx. 16
in/40 cm and push down on it to lock it fully.
The hood must audibly engage on both sides.
Seite 204MobilityEngine compartment204
Online Edition for Part no. 01 40 2 960 466 - II/15

CoolantVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Hints Danger of burns from hot engine
Do not open the cooling system while
the engine is hot; otherwise, esliding coolant
may cause burns.◀
Suitable additives
Only use suitable additives; otherwise,
engine damage may occur. The additives are
harmful to your health.◀
Coolant consists of water and additives.
Not all commercially available additives are
suitable for the vehicle. Information about the
suitable additives are available from the service
center.
Coolant level
General information
Depending on the engine installation, the cool‐
ant reservoir is located on the right side or the
left side of the engine compartment.
Checking1.Let the engine cool.2.The coolant level is correct if it lies be‐
tween the minimum and maximum marks.The marks are on the side of the coolant
reservoir.SymbolMeaningMaximumMinimum
Adding
1.Let the engine cool.2.Turn the lid of the coolant reservoir slightly
counterclockwise to allow any excess
pressure to dissipate, then open it.3.If the coolant is low, slowly add coolant up
to the specified level; do not overfill.4.Turn the lid until there is an audible click.
The arrows on the coolant reservoir and
the lid must point towards one another.5.Have the cause of the coolant loss elimi‐
nated as soon as possible.
Disposal
Comply with the relevant environmen‐
tal protection regulations when dispos‐
ing of coolant and coolant additives.
Seite 208MobilityCoolant208
Online Edition for Part no. 01 40 2 960 466 - II/15

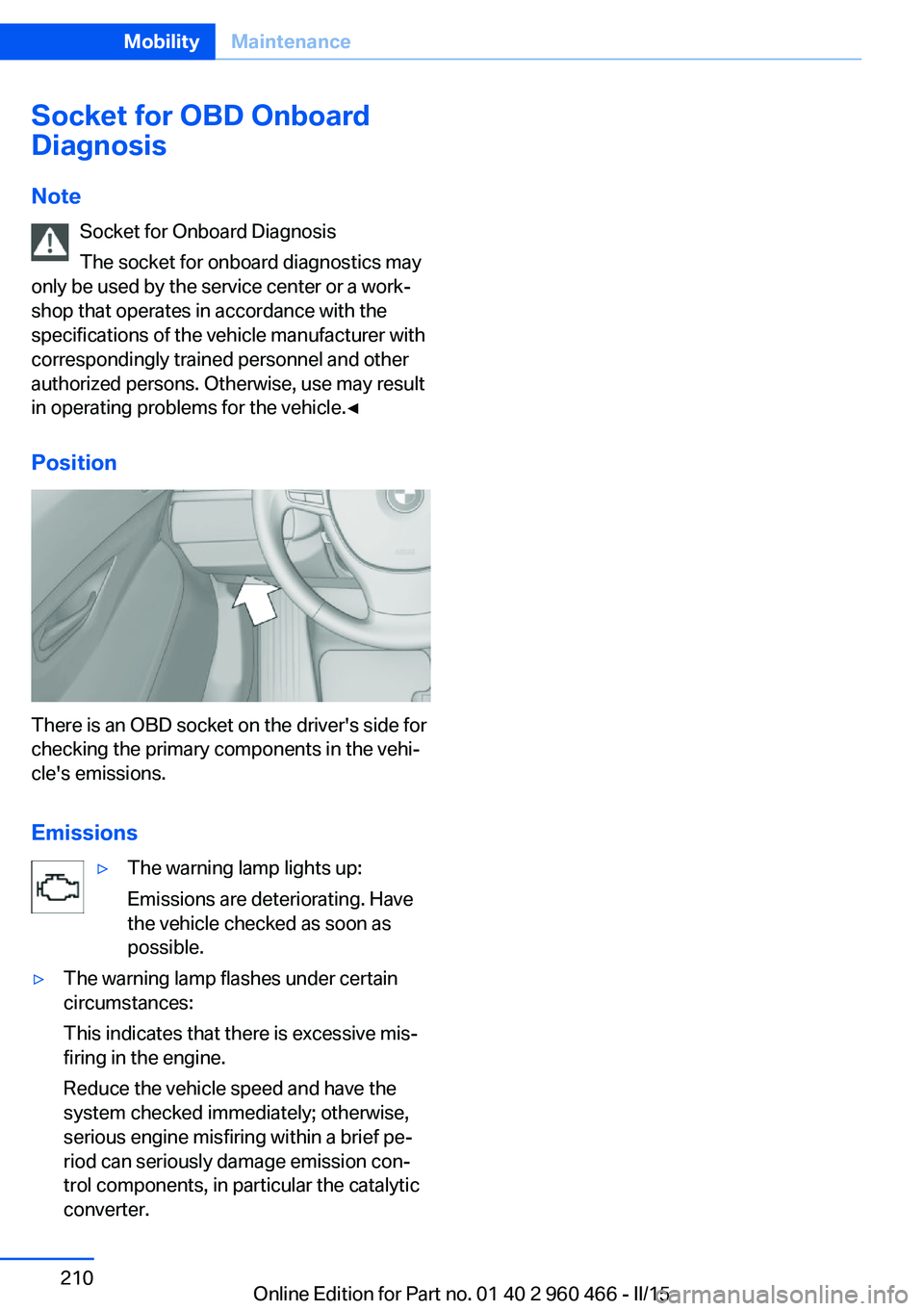

Socket for OBD Onboard
Diagnosis
Note Socket for Onboard Diagnosis
The socket for onboard diagnostics may
only be used by the service center or a work‐
shop that operates in accordance with the
specifications of the vehicle manufacturer with
correspondingly trained personnel and other
authorized persons. Otherwise, use may result
in operating problems for the vehicle.◀
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi‐
cle's emissions.
Emissions
▷The warning lamp lights up:
Emissions are deteriorating. Have
the vehicle checked as soon as
possible.▷The warning lamp flashes under certain
circumstances:
This indicates that there is excessive mis‐
firing in the engine.
Reduce the vehicle speed and have the
system checked immediately; otherwise,
serious engine misfiring within a brief pe‐
riod can seriously damage emission con‐
trol components, in particular the catalytic
converter.Seite 210MobilityMaintenance210
Online Edition for Part no. 01 40 2 960 466 - II/15

other attempt in order to allow the dis‐
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the re‐
verse order.
Check the battery and recharge if needed.
Tow-starting and towing Note Tow-starting and towing
For tow-starting or towing, switch off the
Intelligent Safety systems; otherwise malfunc‐
tions of the individual braking systems might
lead to accidents.◀
Steptronic transmission: transporting
your vehicle
Note Your vehicle is not permitted to be towed.
Therefore, contact a service center in the
event of a breakdown.
Do not have the vehicle towed
Have your vehicle transported on a load‐
ing platform only; otherwise, damage may oc‐
cur.◀
Tow truck
The vehicle should only be transported on a
loading platform.
Do not lift the vehicle
Do not lift the vehicle by the tow fitting or
body and chassis parts; otherwise, damage
may result.◀
Use tow fitting located in the front only for po‐
sitioning the vehicle.
Towing other vehicles
Hints Light towing vehicle
The towing vehicle must not be lighter
than the vehicle being towed; otherwise, it will
not be possible to control the vehicle's re‐
sponse.◀
Attaching the tow bar/tow rope correctly
Attach the tow bar or tow rope to the tow
fitting; connecting it to other vehicle parts may
cause damage.◀▷Switch on the hazard warning system, de‐
pending on local regulations.▷If the electrical system has failed, clearly
identify the vehicle being towed by placing
a sign or a warning triangle in the rear win‐
dow.
Tow bar
The tow fittings used should be on the same
side on both vehicles.
Should it prove impossible to avoid mounting
the tow bar at an offset angle, please observe
the following:
▷Maneuvering capability is limited going
around corners.▷The tow bar will generate lateral forces if it
is secured with an offset.
Tow rope
When starting to tow the vehicle, make sure
that the tow rope is taut.
Seite 225Breakdown assistanceMobility225
Online Edition for Part no. 01 40 2 960 466 - II/15

tertainment and Communi‐
cation
BMW Driver’s Guide App 6
BMW Homepage 6
BMW Internet page 6
BMW maintenance sys‐ tem 209
Bonus range, ECO PRO 182
Bottle holder, refer to Cu‐ pholders 167
Brake assistant 125
Brake discs, break-in 172
Brake force display 124
Brake lights, adaptive 124
Brake lights, brake force dis‐ play 124
Brake pads, break-in 172
Braking, hints 175
Breakdown assistance 222
Break-in 172
Brightness of Control Dis‐ play 96
Bulb replacement 211
Bulb replacement, front 212
Bulb replacement, halogen headlights 212
Bulb replacement, rear 217
Bulb replacement, xenon headlights 215
Bulbs and lights 211
Button, RES 133
Button, Start/Stop 68
Bypassing, refer to Jump- starting 223
C
California Proposition 65 Warning 8
Camera lenses, care 231
Camera, rearview cam‐ era 141
Camera, Side View 144
Camera, Top View 145
Can holder, refer to Cuphold‐ ers 167 Car battery 220
Car care products 229
Care, displays 231
Care, vehicle 229
Cargo 177
Cargo area, enlarging 163
Cargo area, storage compart‐ ments 167
Cargo, securing 178
Cargo straps, securing cargo 178
Car key, refer to Remote con‐ trol 38
Carpet, care 231
Car wash 228
Catalytic converter, refer to Hot exhaust system 174
CBS Condition Based Serv‐ ice 209
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 166
Center console 16
Central locking system 43
Central screen, refer to Con‐ trol Display 18
Changes, technical, refer to Safety 7
Changing parts 211
Changing wheels 219
Changing wheels/tires 197
CHARGE, energy recov‐ ery 72
Charge indicator, high-volt‐ age battery 82
Chassis number, see vehicle identification number 10
Check Control 84
Checking the engine oil level electronically 205
Checking the oil level elec‐ tronically 205
Children, seating position 64 Children, transporting
safely 64
Child restraint fixing sys‐ tem 64
Child restraint fixing system LATCH 66
Child restraint fixing systems, mounting 64
Child safety locks 67
Child seat, mounting 64
Child seats 64
Chrome parts, care 230
Cigarette lighter 161
Cleaning displays 231
Climate control 151
Clock 88
Closing/opening via door lock 43
Closing/opening with remote control 41
Clothes hooks 167
Coasting 71
Cockpit 14
Combination reel, refer to Turn signals 73
Combination switch, refer to Wiper system 74
Combustion engine, start‐ ing 70
Comfort Access 45
COMFORT program, Dy‐ namic Driving Control 128
Compartments in the doors 166
Compass 159
Compressor 198
Computer, refer to On-board computer 92
Condensation on win‐ dows 153
Condensation under the vehi‐ cle 176
Condition Based Service CBS 209
Confirmation signal 48 Seite 237Everything from A to ZReference237
Online Edition for Part no. 01 40 2 960 466 - II/15

Electronic Stability ProgramESP, refer to DSC 125
Emergency detection, remote control 39
Emergency release, fuel filler flap 189
Emergency Request 222
Emergency start function, en‐ gine start 39
Emergency unlocking, trans‐ mission lock 79
Emergency unlocking, trunk lid 45
Energy recovery, CHARGE 72
Engine, automatic stop 70
Engine compartment 203
Engine compartment, work‐ ing in 204
Engine coolant 208
Engine oil 205
Engine oil, adding 206
Engine oil additives 206
Engine oil change 207
Engine oil filler neck 206
Engine oil temperature 88
Engine oil types, alterna‐ tive 207
Engine oil types, ap‐ proved 207
Engine start during malfunc‐ tion 39
Engine start, jump-start‐ ing 223
Engine temperature 88
Entering a car wash 228
Equipment, interior 157
Error displays, see Check Control 84
ESP Electronic Stability Pro‐ gram, refer to DSC 125
Exchanging wheels/tires 197
Exhaust system 174
Exterior mirror, automatic dimming feature 62
Exterior mirrors 61 External start 223
External temperature dis‐ play 88
External temperature warn‐ ing 88
Eyes for securing cargo 178
F
Failure message, see Check Control 84
False alarm, refer to Uninten‐ tional alarm 49
Fan, refer to Air flow 153
Filler neck for engine oil 206
Fine wood, care 230
First aid kit 223
Fitting for towing, see Tow fit‐ ting 226
Flat tire, changing wheels 219
Flat Tire Monitor FTM 110
Flat tire, Tire Pressure Moni‐ tor TPM 106
Flat tire, warning lamp 107, 110
Flooding 175
Floor carpet, care 231
Floor mats, care 231
Fold down the rear seat back‐ rest, see Though-loading
system 163
Fold-out position, wiper 75
Foot brake 175
Front airbags 103
Front-end collision warning with braking function 115
Front-end collision warning with City Braking func‐
tion 113
Front fog lights 101
Front fog lights, front, bulb re‐ placement 216
Front lights 212
front-seat passenger airbags, automatic deactivation 105 Front-seat passenger airbags,
indicator lamp 105
FTM Flat Tire Monitor 110
Fuel 190
Fuel consumption, refer to Average fuel consump‐
tion 93
Fuel filler flap 188
Fuel gauge 88
Fuel lid 188
Fuel quality 190
Fuel recommendation 190
Fuel, tank capacity 235
Functions, hybrid system 32
Fuse 220
G
Garage door opener, refer to Universal Integrated Remote
Control 157
Gasoline 190
Gear change, Steptronic transmission 77
Gear shift indicator 90
General driving notes 174
Glare shield 161
Glass sunroof, powered 51
Glove compartment 165
Gross vehicle weight, ap‐ proved 235
H
Handbrake, refer to parking brake 73
Hand-held transmitter, alter‐ nating code 158
Hazard warning flashers 222
Head airbags 103
Headlight control, auto‐ matic 99
Headlight courtesy delay fea‐ ture 99
Headlight courtesy delay fea‐ ture, remote control 48 Seite 239Everything from A to ZReference239
Online Edition for Part no. 01 40 2 960 466 - II/15

Symbols in the status field 23
T Tachometer 88
Tail lights 217
Technical changes, refer to Safety 7
Technical data 234
Telephone, see user's manual for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 152
Temperature display for ex‐ ternal temperature 88
Temperature, engine oil 88
Tempomat, refer to Active Cruise Control 130
Terminal, starting aid 224
Text message, supplemen‐ tary 87
Theft alarm system, refer to Alarm system 48
Thigh support 56
Through-loading system 163
Tilt alarm sensor 49
Time of arrival 93
Tire damage 196
Tire identification marks 194
Tire inflation pressure 192
Tire inflation pressure moni‐ tor, refer to FTM 110
Tire Pressure Monitor TPM 106
Tires, changing 197
Tire sealant 198
Tires, everything on wheels and tires 192
Tires, run-flat tires 198
Tire tread 196
Tone, see user's manual for Navigation, Entertainment
and Communication
Tool 211
Top View 144 Total vehicle weight 235
Touchpad 21
Tow fitting 226
Towing 225
Tow lug, see Tow fitting 226
Tow-starting 225
TPM Tire Pressure Moni‐ tor 106
Traction control 126
TRACTION, driving dynam‐ ics 126
Transmission lock, electronic unlocking 79
Transmission, Steptronic transmission 76
Transporting children safely 64
Tread, tires 196
Trip computer 93
Triple turn signal activa‐ tion 73
Trip odometer 88
Trunk lid closing 44
Trunk lid, emergency unlock‐ ing 45
Trunk lid, hotel function 45
Trunk lid opening 44
Trunk lid, opening with no- touch activation 46
Trunk lid via remote con‐ trol 42
Turning circle 234
Turning circle lines, rearview camera 142
Turn signals, operation 73
U Unintentional alarm 49
Units of measure 96
Universal remote control 157
Unlock button, Steptronic transmission 77
Unlocking/locking via door lock 43 Unlocking/locking with re‐
mote control 41
Unlocking, settings 47
Updates made after the edito‐ rial deadline 7
Upholstery care 230
USB interface 162
V Vanity mirror 161
Variable sport steering 127
Vehicle battery 220
Vehicle battery, replac‐ ing 220
Vehicle, break-in 172
Vehicle care 229
Vehicle features and op‐ tions 7
Vehicle identification num‐ ber 10
Vehicle jack 219
Vehicle paint 229
Vehicle storage 231
Vehicle wash 228
Ventilation 154
Ventilation, refer to Parked- car ventilation 154
VIN, see vehicle identification number 10
Voice activation system 27
W Warning and indicator lamps, see Check Control 84
Warning displays, see Check Control 84
Warning messages, see Check Control 84
Warning triangle 223
Warranty 7
Washer fluid 76
Washer nozzles, wind‐ shield 75
Washer system 74 Seite 244ReferenceEverything from A to Z244
Online Edition for Part no. 01 40 2 960 466 - II/15
