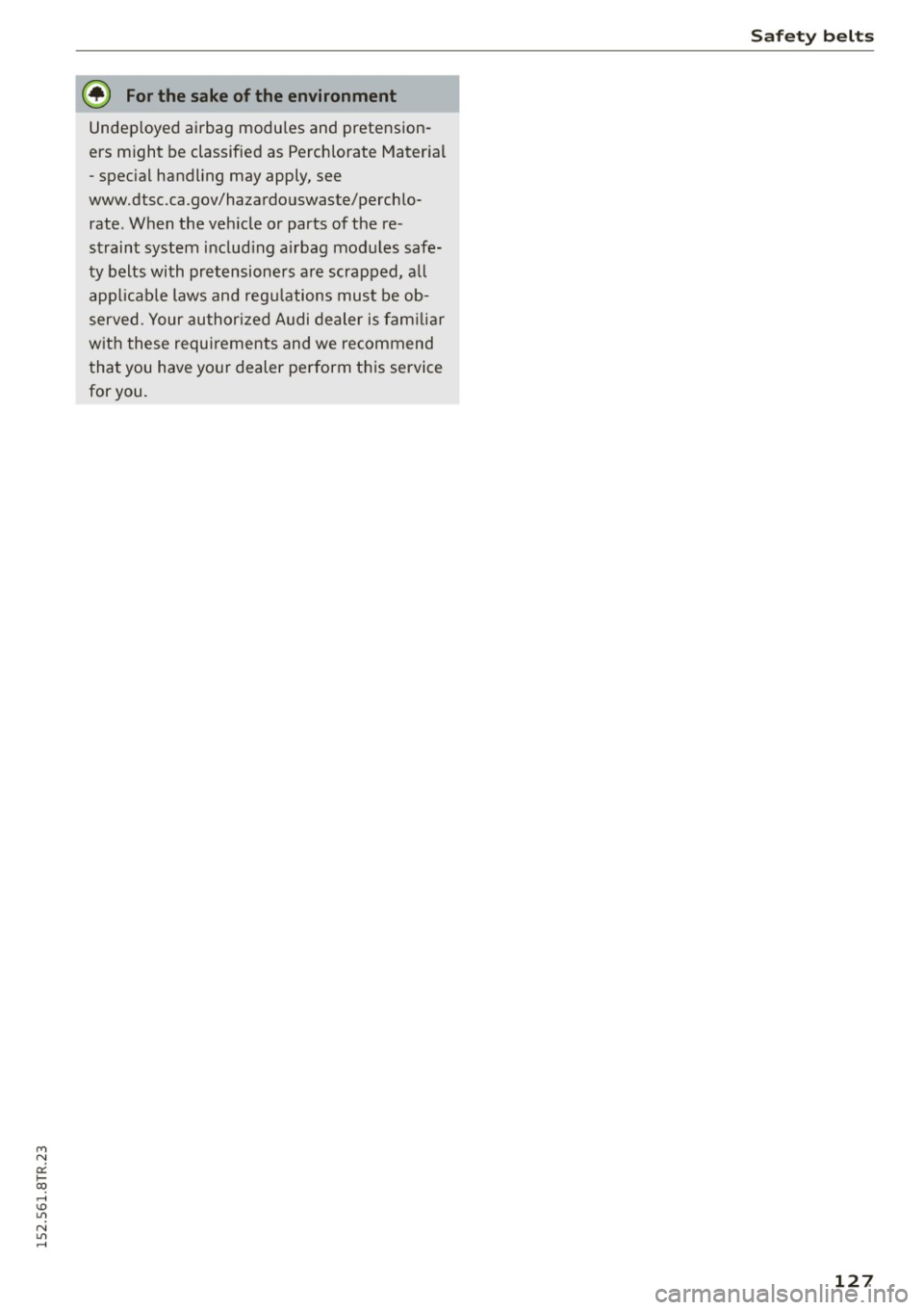

@ For the sake of the environment
Undeployed airbag modu les and pretension­
ers might be classified as Perchlorate Mater ial
- spec ial handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the veh icle or parts of the re­
straint system includ ing a irbag modules safe­
ty belts with pretensioners a re scrapped, a ll
ap plicab le laws and regu lations mus t be ob­
served. Your author ized Audi dealer is fam iliar
w ith these requi rements and we recommend
t hat you have yo ur dealer pe rform this service
for you.
Sa fety bel ts
127

Airbag system
Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­ er seating position.
For your safety and the safety of your passen­
gers, befo re driving off, always:
"' Adjust the driver's seat and steering wheel
properly
Q page 112,
"'Adjust the front passenger's seat properly
Qpage 54,
"'Wear safety be lts properly C? page 122,
"'Always properly use the proper child restraint
to protect children
Qpage 150.
In a coll is ion airbags must inflate within the blink
of an eye and with considerab le force. The sup­
p lemental airbags can cause injuries if the driver
or the front seat passenger is not seated proper•
Ly. Therefore in order to help the airbag to do its
job, it is important, both as a driver and as a pas­
senger to sit properly at all times.
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the airbag can inflate fully and
completely and provide supplemental protection
in certain frontal collisions
c> page 112, Correct
passenger seating positions.
Fo r details on the
operation of the seat adjustment controls
c>page54.
It's especially important that children are proper­
ly restrained
Qpage 150.
There is a lot that the driver and the passengers
can and must do to help the individual safety fea­
tures installed in your Audi work together as a
system .
Proper seat ing position is important so that the
front airbag on the driver side can do its job. If
you have a phys ical impairment or condition that
prevents you from sitt ing properly on the dr iver
seat with the safety be lt properly fastened and
128
reaching the pedals, specia l modifications to your
vehicle may be necessary.
Contact your authorized Audi deale r, or call Audi
Customer Relat ions at 1-800-822-2834.
When the airbag system dep loys , a gas generator
will fill the airbags, break open the padded cov­
ers, and inflate between the steering wheel and
the driver and between the instrument panel and
the front passenger. The airbags wi ll deflate im ­
mediate ly after deployment so that the front oc­
cupants can see through the w indshield again
without interruption.
All o f this takes place in the blink o f an eye, so
fast that many people don't even realize that the
airbags have dep loyed . The airbags also inflate
with a great deal of force and nothing should be
in the ir way when they deploy. Front a irbags in
combination with properly worn safety belts slow
down and lim it the occupant's forwa rd move­
ment . Together they he lp to prevent the driver
and front seat passenge r from hitting parts of
the insid e the veh icle wh ile red ucing the forces
acting on the occupant dur ing the crash. In this
way they help to reduce the risk o f injury to the
head and upper body in the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not inflate in all fronta l
collisions . The triggering of the airbag system de ­
pends on the vehicle deceleration rate caused by
the collis ion and registered by the electronic con ­
trol unit. If this rate is below the reference value
programmed into the control unit, the airbags
will not be triggered, even though the car may be
badly damaged as a result of the coll is ion . Vehi­
cle damage, repair costs or even the lack of vehi­
cle damage is not necessar ily an indication of
whether an airbag should inflate or not.
It is not possible to define a range of vehicle
speeds that w ill cover every possible kind and an­
gle of impact that will always trigger the air bags,
since the circumstances will vary considerably be­
tween one collision and another. Impo rtant fac­
tors include, for example, the nature (hard or
soft) of the object which the car hits, the angle of
impact, vehicle speed, etc . The front airbags will
IJ>-

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
also not inflate in side or rear co llisions, or in roll­
overs .
Alwa ys rememb er: Airbag s wi ll deploy on ly once,
and on ly in cer tain kinds of collisions. Your safety
b e lts a re a lways there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have already deployed; for
examp le, when your vehicle str ikes or is struck by
another after the first collision .
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most
effectively when used w ith the safety belts.
Therefore, always properly wear your safety belts
c::>page 120.
A WARNING
Sitting too close to the steer ing whee l o r in­
strument panel will decrease the effect ive­
ness of the airbags and will increase the risk
o f persona l injury in a coll is ion .
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit more than 10 inches
(25 cm) from the steer ing whee l, investi­
gate whethe r adaptive equipment may be
available to help yo u reach the peda ls and
increase your seating distance from the
steering wheel.
- If you are unrestrained, lean ing forward, sit­
ting s ideways or out of position in any way,
your risk of in jury is much higher.
- You will also receive serio us injuries and
cou ld even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag.
- To reduce the r isk of injury when an airbag
inflates, always wear safety belts properly
¢ page 123, Safety belts .
- Always make certain that children age 12 or
younger always r ide in the rear seat. If chil­
dren are not properly restrained, they may
be severely injured or killed when an airbag
inflates .
- Never let children ride unrestrained or im­
properly restrained in the veh icle. Adjust the
front seats properly.
-
Airbag syste m
- Never ride with the back rest reclined .
- Always sit as far as possible from the steer -
ing wheel o r the instrument panel
c::> page 112.
- Always sit up right with your back against
the backrest of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent serious injur ies to the legs and hips if
the airbag inflates.
- Never recline the front passenger's seat to transport objects. Items can also move into
the area of the side airbag or the front air­
bag d uring braking or in a sudden maneu­
ver. Objects near the airbags can become
p rojectiles and ca use in jury when an airbag
inflates.
A WARNING
A irbags tha t have deployed i n a crash mus t be
r eplaced.
- Use o nly orig inal equipment airbags ap ­
p rove d by Aud i an d in stalled by a trained
technici an who has the ne cessary too ls and
diagnostic equipment to properly rep lace
any airbag in yo ur vehicle and assu re system
effectiveness in a crash.
- Never permit salvaged or recycled airbags to
be installed in you r vehicle .
Child restraints on the front seat - some
important things to know
.,. Be su re to read the important information and
head the WARNI NGS for important details
about ch ild ren and Advanced Airbags
c::> page 150.
Even though your veh icle is equipped wit h an Ad ­
vanced Airbag System, make certain that a ll chil­
dren, especially those 12 years a nd you nger, a l­
ways ride in the bac k seat properly restrained fo r
the ir age and size. The airbag on the passenger
s ide makes the front seat a potent ia lly dangerous
place for a child to ride. The front seat is not the
sa fest p lace for a child in a forward-facing ch ild ..,.
129

Airb ag syst em
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants .
Fig. 131 Location of driver airbag : in steering whee l
Fig. 132 Location of front passenger's airbag: in the instru­
ment panel
Your vehicle is equ ipped with an "Advanced Air­
bag System" in compliance with Un ited States
Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicab le at the time your veh i­
cle was manufactured. The safety belts for the
seats have "pretensioners" that help to take s lack
out of the belt system . The pretensioners are also
activated by the electronic control unit for the
airbag system .
The front safety belts a lso have load limiters to
help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steer ing wheel
hub
¢ fig. 131 and the airbag for the front pas ­
senger is in the instrument panel¢
fig. 132. The
general location of the airbags is marked "AIR­
BAG".
1 32
There is a lot you need to know about the airbags
in your vehicle . We urge you to read the detailed
i nformation about airbags, safety belts and child
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers, especially infants and small children .
,&_ WARNING -
Never rely on airbags alone for protection.
- Even when they deploy, airbags provide only supp lemental protection.
- Airbag work most effectively when used with properly worn safety belts .
- Therefore, always wear your safety be lts and
make sure that everybody in your vehicle is
properly restrained.
,&_ WARNING
A person on the front passenger seat, espe­
cially infants and small ch ild ren, will rece ive
serious i nju ries and can even be killed by be­
ing too close to the airbag when it inf lates .
- Although the Advanced Airbag System in your vehicle is designed to turn off the front passenger airbag if an infant or a sma ll child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special condit ions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle .
- The Advanced Airbag System can dep loy in
accordance with the "low risk" option under
the U .S. Federal Standard if a chi ld that is
heav ier than the typical one-year old child is
on the front passenger seat and the other
conditions for airbag deployment are met.
- Accident statistics have shown that ch ildren
are generally safer in the rear seat area than
in the front seating position .
- For their own safety, all children, especially
12 years and younger, sho uld a lways ride in
the back properly restrained for their age
and size .
-

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
Advanced front airbag system
Your vehicle is equipped w ith a front Advanced
Airbag System in compliance with United States
F ederal Motor Vehicle Safety Standard 208 asap­
plicable at the time your vehicle was manufac­
tured.
The front Advanced Airbag System supplements
the safety belts to provide additiona l protection
for the driver's and front passenger's heads and
upper bodies in frontal crashes. The airbags in­
flate only in frontal impacts when the vehicle de­
celeration is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety
be lts. Rather, it is part of the overall occupant re­
straint system in your vehicle. Always remember
that the airbag system can only help to protect
you, if you are sitt ing upright, wearing your safe­
ty belt and wearing it properly . This is why you
and your passengers must always be properly re­
strained, not just because the law requires you to
be.
The Advanced Airbag System in your veh icle has
been certified to meet the "low risk" require­
ments for 3 and 6 year-old children on the pas­
senger side and very small adults on the driver
side . The low risk deployment criteria are intend­
ed to help reduce the risk of injury through inter ­
action with the front airbag that can occur, for
examp le, by being too close to the steering whee l
and instrument panel when the airbag inflates.
I n addition, the system has been certified to
comp ly with the "suppression" requirements of
the Safety Standard, to turn
off the front airbag
for infants 12 months old and younger who are
restra ined on the front passenger seat in child re­
straints that are listed in the Standard
c::> page 152, Child restraints and Advanced Air­
bags.
"Suppression" requires the front airbag on the passenger side to be turned
off if:
- a ch ild up to about one year of age is restrained
on the front passenger seat in one of the rear­
facing or forward-fac ing infant restraints listed
in Federa l Motor Veh icle Safety Standard 208
Airbag system
with which the Advanced Airbag System in your
vehicle was certified. For a listing of the child
restraints that were used to certify your veh i­
cle's compliance with the US Safety Standard
c::>page 152,
- weight less than a thresho ld level stored in the
control unit is detected on the front passenger
seat.
When a person is detected on the front passen ­
ger seat, weighing more than the tota l weight of
a child that is about 1 year old restrained in one
of the rear-facing or forward-facing infant re­
stra ints (listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your veh icle was certified), the front
airbag on the passenge r side may or may not de­
ploy.
The
PASSENGER AIR BAG OFF light comes on
whe n the electronic contro l unit detects a total
weight on the front passenger seat that requires
the front airbag to be turned
off. If the PASSEN­
GER AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not been
turned
off by the control unit and can deploy if
the control un it senses an impact that meets the
condit ions stored in its memory.
If the total weight on the front passenger seat is
more than that of a typical 1 year-old, but less
than the weight of a small adult, the front airbag on the passenger s ide may deploy (the
PASSEN­
GER AIR BAG OFF
light does not come on).
For example , the airbag may deploy if:
- a small child that is heav ier than a typical 1
yea r-old chi ld is on the front passenger seat (re ­
gardless of whether the chi ld is in one of the
child safety seats listed
c::> page 152),
- a child who has outgrown child restraints is on
the front passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light in the center of
the instrument panel wi ll come on and stay on.
T he front airbag on the passenge r sid e may
not
deploy (the PASSENGER AIR BAG OFF light does
not illuminate and stay lit) if: .,..
133

Airbag syste m
-a small adu lt or teenager is on the front pas ­
senger seat
- a passenger who is not sitting upright with
their back against a non -reclined backrest with
their feet on the vehicle floor in front of the
seat is on the front passenger seat.
I f the front passenger airbag deploys, the Federal
Standard req uires the airbag to meet the " low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag .
"Low risk" deployment occurs in those crashes
that take place at lower decelerations as defined in the electron ic control unit.¢ page
138
Alw ays re member: Even though your vehicle is
equ ipped w ith Advanced Airbags, the safest place
for children is properly restrained on the back
seat . Please be sure to read the important infor ­
mat ion in the sections that follow and be sure to
heed a ll of the WARNINGS.
_& WARNING
To reduce the ris k of injury when an airbag in­
fla tes, always wear safety belts proper ly.
- If you are unrestrained, leaning fo rward, s it­
t ing s ideways or out of position in any way,
your risk of injury is much higher .
- You w ill also receive serious inju ries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag ¢ page
128.
_& WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
ser iously injured and can be killed if the front
airbag inflates - even w ith an Advanced Airbag
System.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
airbag when a rearward -facing child re­
straint has been installed on the front pas­
senger seat, nobody can absolutely guaran­
tee that deployment is impossible in al l con­
ceivable s ituations that may happen dur ing
the usef ul life o f your vehicle .
- The inflating a irbag w il l hit the child safety
seat or infant carrier wi th great force and
134
w ill smash the child safety seat and child
aga inst the backrest, center armrest, door,
or roof.
- Always install rearward-facing chi ld re­
straints in the back seat.
- If you must insta ll a rearward fac ing ch ild
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PAS SENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your au thorized Aud i dealer .
_& WARNING
If, in exceptiona l circumstances, you must in­
stall a forwa rd-facing child restra int on the
front passenger's seat:
- Always ma ke sure the forward-facing sea t
has been des igned and certif ied by its man ­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag .
- Never p ut the fo rward-facing child restraint
up against or very near the instrument pan ­
el.
-Always move the passenger seat into its
rearmost position in the seat's fore and aft
ad justment range, as far away from the a ir­
bag as poss ible, before insta lling the for­
ward-facing child restraint. The backrest
must be adjusted to an upr ight position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ign it ion is switched on.
Advanced Airbag System components
The front passenger seat in your vehicle has a lot
of ve ry impo rtant parts of the Advanced A irbag
System in it. These pa rts include the we ight ­
sensing mat, senso rs, w iring, bracke ts, and more.
The function of the system in the front passenge r
seat is checked by the e lectronic control unit
when the ignition is on. The control unit mon itors
the Advanced Airbag System and turns the airbag i ndicator light on when a malfunct io n in the sys­
tem components is detected. The function of the
a irbag indicator light is described in greate r

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
detail below . Because the front passenger seat
contains important parts of the Advanced Airbag
System, yo u must take care to prevent it from be­
ing damaged. Damage to the seat may prevent
the Advanced Airbag for the front passenger seat
from do ing its job in a crash .
The front Ad vanced Airb ag S ystem con sis ts
of the following :
-Crash sensors in the front of the vehicle that
measure veh icle acceleration/deceleration to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electronic control unit, with integrated
crash sensors for front and side impacts . The
control unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors . T he control un it also "de­
cides" whether the safety be lt pretensioners
sho uld be activated.
- An Advanced Airbag with gas generator and
control valve for the driver inside the steering
whee l hub.
- An Advanced Airbag with gas generator and
control valve inside the instrument panel for
t h e front passenger.
- A weig ht-sensing mat under the upholstery
padding of the front passenger seat cushion
that meas ures the tota l weight on the seat. The
information registered is sent contin uous ly to
the electronic control unit to regulate deploy­
ment of the front Advanced Airbag on the pas­
senger side.
- An airbag monitoring system and indicator
light in the instrument cluster
¢ page 138.
-A sensor in each front seat registers the dis­
tance between the respect ive seat and the
steering wheel or instrument panel. The infor­
mation registered is sent cont inuously to the
elect ron ic cont ro l unit to regulate deployment
of the front Advanced Airbags.
- T he
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the i nstrument
pane l¢
page 138, fig . 134 and tells you when
the front Advanced Ai rbag on the passenger
side has been turned
off .
-A sensor below the safety belt la tch fo r the
front seat passenge r to measure the tension on
Airbag syste m
the sa fe ty belt. The tens ion on the safety be lt
and the weight registered by the weight -sens­
ing mat he lp the control unit "decide" whether
the front a irbag for the front passenger seat
should be turned
off or not¢ page 129, Child
restraints on the front seat- some important
things to know.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transm its this informat ion to the elect ro nic
cont ro l unit.
A WARNING
D amage to the fron t passenger seat can pre­
vent the fron t air bag from working prope rly.
- Imp roper repai r or d isassembly of the front
passenger and driver sea t will prevent the
Advanced Airbag System from functioning properly .
- Repairs to the front passenge r seat must be
performed by qualified and p roperly trained
workshop personne l.
- Never remove the front passenger or driver seat from the vehicle .
- Never remove the upho lstery from the front
passenger seat.
- Never d isassemble o r remove par ts from the
seat or disconnect w ires from it.
- Never carry sh arp objects in yo ur po ckets or
p la ce them on t he seat.
If the weight-sens­
ing mat in the passenger seat is punctu red
it cannot work properly .
- Never carry things on yo ur lap or carry ob ­
jects on the passenger seat. S uch items can
increase the we ight registe red by the
weight-sensing mat and send the wrong in­
formation to the airbag control unit.
- Never store items under the front passenger
seat . Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, p reventing them and the airbag sys­
tem from wo rking prope rly.
- Never p lace seat covers or rep lacement up­
holstery that have not been specifically ap­
p roved by Aud i on the front seats.
- Seat cove rs can prevent the Advanced Air­
bag Sys tem from recogniz ing child
1 3 5

Airbag system
restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
weight-sensing mat in the seat from accu­ rately registering the child restraint or per­
son on the seat and prevent the Advanced
Airbag System from functioning properly.
- If you must use a child restraint on the front
passenger seat and the child restraint man­
ufacturer's instructions require the use of a
towel, foam cushion or something else to
properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position
and have the airbag system inspected by
your authorized Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-point safety belts with pretensioners and load limiters and the adjustable head re­
straints to help reduce the risk of injury in a wide
range of accident and crash situations. Be sure to
read the important information about safety and
heed the WARNINGS in this chapter.
Deployment of the Advanced Airbag System and
the activation of the safety belt pretensioners de­
pend on the deceleration measured by the crash
sensors and registered by the electronic control
unit . Crash severity depends on speed and decel­
eration as well as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger side, regardless of safety belt
use, the airbag will be turned off if the weight on
the passenger seat is less than the amount pro­
grammed in the electronic control unit . The front
136
airbag on the passenger side will also be turned
off if one of the child safety seats that has been
certified under Federal Motor Vehicle Safety
Standard 208 has been recognized on the seat.
The
PASSENGER AIR BAG OFF light comes on
and stays on to tell you when the front Advanced
Airbag on the passenger side has been turned off
¢ page 129, Child restraints on the front seat ­
some important things to know .
.&_ WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­
ting sideways or out of position in any way,
your risk of injury is much higher.
- You
will also receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag
r::!;>page 128.
More important things to know about front
airbags
Fig. 133 Inflated front airbags
-,... N 0 :i: ;;i;
Safety belts are important to help keep front seat
occupants in the proper seated position so that
airbags can unfold properly and provide supple­
mental protection in a frontal collision.
The front airbags are designed to provide addi­
tiona l protection for the chest and face of the
driver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the oc-
cupant is properly seated as far as possible
from the airbag, .,._
