2015 AUDI Q7 set clock

M
"' 0 _,
"". rl I.O
"' rl
"' rl
Instrument s and warning /indicator lights 11
too high, or the coolant level is too low
¢ page 32.
If the needle is well in the upper area of the
ga uge , the coolant temperature is too high.
Stop the vehicle , switch the eng ine off and
allow the engine to cool.
If the warning light
comes on again after driving a short distance,
contact an authorized dealer.
A WARNING
- Always observe the warning in
¢
page 256, before opening the hood
and checking the engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment.
You could bu rn yourself. Let the engine
cool off first until you can no longer see
or hear steam or coolant escaping.
0 Note
- Mount ing additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the radiator. At h igh outside
temperatures or high eng ine load , the
engine could overheat.
- The front spo iler has been designed to
properly distribute the cooling air when
the veh icle is moving. If the spoiler is
damaged, this cou ld reduce the cooling
effect and the engine could then over­ heat. Ask your authorized Audi dealer for
ass istance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
The tachometer @¢ page 10, fig. 3 is the left
of the two large clock-type displays.
The engine turns at a speed 1,000
times the
single digit in the display, e.g . if the needle is
pointing at the "2" the engine is turning at
2,000 RPM.
If engine RPM drops be low 1,500, you should
downshift to the next lower gear. The red area at
the end of the scale indicates maximum
permissible engine RPM after the break-in pe­
riod. Before reaching this area , move these­
lector lever to position D (Drive) or ease your
foot off the accelerator pedal.
(D Note
The tachometer needle should not move
into the red range. If it does, then only for
a very short per iod of t i me. You could
damage your engine by driving at high RPM .
@) For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise .
Digital clock with date display
Fig. 4 In st ru m en t cluster : time a nd da te
The date, time of day, and time and date for ­
mat can be set in the MMI. You can learn more
about this in the MMI manual.
(D Tips
-When open the driver door, the time,
date and odometer are disp layed for an
add itional 30 seconds.
- You can also call up the display with the
!CHECK I button q page 12 while the ig­
nition is sw itched off.

12 Instruments and warning/indicator lights
Speedometer with odometer
The speedometer shows you the vehicle
speed, and the odometer shows you how
many miles (kilometers) you have driven.
Fig. 5 Instrument cluster Odometer and reset button
The odometer and trip odometer are located
inside the speedometer.
- USA mode ls - Miles
- Canada models -Kilometers
You can switch the display from miles to kilo­ meters and vice versa via the MMI. You can
find out more in the MMI manual.
Lower odometer
The lower odometer shows the total number
of mi les (kilometers) driven.
Upper odometer (trip odometer)
The upper odometer shows the tota l number
of mi les (kilometers) driven since you last re­
set the odometer to zero. You can use this od­
ometer when you want to keep track of how many miles (k ilometers) you have driven for a
single trip or errand. The last digit indicates
1/10 of a mile (100 meters).
You can reset the trip odometer to zero by
pressing the Reset button
~o.
Malfunction message
If there is a malfunction somewhere in the in­
strument cluster,
dEF will appear in the trip
odometer and will stay on. Contact your au ­
thorized Audi dealer to have the problem cor­
rected.
(D Tips
- When you open t he driver door, the time,
date and odometer are disp layed for an
add itiona l 30 seconds.
- You can also call up the display with the
I CHECK I button c> page 12 while the ig­
nition is switched off.
Fuel gauge
The fue l gauge only works when the ignition is
on .
When the needle reaches the reserve mark,
the
c> page 35 mJ symbol appears in the in­
strument cluster d isplay as well as the mes ­
sage
Please refuel. This message is meant to
remind you to
refuel.
The total tank capacity of your vehicle is listed
in
.:> page 325 .
@ Note
Never run the tank completely dry. An ir­
regular supply of fuel can cause engine
misfiring and fuel could enter the exhaust
system. The catalytic converter could then
overheat and be damaged.
~ button
Fig. 6 CHECK b utto n in the instrument clus ter
The !CHECK I button performs the follow ing
funct ions:
Switching on the clock and odometer
With the ignition turned off, the odometer
reading and the dig ita l clock with date display ..,_

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
If you must add coolant, use a mixture of wa­
ter and coolant additive. Mixing the coolant
addit ive with distilled water is recommended .
.&_ WARNING
Before you check anything in the engine
compartment, always read and heed all
WARNINGS
¢ .&. in Working in the engine
compartment on page 256 .
(D Note
-Before winter sets in, have the coolant
checked to see if the coolant additive in
your vehicle is suffic ient to meet the cli ­
mate cond itions . Th is is especially impor­
tant if you live in a region where the w in­
te r is extremely cold. If necessary, in­
crease the proport ion of coolant additive
to 60% .
- When adding coolan t addi tive to you r
cooling system , remember:
- We recommend using only coolant ad­ ditive G12 ++ or G13 for your vehicle.
This coo lant additive is available at au­
thorized Aud i dealers . Other types of
antifreeze can significantly reduce cor­
rosion protection . Th e resu lting co rro­
sion c an cause a loss of coo la nt and se­
r ious engine damage.
- Do not add a ny type of radiator leak sea l­
ant to your veh icle's engine coo lant.
Adding rad iator repair fluid may adverse ­
l y affect the function and performance of
your cooling system and could result in damage not covered by your New Vehicle Limited Warranty.
-
Checkin g and fillin g 263
Checking the engine coolant level
The engine coolant level can be checked with
a quick glance .
F ig . 2 4 6 En gin e compar tmen t: Coolant expan sio n ta nk
Befo re you check anyth ing in the eng ine com ­
partment,
alw ays r ead and he ed all WARN­
INGS ¢ A in Working in the engine comport­
ment on page 256 .
.,.. Park your vehicle on a level su rface.
.,.. Tu rn
off t he ignition .
.,.. Let the engine cool down.
.,.. Plac e a thick rag over the coolant expans ion
tank ¢
fig. 246, ¢ page 258, fig. 242 and
carefull y twist the cap counter-clockwise
¢_&. .
.,.. Read the engine coolant level in the open
coo lant expansion tank. W it h a co ld eng ine,
the coolant leve l should be between the
"min " and "max" markings. W hen the en­
gi ne is wa rm, the level may be slightly above
t he "max" marking.
T he location of the coo lant expansion tank
can be seen in the engi ne compa rtment illus­
trat ion
¢ page 258 .
To obtain an accu rate reading, the engine
must be switched off.
The expansion ta nk in your vehicle i s equ ipped
with an electric coolant level sensor .
When the coolant leve l is too low, the warning
light i n the Auto-Check System¢
page 32 will
blink unti l you add coolant and the level has
been restored to normal. Even though there is
an electric coo lant level senso r, we still rec­
ommend you check the coolant level from
t ime to t ime .

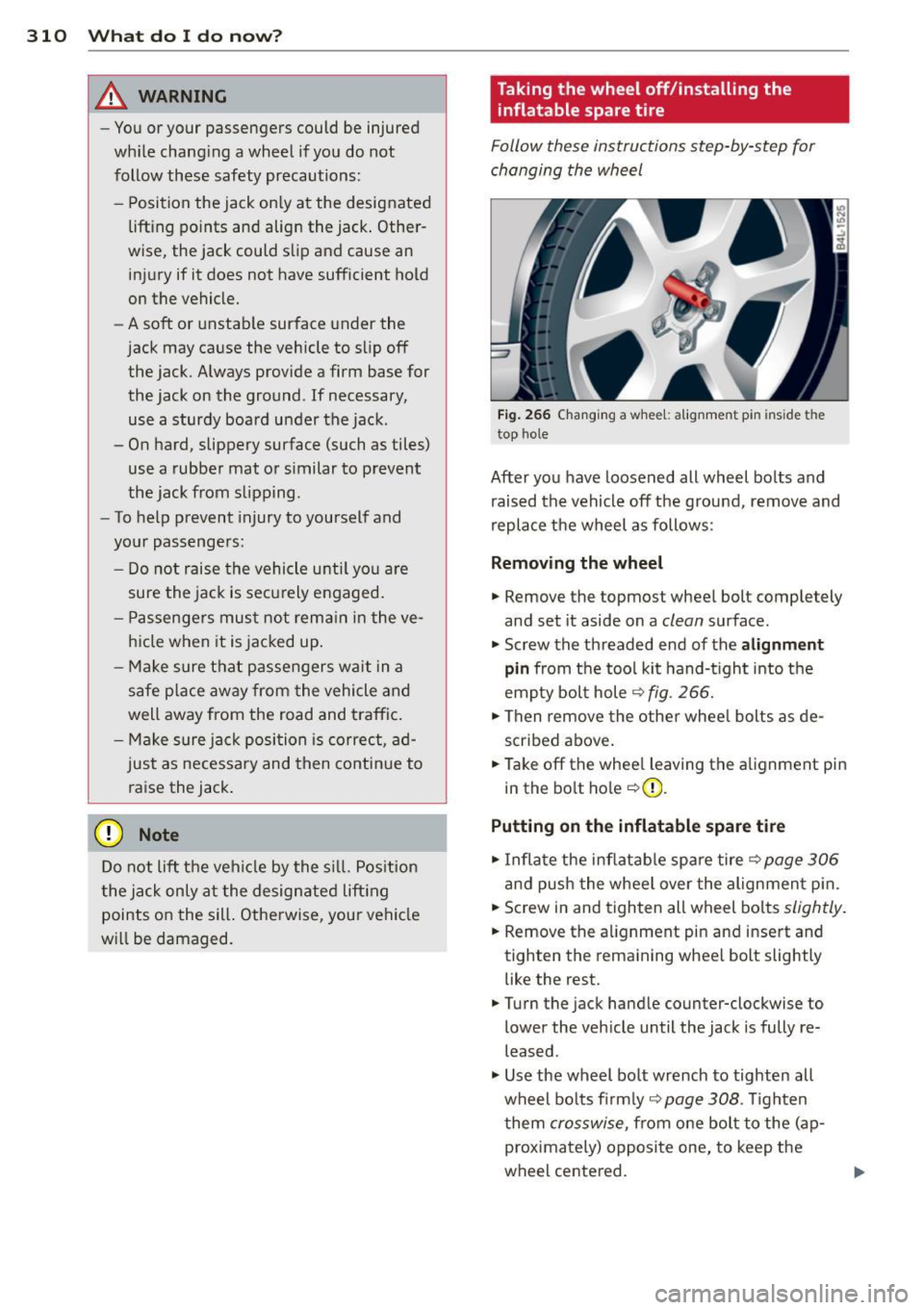

310 What do I do now?
& WARNING
-You or your passengers could be injured
while changing a wheel if you do not
follow these safety precautions:
- Position the jack only at the designated
lifting points and align the jack. Other­
wise, the jack could slip and cause an injury if it does not have sufficient hold
on the vehicle.
- A soft or unstable surface under the
jack may cause the vehicle to slip off the jack. Always provide a firm base for
the jack on the ground . If necessary,
use a sturdy board under the jack.
- On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent
the jack from slipping.
- To help prevent injury to yourself and
your passengers:
- Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the vehicle and
well away from the road and traffic.
- Make sure jack position is correct, ad­
just as necessary and then continue to
raise the jack.
(D Note
Do not lift the vehicle by the sill. Position
the jack only at the designated lifting
points on the sill. Otherwise , your vehicle
will be damaged.
Taking the wheel off /installing the
inflatable spare tire
Follow these instructions step-by-step for
changing the wheel
Fig. 266 Changing a wheel: alignment pin inside the
top hole
After you have loosened all wheel bolts and raised the vehicle off the ground, remove and
replace the wheel as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
and set it aside on a
clean surface.
.,. Screw the threaded end of the
alignment
pin
from the tool kit hand-tight into the
empty bolt hole
¢ fig . 266.
.,. Then remove the other wheel bolts as de­
scribed above.
.,._Takeoff the wheel leaving the alignment pin
in the bolt hole ¢(D.
Putting on the inflatable spare tire
.,. Inflate the inflatable spare tire ¢ page 306
and push the wheel over the alignment pin.
"Screw in and tighten all wheel bolts
slightly.
.,. Remove the alignment pin and insert and
tighten the remaining wheel bolt slightly
like the rest .
.,. Turn the jack handle counter-clockwise to
lower the vehicle until the jack is fully re­
leased .
" Use the wheel bolt wrench to tighten all
wheel bolts firmly ¢
page 308 . Tighten
them
crosswise, from one bolt to the (ap­
proximately) opposite one, to keep the
wheel centered.

334 Index
Controls .... .. .. ..... ... .. .. .... .. 95
Defrosting/defogging . . . . . . . . . . . . . . . 97
Descr ipt ion .. .. ... .... ... .. .. .... .. 94
Energy management . . . . . . . . . . . . . . . . 94
Fan . .. .. .... ........... ........ .. 97
Front seat ventilation ...... ... .. ... 103
H eated seats, front ....... .. .. .. .. . 103
Key coded sett ing .............. ..... 94
Recircu lation mode (automatic) . .. ... 102
Recommended se ttings .............. 94
Residua l heat ... ...... ... .. .. .... .. 96
Setting the temperature ... .. .. .... . .
9 7
Supp lementary heater ... .. .. ... ... . 103
Synchron izat ion ............ .. .... . 102
Turn ing on and off ........ .. .. .... .. 96
Using climate control economically .. .
100
Clock ... .... ... . ...... ... .. .. .... .. 1 1
C losing
P anoramic slid ing su nroof .. .. .. .. .. . .
55
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cold ti re inflat ion p ressure ... .. .. .... . 278
Compass m irror ..... ...... .. .. .. .. .. 72
Comp liance .. ............. .. .. .. ... 329
Consumer Info rmation . . . . . . . . . . 1 70, 326
Contact ing NHTSA ...... .... ... .... .
170
Controls
Cleaning ... ... .. ..... ... .. .. .... .
245
Conve nience key ........... .. .. .... .. 49
Dr iver messages ........ .. .. .. .. .. . 1 10
Lock ing vehicle . .. ..... ... .. .. .... .. 50
START button .. .. ..... ... .. .. .... . 109
Starting engine ....... ... .. .. .... . 109
STOP button ............... .. .... . 110
Switching engine off ............... 110
Switching on ignition .. ..... ..... .. . 109
Unlock ing vehicle .......... ... .. .... 49
Convertible c hil d safety seats . ... .. .. . 210
Conve rtible locking retracto r
Activating ........................
215
Deactivating . .. .. ..... ... .. .. .... . 216
Using to secure a chi ld safety seat
213, 2 15
Coolant system ................. .... 262
Cooling box in g love compartment .. ....
91
Cooling System
Expansion tank . .. ..... ... .. .. .... . 263
Corner ing light .. .... ...... .. .. .. .. .. 62 Cruise cont
ro l
Changing speed .. .. ... ..... ... .. ..
113
Presett ing your speed . . . . . . . . . . . . . . 114
Switching off ..................... 114
Switching on ..... ............. .... 113
Warning/ind icator lights ........... .. 18
also refer to Adaptive cruise control ... 115
Cruising range . . . . . . . . . . . . . . . . . . . . . . . 24
(u pholder . . . . . . . . . . . . . . . . . . . 81, 88, 89
D
Damp ing
refer to Adapt ive A ir Suspension . 157, 159
Data recorder ... .. ............. .. .. 223
Date d is p lay . . . . . . . . . . . . . . . . . . . . . . . . 11
Daytime run ning l ights. . . . . . . . . . . . 60, 61
Declarat ion of compliance
Adaptive cruise control .............
329
Audi side ass ist ................... 329
Cell phone package ................ 329
Convenience key .. .. ... ....... ... .. 329
E lectronic immob ilizer ............. . 329
Homelin k universal remo te control ... 3 29
Remote con tro l key ............ .... 3 29
Decorative parts/tr im
Cleaning ...... .................. .
244
def
What does this mean when it appears in
the tr ip odometer display? ...........
12
Defective light bu lb warning . ... .. .. .. . 23
Defrost ing/defogg ing the w indows ... .. . 97
Defrost ing/defogging windows ......... 99
De term ining co rrect load limit ........
288
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . 249
Diesel pa rticulate f ilter . . . . . . . . . . 36, 231
Digital cloc k . . . . . . . . . . . . . . . . . . . . . . . . 11
Digital compass . . . . . . . . . . . . . . . . . . . . .
72
Digital speedometer . . . . . . . . . . . . . . . . . . 22
Dime nsio ns .. ... ...................
324
D imming the rearview mirror ... .. .. .. . 71
D ip st ick
Reading the d ipst ic k properly ........ 260
Displays Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .
245
Distance control system
refer to Adapt ive cruise control ..... .. 115
