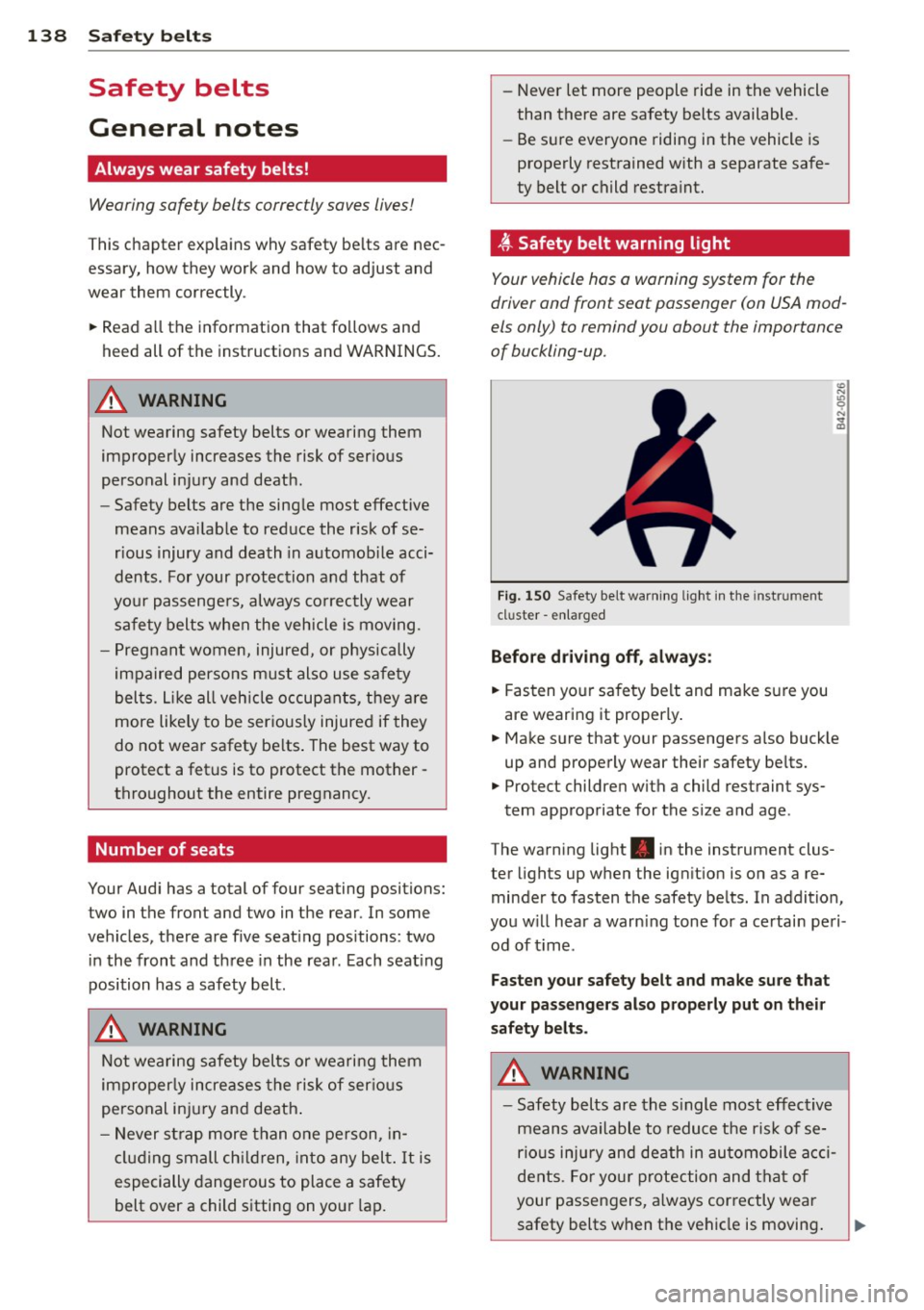

138 Safety belts
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are nec­
essary, how they work and how to adjust and
wear them correctly.
.. Read all the information that follows and
heed all of the instructions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death.
- Safety belts are the single most effective
means available to reduce the risk of se­
rious injury and death in automobile acci­
dents . For your protection and that of
your passengers, always correctly wear
safety belts when the vehicle is moving .
- Pregnant women, injured, or physically
impaired persons must also use safety
belts. Like all vehicle occupants, they are
more likely to be seriously injured if they
do not wear safety belts. The best way to
protect a fetus is to protect the mother -
throughout the entire pregnancy.
Number of seats
Your Audi has a total of four seating positions: two in the front and two in the rear . In some
vehicles, there are five seating positions : two
in the front and three in the rear . Each seating
position has a safety belt.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death.
- Never strap more than one person, in­
cluding small children, into any belt.
It is
especially dangerous to place a safety
belt over a child sitting on your lap. -
Never let more people ride in the vehicle
than there are safety belts available.
- Be sure everyone riding in the vehicle is
properly restrained with a separate safe­
ty belt or child restraint.
~ Safety belt warning light
Your vehicle has a warning system for the
driver and front seat passenger (on USA mod­
els only) to remind you about the importance
of buckling-up.
Fig. 150 Safety belt warning light in the instr ument
cluster -enlarged
Before driving off, always:
.. Fasten your safety belt and make sure you
are wearing it properly.
.. Make sure that your passengers also buckle
up and properly wear their safety belts.
.. Protect children with a child restraint sys-
tem appropriate for the size and age .
The warning light . in the instrument clus­
ter lights up when the ignition is on as a re­
minder to fasten the safety belts. In addition,
you will hear a warning tone for a certain peri ­
od of time .
Fasten your safety belt and make sure that
your passengers also properly put on their
safety belts.
A WARNING
-- Safety belts are the single most effective
means available to reduce the risk of se­
rious injury and death in automobile acci­
dents . For your protection and that of
your passengers, always correctly wear
safety belts when the vehicle is moving.

M N <( I.J ' "' ,....,
"' rl
-Failure to pay attention to the warning
light that come on, could lead to person­
al injury.
Why safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for
people riding in vehicles .
Fig. 151 Unbe lted occupants in a vehicle heading for a
wall
Fig. 152 The vehicle crashes into the wall
The physical principles are simple. Both the
veh icle and the passengers possess energy
which varies w ith veh icle speed and body
weight . Engineers call this energy "kinetic en­
e rgy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Vehicle speed is the most significant factor. If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the ene rgy increases 4 times!
Because the passengers of th is veh icle are not
using safety belts
c:::;, fig. 151, they will keep
mov ing at the same speed the vehicle was
mov ing just befo re the crash, unt il something
stops them - here, the wall ¢
fig. 152.
Safety belts 139
The same principles apply to people sitting in
a vehicle that is involved in a frontal collision .
Even at city speeds of 20 to 30 mph (30 to 50
km/h), the forces acting on the body can
reach one ton (2,000 lbs, or 1,000 kg) or
more . At greater speeds, these fo rces are even
highe r.
Peop le who do not use safety belts are also
not attached to their vehicle . In a frontal colli­
s ion they will also keep moving forward at the
speed their veh icle was travel ling just before
the crash . Of co urse, the laws of physics don't
just app ly to frontal collisions, they determine
what happens i n all k inds of a cc ident s and col­
li s ions.
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
Fig . 1 53 A driver not wearing a safety belt is violently
th row n forwa rd
F ig. 154 A rear passenger not wearing a safety belt
will fly forward and strike the driver
Un belted oc cupants a re not able to resist the
tremendous forces o f impact by hold ing tight
o r bracing themse lves. Without the benefit of
safety restraint systems, the unrestra ined .,..

M N <( I.J "". rl I.O
"' rl
"' rl
Important safety instructions about
safety belts
Safety belts must always be correctly posi­
tioned across the strongest bones of your
body.
~ Always wear safety belts as illustrated and
described in this chapter.
~ Make sure that your safety belts are always
ready for use and are not damaged.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly.
- Always fasten your safety be lts correctly
before driving off and make sure all pas­
sengers are correctly restrained.
- For maximum protection, safety belts must always be positioned properly on
the body .
- Never strap more than one person, in­
cluding small children, into any belt.
- Never place a safety belt over a child sit­ ting on your lap.
- Always keep feet in the footwell in front
of the seat while the vehicle is being d riv­
en .
- Never let any person ride with their feet
on the instrument panel or sticking out
the window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving. Doing so will increase
your risk of be ing injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable
objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these may cause injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of posi ­
tion .
Safety belts 141
-Several layers of heavy clothing may in­
terfere with correct positioning of belts and reduce the overall effectiveness of
the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely .
- Never use comfort clips or devices that
create slack in the shoulder belt . Howev­
er, special clips may be requ ired for the
proper use of some child restraint sys­
tems .
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an
accident. Inspect belts regularly.
If web­
bing , bindings, buckles, or retractors are
damaged, have belts replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer. Replace­
ment may be necessary even if damage
cannot be clearly seen . Anchorages that
were loaded must also be inspected.
- Never remove, modify, disassemble, or
try to repair the safety belts yourself.
- Always keep the belts clean. Dirty belts
may not work properly and can impair
the function of the inertia reel~
ta­
ble Cleaning interior on page 214.
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
Fig. 156 B el t b uckle and to ngue on the drive r's seat

142 Safet y belt s
To provide maximum protection, sa fety belts
must always be positioned correctly on the
wearer 's body .
.,. Adjust the front seat and head restr aint
properly ¢
page 53, General recommenda­
t ions .
.,. Make sure the seatback of the rear seat
bench is in an upright pos ition and securely
latched in place before using the belt¢.&,.
.,. Hold the be lt by the tongue and pull it even ­
ly across the chest and pelvis ¢ .&, .
.,. Inse rt the tongue into the correct buckl e of
yo ur sea t until you hea r it latc h securely
¢fig. 156.
.,. Pull on the be lt to make sure that it is se-
curely latched in t he buckle.
Automatic safety belt retractors
Every safety belt is equipped w ith an automat­
i c belt retracto r on the shoulder be lt. This fea­
ture locks the be lt whe n the belt is pulled out
fast, dur ing hard braking and i n an accident.
The belt may also lock when yo u drive up or
down a steep hill or throug h a sharp curve.
During normal driv ing the belt lets you move
freely.
Safety belt pretensioners
The sa fety belts are equipped with a be lt pre ­
tensioner that helps to tighten the safety be lt
and remove s lack when the pretensione r is ac ­
tivated ¢
page 145 . The function of the pre­
tensioner is mon it ored by a warning light
¢ page 19.
Convertible locking retractor
Every safety belt except the one on the driver
seat is eq uipped w ith a convertib le loc king re­
tractor that
must be used when the safety
be lt is used to attach a child seat. Be su re to
read the important information about this
featu re
¢ page 184 .
.,& WARNING
Imprope rly positioned safety belts can
cause se rious injury in an accident
¢ page 14 2, Safety bel t posi tion.
- Safety belts offer opt imum protection
only when the seatback is upr ight and
be lts are properly posit ioned o n the
body .
- Always make sure that the rear seat
backrest to wh ich the center rear safety
be lt* is attached is securely latched
wheneve r the rea r center safety belt is
be ing used.
If th e bac krest is not secu re­
ly latched, the passenge r will move fo r­
ward with the ba ckr est dur ing s udden
brak ing, in a sudden maneuver and es pe­
cially in a crash.
- Never at tach the safety bel t to the buck­
le for ano ther seat. Attaching the belt to
the wron g buckle will reduce safety be lt
effectiveness and can cause serio us per­
sonal injury .
- A passenger who is not proper ly restrain­
ed can be seriously injured by the safety
be lt itself w hen it moves from the stron­
ger parts of the body into cr itical areas
like the abdomen .
- Always lock the conve rtible locking re­
tracto r when you are secu ring a child
seat in the vehicle ¢
page 186.
(D Tips
For inf ormation on safety belt pretension­
ers, refer to¢
page 145.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts.
Fi g. 157 Safety bel t pos it ion
"' .... 0
~ CD

M N <( I.J "". rl I.O
"' rl
"' rl
Use the height adjustment to change the posi­
tion of the shoulder belt of the front safety
belts.
.&_ WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent.
-
- The shoulder belt should lie as close to
the center of the collar bone as possible
and should fit well on the body. Hold the
belt above the latch tongue and pull it
evenly across the chest so that it sits as
low as possible on the pelvis and there is
no pressure on the abdomen. The belt
should always fit snugly¢
fig. 157. Pull
on the belt to tighten if necessary.
- A loose-fitting safety belt can cause seri­
ous injuries by shifting its position on
your body from the strong bones to more
vulnerable, soft tissue and cause serious injury.
- Always read and heed all WARNINGS and
other important information
¢ page 141.
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make
sure that expectant mothers always wear
safety belts correctly -throughout the preg­
nancy.
Fig. 158 Safety belt pos itio n during pr egnancy
To provide maximum protection, safety belts
must always be positioned correctly on the
wearer's body
¢ page 142.
Safety belts 143
.. Adjust the front seat and adjustable head
restraint* correctly ¢
page 53, General rec­
ommendations .
.. Hold the belt by the tongue and pull it even­
ly across the chest and pelvis ¢
fig. 158,
¢& .
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
r=:;, page 141, fig. 156 .
.. Pull on the belt to make sure that it is se­
curely latched in the buckle.
A WARNING
-
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent.
- Expectant mothers must always wear the
lap portion of the safety belt as low as
possible across the pelvis and below the
rounding of the abdomen.
-Always read and heed all WARNINGS and
other important information¢ &.
in Fas­
tening safety belts on page 142.
Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped.
,,,,,
Fig. 159 Re leas ing the tong ue from the buck le
.,. Push the red release button on the buckle
r=:;, fig. 159. The belt tongue will spring out
of the buckle
r=:;, .&, .
0 ...
"' 0 ±
~
.,. Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position.
Ill>

144 Safet y belt s
A WARNING
Never unfasten safety belt while the vehi­
cle is moving. Doing so will increase your
r isk of being injured or killed .
Adjusting safety belt height
With the aid of the safety belt height adjust­
ment, the three point safety belt strap rout­
ing can be fitted to the shoulder area, accord ­
ing to body size .
Fig. 160 Safety belt height adjustment for the front
sea ts - loop -around f ittings
The shoulder belt should lie as close to the
center of the collar bone as possible and
should fit well on the body¢
A in Safety belt
position on page 143.
,. Push
the loop-around fittings up ¢fig. 160
@ , or
"'"squeeze together the@ button, and push
the loop-around fitt ings down @.
"'" Pull the belt to make sure that the upper at­
tachment is p roperly engaged.
A WARNING
Always read and heed a ll WARNINGS and
other important information¢
page 141 .
@ Tips
With the fron t seats, the height adjust­
men t of the seat can also be used to adjus t
the posit ion of the safety be lts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries .
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can o nly
work when they are correctly positioned on
the body . Improper seating pos itions reduce
the effectiveness of safety belts and will even
i ncrease t he risk of injury and death by mov­
ing the safety be lt to crit ica l areas o f the
body. Improper seating positions also in­
crease the risk of serious injury and death
when an airbag deploys and strikes an occu­
pant who is not in the correct seating posi­
tion. A driver is respons ible for the safety of
all veh icle occupants and especially for chil­
dren . Therefore:
"'" Never permit anyone to assume an incorrect
sitting position in the vehicle while traveling
¢&_ .
A WARNING
Improperly worn safety be lts increase the
r isk of ser ious persona l injury and death
whenever a vehicle is being used.
- Always ma ke sure that all vehicle occ u­
pants are co rrectly restra ined and stay in
a correc t seating position whe never the
veh icle is being used .
- Always read and heed all WAR NINGS a nd
o ther important inform ation
¢page 141.

M N <( (.J
'SI: ...... \!) ..,.,
...... ..,., ......
Safety belt preten­
sioners
How safety belt pretensioners work
In fron t, side and rear-end collisions above a
parti cular severi ty and in a rollover, safety
b e lts ar e te nsion ed automatically .
Reversible safety belt tensioners
The safety belts on the front seats are equip­
ped wit h power reve rsible tensioners . T he fo l­
l ow ing f un ct ions are available w hen the dr iv ­
e r' s/fron t passenger 's sa fety bel ts are fas­
tened :
- Automatic tensioners: at the start of a d rive,
the safety be lts automatically adjust to the
passenge r aft er a certai n time period o r ve­
hicle speed. To switch the automa tic ten­
s ioners off, select the fo llow ing in the M MI:
I CAR I funct ion button > (Car )* systems > Ve·
hide sett ings
> Seats > Driver 's seat or Pas ­
senger's seat
> Automat ic belt tensione r >
Off.
-In certa in driving situations, the safety belts
may t ighten with a reversib le tensioning
function
¢ page 192.
-The safety belts may also tighten w ith this
r evers ible tension ing funct ion in mino r colli­
s ions .
Pyrotechnic safety belt pretensioners
The safety be lts are equipped with safety be lt
pretensioners. The system is activated by sen­
s o rs in fron t, side and rear-end collisions of
great severity and in a rollover . Th is tightens
the bel t and takes up be lt slack ¢&.
in Service
and disposal of safety belt pre tensioner on
page 146.
T aking up the s lack helps to redu ce
forward occup ant movemen t during a colli ­
sion.
A WARNING
- It is possib le for the pre tensioners to de­
ploy i ncor rect ly .
- T he pyrotechnic sys tem can only provide
protection for one co llision. If the pyro -
Safety belts 145
technic pretensioners deploy, the preten­
sioning system must be replaced .
(D Tips
The pyro technic safety be lt pretensioners
ca n only deploy once .
- T he safety bel t pretensioners do not de­
ploy in minor frontal and s ide collisions,
in rear-end co llisions, i n rollovers and in
co llisions involving very little impact
f o rce.
- A fine dust is released w hen the py ro­
technic safety be lt pretensioners dep loy.
Th is is normal and is not caused by a fire
in the vehicle.
- The re levant safety requi rements must
be observed when the vehicle or compo­
nents of the system are scrapped . A
qualified dealership is fam iliar with
these regulations and will be please d to
pa ss o n the information to yo u.
- Be sure to observe all safety, env iron­
ment al and ot her regu la tio ns if t he ve hi­
cle or ind ividu al p ar ts of t he system, par­
t ic ular ly the s afe ty belt or airbag, are to
be disposed. We recommend you have
your authorized A udi dealer perform this
service fo r you .
Service and disposal of safety belt
pretensioner
The safety belt pretens ione rs are parts of the
saf ety be lts on your Aud i. Insta lling, remov­
i ng, se rv ici ng o r repair ing of be lt pre tension­
ers can dam age the safe ty belt sy stem and
prevent it from working correctly in a co lli­
sio n.
T he re a re some impo rtan t thi ngs you have to
kn ow to m ake su re th at the effectiveness o f
t h e sys tem w ill not be impaired and tha t dis­
ca rded components do not cause injury o r pol -
lu te the environment . ..,_ •
•

146 Safety belts
,8. WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing a safety belt
pretens ioner from act ivat ing when needed
or act ivat ing it unexpectedly:
- The belt pretensioner system can be acti­
vated only once. If belt pretens ioners
have been act ivated, the system must be
replaced.
- Never repair, adjust, or change any parts
of the safety belt system.
- Safety belt systems includ ing safety be lt
pretensione rs cannot be repaired. Spe­
ci al procedures are required for removal,
installation and disposal of this system.
- For any work on the safety belt system,
we strongly recommend that you see
your authorized Audi dealer or qualified
technician who has an Audi approved re­
pair manual, training and specia l equip­
ment necessary.
@ For the sake of the environment
Undep loyed airbag modu les and preten ­
sioners might be classified as Perchlorate
Material -specia l hand ling may apply, see
www.dtsc.ca.gov/haza rdou swaste/per­
chlorate. When the vehicle or parts of the
restraint system including airbag modules
safety belts w ith pretens ioners are scrap­
ped, all applicable laws and regulations
must be observed. Your authorized Aud i
deale r is familiar with these requ irements
and we recommend that you have your
dea ler perform this service for you.
