26 6 T ire s and whee ls
Wheel bolts
Wheel bolts must always be tightened to the
correct torque .
The design of wheel bolts is matched to the
factory installed rims. If different rims are fit­
ted, the correct wheel bolts with the right
length and correctly shaped bolt heads must
be used. This ensures that wheels are fitted
secure ly and that the brake system functions
correctly .
In ce rtain circumstances, you may not use
wheel bolts from a different vehicle -even if it
is the same mode l
~page 294.
_& WARNING
Improperly tig htened o r maintained whee l
bolts can become loose ca using loss of
contro l, a co llision and serious persona l in­
jury.
- Always keep the wheel bolts and the
threads in the wheel hubs clean so the
wheel bolts can turn easily and be prop­
erly t ightened.
- Never grease or oil the wheel bo lts and
the threads in the wheel hubs. They can
become loose while driving if greased or
oiled, even if tightened to the specif ied
torque.
- Only use wheel bolts that belong to the
rim being installed.
- Never use different wheels bolts on your
vehicle.
-Always maintain the correct tighten ing
torque for the wheel bolts to reduce the
risk of a wheel loss. If the tightening tor­
que of the wheel bolts is too low, they
can loosen and come out when the veh i­
cle is moving. If the tightening torque is
too high, the whee l bolts and threads
can be damaged and the wheel can be­
come loose.
@ Note
The spec ified torq ue fo r the wheel bo lts is
90 ft lb (120 Nm) w ith a toleran ce of± 7,4
ft lb(± 10 Nm). Torque wheel bo lts diago- nally
. After changing a whee l, the torque
must be checked as soon as possible with a
torque wrench -preferably by an author­
i zed Audi dealer or qualified workshop.
Low aspect ratio tires
Your Audi is factory-equ ipped w ith low aspect
r atio tires . These tires have been tho roughly
tested and been se lected specifically for your
model for their superb perfo rmance, road fee l
and hand ling under a variety of d riving cond i­
tions . As k your au thor ized A udi dealer for
more de tails .
T he low aspect ratio of these t ires is ind icated
by a numera l of
55 or less in the tire's s ize
designation. The nume ra l represen ts the ra tio
of the tire's sidewall height in relation to its
tread width expressed in percentage . Conven­
tiona l tires have a he ight/width ratio of 60 or
more.
The performance of low- aspect-r atio tires is
p ar ticu la rly s ens iti ve to improper infl ation
p re ss ure. I t is th erefore im portant th at low
as pect ratio tires are inflated to the specified
pressure and that the inflation pressu re is
r e gularl y che cked and mainta ined. Tir e pre s­
su res should be ch ecked at least onc e a
month and alwa ys bef ore a long trip
~ page 249, Checking tire pressure.
What you can do to a void tire and rim
damage
Low aspect ratio tires can be damaged more
easily by impact w it h potholes, curbs, gull ies
o r r idges on the road, pa rticularly if the tire is
u nderinfla ted .
In order to minimize the occurrence of impact
damage to the tires of you r vehicle, we recom­
mend that you observe the follow ing p recau ­
tions:
- Always ma inta in recommended inflation
pressures. Check your tire pressure eve ry
2,000 miles (3,000 km) and add air if neces­
sary .
- Dr ive carefully on roads with potholes, deep
gullies o r ridges. The impact from dr iv ing ..,.

M N
0 <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
A WARNING 1=
You or your passengers could be injured
while changing a wheel if you do not fol­
low these safety precautions:
- If you have a flat tire, move a safe dis­
tance off the road. Turn off the engine,
turn the emergency flashers on and use
other warning devices to alert other mo­
torists.
- Make sure that passengers wait in a safe
place away from the vehicle and well
away from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the
jack, always fully set the parking brake
and block the wheel diagonally opposite
the wheel being changed. When one
front wheel is lifted off the ground, plac­
ing the Automatic Transmission in P
(Park) will
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary,
use a sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
¢ page 132.
{!) Tips
Before changing the wheel, you must acti­
vate the jacking mode, so that the auto­ matic controls for the Adaptive Air Sus­
pension* do not make it more difficult to
lift the vehicle with the jack¢
page 2 75.
Changing a wheel
When you change a wheel, follow the se ­
quence described below step-by-step and in
exactly that order .
1. Activate the vehicle jack mode*
c::;. page 275.
-
2. Remove the decorative wheel cover* . For
more details see also
¢page 274, Deco­
rative wheel covers
or ¢ page 2 7 4,
Wheels with wheel bolt caps.
3. Loosen the wheel bolts¢ page 274.
What do I do now? 273
4.
5.
6.
7.
8.
9.
Locate the proper mounting point for the
jack and align the jack below that point
¢page 275.
Raise the car with the jack ¢page 275.
Remove the wheel with the flat tire and
then install
the spare <=> page 2 76.
Tighten all wheel bolts lightly.
Lower the vehicle with the jack .
Use the wheel bolt wrench and
firmly
tighten all wheel bolts¢ page 274 .
10. Replace the decorative wheel cover*.
11. Deactivate the vehicle jack mode* in the
MMI:
ICARI function button > (Car)* sys­
tems
control button > Servicing & checks
> Air susp.: jack mode > Off .
The vehicle jack mode* switches off automati­
cally at speeds above 6 mph (10 km/h).
A WARNING
Always read and follow all WARNINGS and information<=>
A in Raising the vehicle on
page 275
and <=> page 277.
After changing a wheel
A wheel change is not complete without the
doing the following.
.,. Always store the vehicle tool kit, the jack*
and the replaced tire in the luggage com­
partment
c::;. page 132.
.,. Check the tire pressure on the spare wheel
immediately after mounting it.
.,. As soon as possible, have the
tightening
torques
on all wheel bolts checked with a
torque wrench. The correct tightening tor­
que is
90 ft lb (120 Nm) .
.,. Have the flat tire
replaced as soon as possi­
ble.
(D Tips
- If you notice that the wheel bolts are
corroded and difficult to turn while
changing a tire, they should be replaced
before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked.
ll>
•
•

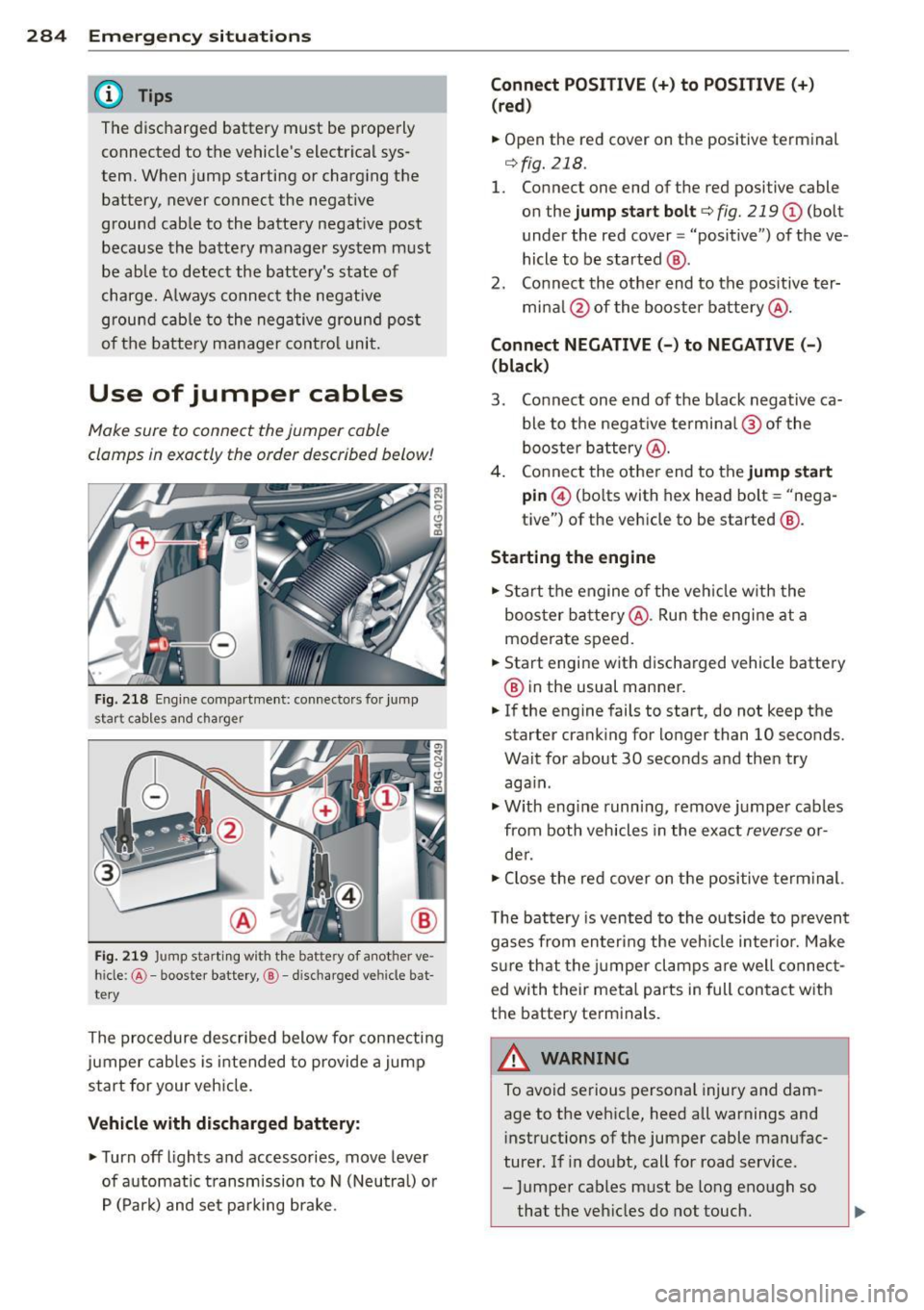

284 Emergency situations
@ Tips
The discharged battery must be properly
connected to the vehicle's electrical sys­
tem. When jump starting or charging the
battery, never connect the negative
ground cable to the battery negative post
because the batte ry manager system must
be able to detect the battery 's state of
charge. Always connect the negative
ground cab le to the negative ground post
of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable
clamps in exactly the order described below!
Fig. 218 Engine compartment: connecto rs for jump
start cables and charger
Fig. 219 Jump start ing with the battery of another ve·
hide: @-booster battery, @-discharged ve hicle bat­
tery
The procedure described below fo r connecting
jumper cables is intended to provide a jump
start for your vehicle.
Vehicle with discharged battery:
.,. Turn off lights and accessories, move lever
of automatic transmission to N (Neutral) or
P (Park) and set parking brake.
Connect POSITIVE(+) to POSITIVE(+)
(red)
.,. Open the red cover on the positive terminal
¢fig. 218 .
1. Connect one end of the red positive cable
on the
jump start bolt c::;, fig. 219 @ (bolt
under the red cover = "positive") of the ve­
hicle to be started @.
2. Connect the other end to the positive ter-
mina l@ of the booster battery@.
Connect NEGATIVE (-) to NEGATIVE (-)
(black)
3. Connect one end of the black negative ca­
ble to the negat ive terminal @ of the
booster battery @.
4. Connect the other end to the
jump start
pin © (bolts with hex head bolt= "nega­
tive") of the vehicle to be started @.
Starting the engine
.,. Start the engine of the veh icle w ith the
booster battery@. Run the engine at a
moderate speed .
.,. Start engine with discharged vehicle battery
@ in the usual manner.
.,. If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try aga in .
.,. With engine running, remove jumper cables
from both vehicles in the exact
reverse o r­
de r .
.,. Close the red cover on the positive term inal.
T he battery is vented to the outside to prevent
gases from entering the veh icle inter ior. Make
sure that the jumper clamps are well connect­
ed with their metal parts in full contact with
the battery terminals.
_& WARNING
To avoid serious personal injury and dam­
age to the vehicle, heed all warnings and
instructions of the jumper cable manufac­
turer. If in doubt, call for road service .
- Jumper cables must be long enough so
that the veh icles do not touch.
-

292 Consumer Information
Consumer Information
Warranty coverages
You r Audi is covered by the following war­
ranties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warran­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regu lations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A . and Canada differ from vehicles sold in
other countries .
If you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lowe r octane
rating. Improper fuel may cause engine
damage ;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment ;
- replacement pa rts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessar ily work
in Europe, and may not work in other coun­
tries outside North America .
(D Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availability.
Audi Service Repair Manuals and Literature
Audi Official Factory Service Manuals and Lit­
erature are published as soon as possible after
model introduction. Service manuals and lit­
erature are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
s afety, economy and rel iability. For detailed
vehicle maintenance consult your Warranty &
Maintenance booklet.
Under difficult operating conditions, for ex­
ample at extremely low outside temperatures,
i n very dusty regions , when towing a trailer
very frequently, etc., some service work
should be performed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter .
(® For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards
are maintained, thus minimizing adverse
effects on the environment.
Important considerations for you and
your vehicle
The increasing use of electronics, sophisticat­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technical
liJJ,

M N
0 <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Checking Engine coolant leve l .... ... .. .. .. .. . 228
Tire pressure . ... ...... ... .. .. .. .. . 249
Ch ild restra ints
D anger o f using ch ild restra ints in the
front seat . . . . . . . . . . . . . . . . . . . . . . . . 147
Where can I get additiona l information
about child restra ints and their use? .. 189
Ch ild restra int system anchors . .. .. .. . 185
Ch ild safety .. ............. .... .. ... 171
Convertible locking retractor . . . . . . . . . 182
Important safety instructions fo r us ing
ch ild safety seats . . . . . . . . . . . . . . . . . . 17 5
I mportant th ings to know when dr iv ing
wi th ch ild ren ............ .... .. ... 17 1
Tet her anchors . ... .... ... .. .. .. ... 188
Tether straps .. .. ..... ... .. .. .. ... 188
C hi ld safety lock
R ear doors . .. ........... .. .. .. .... 39
Ch ild safety seats .......... .... .. ... 177
Booster seats ............... ... ... 180
Convertible c hild seats .... .. .. .. .. . 178
Convertible locking retracto r .. .. .. .. . 182
H ow do I proper ly in stall a child safety
seat inmyvehicle? ........ .. .. .. .. . 175
I nfant sea ts . .... ..... ... .. .. .. ... 177
I nstall ing . ... .... .... ... .. .. .. ... 182
I nstal ling a child restraint using the
LATCH system . . . . . . . . . . . . . . . . . . . . . 187
LATCH system . . . . . . . . . . . . . . . . . . . . . 187
Lower anchorages ........ .. .. .. .. . 186
Mounting and releasing the anchorage
hook .. .. .. .. ........ ... .. ... ... . 187
Safety ins tructions ........ .. .. .. .. . 17 5
Unused safety belts on the rea r seat . . 177
Cigarette lig hter . . . . . . . . . . . . . . . . . . . . . 58
C leaning .... .... ...... ... .. .. .. ... 209
Climate control Air vents . .. ............. .... .. .. .. 69
Climate controls . . . . . . . . . . . . . . . . . . . . . 67
Climate con trol sys tem
Supp lementary heater . . . . . . . . . . . . . . . 72
Climate con trol (four-zone)
Opera tion . . . . . . . . . . . . . . . . . . . . . . . . . 70
Climate control (three-zone) Operation . . . . . . . . . . . . . . . . . . . . . . . . . 68
Clock ..... .. .. ... .. ..... ... .. .. .... 27
Inde x 299
Closing
Sliding/ti lting s unroof ... .... ... .. .. . 40
Cold tire infla tion p ress ure ............ 24 4
Coming home . .. .. ................. . 45
Compac t spa re tire ... . ... .... ... .. .. 271
Compartments . . . . . . . . . . . . . . . . . . . . . . 59
Compliance ... .. .. .. . .. ... .... ... .. 295
Consumer Informa tion . . . . . . . . . . 134, 292
Consumption (fuel) .. . ... .... ... .. .. . 25
Contacting NHTSA .... .. ..... ... .. .. 134
Controls Cleaning .. .. .. .. ................. 211
Convenience key . .. .... ............. . 35
Starting the engine . ................ 74
Stoppi ng the eng ine (START ENGINE
STOP button) .. .. .. ..... ........... 75
Swi tch ing t he igni tion on ....... ..... 74
Un locking and loc kin g veh icle .... .. .. . 35
Convertib le child safety seats ......... 178
Convertib le loc king retractor
Activating ... .... .. . .. ... .... ... .. 184
Deactivating . .. .. ............... .. 184
U sing to secure a child safety seat 1.82, 184
Coolant
refer to Eng ine coolant . ..... ... .. .. 228
Cooling mode (automat ic climate cont rol) 70
Cooling mode (climate control) . . . . . . . . . 68
C ruise cont ro l
Changing speed .. .. . ... .... ... .. .. . 82
Presetting your speed .. ..... ... .. .. . 83
Switching off .. .. .. ............... . 83
Switch ing on . .. .. .... ........... .. . 82
Warning/ind icator lights ............. 23
( upholder . ... .... .. . .. .. ..... ... .. . 59
Cu rve light ........ .. ..... .......... 100
Cylinder management
refer to Cylinder on demand System 2S
Cylinder on demand System ... ... .. .. . 2S
D
Data recorde r ... .. .. . .............. 192
Date d isp lay .... .. .. . ............... 27
Daytime runn ing lights . .. ..... ... .. .. . 43
Decla rat io n of compliance
Adaptive cruise cont rol ......... .. .. 29S
A udi side ass ist .. .. ........... .... 29S
•
•

M N
0 <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Starting with jumper cables . ... .. .. . 283
Stopping ... ..... ..... ... ... ... .... 75
E ng ine compartment ....... .. .. .. .. . 224
C losing the hood ......... .. .. .. .. . 223
Opening the hood ........ .. .. .. .. . 222
Safety instructions ..... ... .. .. .. .. . 222
Working in the engine compartment .. 222
E ng ine coolant ............ .... .. .. . 228
Adding coolant ........... .. .. .. ... 229
Chec king the eng ine coolan t leve l .. .. . 228
Expansion ta nk . ....... ... .. .. .. ... 228
M alfunct ion symbo l .... ... .. .. .. .. .. 1 6
Radiator fan . ..... .... ... .. .. .. ... 230
Temperature ga uge ....... .. .. .. .. .. 11
E ng ine oi l ... ............. .... .. ... 224
Adding .... .... .. .... ... .. .. .. ... 226
Addit ives ... ... .. ..... ... .. .. .. ... 226
Changing .. .... .. .... ... .. .. .. ... 227
Checking the eng ine o il level .. .. .. .. . 226
Indications and cond it ions requ iring ex-
tra check ing .. ... .. ... ... .. .. .. ... 226
Indicator light . . . . . . . . . . . . . . . . . . . . . 18
O il consumption ............. .... .. 225
Pressu re malfunct ion ...... .. .. .. .. .. 17
Recommended oil check in tervals .. .. . 226
Sensor defe ctive . . . . . . . . . . . . . . . . . . . . 22
Specification and viscos ity . ... .. .. .. . 224
E ng ine sound .............. ... ... .. 100
Eng ine speed limitat ion ..... .. .. .. .. .. 21
E ng ine start-stop mode
refer to Star t-Stop-System ... .. .. .. .. 81
E ng ine start system (indicator lights) .. .. 18
Environment Break- in period ........... .... .. ... 200
Catalytic converter ........ .. .. .. .. . 201
D iese l particu late filter .... .. .. .. .. . 202
Disposing of your vehicle battery ..... 235
Driving at high speeds ........ .... .. 203
Dr iving to m inimi ze pollu tion and no ise 202
Fu el ... .. .. .... ............. .. .. . 216
Fu el economy ... .. .... ... .. .. .... . 202
L eaks under your vehicle ... .. .. .. .. . 222
L etting the ve hicle stand and warm up . 203
Proper disposal of drained brake fluid . 231
Prope r disposal of drained engine coo l-
ant . .. ... . .... ............. .. .. . 229
Proper disposal of dra ined engine
oil . . . . . . . . . . . . . . . . . . . . . . . . . 226, 227
Index 301
Recycling used engine oil ..... ... .. .. 226
Unl eaded fuel .. .. .. . ... ...... ... .. 214
What shou ld I do with an o ld battery? . 235
E vent Data Recorde r (ED R) ........ .. .. 192
Exhaust tail pipes Cleaning .. .. .. .. .. ... ....... ..... 210
Expansion tank .. .. .. . ... ...... ... .. 228
E xte rior lighting . .. ................. . 43
Exterior m irrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . SO
Dimm ing .. .. .. .. .. . .. .... .... .. .. . 51
Heating ......... .. ..... ........... SO
Exterior temperature display ...... .. .. . 24
F
Fastening
Booster seats .. .. .. ........... .... 180
Convertib le child safety seats .... .. .. 178
Infant seats . . . . . . . . . . . . . . . . . . . . . . 177
Floor mats . ... .... .. . .. .. ..... ... .. 131
Foot peda ls .... ... .. ..... .......... 131
For the sake of the environment
Ga soline fumes and the env ironme nt .. 216
Reduc ing engine noise by early upshift-
ing .......... ... .. ................ 11
Refueling . .. .. .... .......... ..... 216
Savi ng f uel by early ups hifting ... .. .. . 11
Fo ur- zone automatic climate control . .. . 70
Front airbags Description . ... .... . ... ...... ... .. 149
How they work ...... .. .. ..... ... .. 155
Fron tal coll is io ns and the laws of p hysics 13 7
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 52
Adjusting ... .. .. .. . .. .... .... .. .. 128
Child restraints i n the front seat ...... 147
Fuel Additives .. .. .. .. .. . .............. 214
B lended gasoline ..... ............. 214
Current consumption ... .... .... .. .. . 25
E conomy messages (effic iency p rogram) 26
Fuel fi ller flap emergency re lease . .... 218
F uel fi ller nec k ... ............. .... 216
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 12
Gasoline .. .. .. .. ... ............ .. 214
Gasoline additives . .. .. .. ..... ... .. 215
Low fue l level symbol . . . . . . . . . . . . . . . 22
Octane rat ing .. .. .... ......... .. .. 214
•
•
