266 What do I do n ow ?
c:> fig. 203 . Behind the marking, there is a
lifting p oint on the sill for the veh icle jack.
• Turn the
veh icle j ack located under the lift­
ing point on the si ll to raise the jack until
the jaw
c:> fig. 204 ® covers the notch on
the vehicle
c:> &_ c:>(D .
• Align t he vehicle jack so the jaw ® covers
the notch and the base plate @ is flat on
the floor. The base plate @ must be
vertical
under the lifti ng point @.
• Install the rod on the vehicle jack: Insert the
rod into the opening on the handwheel. Turn
the rod left or right to secure it .
• Contin ue raising the jack with the rod until
the wheel lifts off the ground slightly.
Position the vehicle jack
onl y under the desig­
nated lifting points on the sill
c:> fig. 203 .
There is exactly one location for each wheel.
The jack must not be positioned at any other location
c:> ,&. c:>(D .
Soft ground under the jack can cause the ve­
hicle to slip off the jack. Always place the jack
on firm ground. Use a flat, stable support if necessary . Use a non-slip surface such as a
rubber mat on a
slipp ery surfac e such as tile .
A WARNING
-You or your passengers could be injured
wh ile chang ing a wheel if you do not fol­
low these safety precautions :
- Position the vehicle jack only at the
des ignated lifting points and align the
jack. Otherwise, the vehicle jack could slip and cause an injury if it does not
have sufficient hold on the veh icle .
- A soft or unstable surface under the
jack may cause the veh icle to slip off
the jack . A lways provide a firm base for
the jack on the ground.
If necessary,
use a sturdy board under the jac k.
- On hard, slippery surface (such as tiles)
use a rubber mat or similar to preven t
the jack from s lipping.
- T o help p revent injury to yourself and
yo ur passengers: -
Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the veh icle and
well away from the road and traffic .
- Make sure jack pos ition is correct, ad­
j ust as necessary and then cont inue to
raise the jack.
(D Note
Do not lift the vehicle by the sill. Position
the veh icle jack only at the designated lift­
i ng points on the sill. Otherwise, your vehi­
cle will be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step-by-step for
changing the wheel .
Fig. 205 C ha nging a w hee l: us ing t he screwd rive r han ­
dle (w it h th e blade re m oved) to turn the bolts
Fig . 206 Ch ang ing a w hee l: alignment p in in side t he
top hole
After you have loosened all wheel bo lts and
raised the vehicle off the g round, remove and
replace the wheel as follows: .,..

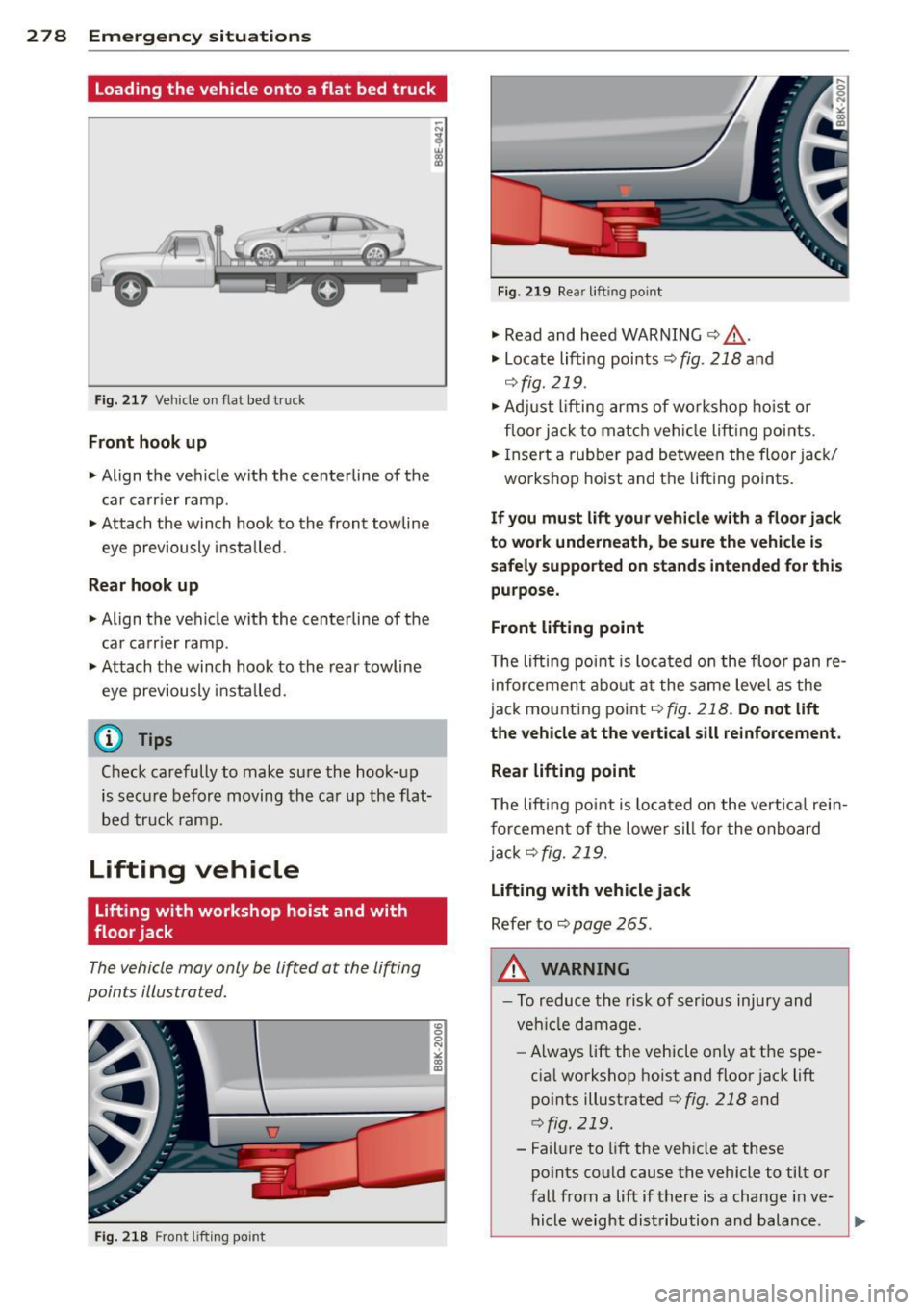

2 78 Emergency situations
loading the vehicle onto a flat bed truck
Fig. 217 Vehicle on flat bed tr uck
Front hook up
• Align the vehicle with the centerline of the
car carr ier ramp .
• Attach the winch hook to the front towline
eye previously insta lled .
Rear hook up
• Align the vehicle with the centerline of the
car carr ier ramp.
• Attach the winch hook to the rear towline
eye previously insta lled.
@ Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat·
bed truck ramp .
Lifting vehicle
lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 218 Front lift ing po int
:g 0 N
" O> a,
Fig. 219 Rear lifting point
• Read and heed WARNING ¢ &_ .
• Locate lifting points r::!> fig . 218 and
¢ fig. 219 .
• Adjust lifting arms of workshop hoist or
floor jack to match vehicle lifting points .
• Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose.
Front lifting point
The lifting point is located on the floor pan re­
i nforcement about at the same leve l as the
jack mounting point
¢ fig. 218. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located on the vert ical rein­
forcement of the lower sill for the onboard
jack ¢
fig. 219 .
lifting with vehicle jack
Refer to r:!> page 265 .
A WARNING
= -
-To reduce the risk of ser ious injury and
veh icle damage.
- Always lift the vehicle only at the spe­
cial workshop hoist and floor jack lift
points illustrated
¢ fig. 218 and
¢ fig. 219.
- Failure to lift the vehicle at these
points could cause the vehicle to tilt or
fall from a lift if there is a change in ve-
hicle weight distribution and balance.
~

"' N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
This might happen, for example, when
heavy components such as the engine
b lock or transmiss io n are removed.
- When removing heavy components like
these, anchor vehicle to ho ist or add cor­
responding weig hts to mai nta in the cen ­
ter of g ravity. Otherwise, the veh icle
m ight tilt o r slip off t he hois t, causi ng
serious p ersona l injury.
(I) Note
- Be awa re of th e fo llowing points befo re
li fting the vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan , the transmission housing , the
front or rear axle or the body s ide
members. This could lead to ser ious
damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be
inserted between the floor jack and
the lift points .
-Before driv ing over a workshop hoist,
check that the vehicle weight does not
exceed the permi ssible lifting capacity
of the hoi st.
- Before driv ing over a workshop hoist,
ensure that there i s sufficient clear­
ance between the hoist and low parts
of the vehicle.
Emergency situations 2 79
•
•
