2015 AUDI A4 sensor

"' N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
A WARNING ,~
- Always make sure that the volume and
frequency of the warning tones is adjust­
ed so that you can easily hear the acous­
tic distance signal even if the radio is playing, the air-conditioner blower is on
High or there is a high level of outside
noise.
- Check the settings whenever someone
else has driven the vehicle before you.
@ Tips
-The warning tones can also be adjusted
directly from the rear view camera im­
age. Simply press the Settings* control
button.
- Changed settings are activated when
parking assist is switched on again.
Error messages
App lies to vehicles: with pa rk in g system (rea r, with rea r
view camera)
If a warning tone is audible for about five sec­
onds when you turn on the ignition, there is a
malfunction in the system . Have the problem
corrected by your authorized Audi dealer.
Keep the sensors in the rear bumper clean and
free from ice so that the acoustic park assist
system can function properly.
Park assist 125

"' N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
th e forward-facing child res traint. The
backrest must be adjusted to an upr ight
posit ion.
- Make sure that the
PASSENGER AI R BA G
OFF
light comes on and stays on all the
t ime whenever the ignition is switched
on.

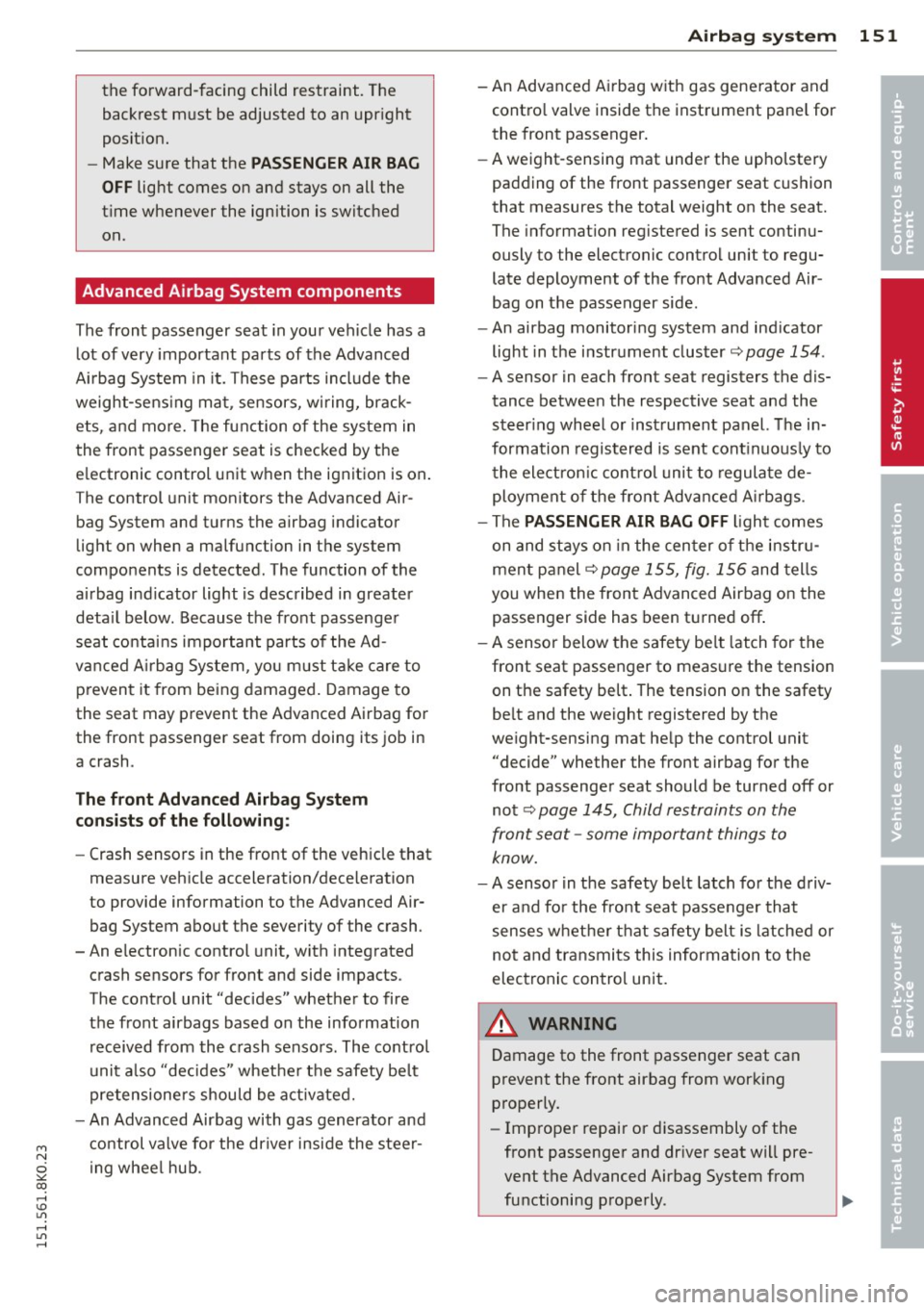

Advanced Airbag System components
The front passenger seat in your vehicle has a
l ot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing ma t, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control unit when the ignition is on .
The control unit monitors the Advanced Air­ bag System and turns the airbag indicator
light on when a malfunction in the system
components is detected. The function of the
airbag ind icator light is described in greater
deta il below. Because the front passenger
seat contains impo rtant parts of the Ad­
vanced A irbag System, you m ust take care to
p revent it from being damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash.
The front Advanc ed Airbag Syst em
con sis ts o f th e following :
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/deceleration
to provide information to the Advanced Air­
bag System about the severity of the crash.
-An electronic control unit, with integrated
crash sensors for front and side impacts .
The contro l unit "decides" whether to fire
the front airbags based on the information
r eceived from the c rash sensors. The control
unit a lso "dec ides" whet her the safety be lt
pretensione rs should be activated.
- An Advanced Airbag with gas generator and
control valve for the driver inside the steer­
i ng wheel hub.
A irbag system 15 1
- An Advanced Ai rbag with gas gene rator and
contro l valve inside the instrument pane l for
the front passenger .
- A weight-sensing mat under the upholstery
padding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion reg istered is sent continu­
ously to the electronic control unit to regu­
late deployment of the front Advanced Air­
bag on the passenger side.
- An airbag monitoring system and ind icator
light in the i nstr ument cluster ~
page 154 .
-A sensor in each front seat registers the dis­
tance betwee n the respective seat and the
steer ing whee l or inst rument panel. The i n­
formation register ed is sent cont inuous ly to
the ele ct ron ic cont ro l uni t to regulate de­
ployment o f the front Advanced A irbags .
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center o f th e instr u­
ment panel
~page 155, fig. 156 and tells
you when the front Advanced Airbag on the
passenger side has been turned off .
- A sensor below the safety be lt latch for the
front seat passenger to meas ure t he tension
on the safety be lt . T he tension o n the safety
be lt and the weight registered by the
weight-sensing mat help the control unit
"decide" whether the front airbag for the
front passenge r seat should be turned off or
not~
page 145, Child restraints on the
front seat -some important things to
know.
- A sensor in the safety belt latch fo r the driv­
er and fo r the front sea t passe nger that
senses w hethe r that s afety belt is latched or
no t and transmi ts this information to the
electronic control unit.
A WARNING
Damage to the front passenger seat can
p revent the front airbag from work ing
properly.
- Improper repair or disassembly of the
front passenge r and dr iver seat will pre­
vent the Advanced Airbag System from
functioning p roperly .
-
•
•

152 Airbag system
-Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
driver seat from the vehicle.
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-sensing mat and send the
wrong information to the airbag control unit.
- Never store items under the front pas­ senger seat. Parts of the Advanced Air­
bag System under the passenger seat
could be damaged, preventing them and
the airbag system from working proper­ ly.
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by Audi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploying prop­
erly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat. The additional padding will prevent
the weight-sensing mat in the seat from
accurately registering the child restraint
or person on the seat and prevent the
Advanced Airbag System from function­
ing properly.
- If you must use a child restraint on the
front passenger seat and the child re­ straint manufacturer's instructions re­
quire the use of a towel, foam cushion or
something else to properly position the child restraint, make certain that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the child re­
straint is installed on the front passen­
ger seat.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install child restraint in a rear seat­
ing position and have the airbag system
inspected by your authorized Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
side airbags supplement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head restraints to help reduce the
risk of injury in a wide range of accident and
crash situations. Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adva need Airbag System
and the activation of the safety belt preten­ sioners depend on the deceleration measured
by the crash sensors and registered by the
electronic control unit. Crash severity depends
on speed and deceleration as well as the mass
and stiffness of the vehicle or object involved
in the crash.
On the passenger side, regardless of safety
belt use, the airbag will be turned off if the
weight on the passenger seat is less than the amount programmed in the electronic control
unit. The front airbag on the passenger side
will also be turned off if one of the child safe­
ty seats that has been certified under Federal
Motor Vehicle Safety Standard 208 has been
recognized on the seat. The
PASSENGER AIR
BAG OFF
light comes on and stays on to tell
you when the front Advanced Airbag on the passenger side has been turned off
~ page 145, Child restraints on the front seat
- some important things to know.
1111>

154 Airbag sys te m
- Occupants who are unbelte d, ou t of p osi­
t ion or too close to the air bag can be
seriously injured by an airbag as it un­
folds wi th grea t force i n the blink of an
ey e
~ pag e 145 .
A WARNING
-
A child in a rearward -faci ng child safety
s e at insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
the front a irbag inflates -even with an Ad ­
vanced Airbag System.
- T he inflating a irbag will hit the child
safety seat or infant carrier with g reat
force and wi ll smash the chi ld safety seat
and child against the backrest , center
armrest, door or roof .
- Always install rear -facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circ umstan­
ces and the
PAS SENG ER AIR BAG OFF
light does not come on and stay on, im ·
med iately install the rear-facing child
safety seat in a rear seating position and
have the a irbag system inspected by you r
authori zed Audi dealer .
A WARNING
Objects between you and the a irbag will
increase the risk of inj ury in a crash by in­
terfering wi th the way the airbag unfolds
or by being pushed into yo u as the a irbag
inflates.
- Never hold th ings in your hands or on
yo ur lap when the vehicle is in use.
- Never transport items on or in the area
of the front passenge r seat . Objects
cou ld move into the area of the front air­
bags during braking or other s udden ma­
neuver and become dangerous projec­
t iles that can cause serious personal in­
jury if the airbags inflate .
- Never place or attach accessories or oth­
er objects (such as cupholders, te le­
phone brackets, la rge, heavy or b ulky ob -
-
jects) on the doors, over or near the area
marked "AIRBAG" on the steer ing whee l,
instr ument panel, seat backrests or be­
tween those areas and yourself . These
objects could cause in jury in a crash, es­
pecia lly when the airbags inflate .
- Never recline the front passenger 's seat
to transport objects . Items can a lso
move into the area of the s ide airbag or
the front a irbag du ring bra kin g or in a
sudden maneuver. Objects nea r the air­
bags can become projec tiles and cause
inj ury, partic ularly when the seat is re­
clined .
A WARNING ~
The fine dust created when airbags deploy
can cause breathing prob lems for people
with a history of asthma or other breath­ i ng cond itions .
- To reduce the risk of breath ing problems,
those with asthma or other respiratory conditions shou ld get fresh air right
away by getting o ut of the veh icle or
open ing windows or doors .
- If you are in a collision in which airbags
deploy, wash your hands and face with
mild soap and wate r before eating.
- Be ca reful not to get the dust into your
eyes, o r into any c uts or sc ratches .
- If the res id ue should get into your eyes ,
f lush them w ith wate r.
Monitoring the
Advanced Airbag
System
Airbag monitoring indicator light
T wo separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN·
GER AIR BAG OFF
light.
T he Advanced A irbag System (including the
electron ic cont ro l unit , sensor circu its and sys­
tem wiring) is mon ito red continuously to
make su re that it is funct io ni ng properly

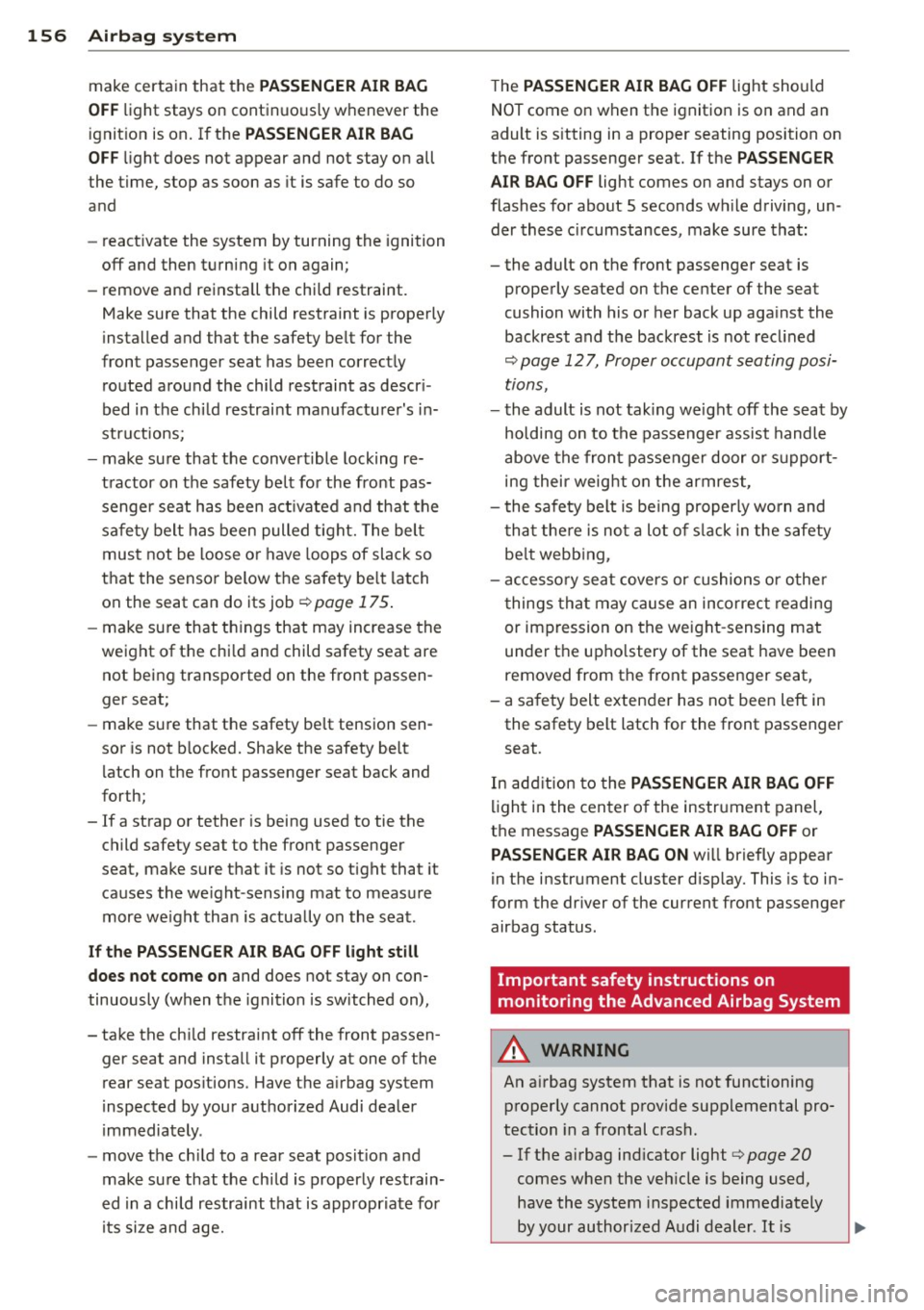

156 Airbag system
make certain that the PASSENGER AIR BAG
OFF
light stays on continuous ly whenever the
ignition is on. If the
PASSENGER AIR BAG
OFF
light does not appear and not stay on all
the time, stop as soon as it is safe to do so
and
- reactivate the system by turning the ignition
off and then turning it on again;
- remove and reinstall the child restraint.
Make sure that the child restraint is properly
installed and that the safety belt for the
front passenger seat has been correctly
routed around the child restraint as descri­
bed in the child restraint manufacturer's in­
structions;
- make sure that the convertible locking re­
tractor on the safety belt for the front pas­
senger seat has been act ivated and that the
safety belt has been pulled tight. The belt
must not be loose or have loops of slack so
that the sensor below the safety be lt latch
on the seat can do its job
c::> page 175 .
-make su re that things that may increase the
weight of the child and child safety seat are
not being transported on the front passen­
ger seat;
- make sure that the safety belt tension sen­
sor is not blocked. Shake the safety belt
latch on the front passenger seat back and
forth;
- If a strap or tether is being used to tie the child safety seat to the front passenger
seat, make sure that it is not so tight that it
causes the we ight-sensing mat to measure
more weight than is actua lly on the seat.
If the PASSENGER AIR BAG OFF light still
does not come on
and does not stay on con­
tinuously (when the ignition is switched on),
- take the chi ld restraint off the front passen-
ger seat and install it properly at one of the
rear seat positions . Have the a irbag system
inspected by your authorized Audi dealer
immediately .
- move the ch ild to a rear seat pos it io n and
make sure that the child is properly restrain­
ed in a child restraint that is appropriate for
it s size and age. The
PASSENGER AIR BAG OFF light
should
NOT come on when the ignition is on and an
adult is s itting in a proper seating position on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
light comes on and stays on or
flashes for about 5 seconds wh ile driving, un­
der these cir cumstances, make sure that:
- the adult on the front passenger seat is properly seated on the center of the seat
cushion with his or her back up aga inst the
backrest and the backrest is not recl ined
c::> page 12 7, Proper occupant seating posi­
tions,
- the adult is not taking weight off the seat by
holding on to the passenger assist handle
above the front passenger door or support­
ing their weight on the armrest,
- t he safety belt is being properly worn and
t hat there is not a lot of s lack in the safety
be lt webb ing,
- accesso ry seat covers or cushions or other
t hings that may cause an incorrect reading
or impression on the weight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety belt latch for the front passenger
seat.
In addition to the
PASSENGER AIR BAG OFF
light in the center of the instrument panel,
t h e message
PASSENGER AIR BAG OFF or
PASSENGER AIR BAG ON wi ll briefly appear
in the instrument cluster disp lay. This is to in­
form the dr iver of the current front passenger
airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An a irbag system that is not functioning
properly cannot provide supplemental pro­
tection in a frontal c rash.
- If the airbag ind icator light
c::> page 20
comes when the veh icle is being used,
have the system inspected immediately
by your authorized Audi dealer .
It is
-

158 Airbag system
-Never attach any objects such as cu­
pholders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system .
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc.) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your
authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body.
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once. After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only once. After an airbag has been deployed,
it must be replaced with new replace -ment parts designed and approved espe­
cially for your Audi model version . Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only. Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- In accidents when an airbag is deployed,
the vehicle battery separates the alterna­
tor and the starter from the vehicle elec­
trical system for safety reasons with a pyrotechnic circuit interrupter.
- Work on the pyrotechnic circuit inter­ rupter must only be performed by a
qualified dealer -risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modules and preten ­
sioners might be classified as Perchlorate
Material -special handling may apply, see
www .dtsc.ca.gov/hazardouswaste/per­
chlorate. When the vehicle or parts of the restraint system including airbag modules
safety belts with pretensioners are scrap­
ped, all applicable laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your
dealer perform this service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-rim combinations not approved by Audi, lowering the vehicle, changing the stiffness of
the suspension, including the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag sensors and sent to the electronic control
unit. Some suspension changes can, for

M N
~ co
rl I.O
"' rl
"' rl
example, increase the force levels measured
by the sensors and make the airbag system
deploy in crashes in which it wo uld not deploy
if the changes had not been made. Other
kinds of changes may reduce the force levels
measured by the sensors and p revent the air ­
bag from deploying when it should.
& WARNING
Changing the vehicle's suspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag pe r­
formance and increase the risk of ser ious
personal injury in a crash.
- Never ins tall suspe nsio n components
that do not have the same per formance
characteristics as the components origi­
nally insta lled on your vehicle .
- Never use ti re -rim combinations that
have not bee n approved by A udi.
A WARNING 1= -
Items stored between the safety belt
buckle and the center console can cause
the sensors in the buckle to send the
wrong informat io n to the electronic con­
trol modu le and prevent the Advanced A ir­
bag System from work ing proper ly.
- Always make sure that noth ing can inter-
fere w ith the safe ty belt buckles and that
they are not obst ructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
Fig. 157 Side a irbag locat ion in the driver' s seat
A irba g sy stem 159
The side airbags are located in the sides o f the
front seat backrests
r=> fig . 157 and the rear
backrest facing the doors . They are ident if ied
by the word "AIRBAG".
The side airbag system b asically con sis t s o f:
- the electron ic cont rol module and external
side impa ct sensors
- t he two a irbags located in the s ides of the
front backrests and the two a irbags* loca ted
in the rear backrest
- the airbag warning light in the instrumen t
cluste r.
The airbag system is mon itored electronically
to make ce rtain that it is f unctioning p roperly
at all times. Each time you turn on the ign i­
ti on, the airbag system ind icator light will
come on for a few seconds (se lf diagnostics).
T he side airbag system supplements the safe­
ty belts a nd can help to reduce the risk of i n­
jury to the driver's and front passenger's up­
per torso on the s ide of the vehicle th at is
struck in a s ide collision . The airbag deploys
only in side impacts and only when the vehicle
acce lerat ion reg istered by the control unit is
high enough. If this rate is be low the refer­
ence value programmed into the control unit,
the side airbags will not be triggered,
even
though the car may be badly damaged as a re­
sult of the co llision .
It is not possib le to de­
fine an airbag trigge ring range that will cover
every possib le ang le of impact, s ince the c ir ­
c u mstances will vary cons iderably be tween
one collis ion and another . Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc.
r::!> page 161, Important
safety instructions on the side airbag system.
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a side
collision so that the side airbags can provide
protection .
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al-
ways remember that the side airbag system
IIJJ,

160 Airbag system
can only help to protect you if you a re wearing
your safety belt and wearing it properly. This
i s another reason why you should always wear
your safety belts, not just because the law re­
quires you to do so
r:::> page 136, General
notes .
It is important to remember that whi le the
supp lemental side a irbag system is designed
to reduce the likelihood of serious injuries,
other injuries, for example, swell ing, bruising,
and minor abras ions can also be associated
with deployed side a irbags . Remember too,
side ai rbags wi ll deploy on ly once and on ly in
cer tain k inds of accident s -yo ur safety belts
are a lways there to offer protect io n.
Vehicle damage, repa ir costs or even the lack
of veh icle damage are not necessar ily an indi­
cation of over-sensi tive or failed airbag activa­
tion . In some co llisions, both fron t and side
airbags may inflate. Remember too, that air­
bags will dep loy only once and only in certain
kinds of collisions -your safety belts are al­
ways there to offer protection in those acci­
dents in which airbags are not supposed to
deploy or when they have already deployed .
The side airb ag syst em will not depl oy :
- when the ignition is turned off
- in side collisions when the acce leration
measured by the sensor is too low
- in front-end col lisions
- i n rear-end co llisions
- i n ro llovers .
In some types of accidents the front airbags,
side curtain airbags and side airbags may be
tr iggered together .
A WARNING
-Saf ety belts and the a irbag system w ill
only p rov ide protection when oc cupan ts
are in the p roper seating posit ion
c:!;>page 161.
-If the airbag indicator light c:!;> page 20
comes whe n the vehicle is be ing used,
have the system inspected immediate ly
by your authorized Audi dea ler . It is pos-
-
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
F ig. 158 In flated sid e airbags on left s ide of vehicle
When the system is trigge red, the a irbag is
filled wi th propellant gas and b reaks through
a seam in the seat su rface area marked "AIR ­
BAG".
It expands between the side trim panel
and the passenger. In order to help provide
t hi s addit ional protection, the side airbag
must inflate within a fraction of a second at
very h igh speed and with great force. The sup­
pleme ntal side airbag could injure you if your
seat ing position is not proper or upright or if
items are located in the area where the sup­
plementa l side airbag expands . This applies
especially to ch ildren
c:!;> page 165, Child Safe­
ty.
Supplemen tal side ai rbags inflate be tween
the oc cupant and the door panel on the side
of the vehicle that is struck in certain side col ­
li sion ¢
fig. 158.
Although they are not a soft p illow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body .
A fine d ust may deve lop when the a irbag de­
ploys . This is normal and does not mean there
is a fire in the vehicle.
