2015 Alfa Romeo Giulietta warning light

Warning lights on
panelWhat it means What to do
amberGLOW PLUG HEATING/GLOW PLUG
HEATING FAILURE (diesel versions)
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as
the heater plugs have reached a preset
temperature. The engine can be started as soon
as the warning light switches off.
IMPORTANT In mild or high temperature
conditions, the warning light comes on for a very
short time only.
Glow plug preheating failure
The warning light will flash (a message will appear
on the display, on some versions) to indicate a
fault in the glow plugs preheating system.Contact an Alfa Romeo Dealership as soon as
possible.
amberWATER IN DIESEL FILTER (diesel versions)
The warning light remains on constantly when
driving (together with a message in the display),
to indicate the presence of water in the diesel
filter.
14)
WARNING
68) Failure of thewarning light is indicated by thewarning light switching on. In addition, the airbag system
automatically disables the passenger side airbag. Before proceeding, contact an Alfa Romeo Dealership to have the
system checked immediately.
114
KNOWING THE INSTRUMENT PANEL

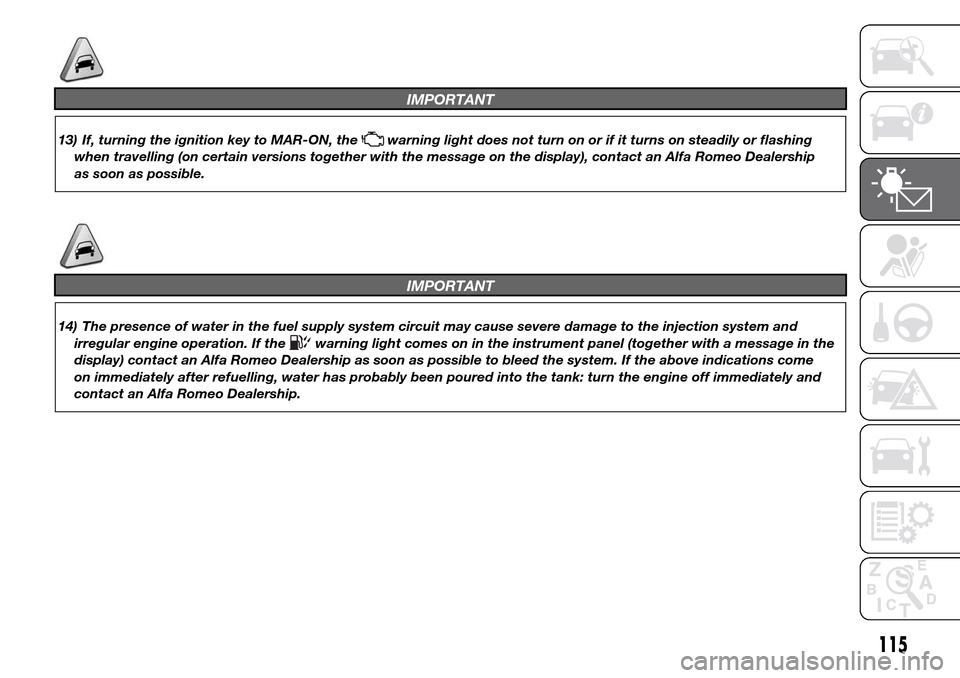

IMPORTANT
13) If, turning the ignition key to MAR-ON, thewarning light does not turn on or if it turns on steadily or flashing
when travelling (on certain versions together with the message on the display), contact an Alfa Romeo Dealership
as soon as possible.
IMPORTANT
14) The presence of water in the fuel supply system circuit may cause severe damage to the injection system and
irregular engine operation. If the
warning light comes on in the instrument panel (together with a message in the
display) contact an Alfa Romeo Dealership as soon as possible to bleed the system. If the above indications come
on immediately after refuelling, water has probably been poured into the tank: turn the engine off immediately and
contact an Alfa Romeo Dealership.
115

Warning lights on
panelWhat it means What to do

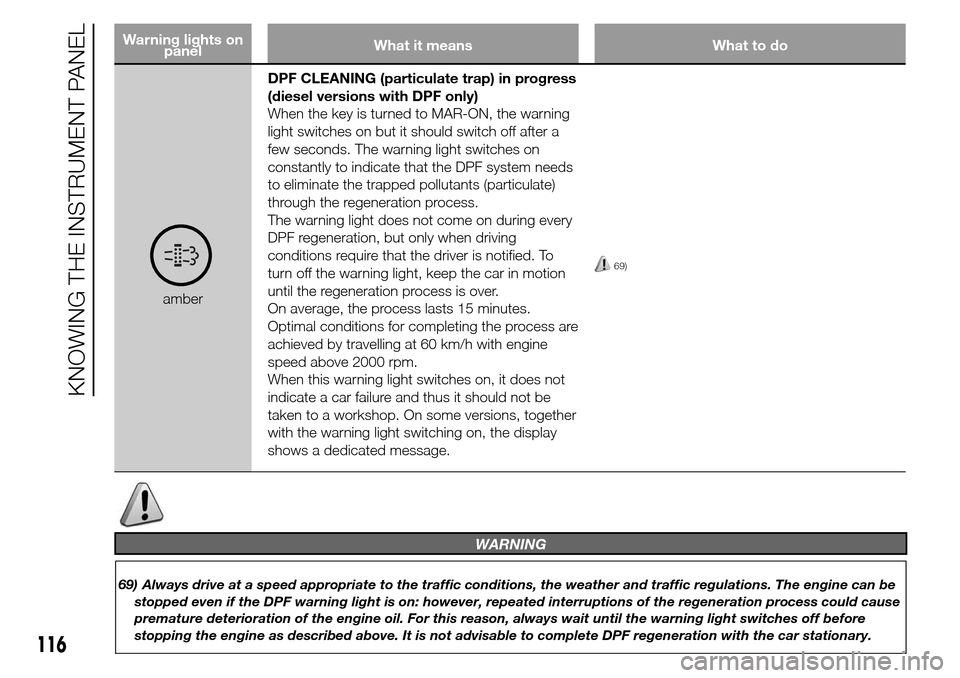

amberDPF CLEANING (particulate trap) in progress
(diesel versions with DPF only)
When the key is turned to MAR-ON, the warning
light switches on but it should switch off after a
few seconds. The warning light switches on
constantly to indicate that the DPF system needs
to eliminate the trapped pollutants (particulate)
through the regeneration process.
The warning light does not come on during every
DPF regeneration, but only when driving
conditions require that the driver is notified. To
turn off the warning light, keep the car in motion
until the regeneration process is over.
On average, the process lasts 15 minutes.
Optimal conditions for completing the process are
achieved by travelling at 60 km/h with engine
speed above 2000 rpm.
When this warning light switches on, it does not
indicate a car failure and thus it should not be
taken to a workshop. On some versions, together
with the warning light switching on, the display
shows a dedicated message.
69)
116
KNOWING THE INSTRUMENT PANEL
WARNING
69) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine can be
stopped even if the DPF warning light is on: however, repeated interruptions of the regeneration process could cause
premature deterioration of the engine oil. For this reason, always wait until the warning light switches off before
stopping the engine as described above. It is not advisable to complete DPF regeneration with the car stationary.

Warning lights on
panelWhat it means What to do
amberiTPMS SYSTEM
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.IMPORTANT Do not continue driving with one or
more flat tyres as handling may be
compromised. Stop the car, avoiding sharp
braking and steering. Repair immediately using
the dedicated kit (see the "Replacing a wheel"
paragraph in the "In an emergency" section) and
contact an Alfa Romeo Dealership as soon as
possible.
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and
then stays on constantly (together with a message
on the display) (see “Operating conditions”
paragraph) to indicate that the system is
temporarily deactivated or faulty.
The system goes back to normal operation when
the operating conditions allow it. If this is not the
case, carry out the Reset procedure after restoring
the normal operating conditions.If the malfunction warning persists, contact an
Alfa Romeo Dealership as soon as possible.
117

Warning lights on
panelWhat it means What to do
amberLow tyre pressure
The warning light switches on constantly to
indicate that the tyre pressure is lower than the
recommended value, in order to guarantee long
tyre life and low fuel consumption, or to indicate a
slow loss of pressure.
In this way the iTPMS warns the driver that one or
more tyres may be flat and liable to puncture. In
this case it is advisable to restore the correct
pressure value (see the "Wheels" paragraph in the
"Technical specifications" section).
Once the normal operating conditions of the car
are restored, carry out the Reset procedure.In any situation in which the message on the
display is "See manual", it is ESSENTIAL to refer
to the contents of the "Wheels" paragraph in the
"Technical specifications" section, strictly
complying with the indications that you find
there.
IMPORTANT Do not continue driving with one or
more flat tyres as handling may be
compromised. Stop the car, avoiding sharp
braking and steering.
118
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

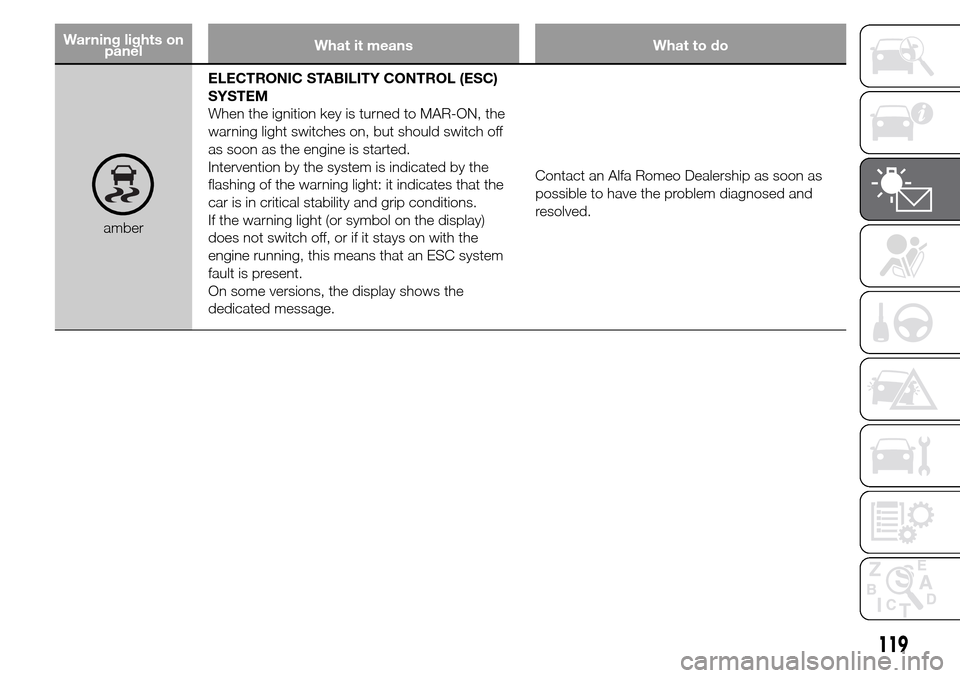

amberELECTRONIC STABILITY CONTROL (ESC)
SYSTEM
When the ignition key is turned to MAR-ON, the
warning light switches on, but should switch off
as soon as the engine is started.
Intervention by the system is indicated by the
flashing of the warning light: it indicates that the
car is in critical stability and grip conditions.
If the warning light (or symbol on the display)
does not switch off, or if it stays on with the
engine running, this means that an ESC system
fault is present.
On some versions, the display shows the
dedicated message.Contact an Alfa Romeo Dealership as soon as
possible to have the problem diagnosed and
resolved.
119

Warning lights on
panelWhat it means What to do
amberELECTRONIC STABILITY CONTROL (ESC)
SYSTEM
ASR system failure
When the ignition key is turned to MAR-ON, the
warning light switches on, but should switch off
as soon as the engine is started.
The warning light will flash while driving to indicate
that the ASR system is intervening.
If the warning light (or symbol on the display)
does not switch off, or if it stays on with the
engine running, this means that an ASR system
malfunction has been detected.
On some versions, the display shows the
dedicated message.In this case, contact an Alfa Romeo Dealership as
soon as possible.
Hill Holder system failure
The warning light switches on together with the
symbol and corresponding message on the
display to indicate Hill Holder system failure.In this case, contact an Alfa Romeo Dealership as
soon as possible.
120
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
greenCRUISE CONTROL (for versions/markets,
where provided)
This warning light switches on when the ignition
key is turned to MAR-ON, but it should switch off
after a few seconds, if the Cruise Control is
deactivated. The warning light switches on when
the Cruise Control ring nut is turned to the ON
position (see the “Cruise Control” paragraph in
the "Knowing your vehicle" section).
The display shows the dedicated message.
greenSIDE LIGHTS
The warning light switches on when the side
lights are activated.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device
is in use (see the "Exterior lights" paragraph in the
"Knowing your vehicle" section).
2
greenDIPPED BEAM HEADLIGHTS
The warning light switches on when the dipped
beam headlights are turned on.
greenFOG LIGHTS
The warning light comes on when the fog lights
are turned on.
121
