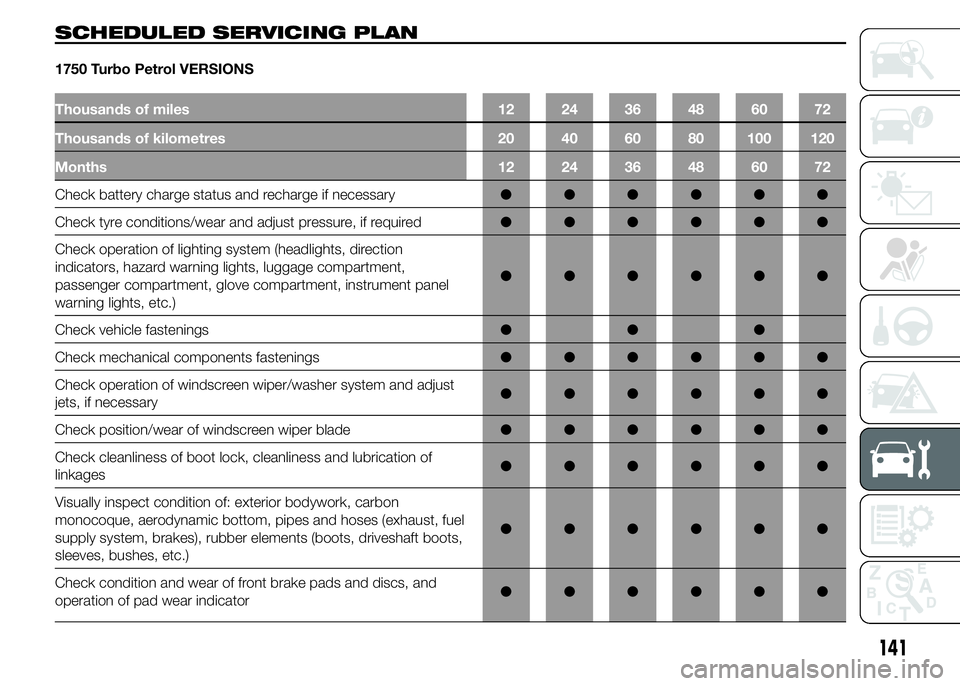

SCHEDULED SERVICING PLAN
1750 Turbo Petrol VERSIONS
Thousands of miles 12 24 36 48 60 72
Thousands of kilometres 20 40 60 80 100 120
Months 12 24 36 48 60 72
Check battery charge status and recharge if necessary●●●●●●
Check tyre conditions/wear and adjust pressure, if required●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument panel
warning lights, etc.)●●●●●●
Check vehicle fastenings●●●
Check mechanical components fastenings●●●●●●
Check operation of windscreen wiper/washer system and adjust
jets, if necessary●●●●●●
Check position/wear of windscreen wiper blade●●●●●●
Check cleanliness of boot lock, cleanliness and lubrication of
linkages●●●●●●
Visually inspect condition of: exterior bodywork, carbon
monocoque, aerodynamic bottom, pipes and hoses (exhaust, fuel
supply system, brakes), rubber elements (boots, driveshaft boots,
sleeves, bushes, etc.)●●●●●●
Check condition and wear of front brake pads and discs, and
operation of pad wear indicator●●●●●●
141
PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
❒engine coolant level;
❒brake fluid;
❒screen washer fluid;
❒tyre inflation pressure and condition;
❒operation of lighting system
(headlamps, direction indicators,
hazard warning lights, etc.);
❒operation of screen washing/wiping
system and positioning/wear of
wiper blade.
Every 3,000 km, check and top up if
required: engine oil level.
HEAVY-DUTY USE OF
THE CAR
If the car is used mainly under one of
the following conditions:
❒if the car is used under demanding
conditions, e.g. on track;
❒dusty roads;
❒short, repeated journeys (less than
7–8 km) at sub-zero outside
temperatures;
❒engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
❒check of front and rear disc brake
pad condition and wear;
❒check cleanliness of tailgate locks,
cleanliness and lubrication of linkage;
❒visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system -
brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery
fluid level (electrolyte);
❒visually inspect condition of the
accessory drive belts;❒check and, if necessary, change
engine oil and replace oil filter;
❒check and, if necessary, replace air
cleaner.
Using the car on track should be
regarded as an exception. The car has
been designed and produced for road
use.
144
SERVICING AND MAINTENANCE
