2015 Alfa Romeo 4C technical specifications

ENGINE CODES - BODY VERSIONS
Versions Engine code Body versions
1750 Turbo Petrol960A1000 960CXB1A 01
164
TECHNICAL SPECIFICATIONS

FUEL SUPPLY
VersionsFuel supply
1750 Turbo Petrol
140)
Electronically controlled direct injection with turbocharger and
intercooler
WARNING
140) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
166
TECHNICAL SPECIFICATIONS

BRAKES
Versions Front brakes Rear brakes Parking brake
1750 Turbo PetrolSelf-ventilating discs Self-ventilating discsControlled by hand lever,
acting on the rear brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time
the brakes are applied.
168
TECHNICAL SPECIFICATIONS

STEERING
Versions Turning circle, kerb to kerb (m) Type
1750 Turbo Petrol11 Rack and pinion
170
TECHNICAL SPECIFICATIONS

READING THE RIM CODE
Example fig. 137:7Jx
17 H2 ET 33
7rim width in inches (1).
Jrim drop centre outline (side
projection where the tyre bead rests)
(2).
17rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
H2shape and number of humps
(circumference measurement which
keeps the bead of tubeless tyres
in position on the rim).
ET 33wheel compensation (distance
between the disc/rim support
plane and the wheel rim centre
line).
172
TECHNICAL SPECIFICATIONS

COLD TYRE INFLATION PRESSURE (bar)
Tyres provided Inflation pressure (bar)
Front tyres205/45 R17 88Y XL 1.8
205/40 R18 86Y XL 1.8
Rear tyres235/40 R18 95Y XL 2.0
235/35 R19 91Y XL 2.0
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, check that the value is correct with cold
tyres.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the car, refer to the "Raising the car" paragraph in the "In an emergency" chapter.
174
TECHNICAL SPECIFICATIONS

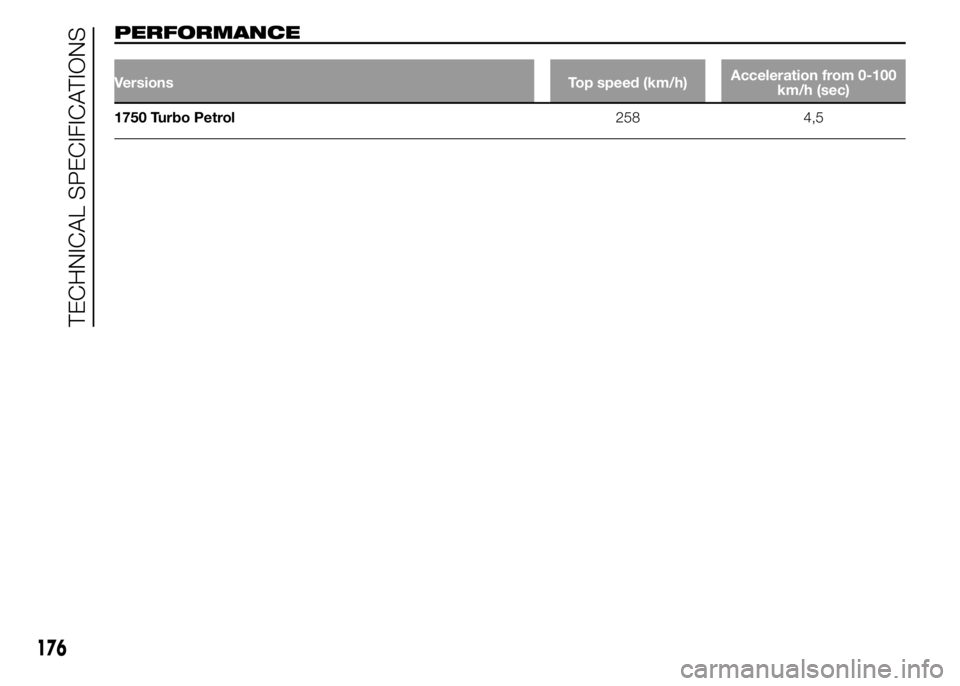

PERFORMANCE
Versions Top speed (km/h)Acceleration from 0-100
km/h (sec)
1750 Turbo Petrol258 4,5
176
TECHNICAL SPECIFICATIONS

REFUELLING
1750 Turbo Petrol
Prescribed fuels / Original fluids
and lubricants
litres kg
Fuel tank 40 -
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 4 - 5 -
Engine cooling system 10.6 9.4Mixture of 50% demineralised water
and 50% PARAFLU
UP(*)
Engine sump 5.4 4.6
SELENIA SPORT POWER
Engine sump and filter 5.8 5.0
Transmission/differential casing: 1.88 1.6TUTELA TRANSMISSION
GEARTECH
Transmission hydraulic activation system 1.45 1.2 TUTELA CS SPEED
Hydraulic brake circuit with ABS 0.52 0.56 TUTELA TOP 4
Windscreen washer fluid reservoir 1.9 1.7Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
178
