WARNING
46) The presence of the TPMS does
not permit the driver to neglect
regular checks of the tyre
pressure, including for the spare
wheel.
47) Tyre pressure must be checked
with tyres rested and cold. Should
it become necessary for whatever
reason to check pressure with
warm tyres, do not reduce
pressure even though it is higher
than the prescribed value. Repeat
the check when the tyres are
cold.
48) Should one or more wheels be
fitted without sensors, the system
will no longer be available and,
in addition to the TPMS warning
light flashing for less than one
minute before becoming constant,
a warning message will be shown
on the display, until 4 wheels
with sensors are fitted again.49) The TPMS cannot warn of
sudden decreases in tyre pressure
(for example when a tyre bursts).
In this case, stop the car, braking
with caution and avoiding abrupt
steering.
50) Replacing standard tyres with
winter tyres (and vice versa)
requires TPMS adjustment that
must only be performed by a
dedicated Alfa Romeo Dealership.
51) Changes in outside temperature
may cause tyre pressures to vary.
The TPMS system may
temporarily indicate insufficient
pressure. In this case, check the
tyre pressure when cold and, if
necessary, restore the inflation
values.
52) When a tyre is removed, it is
advisable to replace the rubber
valve seal as well: contact a
dedicated Alfa Romeo Dealership.
Tyre and/or rim fitting/removal
operations require specific
precautions; to avoid damaging or
fitting the sensors incorrectly,
tyre and/or rim fitting/removal
operations should only be carried
out by specialised staff. Contact
a dedicated Alfa Romeo
Dealership.53) Strong radio-frequency
interference could inhibit the
regular operation of the TPMS.
This condition will be indicated by
a message on the display. The
message will disappear
automatically as soon as the
radio-frequency interference
ceases to affect the system.
54) The tyre repair kit (Fix&Go)
provided with the car (for
versions/markets, where
provided) is compatible with the
TPMS sensors; using sealants not
equivalent with that in the original
kit may adversely affect its
operation. If sealants not
equivalent with the original one
are used, it is recommended to
have the TPMS sensors checked
by a qualified repair centre.
57

Emergency refuelling
If there is no fuel in the car or the supply
circuit is completely empty, proceed
as follows to reintroduce fuel to the
tank:
❒take the dedicated funnel C fig. 58
from the tool kit located in the
luggage compartment;
❒open flap A, pulling it outwards;
❒insert funnel C in the filler as
illustrated in fig. 58 and refuel;
❒after refuelling, remove the funnel and
close the flap;
❒finally, put the funnel back in its case
and put this back in the luggage
compartment.
IMPORTANT If the filler compartment is
washed with a high-pressure jet, keep
it at a distance of at least 20 cm.
WARNING
55) Do not apply any object/plug to
the end of the filler which is not
provided for the car. The use
of non-compliant objects/plugs
could cause a pressure increase
inside the tank, resulting in
dangerous situations.
56) Do not bring naked flames or lit
cigarettes near to the fuel tank
filler: fire risk. Avoid bringing your
face close to the filler, in order
not to breathe in harmful vapours.
57) Do not use a mobile phone near
the fuel pump: risk of fire.
PROTECTING THE
ENVIRONMENT
The following devices are used for
reducing petrol fuel engine emissions:
catalytic converter, oxygen sensors and
evaporation control system.
Do not let the engine run, even for a
test, with one or more spark plugs
disconnected.
58)
WARNING
58) Under operating conditions, the
catalytic converter becomes very
hot. Therefore, do not park the car
on flammable materials (grass,
dry leaves, pine needles etc.)
to avoid the risk of fire.
57A0L004658A0L0151
59

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
INSTRUMENTS ............................... 62
SETUP MENU ................................. 64
MENU OPTIONS ............................. 66
TRIP COMPUTER ........................... 70
WARNING LIGHTS AND
MESSAGES .................................... 73
- LOW BRAKE FLUID / HANDBRAKE
ENGAGED .......................................... 73
- EBD FAILURE .................................. 74
- AIRBAG FAILURE ............................. 74
- SEAT BELTS NOT FASTENED .......... 74
- ABS FAILURE ................................... 75
- PASSENGER AIRBAG
DEACTIVATED .................................... 76
- INJECTION/EOBD SYSTEM
FAILURE ............................................. 77
- TPMS ............................................... 78
- ELECTRONIC STABILITY CONTROL
(ESC) SYSTEM ................................... 79
- ASR FUNCTION DEACTIVATED
WARNING LIGHT ............................... 79
- SIDE LIGHTS AND DIPPED
HEADLIGHTS ..................................... 80
- FOLLOW ME HOME ........................ 80
- LEFT DIRECTION INDICATOR .......... 81
- RIGHT DIRECTION INDICATOR ....... 81
- MAIN BEAM HEADLIGHTS .............. 81
- LOW ENGINE OIL PRESSURE ......... 82
-ENGINE OIL DETERIORATED ........... 82
- ENGINE COOLANT TEMPERATURE
TOO HIGH .......................................... 83
- ALTERNATOR FAILURE ................... 83
- GEARBOX FAILURE ......................... 84
-INCOMPLETE DOOR LOCKING ........ 84
-WORN BRAKE PADS ........................ 84
- ALFA ROMEO CODE SYSTEM
FAILURE ............................................. 84- FUEL RESERVE/LIMITED RANGE .... 85
- FUEL RESERVE/LIMITED RANGE
SENSOR FAULT ................................. 85
- CRUISE CONTROL .......................... 85
- DOOR MIRROR
DEMISTING/DEFROSTING ................. 85
- EXTERIOR LIGHTS FAULT ............... 86
- SERVICE
................ 86
- GENERAL FAILURE ......................... 87
- FUEL CUT-OFF ................................ 87
- LUGGAGE COMPARTMENT OPEN . 88
- POSSIBLE ICE ON ROAD ................ 88
- BRAKE LIGHTS FAILURE ................. 88
- PARKING SENSOR FAILURE ........... 88
- DISPLAY OF SELECTED DRIVING
MODE (“Alfa DNA” system) ................. 88
61
(SCHEDULED SERVICING)

Warning lights on
panelWhat it means What to do
amberTPMSIMPORTANT Do not continue driving with one or
more flat tyres as handling may be
compromised. Stop the car, avoiding sharp
braking and steering. Repair immediately using
the dedicated kit (see "Repairing a wheel"
paragraph in the "In an emergency" chapter)
and contact the dedicated Alfa Romeo
Dealership as soon as possible.
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.
Should one or more wheels be fitted without
sensors, the display will show a warning message
until initial conditions are restored.In this case, contact the dedicated Alfa Romeo
Dealership as soon as possible.
Low tyre pressure - See manual
The warning light switches on, together with a
dedicated message on the display, to indicate that
the tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
Should two or more tyres be in the condition
mentioned above, the display will show the
indications corresponding to each tyre in
sequence.In any situation in which the message on the
display is "See manual", it is ESSENTIAL to refer
to the contents of the "Wheel" paragraph in the
"Technical data" chapter, strictly complying with
the indications that you find there.
78
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
amberFUEL RESERVE/LIMITED RANGE
The digital warning light switches on in the display
when about 4–5 litres of fuel are left in the tank.
63)
amberFUEL RESERVE/LIMITED RANGE SENSOR
FAULT
The digital warning light switches on in the display
when a fuel reserve sensor fault is detected. The
display shows the dedicated message.Contact the dedicated Alfa Romeo Dealership as
soon as possible.
greenCRUISE CONTROL
(for versions/markets, where provided)
The digital warning light switches on in the display
when the ignition key is turned to MAR-ON, but it
should switch off after a few seconds, if the
Cruise Control is deactivated.
The digital warning light switches on when the
Cruise Control ring nut is turned to the ON
position (see the “Cruise Control” paragraph in
the "Knowing your car" chapter).
The display shows the dedicated message.
greenDOOR MIRROR DEMISTING/DEFROSTING
The digital warning light switches on in the display
when the
button on the control panel is
pressed.
85

Warning lights on
displayWhat it means What to do
GENERAL FAILURE
(for versions/markets, where provided)
The symbol lights up in the display in the
circumstances indicated below.
Engine oil pressure sensor failure
The symbol lights up when the engine oil pressure
sensor is faulty. The display shows the dedicated
message.In these case contact the dedicated Alfa Romeo
Dealership to have the fault fixed as soon as
possible.
"Clutch overheating" message
The
symbol, along with a message on the
display, lights up to indicate clutch overheating.
If the driver continues, the
symbol will switch
off and the
warning light will light up (on some
versions together with a message on the display)
to indicate a transmission failure.If the
symbol lights up along with a message
on the display, reduce gear shifting and/or
change usage conditions, until the normal
operating conditions are restored.
If the
warning light lights up (a message will
appear on the display, on some versions) stop
immediately, operate the handbrake, stop the
engine and wait 5 minutes: after this, normal
transmission operating conditions will be
restored.
Should the transmission failure condition persist,
contact the dedicated Alfa Romeo Dealership
FUEL CUT-OFF
The symbol and the corresponding message are
shown on the display in the following cases:
❒fuel cut-off system intervention: the yellow
symbol lights up;
❒fuel cut-off system failure: the red symbol lights
up.For the fuel cut-off system reactivation procedure,
refer to the "Fuel Cut-Off System" section of the
"Controls" paragraph, in the "Knowing your car"
chapter. If it is still not possible to restore the fuel
supply, contact the dedicated Alfa Romeo
Dealership.
87

Warning lights on
displayWhat it means What to do

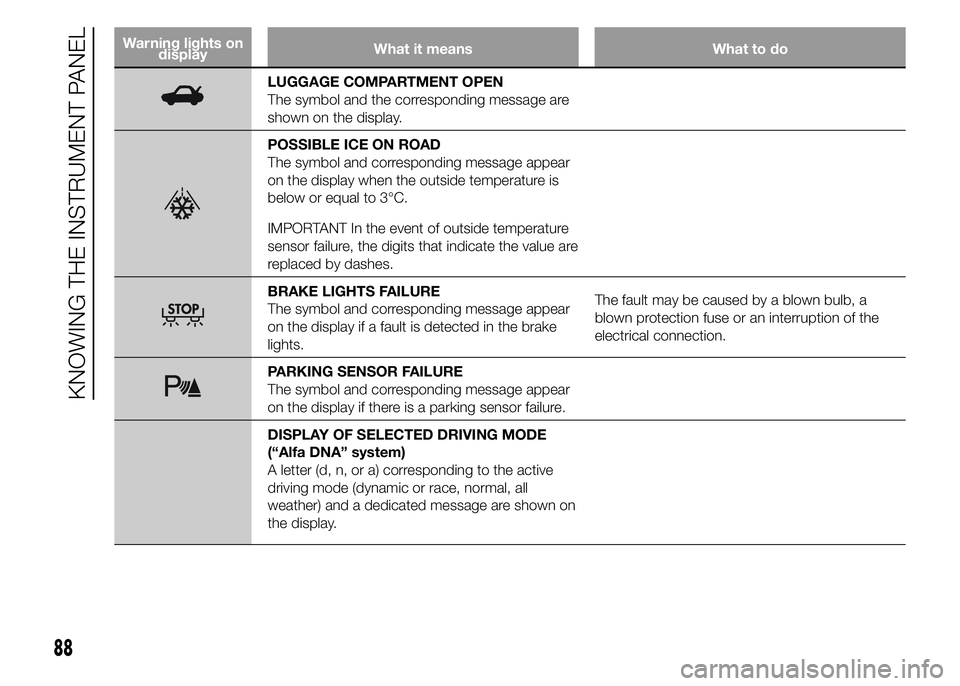

LUGGAGE COMPARTMENT OPEN
The symbol and the corresponding message are
shown on the display.
POSSIBLE ICE ON ROAD
The symbol and corresponding message appear
on the display when the outside temperature is
below or equal to 3°C.
IMPORTANT In the event of outside temperature
sensor failure, the digits that indicate the value are
replaced by dashes.
BRAKE LIGHTS FAILURE
The symbol and corresponding message appear
on the display if a fault is detected in the brake
lights.The fault may be caused by a blown bulb, a
blown protection fuse or an interruption of the
electrical connection.
PARKING SENSOR FAILURE
The symbol and corresponding message appear
on the display if there is a parking sensor failure.
DISPLAY OF SELECTED DRIVING MODE
(“Alfa DNA” system)
A letter (d, n, or a) corresponding to the active
driving mode (dynamic or race, normal, all
weather) and a dedicated message are shown on
the display.
88
KNOWING THE INSTRUMENT PANEL

– rev counter ................................ 64
– speedometer ............................. 64
Parking ......................................... 105
– Handbrake ................................ 105
Parking lights ................................. 28
Parking sensors ............................. 51
Passenger side front airbag ............ 100
Performance .................................. 176
Plugs (type) .................................... 165
Power socket ................................. 35
Pre-Fill system (RAB - Ready
Alert Brake) .................................. 45
Pretensioners ................................. 94
– Load limiters.............................. 95
Protecting the environment ............ 59
Radio system................................ 50
Radio transmitters and mobile
phones......................................... 51
Raising the car ............................... 136
Rear direction indicators................. 130
Rear fog light.................................. 33
Rear fog light/reversing light ........... 131
Rear view mirrors ........................... 18
– Internal mirror ............................ 18
Rear window washer
– rear window washer fluid level ... 147
Refuelling ....................................... 178
Refuelling the car ........................... 58Rev counter ................................... 64
Roof light
– bulb replacement ...................... 132
Roof lights...................................... 32
– Front roof light ........................... 32
Saving fuel .................................... 111
SBR system (Seat Belt
Reminder) .................................... 94
Scheduled Servicing Plan ............... 141
Screen wiper/washer ..................... 29
– “Smart washing” function .......... 30
Seat belts....................................... 92
– Use ........................................... 92
Seats ............................................. 15
Setup menu ............................... 64-65
Side air diffusers............................. 19
Side lights/brake lights ................... 130
Side lights/daytime running lights
(DRL)
– bulb replacement ...................... 129
Side lights/dipped headlights ......... 28
Snow chains .................................. 113
Snow tyres ..................................... 113
Speedometer ................................. 64
Speedometer (speed indicator) ...... 64
Starting the engine ......................... 104
Starting the engine ......................... 118
– Bump starting ........................... 118
– Jump starting ............................ 118Steering ......................................... 170
Steering lock .................................. 15
Steering wheel ............................... 17
Storage compartments .................. 34
Sun visors ...................................... 36
Suspension .................................... 169
Symbols......................................... 10
Technical data .............................. 162
The keys ........................................ 11
– Key without remote control........ 11
– Key with remote control............. 11
Third brake lights
– bulb replacement ...................... 131
Towing the car ............................... 137
– Attaching the tow hook ............. 137
TPMS (Tyre Pressure Monitoring
System)........................................ 54
Transmission .................................. 167
TRIP button.................................... 71
Trip Computer ................................ 70
Ty r e s
– Fix&Go automatic (kit) ............... 119
– inflation pressures ..................... 174
– reading the tyre code ................ 171
– snow tyres................................. 173
– tyres provided ........................... 173
Tyres - maintenance ....................... 153
Using the transmission.................. 106
INDEX
