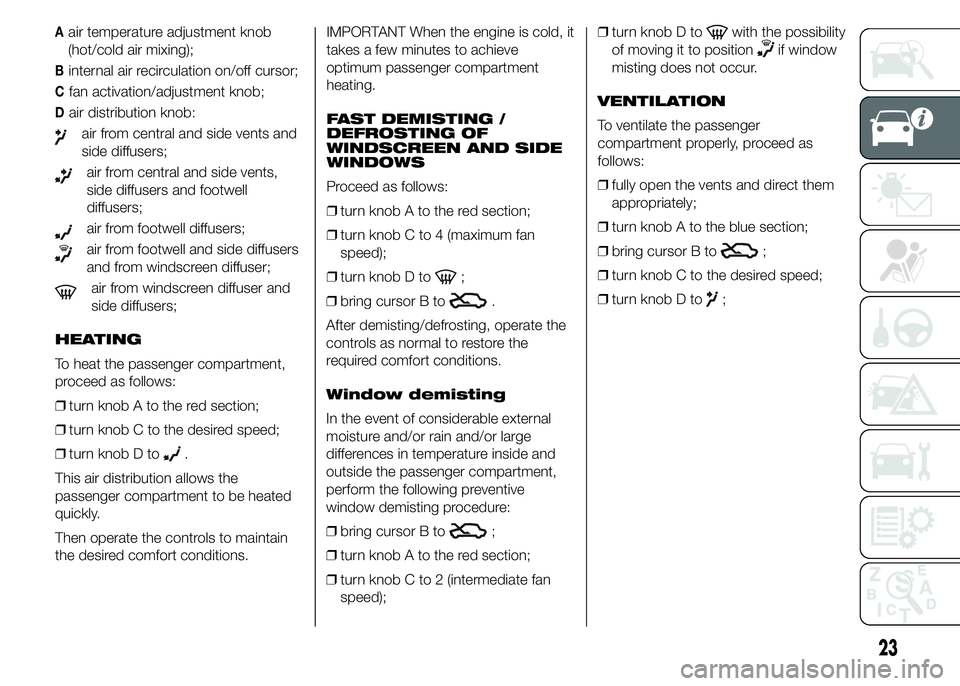

Aair temperature adjustment knob
(hot/cold air mixing);
Binternal air recirculation on/off cursor;
Cfan activation/adjustment knob;
Dair distribution knob:
air from central and side vents and
side diffusers;
air from central and side vents,
side diffusers and footwell
diffusers;
air from footwell diffusers;
air from footwell and side diffusers
and from windscreen diffuser;
air from windscreen diffuser and
side diffusers;
HEATING
To heat the passenger compartment,
proceed as follows:
❒turn knob A to the red section;
❒turn knob C to the desired speed;
❒turn knob D to
.
This air distribution allows the
passenger compartment to be heated
quickly.
Then operate the controls to maintain
the desired comfort conditions.IMPORTANT When the engine is cold, it
takes a few minutes to achieve
optimum passenger compartment
heating.
FAST DEMISTING /
DEFROSTING OF
WINDSCREEN AND SIDE
WINDOWS
Proceed as follows:
❒turn knob A to the red section;
❒turn knob C to 4 (maximum fan
speed);
❒turn knob D to
;
❒bring cursor B to
.
After demisting/defrosting, operate the
controls as normal to restore the
required comfort conditions.
Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside and
outside the passenger compartment,
perform the following preventive
window demisting procedure:
❒bring cursor B to
;
❒turn knob A to the red section;
❒turn knob C to 2 (intermediate fan
speed);❒turn knob D to
with the possibility
of moving it to position
if window
misting does not occur.
VENTILATION
To ventilate the passenger
compartment properly, proceed as
follows:
❒fully open the vents and direct them
appropriately;
❒turn knob A to the blue section;
❒bring cursor B to
;
❒turn knob C to the desired speed;
❒turn knob D to
;
23

Aair temperature adjustment knob
(hot/cold air mixing);
Binternal air recirculation on/off cursor;
Cfan activation/adjustment knob;
Dair distribution knob;
Eclimate control compressor on/off
button;
Fdoor mirror demisting button.
Knob D enables the air introduced into
the vehicle to reach all areas of the
passenger compartment through five
distribution options:
air from central and side vents and
side diffusers;
air from central and side vents,
side diffusers and footwell
diffusers;
air from footwell diffusers;
air from footwell and side diffusers
and from windscreen diffuser;
air from windscreen diffuser and
side diffusers;
HEATING
To heat the passenger compartment,
proceed as follows:
❒turn knob A to the red section;
❒turn knob C to the desired speed;
❒turn knob D to
.This air distribution allows the
passenger compartment to be heated
quickly.
Then operate the controls to maintain
the desired comfort conditions.
IMPORTANT When the engine is cold, it
takes a few minutes to achieve
optimum passenger compartment
heating.
FAST DEMISTING /
DEFROSTING OF
WINDSCREEN AND SIDE
WINDOWS
Proceed as follows:
❒turn knob A to the red section;
❒turn knob C to 4 (maximum fan
speed);
❒turn knob D to
;
❒bring cursor B to
.
After demisting/defrosting, operate the
controls as normal to restore the
required comfort conditions.
IMPORTANT The climate control
system is very useful for speeding up
and maintaining demisting since it
dehumidifies the air. Adjust the controls
as described previously and switch
on the climate control system by
pressing button E.Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside and
outside the passenger compartment,
perform the following preventive
window demisting procedure:
❒bring cursor B to
;
❒turn knob A to the red section;
❒turn knob C to 2 (intermediate fan
speed);
❒turn knob D to
with the possibility
of moving it to position
if window
misting does not occur.
VENTILATION
To ventilate the passenger
compartment properly, proceed as
follows:
❒fully open the air diffusers and vents;
❒turn knob A to the blue section;
❒bring cursor B to
;
❒turn knob C to the desired speed;
❒turn knob D to
;
26
GETTING TO KNOW YOUR CAR

DIRECTION INDICATORS
Bring the stalk to the (stable) position:
❒upwards: activates right direction
indicator;
❒downwards: activates left direction
indicator.
Warning light
orwill blink on the
instrument panel.
The direction indicators are switched off
automatically when the steering wheel
is straightened.
"Lane change" function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second. The
direction indicator on the side selected
will flash five times and then switch
off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows you to illuminate the
area in front of the car for a certain
amount of time.Activation
With the key turned to STOP or
removed, pull stalk A towards the
steering wheel within 2 minutes from
when the engine is turned off.
Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to
a maximum of 210 seconds; then
the lights are switched off automatically.
Also, each time the stalk is operated,
the
warning light on the
instrument panel switches on. The
display shows the time set for the
function and the corresponding
graphics.
The warning light comes on when the
lever is operated and stays on until
the function is automatically
deactivated. Each movement of the
stalk only increases the amount of time
the lights stay on.
Deactivation
Keep the stalk pulled towards the
steering wheel for more than 2
seconds.
WINDOW CLEANING
IN BRIEF
The right stalk controls screen
wiper/washer operation.
This operates only with the ignition
key at MAR-ON.
SCREEN WIPER/WASHER
Operation
12) 13)
Ring nut A fig. 23 can be set to the
following positions:
Owiper off;
intermittent operation;
continuous slow operation;
continuous fast operation.
23A0L0021
29

Move the stalk upwards (unstable
position) to limit operation to the time
for which the stalk is held manually
in this position. When released, the
stalk will return to its initial position and
the screen wiper will be stopped
automatically.
With ring nut A fig. 23 in
position,
the screen wiper will automatically
adapt its operating speed to the speed
of the car.
"Smart washing"
function
Pull the stalk towards the steering
wheel (unstable position) to operate the
screen washer. Keeping the stalk pulled
for more than half a second, with just
one movement it is possible to operate
the screen washer jet and the wiper
at the same time.
The wiper stops working three strokes
after the stalk is released. A further
stroke after approximately 6 seconds
completes the cycle.
WARNING
12) Do not use the screen wiper to
remove layers of snow or ice
from the windscreen. In such
conditions, the screen wiper may
be subjected to excessive stress
and the motor cut-out switch,
which prevents operation for
a few seconds, may intervene. If
operation is not subsequently
restored (even after using the key
to restart the engine), contact
the dedicated Alfa Romeo
Dealership.
13) Do not operate the screen wiper
with the blades lifted from the
windscreen.
CRUISE CONTROL
(for versions/markets, where provided)
IN BRIEF
This is an electronically controlled
driving assistance device that allows
the desired car speed to be
maintained, without having to press
the accelerator pedal. This device
can be used at a speed above
30 km/h on long stretches of dry,
straight roads with few variations
(e.g. motorways).
It is therefore not recommended to
use this device on extra-urban roads
with traffic. Do not use it in town.
Activation
Turn ring nut A fig. 24 to
.
24A0L0022
30
GETTING TO KNOW YOUR CAR

The device cannot be engaged in 1st or
reverse gear: it is advisable to engage
it in 5th gear or higher.
When travelling downhill with the device
engaged, the car may slightly exceed
the stored speed.
When the device is activated, the
digital warning light switches on
together with the relevant message on
the display.
Storing speed
Proceed as follows:
❒turn ring nut A fig. 24 to
and
press the accelerator to reach the
desired speed;
❒move the stalk upwards (+) for at
least 1 second, then release it: the
car speed is now stored and you can
therefore release the accelerator.
If needed (when overtaking for
instance), you can accelerate simply by
pressing the accelerator; when you
release the pedal, the car goes back to
the speed stored previously.Restoring speed
If the device has been deactivated, for
example by pressing the brake pedal,
the stored speed can be restored as
follows:
❒accelerate gradually until a speed
approaching the one stored is
reached;
❒engage the gear selected at the time
that the speed was stored;
❒press the CANCEL/RESUME button
(B fig. 24).
Increasing speed
This can be done in two ways:
❒by pressing the accelerator and
storing the new speed reached
or
❒by moving the stalk upwards (+) until
the new speed, which will be stored
automatically, is reached.
Each movement of the stalk
corresponds to an increase in speed of
about 1 km/h, while keeping the stalk
held upwards will continuously increase
the speed.Decreasing speed
This can be done in two ways:
❒by deactivating the device and then
storing the new speed
or
❒by moving the stalk downwards (–)
until the new speed, which will be
stored automatically, is reached.
Each movement of the stalk will
correspond to a slight reduction in
speed of about 1 km/h, while keeping
the stalk held downwards will decrease
the speed continuously.
Deactivation
The device can be switched off by the
driver in the following ways:
❒by turning ring nut A fig. 24 toO;
❒by switching off the engine;
❒by pressing the CANCEL/RESUME
button;
❒by pressing the brake pedal or the
accelerator; in this last case the
system is not completely deactivated
but gives priority to the acceleration
request. The device still remains
active, without the need to press the
CANCEL/RESUME button to return
to the previous condition once
acceleration is concluded.
31

14) 15)
Automatic deactivation
The device is automatically switched off
in the following cases:
❒if the ABS or ESC systems intervene;
❒with the car speed below the set
limit;
❒in the event of system failure.
WARNING
14) When driving with device active,
do not press the "N" button on
the transmission control panel.
15) If operation of the device is
faulty or in the case of failure, turn
ring nut A fig. 24 toOand contact
a dedicated Alfa Romeo
Dealership.
ROOF LIGHT
Operation
The lens of roof light A fig. 25 can be
set to three positions:
❒right side pressed: light always on
❒left side pressed: light always off
❒central position (neutral): the light
switches on and off when the doors
are opened or closed.
ROOF LIGHT TIMING
To facilitate getting in/out of the car at
night or in poorly lit areas, two timed
modes have been provided.Timing while getting into
the car
The roof light switches on as follows:
❒for about 10 seconds when the
doors are unlocked;
❒for about 3 minutes when one of the
doors is opened;
❒for about 10 seconds when one of
the doors is closed.
The timed period is interrupted when
the ignition key is turned to MAR-ON.
Timing while getting out
of the car
After removing the key from the ignition
switch, the roof light will switch on as
follows:
❒for about 10 seconds, if the key is
removed within 2 minutes of the
engine switching off;
❒for about 3 minutes when one of the
doors is opened;
❒for about 10 seconds when one of
the doors is closed.
The timing stops automatically when
the doors are locked.
25A0L0060
32
GETTING TO KNOW YOUR CAR

CONTROLS
HAZARD WARNING
LIGHTS
Operation
Press switch A fig. 26 to switch the
lights on/off.
Warning lights
andon the panel
are lit up when the hazard warning
lights are on.
16)
REAR FOG LIGHT
Operation
Press the
fig. 27 button to switch
the light on/off.The LED on the button lights up to
indicate the activation of the rear fog
light. The rear fog light switches on only
when the dipped headlights are on.
CENTRAL LOCKING
Operation
Press the
fig. 28 button to lock all
doors at the same time. When the
doors are locked, the LED on the
button lights up.
Locking takes place irrespective of the
position of the ignition key.FUEL CUT-OFF SYSTEM
Operation
This intervenes in the event of impact,
causing:
❒fuel supply cut-off with the engine
consequently switching off;
❒the automatic unlocking of the doors;
❒the switching on of the interior lights;
❒the switching on of the hazard
warning lights.
The digital
warning light and the
dedicated message on the display
indicate the intervention of the system.
Carefully check the car for fuel leaks, for
instance in the engine compartment,
under the car or near the tank area.
17)
26A0L0023
27A0L002428A0L0026
33

The restoration procedure must be
performed as described below with the
doors closed:
❒completely open the driver's door
window keeping the operating button
pressed for at least three seconds
after the (lower) end of travel position
is reached;
❒completely raise the driver side
window and hold the button down for
at least 3 seconds once the (upper)
end of travel position has been
reached;
❒proceed in the same way as
described in points 1 and 2 for the
passenger side door;
❒make sure that the initialisation is
correct by checking that the windows
work automatically.
WARNING
20) Incorrect use of the electric
windows may be dangerous.
Before and during their operation
ensure that passengers are not
at risk of injury from the moving
glass, either through personal
objects getting caught in the
mechanism or by being hit by it
directly. When leaving the car,
always remove the key from the
ignition to prevent accidental
operation of the electric windows
from being a hazard for those
still on board.
LUGGAGE
COMPARTMENT /
ENGINE COVER
21)
OPENING
IMPORTANT During normal car
operation, the luggage compartment
can reach temperatures above 65°C.
Pay attention when transporting objects
that may be damaged at such
temperatures. Do not keep aerosol
cans in the car: danger of explosion.
Aerosol cans must not be exposed to
temperatures above 50°C.
Procedure
22) 23)
❒with driver side door open, pull lever
A fig. 41, located at the point
illustrated in the figure;
41A0L0037
39
