339Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Power Tailgate Motor*(40 A)
ABS/VSA FSR20 A
ABS/VSA Motor40 A
E-DPS30 A
Main Fuse120 A
2
ST CUT50 A
Fuse Box Main 1 60 A
Fuse Box Main 260 A
IG Main 50 A
Headlight Washer(30 A)
Sub Fan Motor 30 A Rear Defogger 40 A
Main Fan Motor 30 A Headlight Main 30 A Blower 40 A
3
Driver's Power Seat Sliding 20 A
Driver's Power Seat Reclining20 A
Passenger's Power Seat Sliding20 A
Passenger's Power Seat Reclining20 A
4− −
5STR Diagnosis Fuse7.5 A
6− −
7−−
8− −*1:Models with halogen low beam headlight bulbs
*2:Models with high voltage discharge tube bulbs
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Power Tailgate Closer*(20 A)
14 Hazard 10 A
15IGP215 A
16 IG Coil 15 A
17Stop10 A
18 Horn 10 A
19ACM10 A
20 Right Headlight Low Beam 10 A*1
15 A*2
21MG Clutch7.5 A
22 DBW 15 A
23Left Headlight Low Beam10 A*1
15 A*2
24 ACC 10 A
25FI Main(15 A)
26 Trailer (20 A)
27Small20 A
28 Interior Lights 7.5 A
29Back Up10 A
Circuit ProtectedAmps
* Not available on all models

341
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 339 to P. 340.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

Index
357
Index
Index
Numbers
4WD.......................................................... 253
A
ABS (Anti-lock Brake System) .................. 259
Accessories and Modifications ................ 266
Accessory Power Sockets ......................... 148
Additives Coolant .................................................. 282
Engine Oil ............................................... 277
Washer ................................................... 286
Additives, Engine Oil ............................... 277
Adjusting Armrest .................................................. 142
Front Seats.............................................. 136
Head Restraints ....................................... 138
Mirrors.................................................... 133
Rear Seats ............................................... 141
Steering Wheel ....................................... 132
Temperature ............................................. 85
Air Conditioning System (Climate Control System) ....................... 152
Changing the Mode................................ 152
Defrosting the Windshield and Windows .............................................. 153
Dust and Pollen Filter .............................. 312
Recirculation/Fresh Air Mode................... 152
Sensors ................................................... 155
Synchronized Mode ................................ 154
Using Automatic Climate Control............ 152 Air Conditioning System
(Heating and Cooling System)
Dust and Pollen Filter ............................... 312
Air Pressure ....................................... 302, 347
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 51
Front Airbags (SRS) .................................... 40
Indicator ........................................ 48, 72, 75
Passenger Airbag Off Indicator .................. 49
Sensors ...................................................... 37
Side Airbag Cutoff System ......................... 46
Side Airbag Off Indicator ........................... 50
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 47
AM/FM Radio ............................................ 167
Anti-lock Brake System (ABS) .................. 259
Indicator .................................................... 71
Armrest ..................................................... 142
Audio Remote Controls ............................ 165
Audio System ............................................ 158
Adjusting the Sound ................................ 166
Auxiliary Input Jack .................................. 159
Error Messages ........................................ 187
General Information ................................ 190
iPod ®....................................................... 174
MP3/WMA/AAC ...................................... 179
Pandora ®................................................. 177
Reactivating ............................................. 160
Recommended CDs ................................. 191 Recommended Devices............................ 193
Security Code .......................................... 160
Theft Protection ...................................... 160
USB Adapter Cable.................................. 159
USB Flash Drives ...................................... 193
Audio/Information Display ...................... 162
Authorized Manuals ................................ 355
Auto Door Locking/Unlocking ................. 106
Customize ................................................. 92
Automatic Lighting .................................. 123
Automatic Transmission ........................... 243
Creeping ................................................. 243
Fluid ........................................................ 284
Kickdown ................................................ 243
Operating the Shift Lever................... 16, 245
Sequential Shift Mode ............................. 246
Shift Lever Does Not Move ...................... 332
Shifting ................................................... 244
Auxiliary Input Jack .................................. 159
Average Fuel Economy .............................. 85
Average Speed ........................................... 86
AWD .......................................................... 253
B
Battery ...................................................... 310
Charging System Indicator................. 69, 335
Jump Starting .......................................... 330
Maintenance (Checki ng the Battery) ........ 310
Belts (Seat) .................................................. 29
Beverage Holders ..................................... 147

359
Index
Locking/Unlocking the Doors from the Inside...................................... 104
Locking/Unlocking the Doors from the Outside..................................... 99
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 304
Driver’s Seat Lumbar Support ................. 136
Driving ...................................................... 227
Automatic Transmission .......................... 243
Braking ................................................... 257
Cruise Control ........................................ 248
Off-Highway Driving Guidelines .............. 238
Shifting Gear .......................................... 244
Starting the Engine ................................. 240
Driving Position Memory System ............ 130
Dust and Pollen Filter .............................. 312
E
Elapsed Time.............................................. 86
Electric Power Steering (EPS) System
Indicator ........................................... 74, 337
Electronic Stability Control (ESC) ............ 251
Emergency ................................................ 342
Emissions Testing (Readiness Codes) ...... 351
Engine ....................................................... 348
Coolant .................................................. 282
Jump Starting ......................................... 330
Oil .......................................................... 277
Starting................................................... 240 Engine Coolant
......................................... 282
Adding to the Radiator ............................ 283
Adding to the Reserve Tank ..................... 282
Overheating ............................................ 333
Temperature Gauge .................................. 82
Engine Oil ................................................. 277
Adding .................................................... 279
Checking ................................................. 278
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 69, 335
Recommended Engine Oil ........................ 277
EPS (Electric Power Steering) System ............................................... 74, 337
Exhaust Gas Hazard (Carbon Monoxide) .. 64
Exterior Care (Cleaning) ........................... 315
Exterior Mirrors ........................................ 134
F
Features..................................................... 157
Filters
Dust and Pollen ....................................... 312
Oil ........................................................... 280
Flat Tire ..................................................... 321
Floor Mats ................................................. 314
Fluids Automatic Transmission ........................... 284
Brake ....................................................... 285
Engine Coolant ........................................ 282
Windshield Washer .................................. 286
Fog Light Indicator ..................................... 75 Folding Down the Rear Seats
.................. 141
Foot Brake ................................................ 258
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 136
Adjusting ................................................ 136
Fuel ...................................................... 17, 263
Economy ................................................. 265
Gauge ....................................................... 82
Low Fuel Indicator ..................................... 71
Range ....................................................... 86
Recommendation .................................... 263
Refueling................................................. 263
Fuel Economy ........................................... 265
Fuel Fill Cap ........................................ 17, 264
Message.................................................. 336
Fuel Fill Door ...................................... 17, 264
Fuses .......................................................... 339
Inspecting and Changing......................... 341
Locations......................................... 339, 340
G
Gasoline (Fuel) Economy ................................................. 265
Gauge ....................................................... 82
Information ............................................. 263
Low Fuel Indicator ..................................... 71
Refueling................................................. 263
Gauges ........................................................ 82
Gear Shift Lever Positions
Automatic Transmission .......................... 244

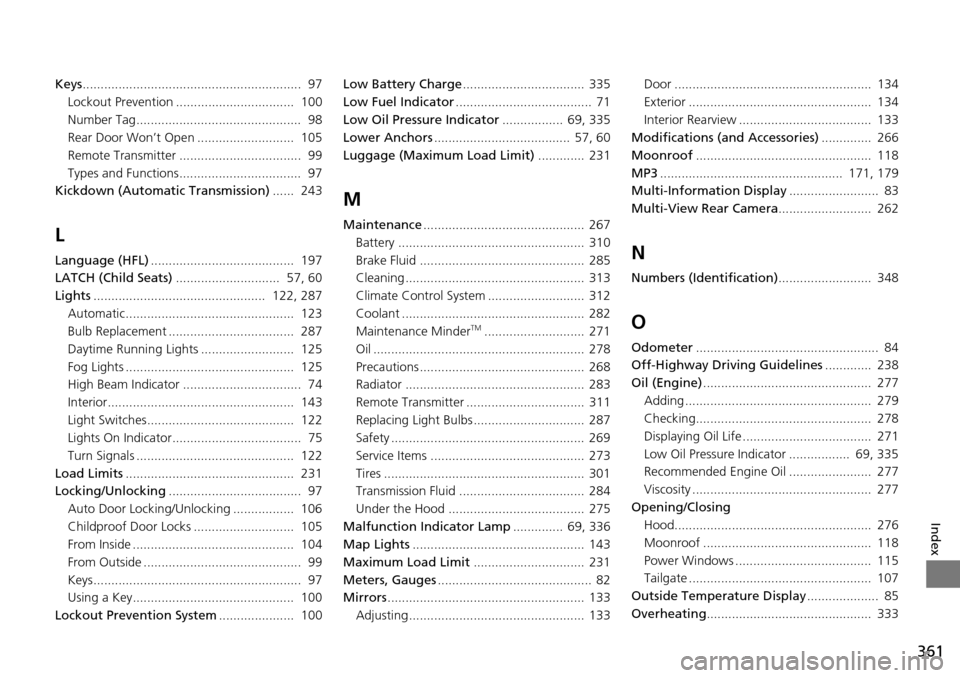

361
Index
Keys............................................................. 97
Lockout Prevention ................................. 100
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 105
Remote Transmitter .................................. 99
Types and Functions.................................. 97
Kickdown (Automatic Transmission) ...... 243
L
Language (HFL)........................................ 197
LATCH (Child Seats) ............................. 57, 60
Lights ................................................ 122, 287
Automatic............................................... 123
Bulb Replacement ................................... 287
Daytime Running Lights .......................... 125
Fog Lights ............................................... 125
High Beam Indicator ................................. 74
Interior.................................................... 143
Light Switches......................................... 122
Lights On Indicator.................................... 75
Turn Signals ............................................ 122
Load Limits ............................................... 231
Locking/Unlocking ..................................... 97
Auto Door Locking/Unlocking ................. 106
Childproof Door Locks ............................ 105
From Inside ............................................. 104
From Outside ............................................ 99
Keys.......................................................... 97
Using a Key............................................. 100
Lockout Prevention System ..................... 100Low Battery Charge
.................................. 335
Low Fuel Indicator ...................................... 71
Low Oil Pressure Indicator ................. 69, 335
Lower Anchors ...................................... 57, 60
Luggage (Maximum Load Limit) ............. 231
M
Maintenance............................................. 267
Battery .................................................... 310
Brake Fluid .............................................. 285
Cleaning .................................................. 313
Climate Control System ........................... 312
Coolant ................................................... 282
Maintenance Minder
TM............................ 271
Oil ........................................................... 278
Precautions .............................................. 268
Radiator .................................................. 283
Remote Transmitter ................................. 311
Replacing Light Bulbs ............................... 287
Safety ...................................................... 269
Service Items ........................................... 273
Tires ........................................................ 301
Transmission Fluid ................................... 284
Under the Hood ...................................... 275
Malfunction Indicator Lamp .............. 69, 336
Map Lights ................................................ 143
Maximum Load Limit ............................... 231
Meters, Gauges ........................................... 82
Mirrors ....................................................... 133
Adjusting ................................................. 133 Door ....................................................... 134
Exterior ................................................... 134
Interior Rearview ..................................... 133
Modifications (and Accessories) .............. 266
Moonroof ................................................. 118
MP3 ................................................... 171, 179
Multi-Information Display ......................... 83
Multi-View Rear Camera .......................... 262
N
Numbers (Identification).......................... 348
O
Odometer................................................... 84
Off-Highway Driving Guidelines ............. 238
Oil (Engine) ............................................... 277
Adding .................................................... 279
Checking................................................. 278
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator ................. 69, 335
Recommended Engine Oil ....................... 277
Viscosity .................................................. 277
Opening/Closing Hood....................................................... 276
Moonroof ............................................... 118
Power Windows ...................................... 115
Tailgate ................................................... 107
Outside Temperature Display .................... 85
Overheating .............................................. 333
