2015 Acura RDX navigation

56
Routing & GuidanceStreet Name Guidance
System Setup
Street Name Guidance
HINFO button  Set up  Other  Routing & Guidance  Street Name
Guidance
The navigation system includes the street names during voice guidance (e.g., “Turn
right on Main Street”).
Rotate i to select an option. Press
u .
The following options are available:
• ON : Voice guidance includes the street names.
• OFF (factory default): Disables the feature.1Street Name Guidance
This feature is only available when the system
language is set to English.
This feature is not availa ble when your vehicle is
in Puerto Rico or Mexico.

57
System Setup
Clock Adjustment
HINFO button  Set up  Other  Clock Adjustment
Set the automatic adjustment of the sy stem clock for daylight saving and
international time zones.
Rotate i to select an item. Press u.
The following items are available:
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
ON (factory default): Adjusts the clock automatically.
OFF : Disables the feature.
• Auto Time Zone : The navigation syst em automatically adju sts the clock when
driving through different time zones.
ON (factory default): Adjusts the clock automatically.
OFF : Disables the feature.
• ADJUST TIME : Adjust the current time manually.
2Adjust Time P. 58
• Reset : Reset the clock settings to the factory default.
2Resetting the Clock Settings P. 58
1Clock Adjustment
You can check the time and date from any
screen using voice commands.
2 Global Commands P. 242
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to ON .
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to OFF.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.

60
VehicleOff-road Tracking
System Setup
Off-road Tracking
HINFO button  Set up  Other  Vehicle  Off-road Tracking
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map screen whenever you drive into an area approximately
1/2 mile away from a mapped road.
Rotate i to select an option. Press
u .
The following options are available:
• ON (factory default): The system displays the white tracking dots.
2Driving Off-road P. 95
• OFF : Disables the feature.
1Off-road Tracking
To clear existing breadcrumbs, set Off-road
Tracking to OFF, exit the Setup screen, and then
set Off-road Tracking to ON again.

62
System Setup
AcuraLink®
AcuraLink/Messages
HINFO button  Set up  Other  AcuraLink/Messages
Set the preferences for rece iving AcuraLink® messages.
2AcuraLink® Messages P. 200
Rotate i to select an item. Press u .
The following item s are available:
• Delete Messages : Deletes all messages by category except Diagnostic Info and
Recalls/Campaigns .
• New Message Notification :
ON (factory default): An envelope ic on appears on the navigation screen.
OFF : You will receive no new message notifications.
• Auto Reading :
ON (factory default): The system automa tically reads aloud a selected message.
OFF : You can activate th e function with the Voice option.
• Phone-Data Connection : Begins the process to connect to the Acura server.
• Connect to the Acura Server: There are two settings to choose from when you
receive a Diagnostic Info message and select Check Now.
Prompt (factory default): The system prompts you and then connects to the
Acura server.
Auto : The system automa tically connects to the Acura server.
1AcuraLink/Messages
For information on setting up the services
available through AcuraLink®, visit
owners.acura.com
AcuraLink® via SiriusXM® Radio is available only
in U.S. mainland.
Delete Messages
Only dealer can delete Di agnostic Info and Recall/
Campaign messages.
Phone-Data Connection/Connect to the
Acura Server
These settings apply when you have a phone that
comes with an active data plan and is paired to
HFL.
Connect to the Acura Server
If you do not want to c onnect to the Acura server
immediately, rotate i to select No at the
prompt.

67
Navigation
This section describes how to enter a destination, select a route to take,
and follow the route to your destination. It also describes how to change your route or destination along the way.
Entering a Destination........................... 68
Address ................................................. 70
Address Book ......................................... 75
Previous Destinations ............................. 76
Place Name ............................................ 77
Place Category ....................................... 80
Place Phone Number .............................. 84
Coordinate ............................................ 85
Intersection ............................................ 86
Map Input.............................................. 87 Calculating the Route
..............................89
Changing the Route Preference ..............90
Viewing the Routes .................................90
Calculating the Route on the Destination Map ......................................................91
Driving to Your Destination ...................92
Viewing the Route ..................................92
Listening to Voice Guidance ....................96
Map Menu ................................................97
Displaying the Map Menu .......................97
Guidance Menu ......................................99
Map Information ...................................104
Weather Information ............................113
Traffic Rerouting™................................118 Changing Your Route
........................... 120
Canceling the Route............................. 121
Taking a Detour ................................... 121
Avoiding Streets ................................... 121
Adding Waypoints ............................... 122
Editing the Destination List ................... 126
Changing Your Destination ................. 127
Find Nearest Place ................................ 127
Selecting a Destination on the Map ...... 128
Entering a New Destination .................. 129
Resuming Your Trip .............................. 131

68
Navigation
Entering a Destination
HDEST/ROUTE button
This section describes how to enter a destination for route guidance. Rotate i to select an item. Press u .
Move y to select Dest. MENU 2
to display additional menu entries.
The following item s are available:
• Address : Sets a destination by entering an address.
2Address P. 70
• Address Book : Sets a destination by selecting an address stored in your Address
Book.
2 Address Book P. 75
• Previous Destinations : Sets a destination by selecting a previous destination.
2Previous Destinations P. 76
1Entering a Destination
d “Display Destination” , d “Display
Navigation”
If you press the DEST /ROUTE button when en
route, the Route Menu sc reen is displayed.
2 Changing Your Route P. 120
Prior to departure, you can set areas along your
route to avoid.
2 Avoiding Streets P. 121

69
Entering a Destination
Navigation
•Place Name : Sets a destination by entering a place name.
2Place Name P. 77
• Place Category : Sets a destination by selecting a place/landmark.
2Place Category P. 80
• Place Phone No. : Sets a destination by entering the phone number of a place/
landmark.
2 Place Phone Number P. 84
• Coordinate: Sets a destination by entering latitude and longitude.
2 Coordinate P. 85
• Intersection : Sets a destination (intersectio n) by entering two streets.
2Intersection P. 86
• Map Input : Sets a destination by scrolling through the map.
2Map Input P. 87
• Go Home 1 or 2 : Sets your home addres s as a destination.
2Going Home P. 12

70
Entering a DestinationAddress
Navigation

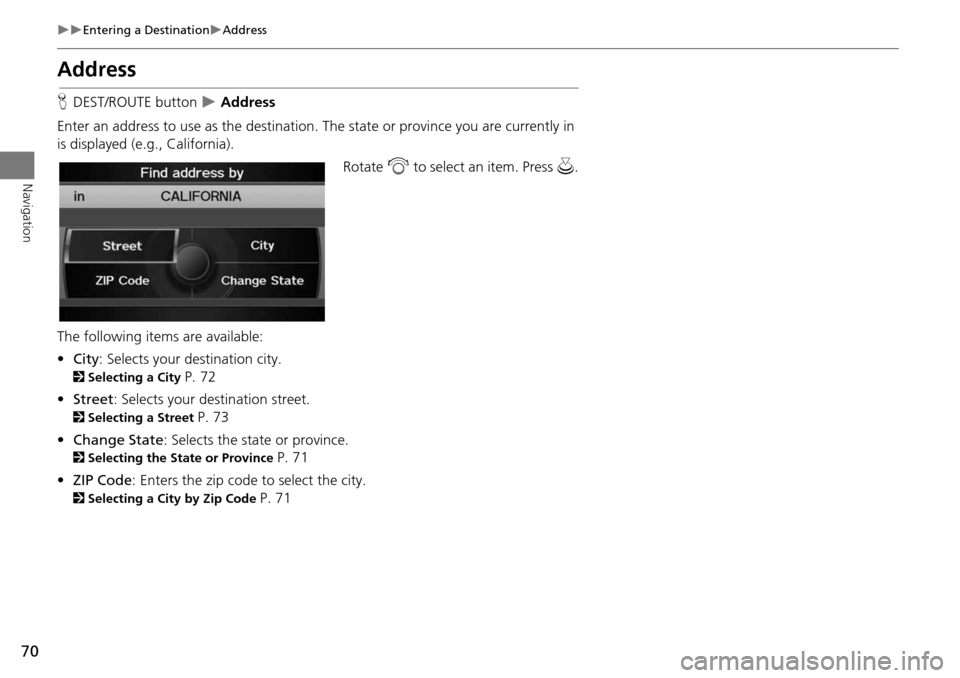

Address
HDEST/ROUTE button  Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Rotate i to select an item. Press u .
The following item s are available:
• City : Selects your destination city.
2Selecting a City P. 72
• Street : Selects your destination street.
2Selecting a Street P. 73
• Change State : Selects the state or province.
2Selecting the State or Province P. 71
• ZIP Code : Enters the zip code to select the city.
2Selecting a City by Zip Code P. 71
