2015 Acura ILX Hybrid mirror controls

Contents
Child Safety P. 54Exhaust Gas Hazard P. 66Safety Labels P. 67Opening and Closing the Trunk P. 114 Security System P. 118 Opening and Closing the Windows P. 120
Operating the Switches Around the Steering Wheel P. 124 Adjusting the Mirrors P. 133
Climate Control System P. 146Audio Error Messages
* P. 180 General Information on the Audio System P. 183
Bluetooth ® HandsFreeLink ® P. 189
When Driving P. 226 Braking P. 248Parking Your Vehicle P. 252
Fuel Economy P. 256 Accessories and Modifications P. 257Maintenance Under the Hood P. 268 Replacing Light Bulbs P. 282
Checking and Maintaining Tires P. 294 12 Volt Battery P. 303 Remote Transmitter Care P. 304
Cleaning P. 306Engine Does Not Start P. 329 Jump Starting P. 332Shift Lever Does Not Move P. 334
Fuses P. 341 Emergency Towing P. 344Devices that Emit Radio Waves P. 349 Reporting Safety Defects P. 350
Authorized Manuals P. 355 Client Service Information P. 356
Quick Reference Guide
P. 4
Safe Driving
P. 27
Instrument Panel
P. 69
Controls
P. 103
Features
P. 151
Driving
P. 219
Maintenance
P. 259
Handling the Unexpected
P. 311
Information
P. 345
Index
P. 357

Visual Index
6Quick Reference Guide
❙Door Mirror Controls
(P 134)
❙Parking Brake
(P 248)
❙Rearview Mirror
(P 133)
❙Power Door Lock Master Switch
(P 112)
❙Power Window Switches
(P 120)
❙Driver's Front Airbag
(P 42)
❙Seat Heater Switches
*
(P 145)
❙Trunk Release
(P 114)
❙Fuel Fill Door Release Handle
(P 255)
❙Hood Release Handle
(P 269)
❙Interior Fuse Box
(P 342)
❙Passenger's Front Airbag (P 42)❙USB Adapter Cable
(P153 )
❙Shift Lever
Continuous Variable
Transmission (CVT)
(P 231)
❙Glove Box
(P 142)
❙Accessory Power Socket (P 144)❙Auxiliary Input Jack
(P 153)

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock.............................. 104
Locking and Unlocking the Doors
Key Types and Functions .................. 105
Low Keyless Access Remote Signal Strength ......................................... 106
Locking/Unlocking the Doors from the Outside .......................................... 107
Locking/Unlocking the Doors from the
Inside ............................................. 111
Childproof Door Locks ..................... 112
Auto Door Locking/Unlocking .......... 113
Opening and Closing the Trunk....... 114
Security System Immobilizer System .......................... 118 Security System Alarm...................... 118
Opening and Closing the Windows
.... 120
Opening and Closing the Moonroof ... 123Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 124
Turn Signals ..................................... 126
Light Switches.................................. 126
Fog Lights ........................................ 129
Daytime Running Lights ................... 129
Wipers and Washers ........................ 130
Brightness Control ........................... 131
Rear Defogger/Heated Door Mirror Button...132
Adjusting the Steering Wheel........... 132 Adjusting the Mirrors
Interior Rearview Mirror ................... 133
Power Door Mirrors ......................... 134
Adjusting the Seats Adjusting the Seat Positions ............. 135
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 141
Interior Convenience Items .............. 142
Climate Control System Using Automatic Climate Control .... 146
Synchronized Mode .............................. 148
Automatic Climate Control Sensors ...... 149

132
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror Button
Controls
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
Adjusting the Steering WheelThe steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.
1.Pull the steering wheel adjustment lever up.
u The steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
u Make sure you can see the instrument
panel gauges and indicators.
3. Push the steering wheel adjustment lever
down to lock the steering wheel in position.
u After adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Rear Defogger/Heated Door Mirror ButtonNOTICEWhen cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the 12 volt
battery, making it difficult to start the engine.1Adjusting the Steering Wheel
Make any steering wheel adjustments before you
start driving.
3 3
WARNING
Adjusting the steering wheel po sition while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.
To adjust
To lock
Lever

133Controls
Adjusting the MirrorsInterior Rearview MirrorAdjust the angle of the rearview mirror when you are sitting in the correct driving
position.Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror always reduces the
glare from headlights behind you.■
Rearview Mirror with Day and Night Positions
*
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2 Adjusting the Seat Positions P. 135
Tab
Daytime
Position
Night PositionUp
Down■
Automatic Dimming Rearview Mirror
*
1 Automatic Dimming Rearview Mirror
*
The auto dimming function cancels when the shift
position is in
(R.
Sensor
Indicator
* Not available on all models

134
uuAdjusting the Mirrors uPower Door Mirrors
Controls

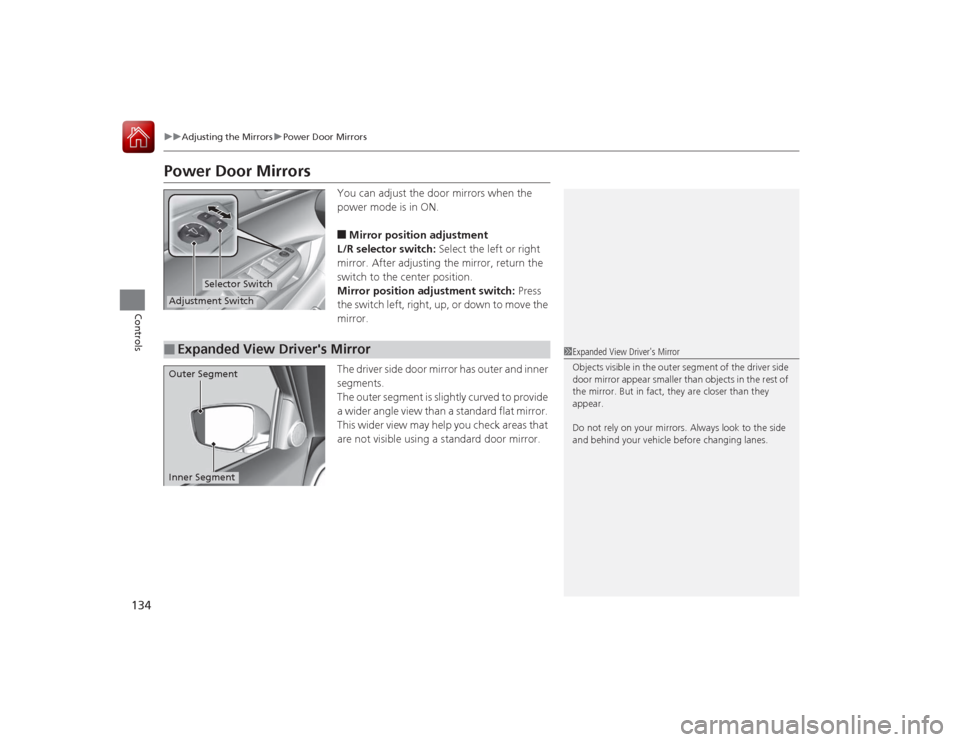

Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
The driver side door mirror has outer and inner
segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
Selector Switch
Adjustment Switch■
Expanded View Driver's Mirror
1 Expanded View Driver's Mirror
Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.
Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.
Inner SegmentOuter Segment

Index
357Index
Index
Numbers7-Speed Manual Shift Mode................... 233
7-Speed Manual Shift Mode Operation ............................................... 234AABS (Anti-lock Brake System) .................. 250
Accessories and Modifications ................ 257
Accessory Power Socket ........................... 144
Acura Hybrid System .................................. 12
Additives Coolant .................................................. 277
Engine Oil ............................................... 274
Washer ................................................... 281
Additives, Engine Oil ............................... 272
Adjusting Armrest .................................................. 140
Front Seats.............................................. 135
Head Restraints ....................................... 138
Mirrors.................................................... 133
Steering Wheel ....................................... 132
Temperature ............................................. 90
Air Conditioning System (Climate Control
System) .................................................... 146
Changing the Mode................................ 146
Defrosting the Windshield and
Windows .............................................. 147
Dust and Pollen Filter .............................. 305
Recirculation/Fresh Air Mode................... 146
Sensor .................................................... 149 Synchronized Mode ................................. 148
Using Automatic Climate Control ............ 146
Air Pressure ............................................... 294
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ......................................... 42
Airbag Care ............................................... 53
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 42
Indicator ........................................ 50, 74, 78
Passenger Airbag Off Indicator .................. 51
Sensors ...................................................... 45
Side Airbag Cutoff System ......................... 48
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 49
AM/FM Radio ............................................ 161
Anti-lock Brake System (ABS) .................. 250
Indicator .................................................... 73
Armrest ..................................................... 140
Audio Remote Controls ............................ 159
Audio System ............................................ 152
Adjusting the Sound ................................ 160
Auxiliary Input Jack .................................. 153
Error Messages ........................................ 180
General Information ................................ 183
iPhone ..................................................... 186
iPod ......................................................... 168
MP3/WMA/AAC ...................................... 173
Pandora ®................................................. 171
Reactivating ............................................. 154 Recommended CDs ................................. 184
Recommended Devices............................ 186
Security Code .......................................... 154
Theft Protection ...................................... 154
USB Adapter Cable.................................. 153
USB Flash Drives ...................................... 186
Audio/Information Screen ....................... 156
Authorized Manuals ................................ 355
Auto Door Locking/Unlocking ................. 113
Customize ................................................. 95
Auto Idle Stop .......................................... 236
Auto Idle Stop Indicator ............................ 75
Automatic Lighting .................................. 127
Auxiliary Input Jack .................................. 153
Average Fuel Economy .............................. 91
Average Fuel Economy Records ................ 91
Average Speed ........................................... 92
BBattery...................................................... 303
Charging System Indicator................. 72, 337
Jump Starting .......................................... 332
Maintenance (Checking the 12 Volt
Battery) ................................................. 303
Maintenance (Replacing) ......................... 304
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 143
Bluetooth® Audio..................................... 176
Bluetooth® HandsFreeLink® ..................... 189
Booster Seats (For Children) ...................... 65

358Index
Brake System............................................. 248
Anti-lock Brake System (ABS) ................... 250
Brake Assist System ................................. 251
Brake System Indicator....................... 71, 339
Fluid ........................................................ 280
Foot Brake ............................................... 249
Indicator ............................................ 71, 339
Parking Brake .......................................... 248
Brightness Control (Instrument Panel) .... 131
Bulb Replacement ..................................... 282
Back-Up Light Bulbs ................................. 290
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs .. 288
Bulb Specifications ................................... 346
Fog Lights ................................................ 284
Front Turn Signal Light Bulbs ................... 286
Headlights ............................................... 282
High-Mount Brake Light .......................... 291
Parking/Side Marker Light Bulbs ............... 287
Rear License Plate Light............................ 291CCarbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 221, 223
CD Player ................................................... 165
Certification Label .................................... 348
Changing Bulbs ......................................... 282
Charge/Assist Gauge ................................... 86
Charging System Indicator ................. 72, 337Child Safety
................................................. 54
Childproof Door Locks............................. 112
Emergency Trunk Opener ........................ 117
Child Seat .................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 308
Cleaning the Interior ................................ 306
Client Service Information ....................... 356
Climate Control System ............................ 146
Changing the Mode ................................ 146
Defrosting the Windshield and Windows ............................................... 147
Dust and Pollen Filter............................... 305
Recirculation/Fresh Air Mode ................... 146
Sensors ................................................... 149
Synchronized Mode................................. 148
Using Automatic Climate Control ............ 146
Clock .......................................................... 104
Coat Hook ................................................. 144
Compact Spare Tire (Optional) ................ 322
Console Compartment ............................. 142 Continuous Variable Transmission
(CVT) ....................................................... 230
Creeping................................................. 230
Fluid ....................................................... 279
Kickdown ............................................... 230
Operating the Shift Lever ........................ 232
Shift Lever Does Not Move ...................... 334
Shifting ................................................... 231
Controls .................................................... 103
Coolant (Engine) ...................................... 277
Adding to the Radiator ........................... 278
Adding to the Reserve Tank .................... 277
Low Temperature Indicator ....................... 79
Overheating ............................................ 335
Creep Aid System ..................................... 228
Creeping ................................................... 230
Cruise Control .......................................... 240
Indicator ................................................... 80
Cup Holders .............................................. 143
Customized Features ................................. 95
DDaytime Running Lights .......................... 129
Dead Battery ............................................ 332
Defrosting the Windshield and Windows ................................................. 147
Devices that Emit Radio Waves ............... 349
Dimming Headlights .............................................. 126
Rearview Mirror ...................................... 133
