2015 Acura ILX Hybrid manual transmission

20Quick Reference Guide
Driving
(P219)
Continuous Variable Transmission
(CVT)
(P231 )
● Shift to (P and depress the brake pedal when starting the
engine.
● Shifting
M Indicator Shift Lever
Position
Indicator
Selected Speed
Number
Shift Down
(
-
Paddle Shifter Shift Up
(
+
Paddle Shifter
Drive (S)Used for:•Better acceleration•Increased engine braking•Going up or down hills•Driving in the 7-speed manual shift mode•Driving in L modeDrive•Normal driving.•7-speed mode can be used temporarily.NeutralTransmission is not locked.ReverseUsed when reversing.ParkTurn off or start the engine.
Transmission is locked.
Release Button
Shift Lever
Move the shift lever without pressing
the release button. Press the release button to move the
shift lever. Depress the brake pedal and press the
release button to move out of
(P.
● Pulling a paddle shifter temporarily
changes the mode from continuous
variable transmission (CVT) to 7-speed
manual shift mode. The selected
speed number is displayed in the shift
indicator.When the shift lever is in
7-Speed Manual Shift Mode
(P233)
● Allows you to manually shift the transmission up or down without
removing your hands from the steering wheel.●Pulling a paddle shifter changes the
mode from continuous variable
transmission (CVT) to 7-speed manual
shift mode. The M indicator and the
selected speed number are displayed
in the shift indicator.When the shift lever is in L (Low) Mode (P235)
● Use Low to get more power when
climbing steep hills.
● With the shift lever in
(S, pull the
( +
and
( - paddle shifters at the same
time until the shift indicator display
changes to L.

72
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
12 Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.●Comes on when the 12 volt battery is
not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator
Comes On P. 337
Shift Lever
Position Indicator
●Indicates the current shift lever
position.
2Shifting P. 231
—
Transmission
Indicator
●Blinks if the transmission system has
a problem.
●Blinks while driving - Avoid sudden starts
and acceleration and have the vehicle
checked by a dealer immediately.
M (7-speed
manual shift
mode) Indicator/
Shift Indicator
●Comes on when the 7-speed manual
shift mode is applied.
2 7-Speed Manual Shift Mode P. 233
—

Continued
233
uuWhen Driving uShifting
Driving
Use the paddle shifters to change between 1st and 7th speeds without removing
your hands from the steering wheel. The transmission switches to the 7-speed
manual shift mode when you pull a paddle shifter while driving. This mode is useful
when engine braking is needed.■When the shift lever is in
(D
:
The shift mode goes into the 7-speed manual shift mode temporarily, and the
number is displayed in the shift indicator.
The 7-speed manual shift mode is canceled automatically if you drive at constant
speed or accelerate, and the number in the shift indicator goes off.
You can also cancel this mode by pulling the
(+
paddle shifter for a few seconds.
The 7-speed manual shift mode is especially useful when reducing the vehicle speed
temporarily before making a turn.
■When the shift lever is in
(S
:
The shift mode goes into the 7-speed manual shift mode. The ( M indicator and the
speed number are displayed in the shift indicator. As the vehicle speed slows down,
the transmission automatically shifts down accordingly. When the vehicle comes to
a stop, it automatically shifts down into 1st.
If the vehicle speed increases and the engine speed reaches near the tachometer's
red zone, the transmission automatically shifts up.
You can only pull away in 1st speed.
When canceling out of the 7-speed manual shift mode, move the shift lever from
(S

to
(D
. When the 7-speed manual shift mode is cancelled, the M indicator and shift
indicator go off.
■
7-Speed Manual Shift Mode
1 7-Speed Manual Shift Mode
In the 7-speed manual shift mode, the transmission
shifts up or down by operating either paddle shifter
under the following conditions:
Shift Up: The engine speed reaches the lowest
threshold of the higher speed position.
Shift Down: The engine speed reaches the highest
threshold of the lower speed position.
When the engine speed reaches near the
tachometer’s red zone, the transmission shifts up
automatically.
When the engine speed reaches the lowest threshold
of the selected speed position, the transmission shifts
down automatically.
Operating the paddle shifters on slippery surfaces
may cause the tires to lock up. In this case, the 7-
speed manual shift mode is canceled and goes back
to the normal D driving mode.

260Maintenance
Before Performing MaintenanceInspection and MaintenanceFor your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your \
warranties in
effect.) Refer to the separate maintenance booklet for detailed maintenance and
inspection information.■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.■Periodic inspections
• Check the continuously variable transmission fluid level monthly.2 Continuously Variable Transmission (CVT) Fluid P. 279
•Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 280
•Check the tire pressure monthly. Examine the tread for wear and foreign objects.
2 Checking and Maintaining Tires P. 294
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 282
•Check the condition of the wiper blades at least every six months.
2Checking and Maintaining Wiper Blades P. 292
■
Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the multi-information display.
2 Maintenance Service Items P. 266
If you want to perform complex maintenance tasks
that require mor e skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 355
If you want to perform maintenance yourself, make
sure that you have the necessa ry tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.U.S. models

345

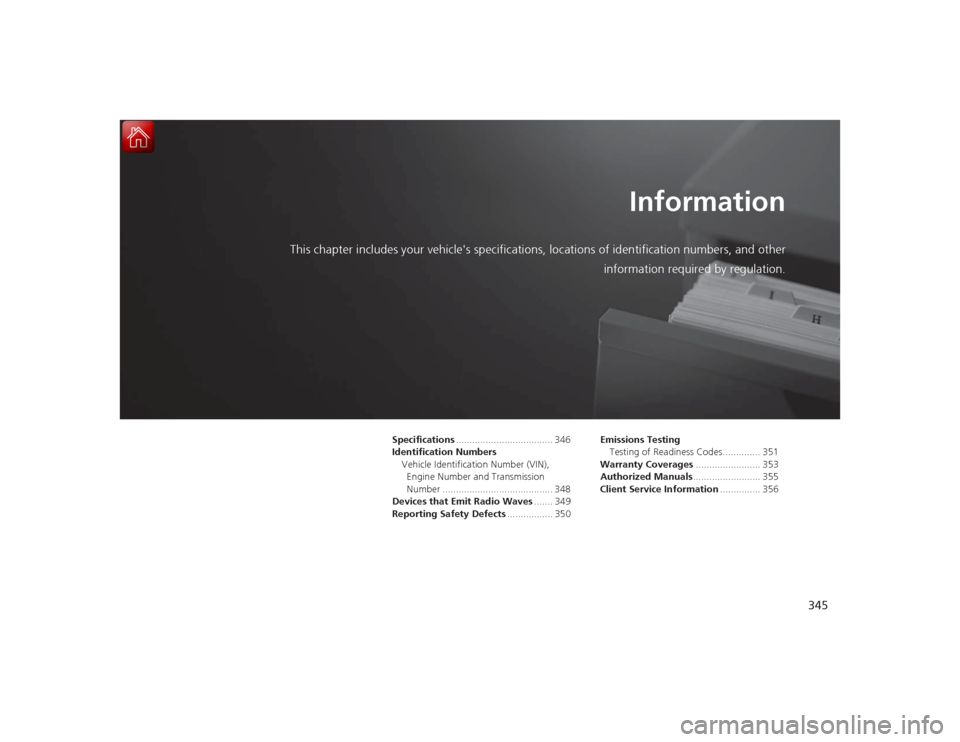

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 346
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 348
Devices that Emit Radio Waves ....... 349
Reporting Safety Defects ................. 350Emissions Testing
Testing of Readiness Codes.............. 351
Warranty Coverages ........................ 353
Authorized Manuals ......................... 355
Client Service Information ............... 356

361Index
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA®)
System ............................................ 74, 243
VSA ® OFF.......................................... 74, 244
Information .............................................. 345
Information Buttons ............................ 87, 95
Instant Fuel Economy ................................ 91
Instrument Panel ........................................ 69
Brightness Control .................................. 131
Interior Lights ........................................... 141
Interior Rearview Mirror ......................... 133
Internet Radio .......................................... 171
iPhone ....................................................... 186
iPod ........................................................... 168JJack (Wheel Nut Wrench) ........................ 325
Jump Starting ........................................... 332KKey Number Tag ...................................... 106
Keyless Access System .............................. 108
Keyless Lockout Prevention ..................... 110
Keys ........................................................... 105
Lockout Prevention ................................. 110
Number Tag............................................ 106
Rear Door Won’t Open ........................... 112
Remote Transmitter ................................ 107 Types and Functions ................................ 105
Won’t Turn ................................................ 24
Kickdown .................................................. 230
LL Mode Operation .................................... 235
Language (HFL) ......................................... 190
LATCH (Child Seats) .................................... 59
Lights ................................................. 126, 282
Automatic ............................................... 127
Bulb Replacement .................................... 282
Daytime Running Lights ........................... 129
Fog Lights ................................................ 129
High-Beam Indicator .................................. 77
Interior .................................................... 141
Light Switches ......................................... 126
Lights On Indicator .................................... 77
Turn Signals ............................................. 126
Limitations for Manual Operation .......... 190
Load Limits ................................................ 223
Locking and Unlocking ............................ 105
Auto Door Locking/Unlocking .................. 113
Childproof Door Locks ............................. 112
From Inside .............................................. 111
From Outside ........................................... 107
Keys ........................................................ 105
Using a Key ............................................. 110
Lockout Prevention System ...................... 110
Low Battery Charge (12 volt) ................... 337
Low Fuel Indicator ...................................... 73 Low Keyless Access Remote Signal
Strength .................................................. 106
Low Oil Pressure Indicator ................. 75, 337
Low Temperature Indicator ....................... 79
Lower Anchor ............................................. 59
Lubricant Specifications Chart ................. 346
Luggage (Maximum Load Limit) ............. 223
MMaintenance............................................. 259
Battery .................................................... 303
Brake Fluid .............................................. 280
Cleaning ................................................. 306
Climate Control....................................... 305
Coolant ................................................... 277
Maintenance Minder
TM............................ 263
Oil ........................................................... 272
Precautions ............................................. 260
Radiator .................................................. 278
Remote Transmitter ................................. 304
Replacing Light Bulbs .............................. 282
Safety...................................................... 261
Service Items ........................................... 266
Tires ........................................................ 294
Transmission Fluid ................................... 279
Under the Hood ...................................... 268
Maintenance MinderTM............................ 263
Malfunction Indicator Lamp .............. 71, 338
Map Lights ................................................ 141
Maximum Load Limit ............................... 223
