High beam (2)
1. Rotate the cap (2) anticlockwiseand remove it.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Detach the bulb from the bulb holder and replace the bulb.
4. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
5. Fit the cap and rotate clockwise.
Sidelights/Daytime running light (3)
1. Rotate the cap (3) anticlockwise and remove it. Use the
screwdriver to rotate the cap.
2. Press latches together and withdraw the bulb holder from the
reflector.
3. Remove the bulb from the socket and replace the bulb.
4. Insert the bulb holder into the reflector. Fit the cap and rotate
clockwise.

234Vehicle care
3-door hatchback
Bi-Halogen Headlight (1) with one
bulb for low and high beam.
Sidelight/Daytime running light (2) .
Low/High beam (1)
1. Rotate the cap (1) anticlockwise
and remove it.
2. Rotate the bulb holderanticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb holder from the plug connector by pressing
the retaining lug.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.

Vehicle care235
Sidelight/Daytime running light (2)
1. Rotate bulb socket (2)anticlockwise to disengage.
Withdraw the bulb socket from the
reflector.
2. Remove the bulb from the socket by pulling.
3. Replace and insert new bulb into socket.
4. Insert the bulb socket into the reflector and turn clockwise.
Adaptive forward lighting9 Danger
Adaptive forward lighting system
uses Xenon headlights.
Xenon headlights work under
extremely high electrical voltage.
Do not touch. Have bulbs replaced by a workshop.
Sidelight/Daytime running lights are
designed as Light Emitting Diodes
(LEDs) and cannot be changed.
Bulbs for corner lighting can be
changed.

236Vehicle care
Corner lighting
1. Rotate the cap anticlockwise andremove it.
2. Rotate the bulb holderanticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb from the plug connector by pulling.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.
Fog lights
5-door hatchback, 4-door
saloon, Sports tourer
1. Release both caps with a screwdriver at the marked area.

Vehicle care237
2.Unscrew both screws and remove
turn light assembly from the
bumper.
3. Unscrew three screws and remove fog light assembly from
the bumper.
4. Turn the bulb socket anticlockwise and remove it from
the reflector.
5. Disengage the bulb socket from the plug connector by pressing
the retaining lug.
6. Replace and insert bulb socket into the reflector, turn socket
clockwise and attach the plug
connector.
7. Attach fog light assembly into the bumper and fix with three screws.
8.Attach turn light assembly into the
bumper and fix with two screws.
9. Engage both caps.
3-door hatchback
1. Disengage the cover with a screwdriver in the recess and
remove the cover.

238Vehicle care
2.Unscrew both screws and remove
light assembly from the bumper.
3. Turn the bulb socket anticlockwise and remove it from
the reflector.
4. Disengage the bulb socket from the plug connector by pressing
the retaining lug.
5. Remove and replace the bulb socket with bulb and attach the
plug connector.
6. Insert the bulb socket into the reflector by turning clockwise and
engage.
7. Mount the light assembly by tightening both screws.
8. Assemble and engage the cover.Front turn signal lights
5-door hatchback, 4-doorsaloon, Sports tourer
1. Release both caps with a screwdriver at the marked area.

240Vehicle care
3. Disengage the bulb socket fromthe plug connector by pressing
the retaining lug.
4. Remove and replace the bulb socket with bulb.
5. Attach the plug connector.
6. Insert the bulb socket into the reflector.
7. Swivel the spring clip forwards and engage.
3-door hatchback

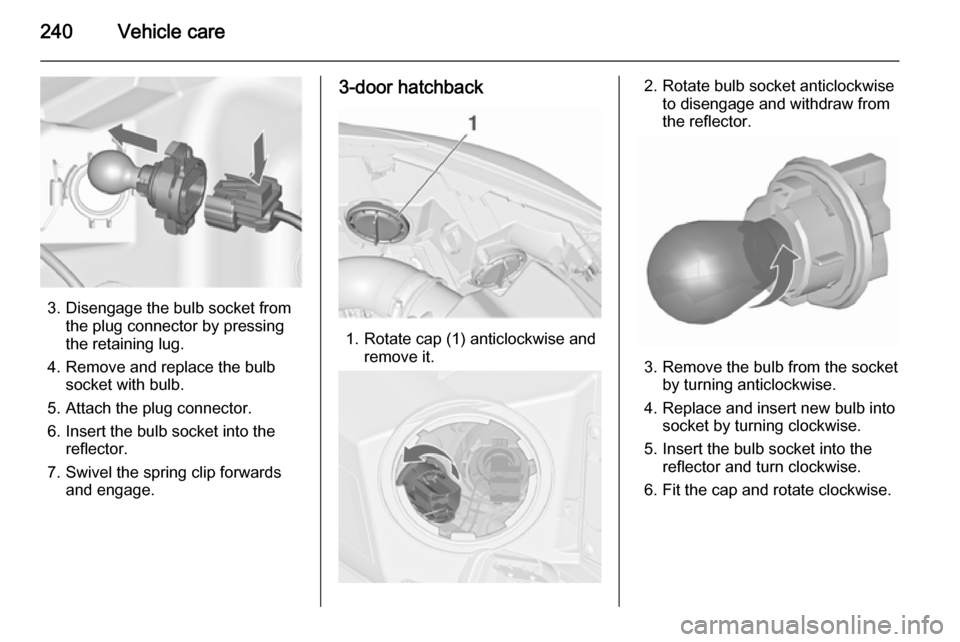

1. Rotate cap (1) anticlockwise and remove it.
2. Rotate bulb socket anticlockwiseto disengage and withdraw from
the reflector.
3. Remove the bulb from the socket by turning anticlockwise.
4. Replace and insert new bulb into socket by turning clockwise.
5. Insert the bulb socket into the reflector and turn clockwise.
6. Fit the cap and rotate clockwise.

242Vehicle care
7. Remove and replace the bulb bywithdrawing or pushing the bulb
slightly into the socket and rotating anticlockwise:
Tail light ( 1)
Brake light ( 2)
Turn signal light ( 3)
8. Insert the bulb carrier into the tail light assembly and screw into
place. Connect the wiring plug
and press the cable into the
retainer. Fit light assembly with
the retaining pins into the
recesses of the vehicle body and
tighten the plastic securing nut
from the inside of the load
compartment.
Close the cover and engage.
Light assembly in the tailgate
1. Open the tailgate and remove the
cover and both blind cover on the
respective side.
2. Unscrew and remove three screws.
3. Remove the light assembly. Make
sure that the cable duct remains in
position.
4. Press the retaining lug and remove the bulb carrier from the
light assembly.
