2015.5 VAUXHALL VIVARO Owner's Manual

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Seat position 3 42, Seat adjustment
3 43.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage. Do not lean on backrest
when adjusting.
Seat position 3 42, Seat adjustment
3 43.
Seat height
Lever pumping motion:
up=seat higherdown=seat lower
Seat position 3 42, Seat adjustment
3 43.

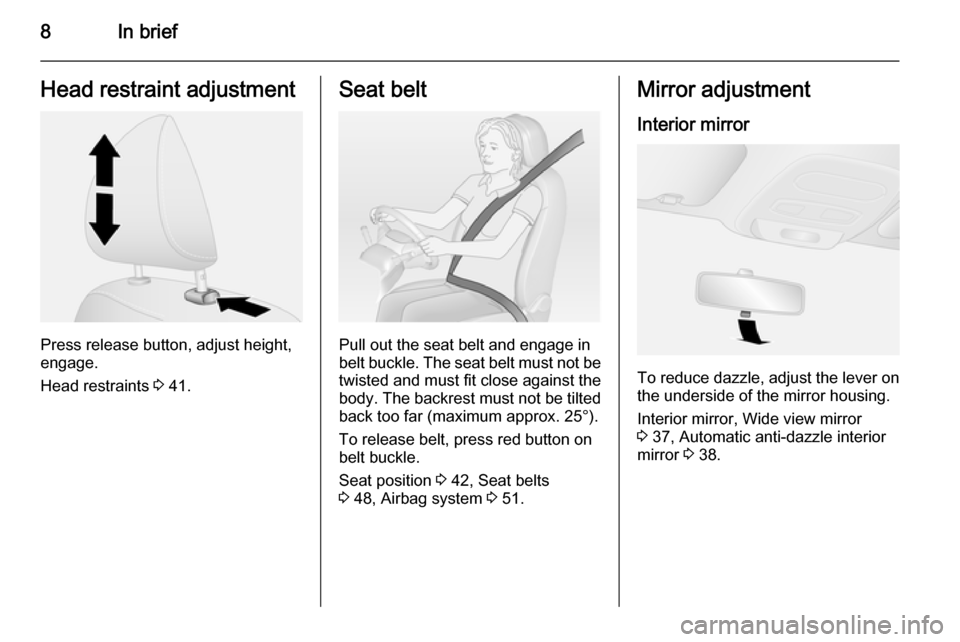

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 41.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25°).
To release belt, press red button on
belt buckle.
Seat position 3 42, Seat belts
3 48, Airbag system 3 51.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever onthe underside of the mirror housing.
Interior mirror, Wide view mirror
3 37, Automatic anti-dazzle interior
mirror 3 38.

In brief9
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 36.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 36,
Electric adjustment 3 36, Folding
exterior mirrors 3 36, Heated
exterior mirrors 3 37.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 51, Ignition
positions 3 112.

10In briefInstrument panel overview

In brief11
1Side air vents ...................... 108
2 Ashtray .................................. 78
Cupholder ............................ 66
3 Light switch .......................... 93
Rear fog light ......................... 96
Front fog lights .....................96
Exit lighting ............................ 98
Turn and lane-change
signals ................................... 95
Sidelights .............................. 93
Headlight flash, low beam
and high beam ......................94
4 Instruments .......................... 78
5 Horn ...................................... 74
Driver airbag ......................... 55
6 Windscreen wiper,
windscreen washer system ..74
Rear window wiper, rear
window washer system ........75
Trip computer ....................... 907Card reader for electronic
key system ............................ 21
8 Steering column controls ......74
9 Centre air vents ................... 108
10 Power outlet .......................... 77
Cigarette lighter ..................... 77
Coin tray, USB slot ................ 65
11 Driver Information Centre ...... 88
Trip computer ....................... 90
12 Front passenger airbag .........55
13 Glovebox .............................. 65
14 Heated exterior mirrors .........37
Heated rear window ..............40
Idle speed control ...............114
15 Power outlet .......................... 77
Cigarette lighter ..................... 77
16 Climate control system .......... 99
Electronic climate control
system ................................. 101
17 Ashtray .................................. 78
Cupholder ............................ 6618Hazard warning flashers .......95
Central locking system ..........23
19 Power button for electronic
key system .......................... 112
20 Eco button for fuel
economy mode ...................110
21 Stop-start system ................115
Cruise control and speed
limiter ................................. 124
22 Remote control on
steering wheel ......................73
Cruise control .....................124
23 Ignition switch with
steering wheel lock .............112
24 Steering wheel adjustment ...73
25 Bonnet release lever ...........138
26 Fuse box ............................. 152
27 Ultrasonic parking assist ....128
Electronic Stability
Program ............................. 123
Traction Control system ......122
Headlight range
adjustment ........................... 94

12In brief
Instrument panel
illumination control ................96
Auxiliary heater ...................104
Speed limiter ....................... 128Exterior lighting
Turn outer switch:
7=off8=sidelights9P=headlights
Vehicles with automatic light control:
AUTO=automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 93, Automatic light
control 3 93, Headlight warning
device 3 89, Adaptive forward
lighting 3 95.

In brief13
Front and rear fog lights
Turn inner switch
>=front fog lightsr=rear fog light
Front fog lights 3 96, Rear fog light
3 96.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 93, High
beam 3 94, Headlight flash 3 94.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 95.

14In brief
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 95.
Horn
Press j.
Washer and wiper systems
Windscreen wiper7=offK=interval wiping or automatic
wiping with rain sensor1=slow2=fast
Windscreen wiper 3 74, Wiper
blade replacement 3 145.
