2015.5 VAUXHALL MERIVA fuse box

In brief11
1Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................150
4 Side air vents ...................... 132
5 Turn and lane-change
signals, headlight flash,
low beam and high beam ...120
Exit lighting ......................... 123
Parking lights ...................... 121
Driver Information Centre .... 100
6 Instruments .......................... 89
7 Steering wheel controls .......82
8 Driver Information Centre .... 100
9 Windscreen wiper,
windscreen washer
system, rear wiper, rear
washer system .....................84
10 Centre air vents .................. 132
11 Central locking system ..........21
Hazard warning flashers ....120
Control indicator for airbag
deactivation .......................... 95
12 Info-Display ......................... 10313Sensor for electronic
climate control system .......128
14 Glovebox .............................. 61
Fuse box ............................ 189
15 Traction Control system .....149
Electronic Stability Control . 149
Ultrasonic parking assist ....152
Eco button ........................... 138
Fuel selector ......................... 91
16 Climate control system ........ 125
17 Selector lever, manual
transmission ....................... 145
Automatic transmission ......142
18 Electric parking brake .........147
19 Ignition switch with
steering wheel lock ............136
20 Horn ..................................... 83
Driver airbag ........................ 51
21 Bonnet release lever ..........170
22 Storage compartment ...........61
23 Steering wheel adjustment ..8224 Light switch ........................ 116
Headlight range
adjustment ......................... 118
Front fog lights ...................120
Rear fog light ...................... 121
Instrument illumination .......122

174Vehicle careVehicle batteryVehicles without stop-start systemwill be equipped with a lead acid
battery. Vehicles with stop-start
system will be equipped with an
AGM battery which is not a lead acid
battery.
The vehicle battery is maintenance-
free provided that the driving profile
allows sufficient charging of the
battery. Short-distance-driving and
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
4 weeks can lead to battery
discharge. Disconnect the clamp from the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
The anti-theft alarm siren must be
deactivated as follows: Switch the ignition on then off, disconnect the
vehicle's battery within 15 seconds.
Vehicle battery discharge protection
3 124.
Replacing the vehicle battery Notice
Any deviation from the instructions
given in this paragraph may lead to
a temporary deactivation of the stop-
start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, itmust be closed off with a dummy cap, and the ventilation in the vicinity of the
negative terminal must be opened.
Only use vehicle batteries that allow
the fuse box to be mounted above the
vehicle battery.
In vehicles with stop-start system, ensure to have the AGM (Absorptive
Glass Mat) battery replaced with an
AGM battery again.
An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Vauxhall vehicle battery.

186Vehicle care
4. Pull bulb from bulb holder andreplace it.
5. Insert bulb holder into lamp housing and turn clockwise.
6. Insert lamp into bumper and let engage.
Interior lights Courtesy light, reading lights
Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panel
illumination
Have bulbs replaced by a workshop.Electrical system
Fuses
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
■ in the front left of the engine compartment
■ in left-hand drive vehicles, in the interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the glovebox
■ behind a cover on the left side of the
load compartment
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the fuse box in the engine compartment.

Vehicle care187
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover, lift it upwards
and remove.
After having changed defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.

Vehicle care189
No.Circuit22Electrical parking brake23Tyre repair kit24Fuel pump25ABS26Heated rear window27ABS28Interior fan29Cigarette lighter30Air conditioning system31Front power window, left32Front power window, right33Mirror heating34ABS35AirbagInstrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open compartment, compress the
locking tabs, fold compartment down and remove.

190Vehicle care

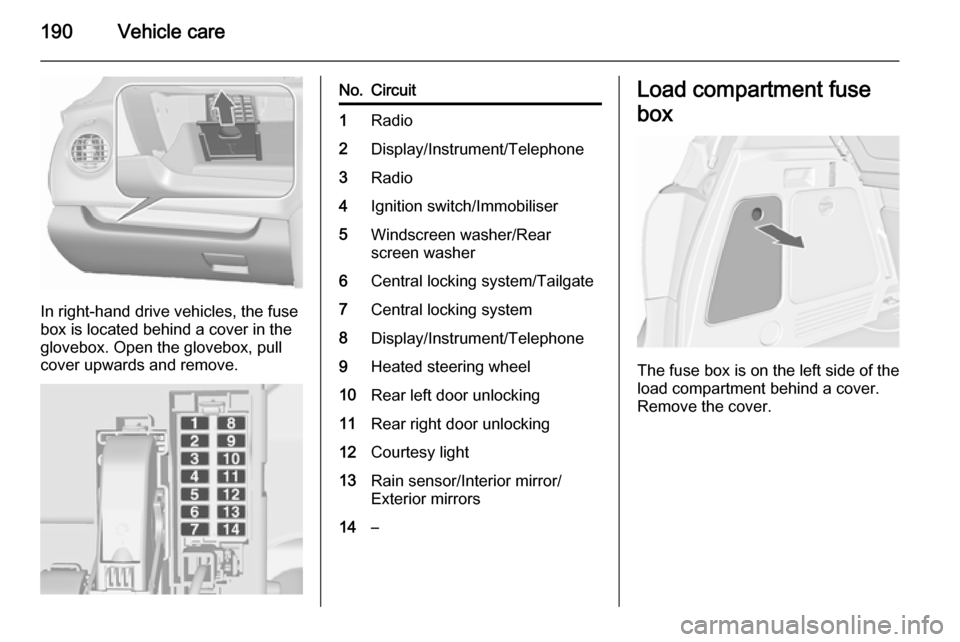

In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, pull
cover upwards and remove.
No.Circuit1Radio2Display/Instrument/Telephone3Radio4Ignition switch/Immobiliser5Windscreen washer/Rear
screen washer6Central locking system/Tailgate7Central locking system8Display/Instrument/Telephone9Heated steering wheel10Rear left door unlocking11Rear right door unlocking12Courtesy light13Rain sensor/Interior mirror/
Exterior mirrors14–Load compartment fuse
box
The fuse box is on the left side of the
load compartment behind a cover.
Remove the cover.
