2015.5 Peugeot Boxer check engine

3
cont
Ent
S
5. SAFEtY 98-120 6. AccESSorIES 121-125
7.
cHEcKS 126-141 8.
QuIcK HELP
142-171
9.
tEcHnIcAL


dAtA 172-182
Parking brake 98
Hazard warning lamps 98
Horn 99
Braking assistance systems
99trajectory control systems 101
Lane departure warning system
105
Seat belts 106
Airbags 1

10
Deactivating the passenger's
front airbag
11

1
Child seats
113
ISOFIX seats 117
towing a trailer 121
Roof carrying systems 123
Other accessories 124
Snow chains 125
Opening the bonnet
127underbonnet 128
Levels 129
Checks 131
Fuel 134
BlueHDi and AdBlue
® additive 136 Battery
142
Changing a fuse 145
Changing a bulb 149
Changing a wiper blade
155
Changing a wheel 156
Puncture repair kit 161towing the vehicle 163
Detachable towball 164glossary of labels 168
Dimensions
172engines 177
W
eights
179
Identification markings 182
10. AudIo EQuIPMEnt
and tELEMAtIcS
SPE
cIAL

FEA
turES
touch screen Audio-telematic system 183
Audio system 231
Crew cab
249
Chassis Cab / Floor Cab
251
Double cab 254tipper body 258
Rear seat belts.
Child seats / ISOFIX
mountings at the rear
Contents

10
Changing a wiper blade 155
Bulbs, lighting, changing bulbs
149-154
Very cold conditions protectors 84
Opening the bonnet, stay
127under the bonnet 128
Labels / Precautions 168-171engines 177-178
Identification markings, serial
number

, paint, tyres
182
Levels
129-130
● dipstick,
● brake fluid,
● screenwash / headlamp wash
fluid
●
power steering fluid,
● coolant.
Water bleed, Diesel filter
131
Particle filter 133emission control 33, 139
Checks
131-133
● battery,
● air/passenger compartment filter,● oil filter,
● manual gearbox,
● parking brake,
● brake discs and pads.

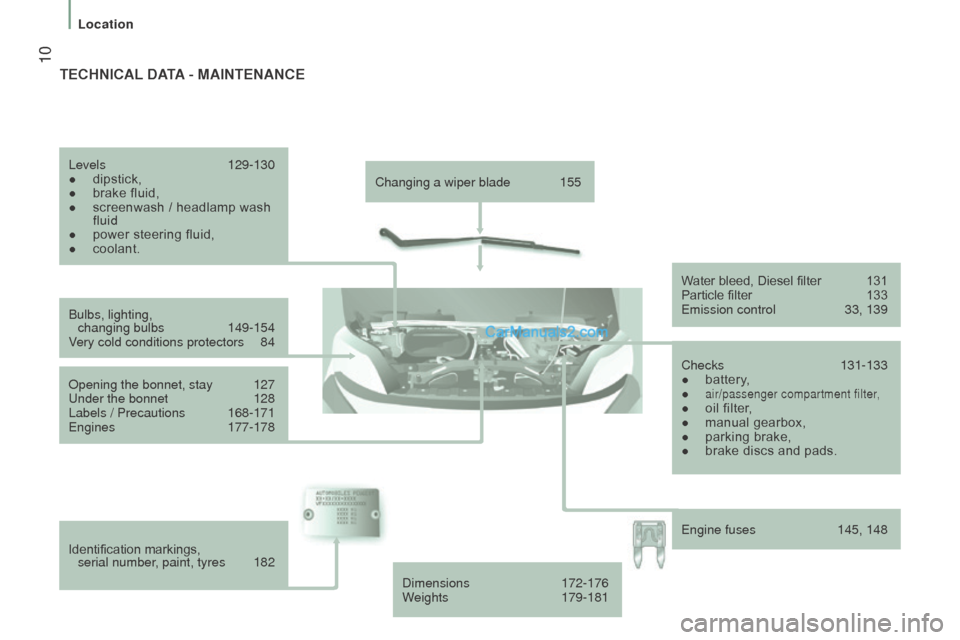

tEcHnIcAL dAtA - MAIntEnAncE
Dimensions 172-176
Weights 179-181
engine fuses 145, 148
Location

13

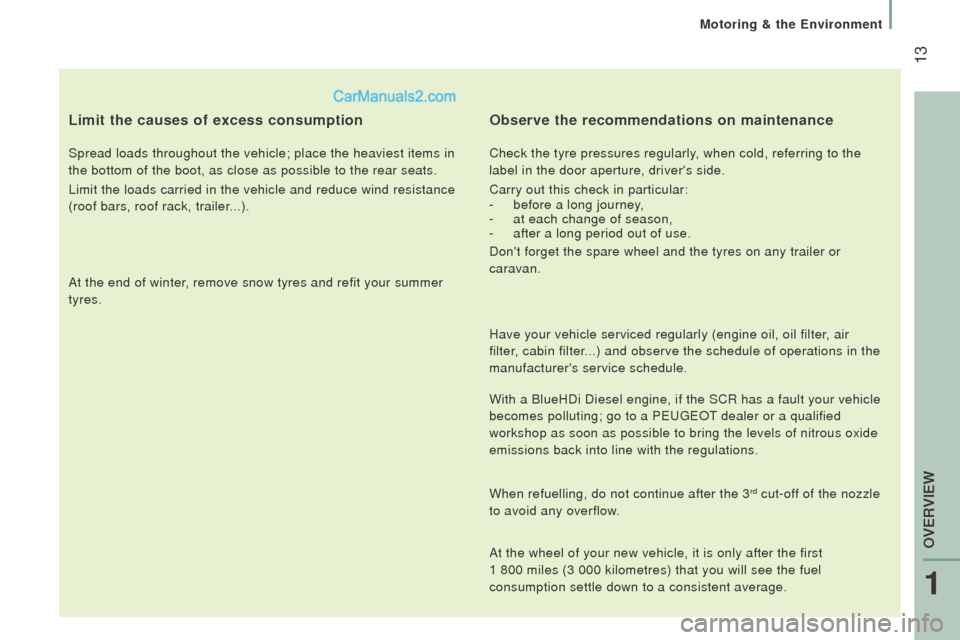

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in
the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, trailer...).
At the end of winter, remove snow tyres and refit your summer
tyres.
observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the
label in the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil filter

, air
filter, cabin filter...) and observe the schedule of operations in the
manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR has a fault your vehicle
becomes polluting; go to a P
eugeOt dealer or a qualified
workshop as soon as possible to bring the levels of nitrous oxide


emissions back into line with the regulations.
When refuelling, do not continue after the 3
rd cut-off of the nozzle
to avoid any overflow.
At the wheel of your new vehicle, it is only after the first
1
800 miles (3 000 kilometres) that you will see the fuel


consumption settle down to a consistent average.
1
OVeRVIeW
Motoring & the environment

18ELEctronIc IMMoBILISEr
All of the keys contain an electronic
immobiliser device.
this device locks the engine supply system.

It is activated automatically when the key is
removed from the ignition. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
the simultaneous use of other high


frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
the remote control does not operate while


the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
P
eugeOt dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the


electronic immobiliser system.
this warning lamp is switched of
f
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started.
use another key and

have the faulty key checked by a P
eugeOt
dealer. After the ignition is switched on, a dialogue

is established between the key and the
electronic immobiliser system.
conFIdEntIAL cArd
this is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a P
eugeOt
dealer on the electronic immobiliser system.
this code is hidden by a film, which should


be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-
ensure that you are given the
confidential card,
-
have the keys memorised by a
P
eugeOt dealer to ensure that the
keys in your possession are the only


ones which can start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.
Access

22

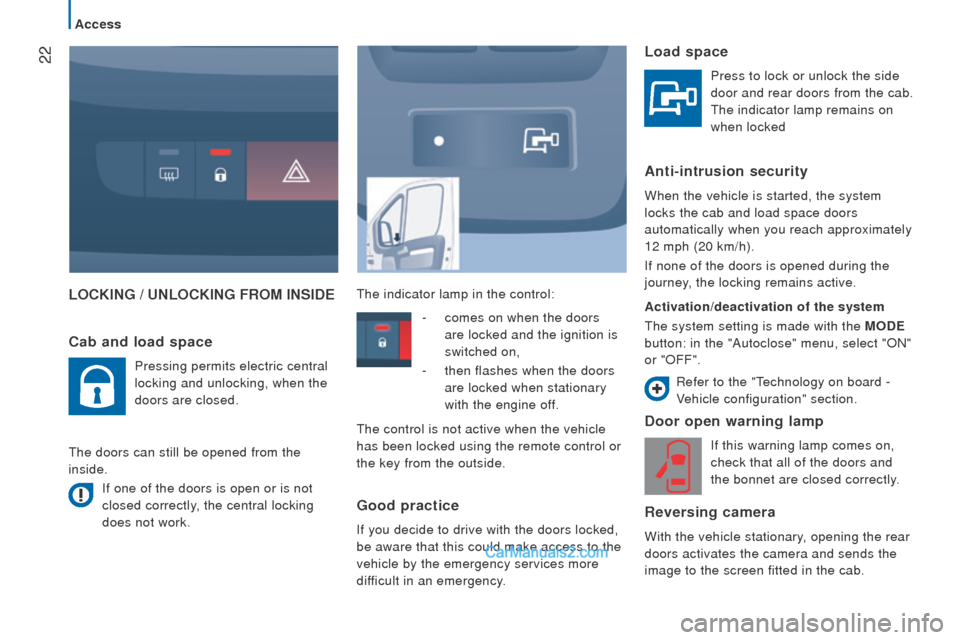

LocKInG / unLocKInG FroM InSIdEd
oor open warning lamp
If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.
reversing camera
With the vehicle stationary, opening the rear
doors activates the camera and sends the
image to the screen fitted in the cab.
cab and load space
Pressing permits electric central
locking and unlocking, when the
doors are closed.
the doors can still be opened from the

inside.
If one of the doors is open or is not
closed correctly, the central locking
does not work.
the indicator lamp in the control:
Load space
Press to lock or unlock the side
door and rear doors from the cab.
the indicator lamp remains on


when locked
Anti-intrusion security
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the system
the system setting is made with the

M
odE
button: in the "Autoclose" menu, select "ON"


or "OFF".
-
comes on when the doors
are locked and the ignition is


switched on,
-
then flashes when the doors
are locked when stationary


with the engine off.
the control is not active when the vehicle


has been locked using the remote control or
the key from the outside.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency. Refer to the "
technology on board -
V
ehicle configuration" section.
Access

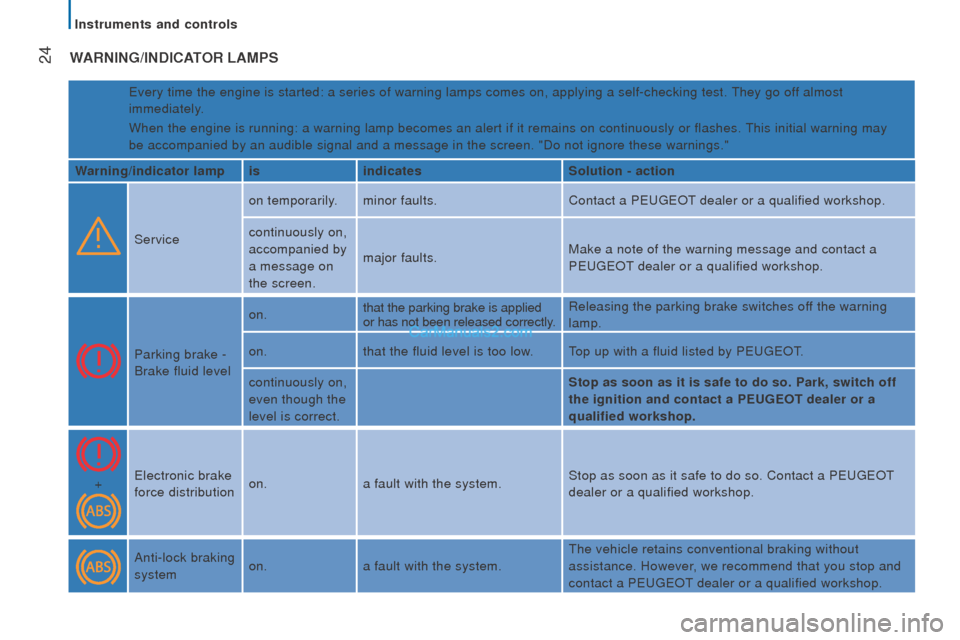

24WArnInG/IndIcAtor LAMPS
every time the engine is started: a series of warning lamps comes on, app\
lying a self-checking test. they go off almost
immediately.
When the engine is running: a warning lamp becomes an alert if it remain\
s on continuously or flashes.
this initial warning may


be accompanied by an audible signal and a message in the screen. "Do not\
ignore these warnings."
Warning/indicator lamp isindicates Solution - action
Service on temporarily. minor faults.
Contact a P
eugeOt dealer or a qualified workshop.
continuously on,
accompanied by


a message on
the screen. major faults.
Make a note of the warning message and contact a
P
eugeOt dealer or a qualified workshop.
Parking brake -
Brake fluid level on.
that the parking brake is applied


or has not been released correctly. Releasing the parking brake switches off the warning
lamp.
on. that the fluid level is too low.
top up with a fluid listed by PeugeOt.
continuously on,
even though the


level is correct. Stop as soon as it is safe to do so. Park, switch off
the ignition and contact a PE
uGEot dealer or a


qualified workshop.
+
electronic brake


force distribution on.
a fault with the system. Stop as soon as it safe to do so. Contact a P
eugeOt
dealer or a qualified workshop.
Anti-lock braking
system on.
a fault with the system.
the vehicle retains conventional braking without


assistance. However, we recommend that you stop and
contact a P
eugeOt dealer or a qualified workshop.
Instruments and controls

25
Warning/indicator lampisindicates Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition. Allow the system to cool
sufficiently. Visually check the level.
on H in the red
zone. the coolant temperature is too
high. "Checks - Levels and checks" section.
Contact a P
eugeOt dealer or a qualified workshop.
engine oil


pressure on while driving. that the pressure is too low.
Park and switch off the ignition. Allow the lubrication
system to cool in order to check its level.
"Checks - Levels and checks" section.
continuously on,
even though the
level is correct. a major fault.
Contact a P
eugeOt dealer or a qualified workshop.
flashing, for a
few seconds,


with a message
in the screen. a high level of deterioration of
the engine oil. Have the engine oil changes as soon as possible. After
the second level of alert, engine performance will be
limited. Your vehicle's programmed service schedule is
not altered.
Battery charge on.
a fault with the charging
system. Check the battery terminals…
"Quick help - Flat battery" section.
continuously on,
fixed or flashing in
spite of the checks.
an ignition or injection fault.
Have it checked by a PeugeOt dealer or a qualified
workshop.
Door or bonnet

open detection on.that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors and
the bonnet are closed.
2
rEAdY to SEt oFF
Instruments and controls

27
Warning/indicator lampisindicates Solution - action
DSC/ASR flashing.
that it is in operation.
the system optimises traction and allows improved


directional stability of the vehicle.
on,
accompanied
by an audible
signal and a
message in the
screen. a fault with the system or the
hill start assist.
Contact a P
eugeOt dealer or a qualified workshop.
"Safety - Driving safely" section.
on. a fault with the Intelligent
traction Control.
Particle filter on. the regeneration of the particle
filter

.It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed.
"Checks - Levels and checks" section.
emission control


system on.
a fault with the system. Have the system checked by a P
eugeOt dealer or a
qualified workshop without delay

.
tyre under-
inflation
detection on.
a tyre deflated or punctured. Park and switch of

f the ignition. Change or repair the
wheel.
on,
accompanied
by the service
warning lamp. a faulty sensor.
Have it checked by a P
eugeOt dealer or a qualified
workshop.
2
rEAdY to SEt oFF
Instruments and controls
