2015.5 Citroen JUMPER RHD ESP

215Level 1Level 2 Level 3co mment
Settings Voice
commands Voice response time
Brief
Set the response time for the voice system.
Long
d

isplay command list Never
Display suggestions with the different options
during a voice session.
With help
Always
Settings
clo

ck and d
at
eSet time and format
Set the time.
d

isplay time mode On
Activate or deactivate display of the digital clock
in the status bar.
Off
Sync time On
Activate or deactivate the automatic display of
time.
Off
Set date Set the date.
Touch Screen Audio - Telematic System
AUDIO and TELEMATICS
10

251

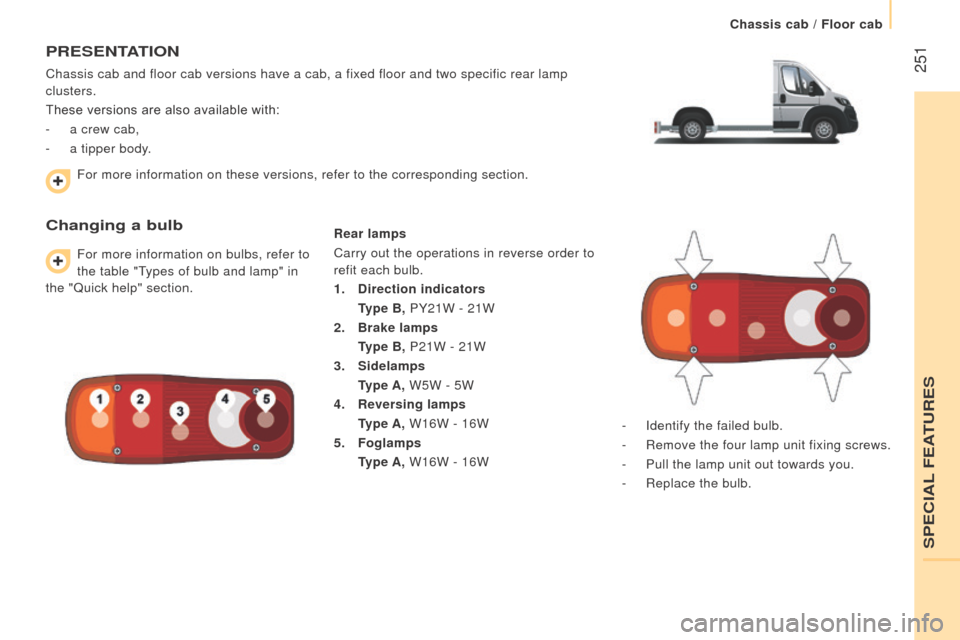

PrESEntAtIO n
Chassis cab and floor cab versions have a cab, a fixed floor and two spe\
cific rear lamp
clusters.
These versions are also available with:
-

a crew cab,
-


a tipper body
.
changing a bulb
For more information on bulbs, refer to
the table "Types of bulb and lamp" in
the "Quick help" section.
r
ear lamps
Carry out the operations in reverse order to
refit each bulb.
1.
d
irection indicators
type B,

PY21W - 21W
2.

Brake lamps
type B,

P21W - 21W
3.

Sidelamps
type A,

W5W - 5W
4.
r
eversing lamps
type A,

W16W - 16W
5.

Foglamps
type A,

W16W - 16W-

Identify the failed bulb.
-


Remove the four lamp unit fixing screws.
-


Pull the lamp unit out towards you.
-


Replace the bulb.
For more information on these versions, refer to the corresponding secti\
on.
SPECIAL FEATURES
Chassis cab / Floor cab

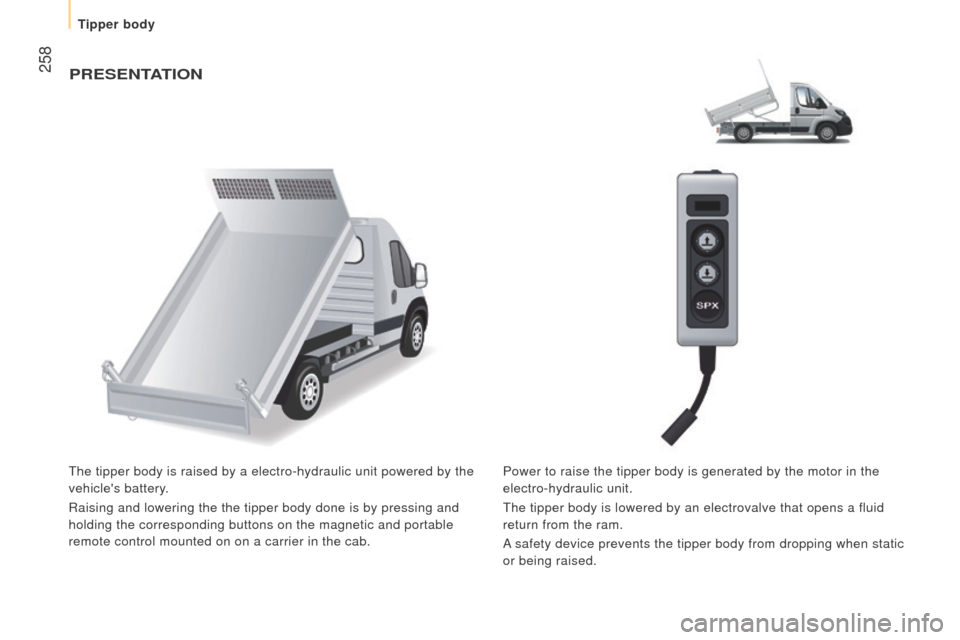

258PrESEntAtIO n
The tipper body is raised by a electro-hydraulic unit powered by the
vehicle's battery.
Raising and lowering the the tipper body done is by pressing and
holding the corresponding buttons on the magnetic and portable
remote control mounted on on a carrier in the cab. Power to raise the tipper body is generated by the motor in the
electro-hydraulic unit.
The tipper body is lowered by an electrovalve that opens a fluid
return from the ram.
A safety device prevents the tipper body from dropping when static
or being raised.
Tipper body

06.15
We draw your attention to the following points:
- The fitting of electrical equipment or accessories not
listed by CITROËN may cause faults and failures with
the electrical system of your vehicle. Contact a CITROËN
dealer for information on the range of recommended
accessories.
-

As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualified workshops,
equipped with the special diagnostic tool required (risk of
malfunctions of the vehicle's electronic systems that could
cause breakdowns or serious accidents).

The manufacturer
cannot be held responsible if this advice is not followed.
-

Any modification or adaptation not intended or authorised
by

Automobiles CITROËN or carried out without meeting
the technical requirements defined by the manufacturer
would lead to the suspension of the legal and contractual
warranties.
Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identification
information. Do not remove them: they form an integral
part of your vehicle.
Automobiles CITROËN

declares, by application of the
provisions of the European legislation (Directive

2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled
materials are used in the manufacture of the products that
it sells. Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN. Printed in the EU
Anglais
The descriptions and illustrations are given without any
obligation. Automobiles CITROËN reserves the right
to modify the technical specifications, equipment and
accessories without having to update this edition of the
handbook.
