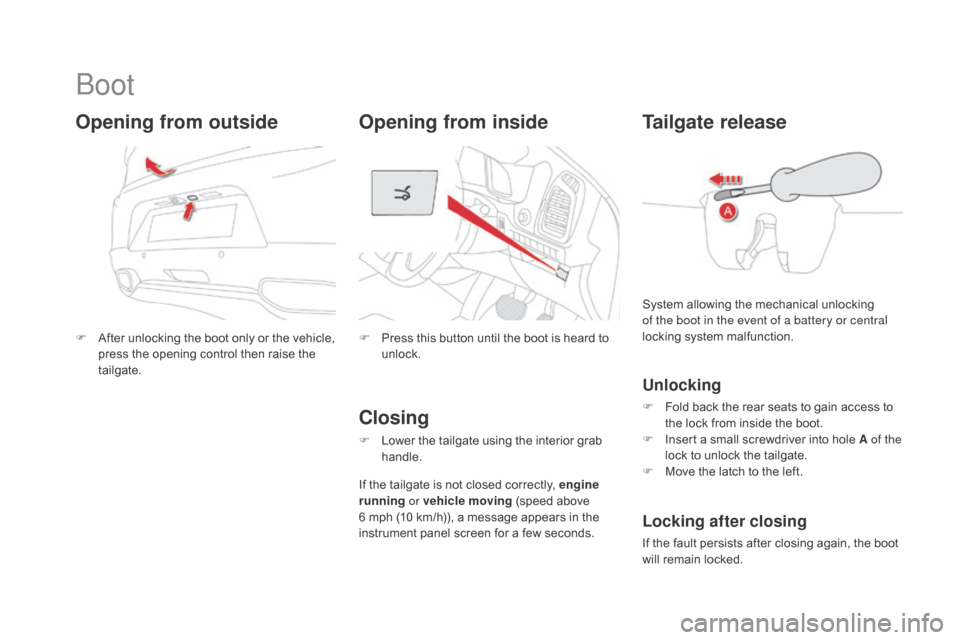

Boot
F After unlocking the boot only or the vehicle, press the opening control then raise the
tailgate.
Opening from outside
F Press this button until the boot is heard to unlock.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F
I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
M
ove the latch to the left.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
closing
F Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly, engine
running or vehicle moving
(speed above
6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.
Opening from inside
217
Reversing lamp (tailgate)
F Carefully remove the lamp from the outside. The retaining clips unclip
automatically.
F
T
urn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
F Open the tailgate.
F U nclip the skirt of the lamp.
F
R
emove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.
F
T urn the bulb holder a quarter of a turn and
pull it out.
F
C
hange the bulb.
To refit, carry out these operations in reverse
o r d e r.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information
261
F After emptying the bottle, wipe away any spillage around the tank filler using a damp
cloth.
F
R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in place.
F
L
ower the boot floor and close the tailgate.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine - you must add at
least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.Important:
when topping up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you must
wait for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10
seconds, then start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
checks
