2015.5 Citroen BERLINGO MULTISPACE RHD stop start

170
Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015
ECONOMY MODE
after the engine has stopped, with
the   key   in   the   ignition   position,   certain
functions (windscreen wiper

, electric
windows,
  courtesy   lamps,   audio
equipment,

  etc.)   can   only   be   used   for   a
cumulative

  duration   of   thirty   minutes,   to
prevent

  discharging   of   the   battery.
Once
  the   thirty   minutes   have   elapsed,
the active functions are put on standby
and

  the   battery   warning   lamp   flashes
accompanied

  by   a   message   in   the
screen.
T

o   resume   the   use   of   these   functions
immediately

,   start   the   engine   and   let   it
run

  for   a   few   minutes.
The
  time   available   will   then   be   double
the

  time   for   which   the   engine   was   left
running.

  However,   this   time   will   always
be

  between   five   and   thirty   minutes.
A


flat   battery   will   prevent   the
engine

  from   starting.
Battery

198
Berlingo-2-VP_en_Chap09_Caract-technique_ed02-2015Berlingo-2-VP_en_Chap09_Caract-technique_ed02-2015
Diesel Engines / Weights
5-seatEngine Gearbox GearsEngine oil
capacity* (litres) Unbraked
trailer (kg) Recommended
nose
weight (kg)
1.6 HDi 75 hp Manual5-740 50
1.6 HDi 75 hp FAP Manual5-715 70
1.6 HDi 90 hp Manual53.75 740 55
1.6 HDi 90 hp FAP Manual53.75 750 55
1.6 HDi 92 hp ECO Manual53.75 715 70
1.6 HDi 92 hp FAP Manual53.75 715 70
1.6 e-HDi 92 hp ECO Manual
5
3.75 690
70
Electronic 6 75070
1.6 e-HDi 92 hp FAP Manual
5
3.75 690
70
Electronic 6 75070
1.6 HDi 110 hp FAP Manual53.75 750 55
1.6 HDi 112 hp FAP Manual53.75 735 70
FAP:
  particle   filter.
e-HDi:

model
  equipped   with   Stop   &   Start.
*
  Capacity   with   oil   filter   replacement.
Weights

 199
Berlingo-2-VP_en_Chap09_Caract-technique_ed02-2015Berlingo-2-VP_en_Chap09_Caract-technique_ed02-2015

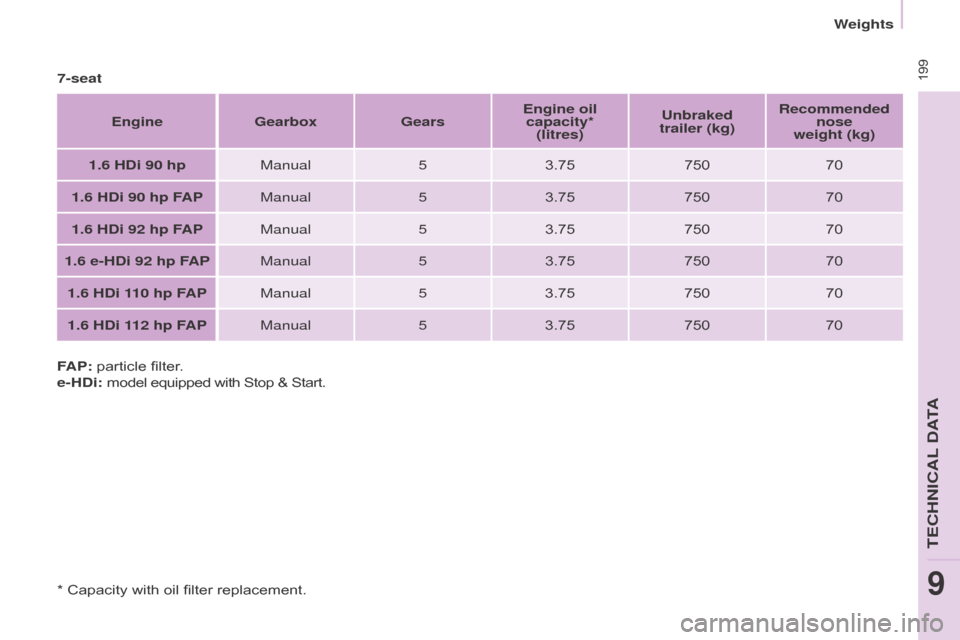

7-seatEngine Gearbox GearsEngine oil
capacity* (litres) Unbraked
trailer (kg) Recommended
nose
weight (kg)
1.6 HDi 90 hp Manual53.75 750 70
1.6 HDi 90 hp FAP Manual53.75 750 70
1.6 HDi 92 hp FAP Manual53.75 750 70
1.6 e-HDi 92 hp FAP Manual53.75 750 70
1.6 HDi 110 hp FAP Manual53.75 750 70
1.6 HDi 112 hp FAP Manual53.75 750 70
FAP:
  particle   filter.
e-HDi:

model
  equipped   with   Stop   &   Start.
*
  Capacity   with   oil   filter   replacement.
TECHNICAL DATA
9
Weights

Audio and Telematics
 207
Berlingo-2-VP_en_Chap10a_SMEGplus_ed02-2015
Level 1Level 2 Level 3 Comments
Navigation Settings
Navigation Enter destination
Display
  recent   destinations.
Calculatory criteria Fastest
Choose
  the   navigation   criteria.
The
  map   displays   the   route   chosen   according   to
t

hese
 c
riteria.
Shortest
Time/distance
Ecological
To l l s
Ferries
Tr a f f i c
Strict-Close
Show
  route   on   map Display   the   map   and   start   navigation.
Confirm Save
  the   options.
Save current location Save
  the   current   address.
Stop navigation Delete
  the   navigation   information.
Voice synthesis Choose
  the   volume   for   voice   and   announcement
o

f   street   names.
Diversion Detour
  from   your   initial   route   by   a   determined
di

stance.
Navigation Display
  in   text   mode.
Zoom
  in.
Zoom
  out.
Display
  in   full   screen   mode.
Use
  the   arrows   to   move   the   map.
Switch
  to   2D   map.
TECHNOLOGY on BOARD
10

Audio and Telematics
214
Berlingo-2-VP_en_Chap10a_SMEGplus_ed02-2015
navigation - Guidance
Choosing a new destination
Select "Enter destination ". Select "
Save" to save the address
entered   as   a   contact   entry.
The   system   allows   up   to   200   entries.
Select " Confirm ".
Press " Show route on map " to start
navigation.
Select "
Address ".
Select the " Country:"
  from   the
l

ist   offered,   then   in   the   same
w

ay the "City:" or its post
code, the " Road:", the
"N°: ".
Confirm
  each   time. Select "
Navigate to ".
Choose   the   restriction   criteria:
"I

nclude tollroads", "Include
ferries ", "Tr a f f i c ", "Strict ", "Close ".
Choose
  the   navigation   criteria:
"F

astest" or "Shortest " or "Time/
distance " or "Ecological". To
  delete   navigation   information,
p

ress "
Settings ".
Press " Stop navigation ".
To   resume   navigation   press
"S

ettings".
Press " Resume navigation ".
Press on Navigation
to display the
primary
 pag
e.
Press   on   the   secondary   page.
Towards a new destination
or

Audio and Telematics
 257
Berlingo-2-VP_en_Chap10a_SMEGplus_ed02-2015
Level 1Level 2 Level 3 Comments
Telephone
connection
Secondary page Bluetooth
connection Search
Start the search for another peripheral device to
connect.
Connect Disconnect Start or stop the Bluetooth connection to the
selected
 pe

ripheral
 d
evice.
Update Import
  the   contacts   from   the   selected   telephone
t

o   store   them   in   the   audio   system.
Delete Delete
  the   selected   telephone.
Confirm Save
  the   settings.
Telephone
conn ection
Secondary page Search for devices Devices detected
Telephone
Start
  the   search   for   peripheral   devices.
Audio
 s

treaming
Internet
Telephone
connection
Secondary page
Telephone options Put on hold
Cut
  the   microphone   temporarily   so   that   the
c

ontact cannot hear your conversation with
a passenger.
Update Import
  the   contacts   from   the   selected   telephone
t

o   save   then   in   the   audio   system.
Ringtones Choose
  the   telephone   ringtone   and   volume.
Memory info. Contact records used and free, percentage of
storage space used by internal contacts and
Bluetooth
 c

ontacts.
Confirm Save
  the   settings.
TECHNOLOGY on BOARD
10
