OPERATION AND IMPORTANT RIDING POINTS
5-2
5
NOTICE
ECA11834
If a warning or in dicator li ght does
not come on initially when the key is
turne d to “ON”, or if a warnin g or in-
d icator li ght remains on, see pa ge
3-4 for the correspon din g warnin g
an d in dicator li ght circuit check.2. Shift the transmission into the
neutral position. The neutral indi-
cator light should come on. If not,
ask a Yamaha dealer to check the
electrical circuit.
3. Start the engine by pushing the start switch.
If the engine fails to start, release
the start switch, wait a few sec-
onds, and then try again. Each
starting attempt should be as
short as possible to preserve the
battery. Do not crank the engine
more than 10 seconds on any one
attempt.NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
EAU16672
Shiftin gShifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE
ECA10261
Even with the transmission in
the neutral position, d o not
coast for lon g period s of time
with the en gine off, an d d o not
tow the motorcycle for lon g d is-
tances. The transmission is
properly lu bricated only when
the en gine is runnin g. Ina de-
quate lu brication may d amage
the transmission.
 Always use the clutch while
chan gin g g ears to avoi d d am-
a g in g the en gine, transmission,
an d d rive train, which are not
d esi gne d to withstan d the
shock of force d shiftin g.
1. Shift pedal
2. Neutral position
1
1
2
2
3 4
5 6
N
U2SGE0E0.book Page 2 Wednesday, June 12, 2013 1:15 PM

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16811
Tips for reducin g fuel con-
sumptionFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
 Shift up swiftly, and avoid high en-
gine speeds during acceleration.
 Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the en-
gine.
 Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU16842
Engine break-inThere is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that
might result in engine overheating
must be avoided.
EAU17084
0–1000 km (0–600 mi)
Avoid prolonged operation above 6900
r/min. NOTICE: After 1000 km (600
mi) of operation, the en gine oil must
b e chan ged an d the oil filter car-
tri dg e or element replace d.
[ECA10303]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 8300
r/min. 1600 km (1000 mi) an
d b eyon d
The vehicle can now be operated nor-
mally.
NOTICE
ECA10311
 Keep the en gine spee d out of
the tachometer red zone.
 If any en gine trou ble shoul d oc-
cur during the en gine break-in
period , imme diately have a
Yamaha dealer check the vehi-
cle.TIPDuring and after the engine break-in
period, the exhaust heat may cause
discoloration of the exhaust pipe, but
this is normal.
U2SGE0E0.book Page 3 Wednesday, June 12, 2013 1:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
To install a cowling
1. Insert the projection into the slot,
and then slide the cowling back-
ward. 2. Place the cowling in its original po-
sition, and then install the quick
fastener screws.
3. Install cowling A or B.
EAU19653
Checkin g the spark plu gsThe spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos-
its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Cowling C
2. Slot
3. Projection
1. Cowling D
2. Slot
3. Projection
2
3
1
3
1
2
U2SGE0E0.book Page 10 Wednesday, June 12, 2013 1:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.NOTICE
ECA10841
Do not use any tools to remove or in-
stall the spark plu
g cap, otherwise
the i gnition coil coupler may get
d amag ed . The spark plu g cap may
b e difficult to remove because the
ru bber seal on the en d of the cap fits
ti g htly. To remove the spark plu g
cap, simply twist it b ack and forth
while pullin g it out; to install it, twist
it back an d forth while pushin g it in.
EAU47282
En gine oil an d oil filter car-
tri dg eThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the en gine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the check window locat-
ed at the bottom-right side of the
crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
Specifie d spark plu g:
NGK/LMAR9E-J1. Spark plug gapSpark plu g g ap:
0.6–0.7 mm (0.024–0.028 in)
Ti ghtenin g torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1
1
U2SGE0E0.book Page 11 Wednesday, June 12, 2013 1:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIPAfter the engine is started, the engine
oil level warning light should go off if
the oil level is sufficient.NOTICE
ECA10402
If the oil level warnin g li ght flickers
or remains on even if the oil level is
correct, imme diately turn the en gine
off an d have a Yamaha d ealer check
the vehicle.11. Turn the engine off, wait a few minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
12. Install the cowlings.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU38174
To check the coolant level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the coolant
reservoir cap, and then add cool-
ant to the maximum level mark.
WARNING! Remove only the coolant reservoir cap. Never at-
tempt to remove the ra diator
cap when the en gine is hot.
[EWA15162]
NOTICE: If coolant is not
availab le, use distille d water or
soft tap water instead . Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead

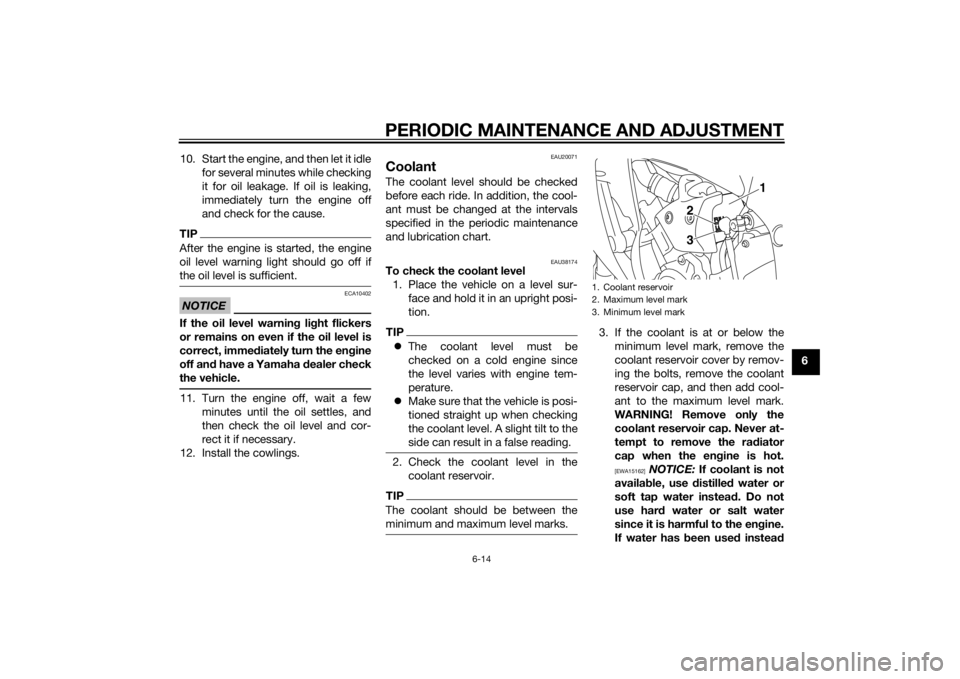

1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1
3 2
U2SGE0E0.book Page 14 Wednesday, June 12, 2013 1:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6
EAU54501
Auxiliary lightThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.
EAU24351
Supportin g the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light
1
U2SGE0E0.book Page 38 Wednesday, June 12, 2013 1:15 PM

INDEXAAir filter element .................................... 6-17
Auxiliary light......................................... 6-38BBattery .................................................. 6-32
Brake and clutch levers, checking and lubricating ........................................... 6-29
Brake and shift pedals, checking and lubricating ........................................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ............................................ 3-21
Brake lever free play, checking............. 6-22
Brake light switches.............................. 6-23
Brake pedal........................................... 3-22CCables, checking and lubricating ......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-27
Clutch lever ........................................... 3-20
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-14
Coolant temperature warning light ......... 3-5
Cowlings, removing and installing .......... 6-8DDimmer switch ...................................... 3-19
D-mode (drive mode) ............................ 3-18
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack................................... 6-25EEngine break-in....................................... 5-3
Engine idling speed, checking .............. 6-17
Engine oil and oil filter cartridge ........... 6-11
Engine stop switch ............................... 3-19 Engine trouble warning light ................... 3-7
FFront and rear brake pads, checking ... 6-23
Front fork, adjusting ............................. 3-31
Front fork, checking ............................. 6-30
Fuel ....................................................... 3-25
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose and overflow
hose ................................................... 3-26
Fuel tank cap ........................................ 3-24
Fuses, replacing ................................... 6-33HHandlebar switches .............................. 3-18
Hazard switch....................................... 3-19
Headlight bulb, replacing ..................... 6-35
Helmet holder ....................................... 3-29
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-19IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-36
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-8
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing........ 6-37
Luggage strap holders ......................... 3-35MMain switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system.................................................. 6-3
Matte color, caution ............................... 7-1 Model label .............................................9-1
Multi-function meter unit .........................3-8
NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PParking ....................................................5-4
Part locations ..........................................2-1
Pass switch ...........................................3-19RRear view mirrors ..................................3-30
Rider footrest position, adjusting ..........3-30SSafety information ...................................1-1
Seats .....................................................3-27
Shifting ....................................................5-2
Shift pedal .............................................3-21
Shift timing indicator light .......................3-7
Shock absorber assembly, adjusting ....3-33
Sidestand ..............................................3-35
Sidestand, checking and lubricating.....6-29
Spark plugs, checking ..........................6-10
Specifications .........................................8-1
Starting the engine ..................................5-1
Start switch ...........................................3-19
Steering, checking ................................6-31
Storage ...................................................7-4
Storage compartment ...........................3-29
Supporting the motorcycle ...................6-38
Swingarm pivots, lubricating ................6-30TTail/brake light ......................................6-36
U2SGE0E0.book Page 1 Wednesday, June 12, 2013 1:15 PM
