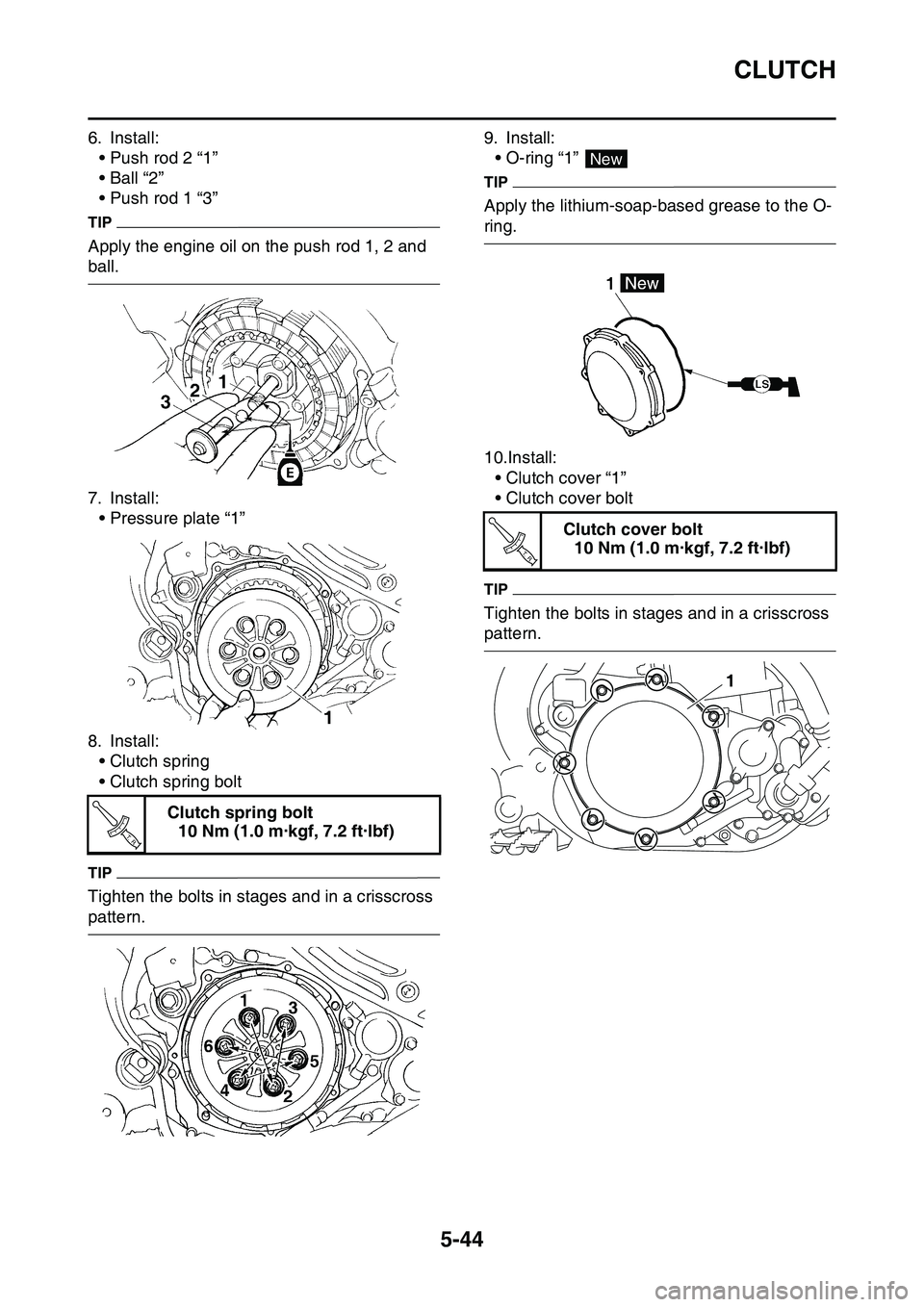

CLUTCH
5-44
6. Install:
• Push rod 2 “1”
•Ball “2”
• Push rod 1 “3”
TIP
Apply the engine oil on the push rod 1, 2 and
ball.
7. Install:
• Pressure plate “1”
8. Install:
• Clutch spring
• Clutch spring bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
9. Install:
• O-ring “1”
TIP
Apply the lithium-soap-based grease to the O-
ring.
10.Install:
• Clutch cover “1”
• Clutch cover bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
EAS1SL1247
Clutch spring bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)T R..
Clutch cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
T R..
1

AC MAGNETO
5-61
2. Install:
• Woodruff key “1”
• Rotor “2”
TIP
• Clean the contact surfaces of the tapered por-
tions of the crankshaft and rotor.
• When installing the woodruff key, make sure
that its flat surface “a” is in parallel with the
crankshaft center line “b”.
• When installing the rotor, align the keyway “c”
of the rotor with the woodruff key.
3. Install:
• Washers
• Nut (rotor) “1”
4. Install:
• Dowel pin “1”
• Gasket (left crankcase cover) “2”
• Left crankcase cover “3”
• Lead holder “4”
• Bolt (left crankcase cover) “5”
TIP
Tighten the bolts in stages and in a crisscross
pattern.
5. Connect:
• AC magneto lead
Refer to “CABLE ROUTING DIAGRAM” on
page 2-33.
Nut (rotor)
65 Nm (6.5 m·kgf, 47 ft·lbf)
Bolt (left crankcase cover)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
b11
c
2 a
T R..
1
New
T R..
1
1
2
3
5
5
5
5
4
45

CRANKCASE
5-66
2. Check:
• Crankcase
Crack/damage  Replace.
• Oil delivery passages
Obstruction  Blow out with compressed
air.
EAS1SL1282ASSEMBLING THE CRANKCASE
1. Install:
• Bearing cover plate
TIP
• Install the bearing by pressing its outer race
parallel.
• To prevent the bearing cover plate screw
(crankshaft) “1” from becoming loose, crimp
the screw head periphery “a” into the concave
“b” using a punch etc. In so doing, take care
not to damage the screwdriver receiving hole
in the screw.
2. Apply:
• Sealant
(to the crankcase mating surface)
3. Install:
• Dowel pin “1”
• Crankcase (to the left crankcase)
TIP
• Apply the lithium-soap-based grease on the
O-ring.
• Fit the right crankcase onto the left crankcase.
Tap lightly on the case with soft hammer.
• When installing the crankcase, the connecting
rod should be positioned at top dead center
(TDC).
• Tighten the bolts in a crisscross pattern in two
(2) stages, with 1/4 turn each.
Bearing cover plate
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Bearing cover plate (crankshaft)
18 Nm (1.8 m·kgf, 13 ft·lbf)
Three Bond No.1215®
90890-85505
T R..
a
b
1
1
Crankcase bolt
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
3. 45 mm (1.77 in)
4. 65 mm (2.56 in)
5. 75 mm (2.95 in)
T R..
5
3
5
3
3 3 45 4
3
