2014 YAMAHA YZ250F width

GENERAL SPECIFICATIONS
2-1
EAS1SM1052
GENERAL SPECIFICATIONS
Model
Model 1SM1 (USA) (CAN)
1SM2 (EUR)
1SM3 (JPN)
1SM4 (AUS) (NZL) (ZAF)
Dimensions
Overall length 2165 mm (85.2 in) (USA) (CAN) (AUS) (NZL)
(ZAF)
2170 mm (85.4 in) (EUR) (JPN)
Overall width 825 mm (32.5 in)
Overall height 1280 mm (50.4 in) (USA) (CAN) (EUR) (JPN)
1275 mm (50.2 in) (AUS) (NZL) (ZAF)
Seat height 965 mm (38.0 in) (USA) (CAN) (EUR) (JPN)
960 mm (37.8 in) (AUS) (NZL) (ZAF)
Wheelbase 1475 mm (58.1 in)
Ground clearance 325 mm (12.80 in) (USA) (CAN) (AUS) (NZL)
(ZAF)
330 mm (12.99 in) (EUR) (JPN)
Weight
Curb weight 105 kg (231 lb)

ENGINE SPECIFICATIONS
2-2
EAS1SM1053
ENGINE SPECIFICATIONS
Engine
Engine type Liquid cooled 4-stroke, DOHC
Displacement 250 cm
3
Cylinder arrangement Single cylinder
Bore  stroke 77.0  53.6 mm (3.03  2.11 in)
Compression ratio 13.50:1
Starting system Kickstarter
Fuel
Recommended fuel Premium unleaded gasoline only
Fuel tank capacity 7.5 L (1.98 US gal, 1.65 Imp.gal)
Engine oil
Lubrication system Wet sump
Recommended brand YAMALUBE
Type SAE 10W-30, SAE 10W-40, SAE 10W-50,
SAE 15W-40, SAE 20W-40 or SAE 20W-50
Recommended oil grade API service SG type or higher, JASO standard
MA
Engine oil quantity
Quantity (disassembled) 0.90 L (0.95 US qt, 0.79 Imp.qt)
With oil filter element replacement 0.73 L (0.77 US qt, 0.64 Imp.qt)
Without oil filter element replacement 0.71 L (0.75 US qt, 0.62 Imp.qt)
Oil filter
Oil filter type Paper
Oil pump
Oil pump type Trochoid
Inner-rotor-to-outer-rotor-tip clearance Less than 0.150 mm (0.0059 in)
Limit 0.20 mm (0.0079 in)
Outer-rotor-to-oil-pump-housing clearance 0.13–0.18 mm (0.0051–0.0071 in)
Limit 0.24 mm (0.0094 in)
Oil-pump-housing-to-inner-and-outer-rotor
clearance 0.06–0.11 mm (0.0024–0.0043 in)
Limit 0.17 mm (0.0067 in)
Cooling system
Radiator capacity (including all routes) 1.00 L (1.06 US qt, 0.88 Imp.qt)
Radiator capacity 0.58 L (0.61 US qt, 0.51 Imp.qt)
Radiator cap opening pressure 108–137 kPa (1.08–1.37 kg/cm
2, 15.7–19.9
psi)
Radiator core
Width 112.6 mm (4.43 in)
Height 235.0 mm (9.25 in)
Depth 28.0 mm (1.10 in)
Water pump
Water pump type Single suction centrifugal pump
Spark plug
Manufacturer/model NGK/LMAR8G
Spark plug gap 0.7–0.8 mm (0.028–0.031 in)

ENGINE SPECIFICATIONS
2-3
Cylinder head
Volume 12.07–12.87 cm3 (0.74–0.79 cu.in)
Warpage limit 0.05 mm (0.0020 in)
Camshaft
Drive system Chain drive (left)
Camshaft cap inside diameter 22.000–22.021 mm (0.8661–0.8670 in)
Camshaft journal diameter 21.959–21.972 mm (0.8645–0.8650 in)
Camshaft-journal-to-camshaft-cap clearance 0.028–0.062 mm (0.0011–0.0024 in)
Camshaft lobe dimensions
Intake A 31.730–31.830 mm (1.2492–1.2531 in)
Limit 31.630 mm (1.2453 in)
Intake B 22.450–22.550 mm (0.8839–0.8878 in)
Limit 22.350 mm (0.8799 in)
Exhaust A 33.370–33.470 mm (1.3138–1.3177 in)
Limit 33.270 mm (1.3098 in)
Exhaust B 25.211–25.311 mm (0.9926–0.9965 in)
Limit 25.111 mm (0.9886 in)
Camshaft runout limit 0.030 mm (0.0012 in)
Timing chain
Tensioning system Automatic
Valve, valve seat, valve guide
Valve clearance (cold)
Intake 0.12–0.19 mm (0.0047–0.0075 in)
Exhaust 0.17–0.24 mm (0.0067–0.0094 in)
Valve dimensions
Valve head diameter A (intake) 30.90–31.10 mm (1.2165–1.2244 in)
Valve head diameter A (exhaust) 24.90–25.10 mm (0.9803–0.9882 in)
Valve face width B (intake) 1.697 mm (0.0668 in)
Valve face width B (exhaust) 1.909 mm (0.0752 in)
A
B
A
B

ENGINE SPECIFICATIONS
2-4
Valve seat width C (intake) 0.90–1.10 mm (0.0354–0.0433 in)
Valve seat width C (exhaust) 0.90–1.10 mm (0.0354–0.0433 in)
Valve margin thickness D (intake) 1.20 mm (0.0472 in)
Valve margin thickness D (exhaust) 0.85 mm (0.0335 in)
Valve stem diameter (intake) 4.975–4.990 mm (0.1959–0.1965 in)
Limit 4.945 mm (0.1947 in)
Valve stem diameter (exhaust) 4.460–4.475 mm (0.1756–0.1762 in)
Limit 4.430 mm (0.1744 in)
Valve guide inside diameter (intake) 5.000–5.012 mm (0.1969–0.1973 in)
Limit 5.050 mm (0.1988 in)
Valve guide inside diameter (exhaust) 4.500–4.512 mm (0.1772–0.1776 in)
Limit 4.550 mm (0.1791 in)
Valve-stem-to-valve-guide clearance (intake) 0.010–0.037 mm (0.0004–0.0015 in)
Limit 0.080 mm (0.0032 in)
Valve-stem-to-valve-guide clearance (exhaust) 0.025–0.052 mm (0.0010–0.0020 in)
Limit 0.100 mm (0.0039 in)
Valve stem runout 0.010 mm (0.0004 in)
Valve spring
Free length (intake) 36.69 mm (1.44 in)
Limit 35.69 mm (1.41 in)
Free length (exhaust) 34.86 mm (1.37 in)
Limit 33.86 mm (1.33 in)
Installed length (intake) 31.40 mm (1.24 in)
Installed length (exhaust) 28.50 mm (1.12 in)
Spring rate K1 (intake) 29.65 N/mm (2.99 kgf/mm, 169.30 lbf/in)
Spring rate K2 (intake) 39.31 N/mm (4.01 kgf/mm, 222.46 lbf/in)
Spring rate K1 (exhaust) 23.11 N/mm (2.36 kgf/mm, 131.96 lbf/in)
Spring rate K2 (exhaust) 30.88 N/mm (3.15 kgf/mm, 176.32 lbf/in)
Installed compression spring force (intake) 146.00–168.00 N (14.89–17.13 kgf,
32.82–37.77 lbf)
Installed compression spring force (exhaust) 137.00–157.00 N (13.97–16.01 kgf,
30.80–35.29 lbf)
C
D

ENGINE SPECIFICATIONS
2-6
Crankshaft
Width A 55.95–56.00 mm (2.203–2.205 in)
Runout limit C 0.030 mm (0.0012 in)
Big end side clearance D 0.150–0.450 mm (0.0059–0.0177 in)
Balancer
Balancer drive method Gear
Clutch
Clutch type Wet, multiple-disc
Clutch release method Inner push, cam push
Clutch lever free play 7.0–12.0 mm (0.28–0.47 in)
Friction plate thickness 2.90–3.10 mm (0.114–0.122 in)
Wear limit 2.80 mm (0.110 in)
Plate quantity 9 pcs
Clutch plate thickness 1.10–1.30 mm (0.043–0.051 in)
Plate quantity 8 pcs
Warpage limit 0.10 mm (0.0039 in)
Clutch spring free length 45.00 mm (1.77 in)
Limit 44.00 mm (1.73 in)
Spring quantity 5 pcs
Push rod bending limit 0.10 mm (0.0039 in)
Transmission
Transmission type Constant mesh 5-speed
Primary reduction system Spur gear
Primary reduction ratio 3.353 (57/17)
Final drive Chain
Secondary reduction ratio 3.846 (50/13)
Operation Left foot operation
Gear ratio
1st 2.143 (30/14)
2nd 1.750 (28/16)
3rd 1.444 (26/18)
4th 1.222 (22/18)
5th 1.042 (25/24)
Shifting mechanism
Shift mechanism type Shift drum and guide bar
Shift fork guide bar bending limit 0.050 mm (0.0020 in)
Shift fork thickness 4.85 mm (0.1909 in)
Decompression device
Device type Auto decomp
CC
D
A

CAMSHAFT
5-15
c. Install the dowel pins and the camshaft
caps.
TIP
• Tighten the camshaft cap bolts in a crisscross
pattern from innermost to outer caps.
• Do not turn the camshaft when measuring the
camshaft journal-to-camshaft cap clearance.
d. Remove the camshaft caps and then mea-
sure the width of the Plastigauge® “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
5. Measure:
• Camshaft journal diameter “a”
Out of specification  Replace the cam-
shaft.
Within specification  Replace the cylinder
head and the camshaft caps as a set.
EAS1SM1210CHECKING THE TIMING CHAIN AND CAM-
SHAFT SPROCKET
1. Check:
• Timing chain “1”
Damage/stiffness  Replace the timing
chain and camshaft and camshaft sprocket
as a set.2. Check:
• Camshaft sprocket
More than 1/4 tooth wear “a”  Replace the
camshaft sprocket and the timing chain as a
set.
EAS1SM1211CHECKING THE TIMING CHAIN TENSION-
ERS
1. Check:
• Timing chain tensioner
Crack/damage  Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. While pressing the tensioner rod lightly with
your fingers, use a thin screwdriver “1” to
wind the tensioner rod up fully clockwise.
b. When releasing the screwdriver by pressing
lightly with your fingers, make sure that the
tensioner rod will come out smoothly.
c. If not, replace the tensioner assembly.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Camshaft cap bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Camshaft journal diameter
21.959–21.972 mm (0.8645–
0.8650 in)
T R..
1
a. 1/4 tooth
b. Correct
1. Timing chain roller
2. Camshaft sprocket
a
b1
2

VALVES AND VALVE SPRINGS
5-23

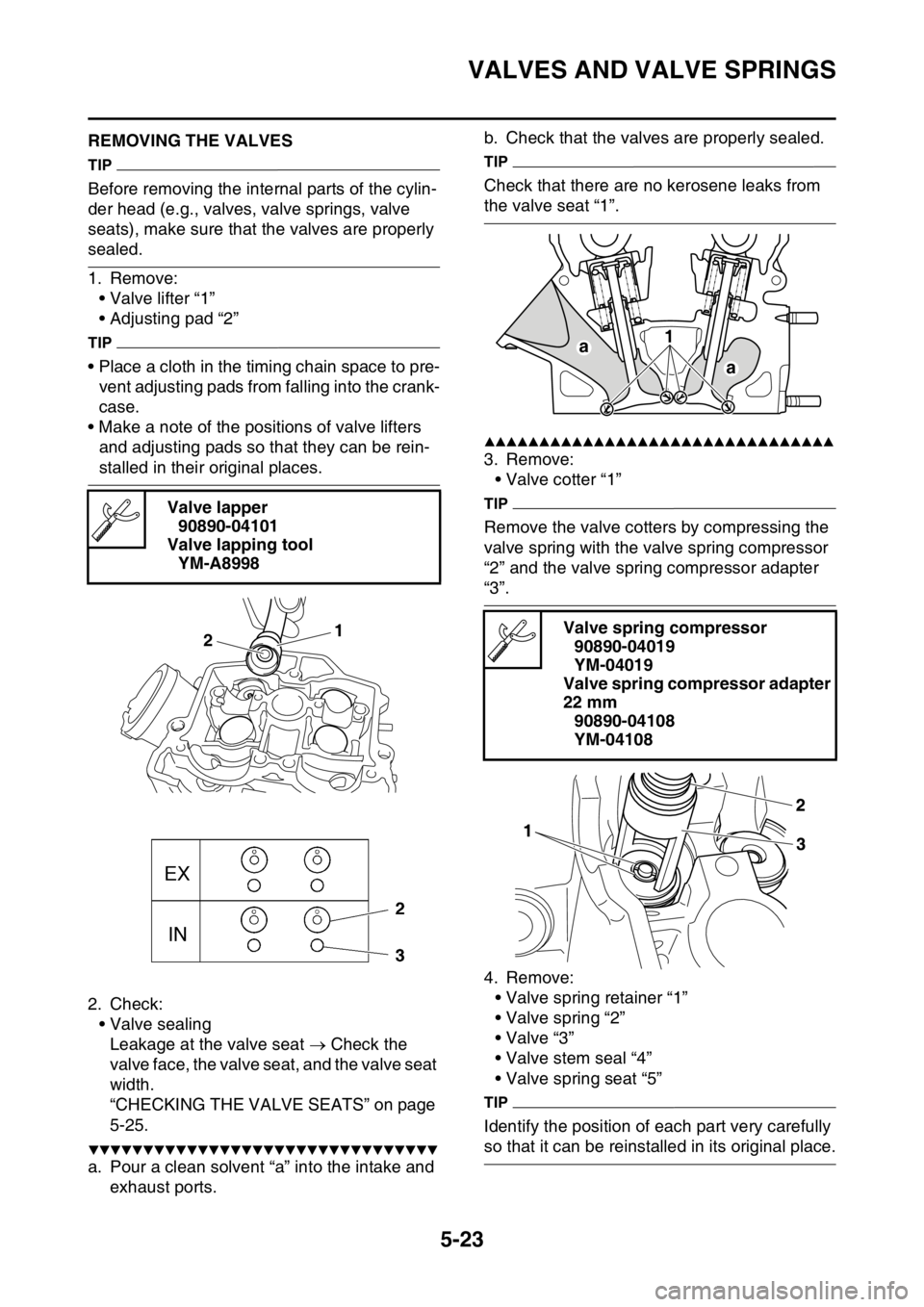

EAS1SM1220REMOVING THE VALVES
TIP
Before removing the internal parts of the cylin-
der head (e.g., valves, valve springs, valve
seats), make sure that the valves are properly
sealed.
1. Remove:
• Valve lifter “1”
• Adjusting pad “2”
TIP
• Place a cloth in the timing chain space to pre-
vent adjusting pads from falling into the crank-
case.
• Make a note of the positions of valve lifters
and adjusting pads so that they can be rein-
stalled in their original places.
2. Check:
• Valve sealing
Leakage at the valve seat  Check the
valve face, the valve seat, and the valve seat
width.
“CHECKING THE VALVE SEATS” on page
5-25.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Pour a clean solvent “a” into the intake and
exhaust ports.b. Check that the valves are properly sealed.
TIP
Check that there are no kerosene leaks from
the valve seat “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Remove:
• Valve cotter “1”
TIP
Remove the valve cotters by compressing the
valve spring with the valve spring compressor
“2” and the valve spring compressor adapter
“3”.
4. Remove:
• Valve spring retainer “1”
• Valve spring “2”
•Valve “3”
• Valve stem seal “4”
• Valve spring seat “5”
TIP
Identify the position of each part very carefully
so that it can be reinstalled in its original place. Valve lapper
90890-04101
Valve lapping tool
YM-A8998
1
2Valve spring compressor
90890-04019
YM-04019
Valve spring compressor adapter
22 mm
90890-04108
YM-04108
a1
a

VALVES AND VALVE SPRINGS
5-25
TIP
After replacing the valve guide, reface the valve
seat.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Eliminate:• Carbon deposits(from the valve face and valve seat)
4. Check: • Valve facePitting/wear  Grind the valve face.
• Valve stem end Mushroom shape or diameter larger than
the body of the valve stem  Replace the
valve.
5. Measure: • Valve margin thickness D “a”Out of specification  Replace the valve. 6. Measure:
• Valve stem runoutOut of specification  Replace the valve.
TIP
• When installing a new valve, always replace
the valve guide.
• If the valve is removed or replaced, always re-
place the oil seal.
EAS1SM1222CHECKING THE VALVE SEATS
1. Eliminate: • Carbon deposits(from the valve face and valve seat)
2. Check:
• Valve seatPitting/wear  Replace the cylinder head.
3. Measure:
• Valve seat width C “a”Out of specification  Replace the cylinder
head.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Apply Mechanic’s blueing dye (Dykem) “b” onto the valve face.
Intake
Valve guide remover (ø5.0)
90890-04097
YM-04097
Valve guide installer (ø5.0) 90890-04098
YM-04098
Valve guide reamer (ø5.0) 90890-04099
YM-04099
Exhaust
Valve guide remover (ø4.5)
90890-04116
YM-04116
Valve guide installer (ø4.5)
90890-04117
YM-04117
Valve guide reamer (ø4.5)
90890-04118
YM-04118
Valve margin thickness D (intake) 1.20 mm (0.0472 in)
Valve margin thickness D (ex-
haust) 0.85 mm (0.0335 in)
Valve stem runout 0.010 mm (0.0004 in)
Valve seat width C (intake) 0.90–1.10 mm (0.0354–0.0433 in)
Valve seat width C (exhaust) 0.90–1.10 mm (0.0354–0.0433 in)
