PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
To install the cowling
Place the cowling in the original posi-
tion, and then install the bolts and the
nuts.
EAU19653
Checkin
g the spark plu gsThe spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos-
its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced. Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
Specified
spark plu g:
NGK/CPR8EB9
1. Spark plug gap
Spark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U2BSE0E0.book Page 10 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.NOTICE
ECA10841
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the i gnition coil coupler may get
d amag ed . The spark plu g cap may
b e difficult to remove because the
ru bber seal on the en d of the cap fits
ti g htly. To remove the spark plu g
cap, simply twist it b ack and forth
while pullin g it out; to install it, twist
it back an d forth while pushin g it in.
EAU58600
En gine oil an d oil filter car-
tri dgeThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the en gine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine and warm it up for ten minutes until the engine oil has
reached a normal temperature of
60 °C (140 °F), and then turn the
engine off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the engine oil level check
window located at the bottom-
right side of the crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To chan ge the en gine oil (with or
without oil filter cartri dge replace-
ment) 1. Place the vehicle on a level sur- face.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the oil tank to collect the used oil.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
42
3
1
U2BSE0E0.book Page 11 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
a
ddition, do not use oils lab eled
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.
14. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.TIPAfter the engine is started, the engine
oil level warning light should go off if
the oil level is sufficient.NOTICE
ECA10402
If the oil level warnin g li ght flickers
or remains on even if the oil level is
correct, imme diately turn the en gine
off an d have a Yamaha d ealer check
the vehicle.15. Turn the engine off, wait a few minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
EAU20028
Final gear oilThe final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the vehicle. In ad-
dition, the final gear oil level must be
checked and the oil changed as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
WARNING
EWA10371
 Make sure that no forei gn mate-
rial enters the final gear case.
 Make sure that no oil gets on
the tire or wheel.To check the final g ear oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIPMake sure that the vehicle is posi-
tioned straight up when checking the
oil level. A slight tilt to the side can re-
sult in a false reading.
2. Remove the final gear oil filler boltand its gasket, and then check the
oil level in the final gear case.TIPThe oil level should be at the brim of
the filler hole.3. If the oil is below the brim of thefiller hole, add sufficient oil of the
recommended type to raise it to
the correct level.
4. Check the gasket for damage, and replace it if necessary.
5. Install the final gear oil filler bolt and its gasket, and then tighten
the bolt to the specified torque.1. Final gear oil filler bolt
2. Gasket
3. Correct oil level
1
2
3
U2BSE0E0.book Page 14 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6To chan
ge the final gear oil
1. Place an oil pan under the final gear case to collect the used oil.
2. Remove the final gear oil filler bolt, the final gear oil drain bolt and
their gasket to drain the oil from
the final gear case.
3. Install the final gear oil drain bolt and its new gasket, and then tight-
en the bolt to the specified torque. 4. Refill with the recommended final
gear oil to the brim of the filler
hole.
5. Check the oil filler bolt gasket for damage, and replace it if neces-
sary.
6. Install the oil filler bolt and its gas- ket, and then tighten the bolt to
the specified torque.
7. Check the final gear case for oil leakage. If oil is leaking, check for
the cause.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20093
To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
Tightenin g torque:
Final gear oil filler bolt:

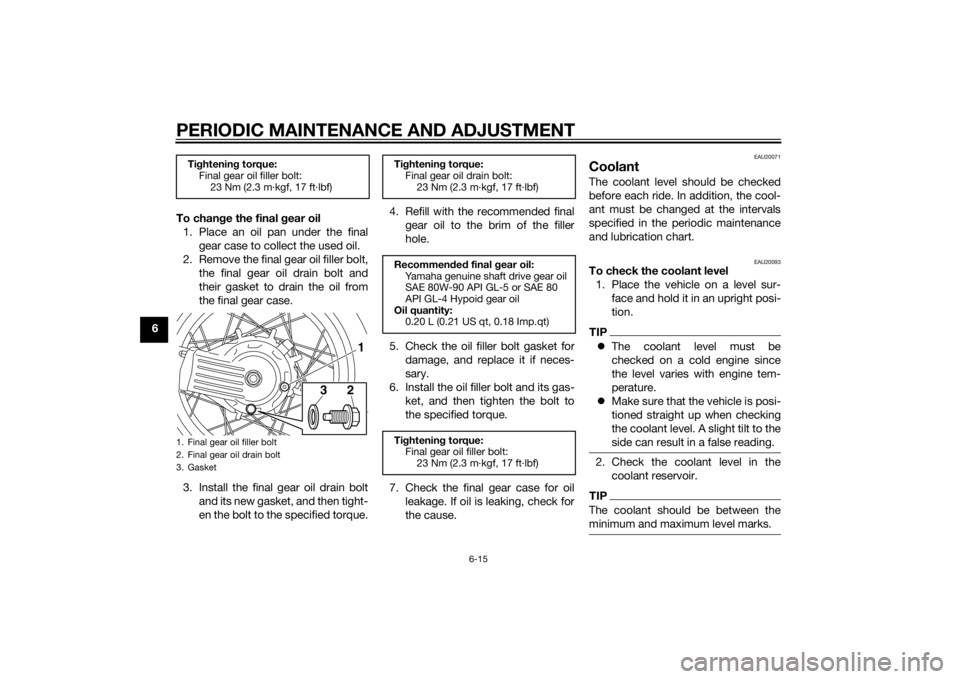

23 Nm (2.3 m·kgf, 17 ft·lbf)1. Final gear oil filler bolt
2. Final gear oil drain bolt
3. Gasket
2
3
1
Tightenin g torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommen ded final gear oil:
Yamaha genuine shaft drive gear oil
SAE 80W-90 API GL-5 or SAE 80
API GL-4 Hypoid gear oil
Oil quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Ti ghtenin g torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2BSE0E0.book Page 15 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
8. Insert a new bulb into the socket.
9. Install the socket (together with
the bulb) by pushing it in and turn-
ing it clockwise.
10. Install the headlight unit by install- ing the bolts, and then tightening
them to the specified torque.
11. Install the headlight unit cover by installing the bolts.
12. Install the panel by installing the screws and the quick fastener
screw.
13. Install the cover. 14. Install the windshield by installing
the screws, and then tightening
them to the specified torque.
WARNING! A loose win dshiel d
coul d cause an acci dent. Be
sure to tig hten the screws to the
specifie d torque.
[EWA15511] EAU24351
Supportin
g the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulbTi ghtenin g torque:
Headlight unit bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1
Tightenin g torque:
Windshield screw: 0.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
U2BSE0E0.book Page 36 Tuesday, September 17, 2013 8:55 AM

10-1
10
INDEXAABS ....................................................... 3-26
ABS warning light ................................... 3-5
Air filter element .................................... 6-17
Auxiliary DC jack ................................... 3-42
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-29
Brake and clutch fluids, changing ........ 6-24
Brake and clutch levers, checking and lubricating ........................................... 6-26
Brake and shift pedals, checking and
lubricating ........................................... 6-25
Brake fluid level, checking .................... 6-23
Brake lever ............................................ 3-25
Brake lever free play, checking............. 6-21
Brake light switches.............................. 6-22
Brake pedal........................................... 3-26CCare ........................................................ 7-1
Carriers ................................................. 3-39
Catalytic converter ................................ 3-31
Clutch lever ................................. 3-24, 6-21
Coolant ................................................. 6-15
Cowlings, removing and installing .......... 6-8
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................. 3-6DDimmer/Pass switch ............................. 3-23
D-mode (drive mode) ............................ 3-22EEngine break-in....................................... 5-3
Engine idling speed, checking .............. 6-17 Engine oil and oil filter
cartridge ........... 6-11
Engine trouble warning light ................... 3-5
FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-22
Front fork, adjusting ............................. 3-35
Front fork, checking ............................. 6-27
Fuel ....................................................... 3-30
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-31
Fuel tank cap ........................................ 3-29
Fuses, replacing ................................... 6-30HHandlebar switches .............................. 3-22
Hazard switch....................................... 3-23
Headlight bulb, replacing ..................... 6-32
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-23IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-40
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-6
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing........ 6-33
Luggage strap holders ......................... 3-39MMain switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system.................................................. 6-3
Matte color, caution ............................... 7-1 Menu switch..........................................3-23
Model label .............................................9-1
Multi-function meter unit .......................3-10
NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PParking ....................................................5-4
Part locations ..........................................2-1RRider seat ..............................................3-32
Rider seat height, adjusting ..................3-33SSafety information ...................................1-1
Select switch.........................................3-24
Shifting ....................................................5-2
Shift pedal .............................................3-25
Shock absorber assembly, adjusting ....3-37
Sidestand ..............................................3-40
Sidestand, checking and lubricating.....6-26
Spark plugs, checking ..........................6-10
Specifications .........................................8-1
Start/Engine stop switch .......................3-23
Starting the engine ..................................5-1
Steering, checking ................................6-28
Storage ...................................................7-4
Supporting the motorcycle ...................6-36
Swingarm pivots, lubricating ................6-27TThrottle grip and cable, checking and
lubricating ...........................................6-25
Throttle grip free play, checking ...........6-17
Tires ......................................................6-18
U2BSE0E0.book Page 1 Tuesday, September 17, 2013 8:55 AM
