2014 YAMAHA FZS SVHO display

Table of contents
General and important labels ........... 1Identification numbers .................... 1
Primary Identification (PRI-ID)
number............................................ 1
Craft Identification Number (CIN) ....... 1
Engine serial number.......................... 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels.................................... 5
Other labels ........................................ 9
Safety information ........................... 11 Limitations on who may operate the watercraft ............................. 11
Cruising limitations ........................ 12
Operation requirements ................ 13
Recommended equipment ........... 15
Hazard information........................ 16
Watercraft characteristics ............. 16
Water-skiing .................................. 18
Safe boating rules ......................... 19
Enjoy your watercraft responsibly ................................. 20
Description....................................... 21 Watercraft glossary ....................... 21
Location of main components ...... 22
Control function operation ............. 26 Watercraft control functions ......... 26
Remote control transmitter .............. 26
Yamaha Security System ................. 27
Engine stop switch .......................... 28
Engine shut-off switch .................... 28
Start switch ..................................... 28
Throttle lever .................................... 29
Steering system ............................... 29
Telescopic steering system.............. 30
Cooling water pilot outlets ............... 30
Water separator................................ 31
Watercraft operation ...................... 32Watercraft operation functions ..... 32
Reverse system ................................ 32
Quick Shift Trim System
(Q.S.T.S.) ....................................... 33
Watercraft operation modes ......... 34
Low RPM Mode ............................... 34
Instrument operation ...................... 36Dual analog meter unit.................. 36
Speedometer.................................... 36
Tachometer ...................................... 36
Information display ........................... 37
Equipment operation ...................... 41Equipment..................................... 41
Seats ................................................ 41
Handgrips ......................................... 42
Reboarding grip................................ 42
Reboarding step ............................... 42
Bow eye............................................ 43
Stern eyes ........................................ 43
Cleat ................................................. 43
Storage compartments .................... 44
Fire extinguisher holder and cover ... 47
Operation and handling
requirements ................................... 49Fuel requirements ......................... 49
Fuel................................................... 49
Engine oil requirements ................ 51
Engine oil .......................................... 51
Draining the bilge water ................ 52
Draining the bilge water on land....... 52
Draining the bilge water on water .... 53
Transporting on a trailer................ 54
First-time operation ........................ 55 Engine break-in............................. 55
Pre-operation checks ..................... 56
Pre-operation checklist .................... 56
UF3K70E0.book Page 1 Tuesday, November 5, 2013 8:44 AM

Watercraft operation
35
TIP:
If the remote control transmitter is operated
while the dual analog meter unit is in the
standby state, the unit will perform the initial
operation, and then the setting is selected.
To activate the Low RPM Mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds three times
and the “UNLOCK” indicator light blinks
three times, then comes on, the “L-MODE”
indicator light comes on and the Low RPM
Mode is activated.
TIP:
If the Low RPM Mode is activated immediate-
ly after the information display turns off, the
“L-MODE” indicator light will not come on.
The “L-MODE” indicator light will come on
when the engine is started.
To deactivate the Low RPM Mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-onds. Once the beeper sounds two times and
the “UNLOCK” indicator light blinks two
times, then comes on, the “L-MODE” indica-
tor light goes off and the Low RPM Mode is
deactivated. When the Low RPM Mode is de-
activated, the watercraft returns to the nor-
mal operation mode.
Number of
beeps Low RPM Mode
operation “L-
MODE”
indicator light
Activated Comes
on
Deactivated Goes off
1 “L-Mode” (unlock) button
2 “L-MODE” indicator light
L-Mode1
2
UF3K70E0.book Page 35 Tuesday, November 5, 2013 8:44 AM

Instrument operation
36
EJU37433
Dual analog meter unit
The dual analog meter unit displays various
watercraft information.
Dual analog meter unit initial operation
When the dual analog meter unit is activated,
the speedometer and tachometer make one
sweep, all of the display segments and indi-
cator lights come on. After 2 seconds, the
“WARNING” indicator light and the warning
indicators in the information display go off,
and then the unit starts to operate normally.
TIP:
The “UNLOCK” indicator light will go off
when the engine is started.
Dual analog meter unit standby state
If the dual analog meter unit does not receive
any operation input within 25 seconds after
the engine stops, the unit will turn off and en-
ter a standby state. When the engine is start-
ed again, the displays return to their state
before the unit turned off, and then the unit
starts to operate normally.
EJU37444Speedometer
The speedometer shows the watercraft
speed against water.
The small inner numbers on the meter show
the watercraft speed in kilometers per hour
“km/h” and the large outer numbers show the
speed in miles per hour “mph”.
EJU37245Tachometer
The tachometer shows the engine speed.
The numbers on the meter show the engine
speed × 1000 rpm (r/min).
1 Speedometer
2 Information display
3 Tachometer
4 “Hour Volt” button
5 “UNLOCK” indicator light
6 “L-MODE” indicator light
7 “WARNING” indicator light
123
7
654
UF3K70E0.book Page 36 Tuesday, November 5, 2013 8:44 AM

Instrument operation
37
EJU35025Information display
The information display shows watercraft op-
erating conditions.
EJU37265Hour meter/voltmeter
The hour meter/voltmeter has both an hour
meter function and a voltmeter function. By
switching the meter, it can be used as either
an hour meter or a voltmeter.
TIP:
The hour meter is selected at the Yamaha
factory.Hour meter
The hour meter shows the total number of
hours that the engine has been running since
the watercraft was new.
TIP:
The elapsed time will be kept even if the bat-
tery terminals have been disconnected.
To switch to the hour meter from the voltme-
ter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches to the hour meter
from the voltmeter.
Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage has dropped significant-
ly, “LO” is displayed on the voltmeter. If the
battery voltage has risen significantly, “HI” is
displayed. If “LO” or “HI” is displayed, imme-
diately return to shore and have a Yamaha
dealer service the watercraft.
1
Fuel level meter
2 Fuel indicator
3 Engine overheat warning indicator
4 Check engine warning indicator
5 Oil pressure warning indicator
6 Hour meter/voltmeter
1 Hour meter/voltmeter
12345
6
1
1 “Hour Volt” button
2 Hour meter
1
2
UF3K70E0.book Page 37 Tuesday, November 5, 2013 8:44 AM

Instrument operation
38
To switch to the voltmeter from the hour me-
ter:
Push the “Hour Volt” button for at least 1 sec-
ond. The display switches to the voltmeter
from the hour meter.
EJU37272Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using four display seg-
ments, which disappear one at a time as the
fuel level decreases.
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU37284Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est fuel level segment, the fuel indicator, and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 49
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
TIP:
Push the “Hour Volt” button to stop the buzz-
er.
EJU37294Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
1“Hour Volt” button
2 Vo l t m et e r
1 Fuel level meter
1
2
1
UF3K70E0.book Page 38 Tuesday, November 5, 2013 8:44 AM

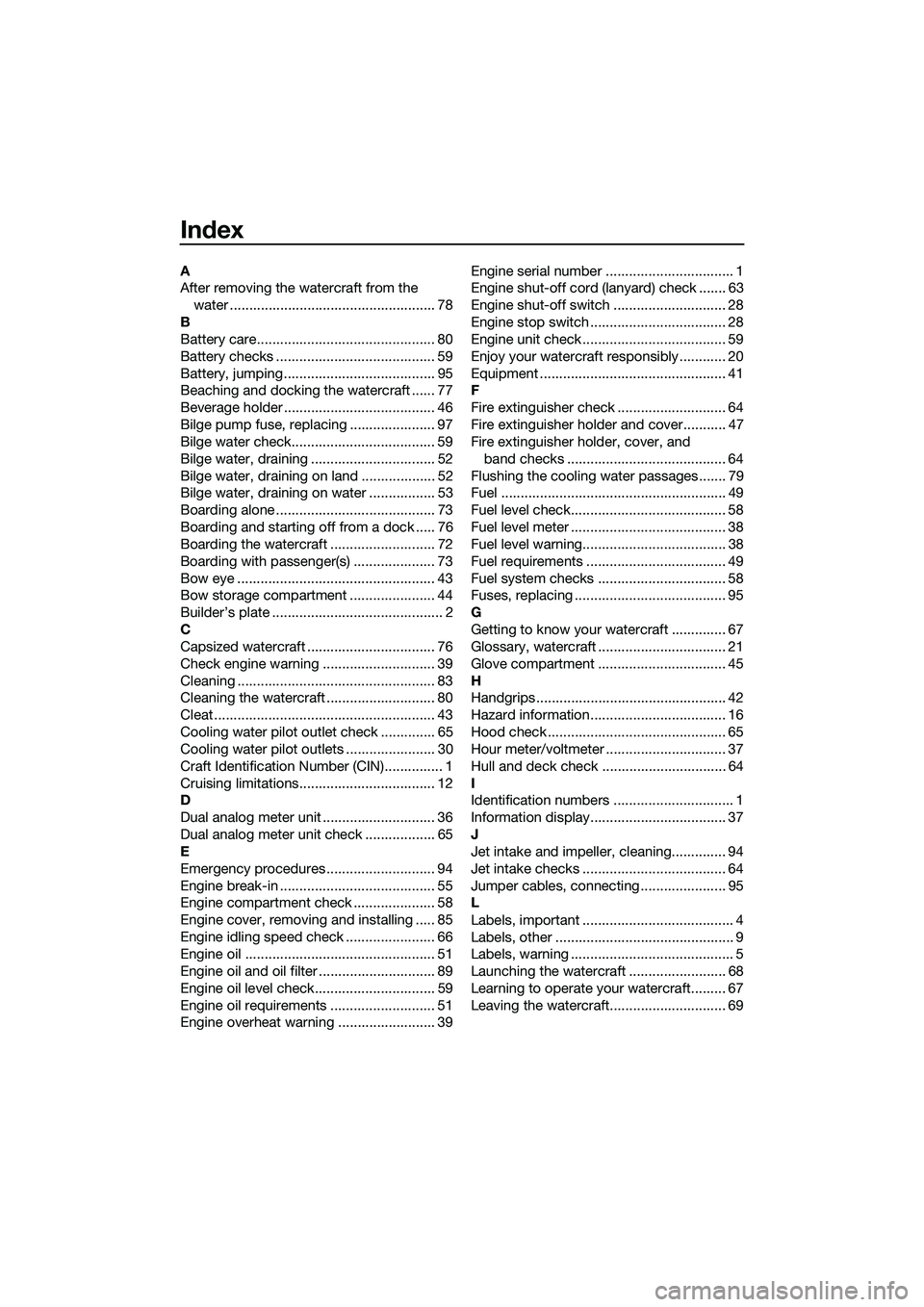

Index
A
After removing the watercraft from the water ..................................................... 78
B
Battery care.............................................. 80
Battery checks ......................................... 59
Battery, jumping ....................................... 95
Beaching and docking the watercraft ...... 77
Beverage holder ....................................... 46
Bilge pump fuse, replacing ...................... 97
Bilge water check..................................... 59
Bilge water, draining ................................ 52
Bilge water, draining on land ................... 52
Bilge water, draining on water ................. 53
Boarding alone ......................................... 73
Boarding and starting off from a dock ..... 76
Boarding the watercraft ........................... 72
Boarding with passenger(s) ..................... 73
Bow eye ................................................... 43
Bow storage compartment ...................... 44
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 76
Check engine warning ............................. 39
Cleaning ................................................... 83
Cleaning the watercraft ............................ 80
Cleat ......................................................... 43
Cooling water pilot outlet check .............. 65
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruising limitations................................... 12
D
Dual analog meter unit ............................. 36
Dual analog meter unit check .................. 65
E
Emergency procedures ............................ 94
Engine break-in ........................................ 55
Engine compartment check ..................... 58
Engine cover, removing and installing ..... 85
Engine idling speed check ....................... 66
Engine oil ................................................. 51
Engine oil and oil filter .............................. 89
Engine oil level check............................... 59
Engine oil requirements ........................... 51
Engine overheat warning ......................... 39 Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 63
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 59
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 41
F
Fire extinguisher check ............................ 64
Fire extinguisher holder and cover........... 47
Fire extinguisher holder, cover, and
band checks ......................................... 64
Flushing the cooling water passages....... 79
Fuel .......................................................... 49
Fuel level check........................................ 58
Fuel level meter ........................................ 38
Fuel level warning..................................... 38
Fuel requirements .................................... 49
Fuel system checks ................................. 58
Fuses, replacing ....................................... 95
G
Getting to know your watercraft .............. 67
Glossary, watercraft ................................. 21
Glove compartment ................................. 45
H
Handgrips................................................. 42
Hazard information................................... 16
Hood check .............................................. 65
Hour meter/voltmeter ............................... 37
Hull and deck check ................................ 64
I
Identification numbers ............................... 1
Information display................................... 37
J
Jet intake and impeller, cleaning.............. 94
Jet intake checks ..................................... 64
Jumper cables, connecting ...................... 95
L
Labels, important ....................................... 4
Labels, other .............................................. 9
Labels, warning .......................................... 5
Launching the watercraft ......................... 68
Learning to operate your watercraft......... 67
Leaving the watercraft.............................. 69
UF3K70E0.book Page 1 Tuesday, November 5, 2013 8:44 AM
