Maintenance
98
*1: Whichever comes first.
*2: Check every 200 hours.
Perform the pre-operation checks and post-operation checks before performing periodic
maintenance.
Air filter elementCheck for damage and
dirt
√
—
Air intake hoses Check for damage, and
check clamps
√
—
Throttle body Lubricate throttle valves √—
Exhaust system Check for exhaust leak-
age, and check hoses and
clamps √
—
Breather hose Check breather hose and
clamps
√
—
Impeller Check for bends, dam-
age, and foreign material
√
—
Jet thrust nozzle Check movement, and lu-
bricate
√
—
Jet vacuum bilge Check hoses for clogs
and damage, check
clamps, and clean bilge
strainer
√
—
Electric bilge pump Check operation, check
hoses for damage, check
clamps, and clean bilge
pump strainer
√
—
Stern drain plugs Check O-rings √—
Anode Check for corrosion, and
clean
√
*2 —
Valve clearance Check and adjust √ *2 —
Rubber coupling Check for cracks, inden-
tations, looseness, and
noise √
—
Engine mount Check for damage and
peeling
√
—
Item Operation
Initial Thereafter every
Page
10 hours 50 hours
or 12
months *1 100
hours or 12
months *1 200
hours or 24
months *1
UF3J70E0.book Page 98 Wednesd ay, October 9, 2013 2:07 PM

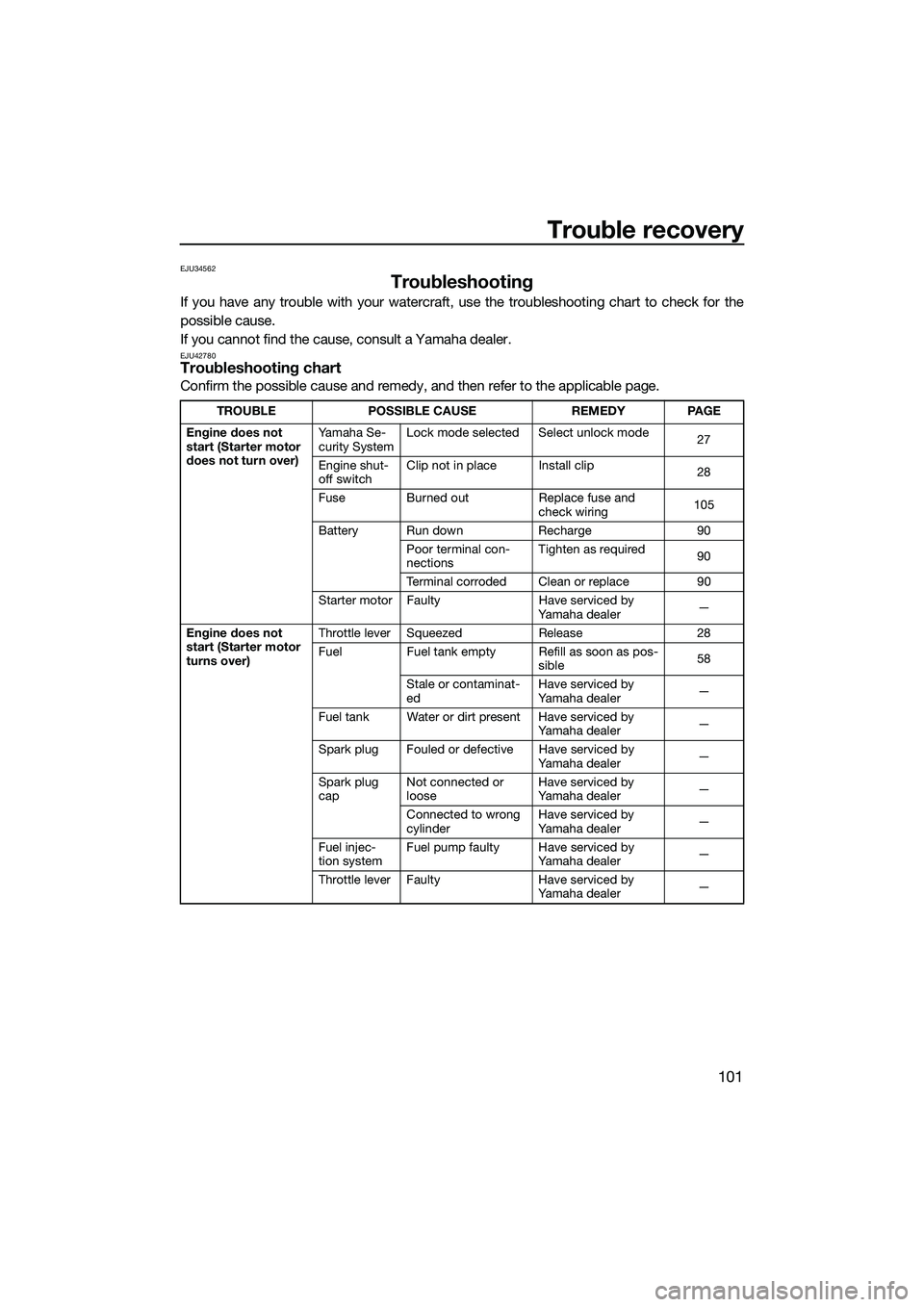

Trouble recovery
101
EJU34562
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the
possible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU42780Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLEPOSSIBLE CAUSE REMEDYPAGE
Engine does not
start (Starter motor
does not turn over) Ya m a h a S e -
curity System
Lock mode selected Select unlock mode
27
Engine shut-
off switch Clip not in place Install clip
28
Fuse Burned out Replace fuse and
check wiring 105
Battery Run down Recharge90
Poor terminal con-
nections Tighten as required
90
Terminal corroded Clean or replace 90
Starter motor Faulty Have serviced by
Yamaha dealer —
Engine does not
start (Starter motor
turns over) Throttle lever Squeezed
Release28
Fuel Fuel tank empty Refill as soon as pos-
sible 58
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Spark plug
cap Not connected or
loose Have serviced by
Yamaha dealer
—
Connected to wrong
cylinder Have serviced by
Yamaha dealer
—
Fuel injec-
tion system Fuel pump faulty Have serviced by
Yamaha dealer —
Throttle lever Faulty Have serviced by
Yamaha dealer —
UF3J70E0.book Page 101 Wednesd
ay, October 9, 2013 2:07 PM

Trouble recovery
102
Engine runs irregu-
larly or stallsFuel Fuel tank empty Refill as soon as pos-
sible58
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Incorrect octane
number Use correct fuel
58
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Spark plug
cap Not connected or
loose Have serviced by
Yamaha dealer
—
Cracked, torn, or
damaged Have serviced by
Yamaha dealer
—
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel injec-
tion system Faulty or clogged in-
jectors Have serviced by
Yamaha dealer
—
Warning light or in-
dicator blinks or
comes on Fuel level
warning
Fuel tank empty Refill as soon as pos-
sible 58
Oil pressure
warning Oil pressure dropped Have serviced by
Yamaha dealer 44
Engine over-
heat warning Jet intake clogged Clean
104
Check en-
gine warning Faulty sensors Have serviced by
Yamaha dealer 45
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3J70E0.book Page 102 Wednesd
ay, October 9, 2013 2:07 PM

Trouble recovery
104
EJU34624
Emergency proceduresEJU34635Cleaning the jet intake and impeller
WARNING
EWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al- ways stop the engine before beaching the
watercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: Always turn the watercraft
over onto its port (left) side. When
turning the watercraft on its side, sup-
port the bow so that the handlebars
are not bent or damaged.
[ECJ00662]
UF3J70E0.book Page 104 Wednesd ay, October 9, 2013 2:07 PM

Index
A
Adjustable tilt steering system ................. 30
Adjustable tilt steering system checks .... 70
After removing the watercraft from the water ..................................................... 88
Analog speedometer/tachometer ............ 40
B
Battery care.............................................. 90
Battery checks ......................................... 68
Battery, jumping ..................................... 105
Beaching and docking the watercraft ...... 87
Beverage holders ..................................... 55
Bilge pump fuse, replacing .................... 107
Bilge water check..................................... 68
Bilge water, draining ................................ 61
Bilge water, draining on land ................... 61
Bilge water, draining on water ................. 62
Boarding alone ......................................... 82
Boarding and starting off from a dock ..... 86
Boarding the watercraft ........................... 82
Boarding with passenger(s) ..................... 83
Bow eye ................................................... 51
Bow storage compartment ...................... 52
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 86
Check engine warning ............................. 45
Cleaning ................................................... 93
Cleaning the watercraft ............................ 90
Cleat ......................................................... 51
Cooling water pilot outlet check .............. 74
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 12
D
Digital speedometer ................................. 41
E
Emergency procedures .......................... 104
Engine break-in ........................................ 64
Engine compartment check ..................... 67
Engine cover, removing and installing ..... 95
Engine idling speed check ....................... 75
Engine oil ................................................. 60
Engine oil and oil filter .............................. 99 Engine oil level check ............................... 68
Engine oil requirements ........................... 60
Engine overheat warning.......................... 44
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 72
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 68
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 49
F
Fire extinguisher check ............................ 73
Fire extinguisher holder and cover........... 57
Fire extinguisher holder, cover, and
band checks ......................................... 73
Flushing the cooling water passages....... 89
Fuel .......................................................... 58
Fuel level check........................................ 67
Fuel level meter ........................................ 43
Fuel level warning..................................... 44
Fuel requirements .................................... 58
Fuel system checks ................................. 67
Fuses, replacing ..................................... 105
G
Getting to know your watercraft .............. 76
Glossary, watercraft ................................. 21
Glove compartment ................................. 53
H
Handgrip .................................................. 50
Hazard information................................... 16
Hood check .............................................. 74
Hour meter/voltmeter ............................... 42
Hull and deck check ................................ 73
I
Identification numbers ............................... 1
Information display................................... 41
J
Jet intake and impeller, cleaning............ 104
Jet intake checks ..................................... 73
Jumper cables, connecting .................... 105
L
Labels, important ....................................... 4
Labels, other .............................................. 9
Labels, warning .......................................... 5
Launching the watercraft ......................... 77
UF3J70E0.book Page 1 Wednesd ay, October 9, 2013 2:07 PM

Index
Learning to operate your watercraft ........ 76
Leaving the watercraft ............................. 78
Limitations on who may operate the watercraft.............................................. 11
Long-term storage ................................... 93
Low RPM Mode ....................................... 35
Lubrication ............................................... 93
M
Main components, location of ................. 22
Maintenance ............................................ 95
Manufactured date label ............................ 2
Model information ...................................... 2
Multifunction display (FX Cruiser SVHO) ................................................... 45
Multifunction information center .............. 40
Multifunction information center check ... 75
N
No-wake mode ........................................ 36
O
Oil pressure warning ................................ 44
Operating in weeded areas ...................... 87
Operating the watercraft .......................... 78
Operating the watercraft in reverse or neutral ................................................... 81
Operating your watercraft ........................ 76
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 97
Post-launch checks ................................. 74
Post-operation care ................................. 89
Pre-launch checks ................................... 67
Pre-operation check points ..................... 67
Pre-operation checklist ............................ 65
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser SVHO)............. 52
Q
Quick Shift Trim System (Q.S.T.S.) .......... 33
Quick Shift Trim System (Q.S.T.S.) checks .................................................. 70
R
Reboarding grip ....................................... 50
Reboarding step ...................................... 50
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 72 Riding position ......................................... 77
Rustproofing ............................................ 94
S
Safe boating rules .................................... 19
Safety equipment check .......................... 73
Seats ........................................................ 49
Shift system ............................................. 32
Shift system checks ................................. 71
Start switch .............................................. 28
Starting off ............................................... 85
Starting off from a trailer .......................... 86
Starting the engine on water .................... 77
Steering system ....................................... 29
Steering system checks ........................... 69
Stern drain plug checks ........................... 73
Stern eyes ................................................ 51
Stern storage compartment ..................... 54
Stopping the engine ................................. 78
Stopping the watercraft ........................... 80
Storage compartment checks.................. 72
Storage compartments ............................ 52
Submerged watercraft ........................... 109
Switch checks .......................................... 72
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 71
Tool kit ..................................................... 95
Towing the watercraft ............................ 108
Transporting on a trailer ........................... 63
Troubleshooting ..................................... 101
Troubleshooting chart ............................ 101
Turning the watercraft .............................. 79
W
Water separator ....................................... 31
Water separator check ............................. 68
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft operation functions ................ 32
Watercraft operation modes .................... 35
Water-skiing ............................................. 18
Watertight storage compartments ........... 55
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF3J70E0.book Page 2 Wednesd
ay, October 9, 2013 2:07 PM
