2014 VOLVO XC90 dashboard

01 Safety
Front airbags01
27
WARNING
•No objects or accessory equipment, e.g. dashboard covers, may be placedon, attached to, or installed near theair bag hatch (the area above the glovecompartment) or the area affected byairbag deployment.
• There should be no loose articles, e.g.coffee cups, on the floor, seat, ordashboard area.
• Never try to open the airbag cover onthe steering wheel or the passenger'sside dashboard. This should only bedone by a trained and qualified Volvoservice technician.
Failure to follow these instructions can result in injury to the vehicle occupants.

02 Instruments and controls
Hood/tailgate
02
81
Opening/closing the hood
G026995
Opening the hood1. Pull the lever located under the left side of the dashboard to release the hood lock.
2. Lift the hood slightly.
3. Press up the release control located under the front edge of the hood and lift.
To close the hood, place your hand on it and press down until the hood locks in the closedposition.
WARNING
• Do not grasp the ribs in the grille when closing the hood. If your fingers pro-trude through the grille, they could beinjured on components in the enginecompartment as the grille closes. Werecommend pressing down on thehood to close it.
• Check that the hood locks properlywhen closed!
Opening the tailgate
To open the upper section of the tailgate, pull the handle downward. To fold down the lower section of the tailgate,pull handle upward.

03 Climate
Climate control system – general information
03
94* Option/accessory, for more information, see Introduction.
Condensation on the inside of the windows
Keeping the insides of the windows clean will help reduce the amount of condensation thatforms on the windows. Use a commercialwindow cleaning agent to clean the windows.
Ice and snow
Always keep the air intake grille at the base of the windshield free of snow.
Cabin air filter
Replace the cabin air filter with a new one at the recommended intervals. Please refer toyour Warranty and Service Records Informa-tion booklet, or consult a trained and qualifiedVolvo service technician for these intervals.The filter should be replaced more often whendriving under dirty and dusty conditions. Thefilter cannot be cleaned and therefore shouldalways be replaced with a new one.
Sensors
The sunlight sensor on the dashboard and passenger compartment temperature sensorin the ECC control panel should not be cov-ered in any way as this could cause incorrectinformation to be sent to the ECC system.
Parking the vehicle in warm weather
If your vehicle has been parked in the sun in warm weather, opening the windows andmoonroof* for several minutes before drivingwill help release the warm air from the pas-senger compartment. When the engine is run-ning, close the windows and moonroof anduse the recirculation function for severalminutes to enable the air conditioning to coolthe compartment as quickly as possible.
Windows and optional moonroof
The ECC system will function best if the win- dows and optional moonroof are closed. Ifyou drive with the moonroof open, we recom-mend that you manually adjust the tempera-ture and blower control (the LED in the AUTO
switch should be off).
Acceleration
The air conditioning is momentarily disen- gaged during full-throttle acceleration.
Climate control maintenance
Special tools and equipment are required to maintain and carry out repairs on the climatesystem. Work of this type should only bedone by a trained and qualified Volvo servicetechnician.
Refrigerant
Volvo cares about the environment. The air conditioning system in your vehicle containsa CFC-free refrigerant – R134a (HFC134a).This substance will not deplete the ozonelayer. The approximate amount of R134acontained in the system is a follows: 6-cylinder engine Single A/C system: 1.5 lbs (700 g) Dual 1
A/C system: 2.2 lbs (1000 g)
The system also uses PAG oil.
1 Includes the optional rear A/C system

06 Starting and driving

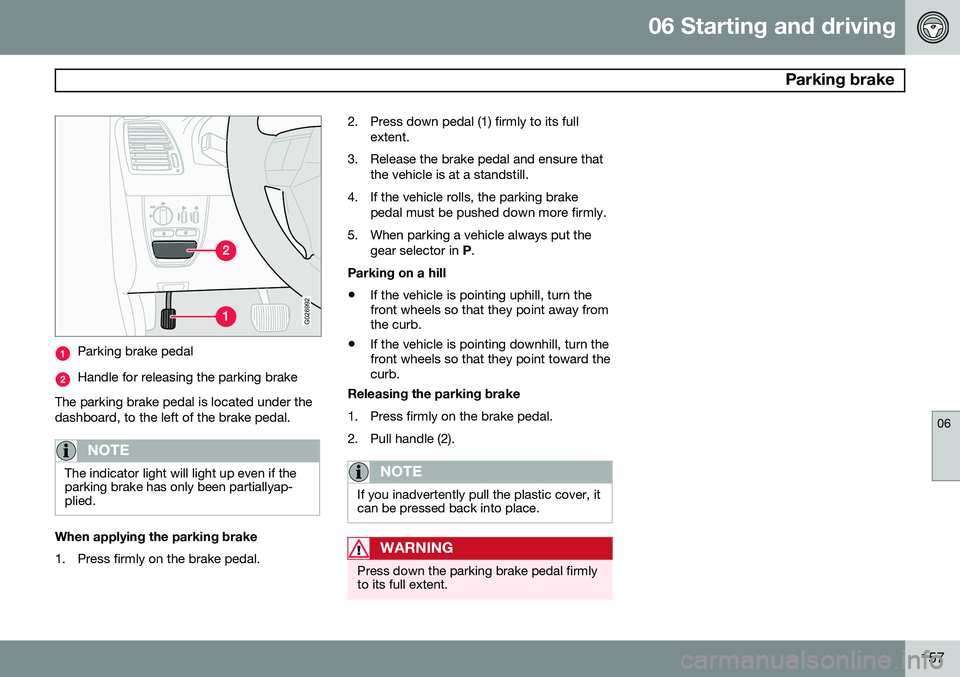

Parking brake
06
157
G026992
Parking brake pedal
Handle for releasing the parking brake
The parking brake pedal is located under the dashboard, to the left of the brake pedal.
NOTE
The indicator light will light up even if the parking brake has only been partiallyap-plied.
When applying the parking brake
1. Press firmly on the brake pedal. 2. Press down pedal (1) firmly to its full
extent.
3. Release the brake pedal and ensure that the vehicle is at a standstill.
4. If the vehicle rolls, the parking brake pedal must be pushed down more firmly.
5. When parking a vehicle always put the gear selector in P.
Parking on a hill • If the vehicle is pointing uphill, turn the front wheels so that they point away fromthe curb.
• If the vehicle is pointing downhill, turn thefront wheels so that they point toward thecurb.
Releasing the parking brake
1. Press firmly on the brake pedal.
2. Pull handle (2).
NOTE
If you inadvertently pull the plastic cover, it can be pressed back into place.
WARNING
Press down the parking brake pedal firmly to its full extent.

09 Maintenance and servicing
Replacing bulbs09
}}
235
Rear fog light
1. Switch off the ignition.
2. Carefully insert a small screwdriver (seeillustration above).
3. Pry out the lamp housing.
4. Turn the bulb holder counterclockwise and remove it.
5. Turn the bulb counterclockwise and remove it.
6. Insert a new bulb and press the lamp housing back into place.
License plate lights
1. Turn off the lights and switch off the igni-tion.
2. Loosen the retaining screws with a screwdriver.
3. Loosen the bulb housing and pull it out carefully.
4. Pull out the defective bulb and insert a new one.
5. Reinsert the bulb housing and screw it into place.
Front footwell lighting
G027079
The front footwell lights are located under the dashboard on the driver's and passenger'ssides. To replace a bulb:
1. Carefully insert a screwdriver and pry out the lens.
2. Replace the defective bulb.
3. Reinstall the lens.

09 Maintenance and servicing
Fuses 09
238* Option/accessory, for more information, see Introduction.
Replacing fuses
G032337
Relays/fuse box in the engine compart- ment
Fuse box in the passenger compartment, behind the plastic cover
Fuse box in the passenger compartment, on the edge of the dashboard
Fuse box in the cargo compartment
Fuse box in the cargo compartment 1
.
Additional fuses in cargo compartment (XC90 Executive*) If an electrical component fails to function, itis possible that a fuse has blown. The fuse boxes are located in four different places, see the illustration above. A label on the inside of each cover indicates the amperage and the electrical componentsthat are connected to each fuse. The easiest way to see if a fuse is blown is to remove it. Pull the fuse straight out. If a fuseis difficult to remove, you will find a specialfuse removal tool (and several extra fuses) in the passenger compartment fuse box on thedriver's end of dashboard. From the side,examine the curved metal wire (see the illus-tration) to see if it is broken. If so, put in anew fuse of the
same color and amperage
(written on the fuse). Spare fuses are storedin the fuse box in the engine compartmentand the passenger compartment. If fusesburn out repeatedly, have the electrical sys-tem inspected by a trained and qualifiedVolvo service technician.
1 Certain markets only.

09 Maintenance and servicing
Fuses 09
242* Option/accessory, for more information, see Introduction.
Fuses in the passenger compartment on the edge of the dashboard
G032316
The decal shows the positions and amperage of the fuses
Fuses are located inside the access panel on the edge of the dashboard, on the driver'sside. There are also a number of spare fuses.When replacing a blown fuse, be sure toreplace it with a new one of the same colorand amperage (written on the fuse).
NoA
1Blower – climate system30
2Audio amplifier*30
3Power driver's seat*25
NoA
4Power passenger's seat*25
5Driver's door control module25
6Front passenger's door control module25
7–
8Radio, CD player, Rear Seat Entertainment (RSE)* A15
NoA
9Volvo Navigation System*, Sir- iusXM
™ satellite radio*10
10On-board diagnostics, head- light switch, steering wheelangle sensor, steering wheelmodule5
11Ignition switch, SRS, engine control module, immobilizer,transmission control module7.5

09 Maintenance and servicing
Fuses09
}}
* Option/accessory, for more information, see Introduction.245
NoA
17Driver's side daytime running light (DRL)7.5
18Passenger's side daytime run- ning light (DRL)7.5
19–
20–
21Transmission control module10
22Driver's side high beam10
23Passenger's side high beam10
24–
25–
26–
27–
28Power passenger's seat*, Rear Seat Entertainment system* A5
29Fuel pump7.5
30Blind Spot Information System*5
31–
32–
NoA
33Vacuum pump20
34Pump – windshield and tailgate washers15
35–
36–
A
See also fuse 8 in the previous section "Fuses in the pas- senger compartment on the edge of the dashboard"
