Contents
4* Option/accessory, for more information, see Introduction.
06
06 Infotainment
Introduction............................................. 224
Radio....................................................... 234
Media player........................................... 243
AUX/USB sockets................................... 248 Bluetooth ®
media ................................... 251
Bluetooth ®
hands-free connection ........ 253
Cell phone voice control*........................ 262
07
07 During your trip
Driving recommendations....................... 268
Refueling................................................. 271
Loading................................................... 276
Towing a trailer....................................... 279
Emergency towing.................................. 282
08
08 Wheels and tires
General information ............................... 288
Tire inflation............................................. 291
Inflation pressure ................................... 293
Tire designations .................................... 294
Glossary of tire terminology ................... 296
Vehicle loading ....................................... 297
Uniform Tire Quality Grading ................. 299
Snow chains, snow tires, studded tires . 300
Temporary Spare ................................... 301
Tire Sealing System*............................... 302
Changing a wheel .................................. 308
Tire Pressure Monitoring System (TPMS) 311

03 Your driving environment
Instruments and controls
03
* Option/accessory, for more information, see Introduction.79
change in your car's behavior. Even so, an uncorrected condition could hurt fuel econ-omy, emission controls, and drivability.Extended driving without correcting the causecould even damage other components inyour vehicle. This light may illuminate if the fuel filler cap is not closed tightly or if the engine was runningwhile the vehicle was refueled.
Anti-lock Brake System (ABS)
If the warning light comes on, there may be a malfunction in the ABS system (the standardbraking system will still function). Check thesystem by:
1. Stopping in a safe place and switching off
the ignition.
2. Restart the engine.
3. If the warning light goes off, no further action is required.
If the indicator light remains on, the vehicle should be driven to a trained and qualifiedVolvo service technician for inspection, seepage 127 for additional information.
Rear fog lights
This symbol indicates that the rear fog lights are on.
Stability system
This indicator symbol flashes when the DSTC (Dynamic Stability and Traction Control sys-tem) is actively working to stabilize the vehi-cle, see page 136 for more detailed informa-tion.
Sport mode
This symbol illuminates to indicate that the stability system's Sport mode has been acti-
vated to help provide maximum tractive force,for example when driving with snow chains,or driving in deep snow or loose sand.
Low fuel level
When this light comes on, the vehicle should be refueled as soon as possible. See page271 for information about fuel and refueling.
Information symbol
The information symbol lights up and a text message is displayed to provide the driverwith necessary information about one of thevehicle's systems. The message can beerased and the symbol can be turned off bypressing the OK button (see page 191 for
information) or this will take place automati-cally after a short time (the length of time var-ies, depending on the function affected). The information symbol may also illuminate together with other symbols.
High beam indicator
This symbol illuminates when the high beam headlights are on, or if the high beam flashfunction is used.
Left turn signal indicator
Right turn signal indicator
NOTE
• Both turn signal indicators will flash when the hazard warning flashers areused.
• If either of these indicators flash fasterthan normal, the direction indicatorsare not functioning properly.
Tire pressure monitoring system
(TPMS)*
This symbol illuminates to indicate that tire pressure in one or more tires is low, seepage 311 for detailed information.
Warning symbols
SymbolDescription
Low oil pressure
Parking brake applied

04 Driver support

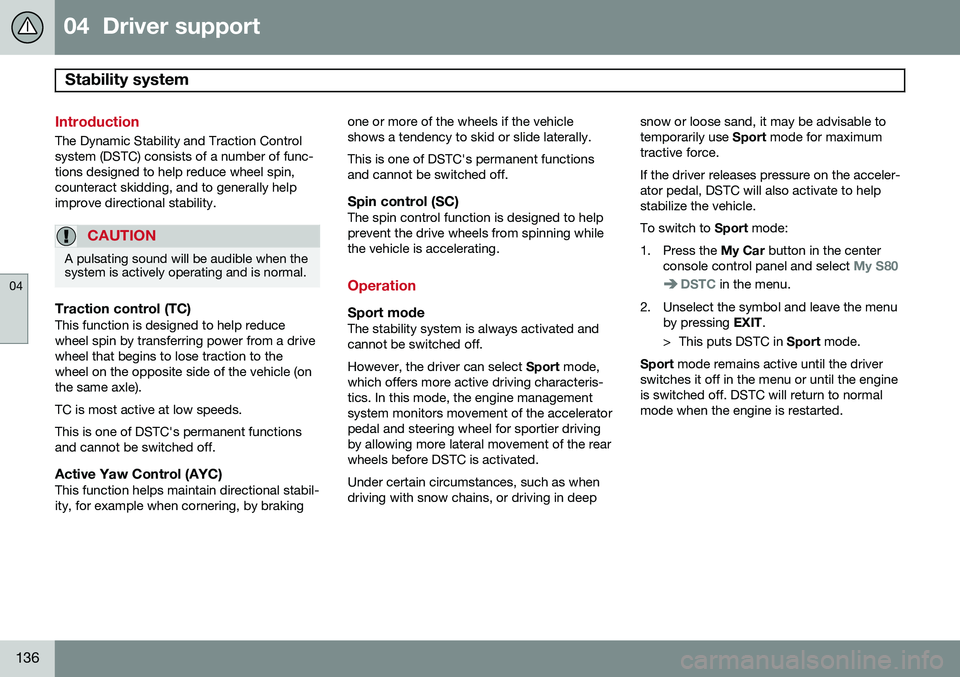

Stability system
04
136
Introduction
The Dynamic Stability and Traction Control system (DSTC) consists of a number of func-tions designed to help reduce wheel spin,counteract skidding, and to generally helpimprove directional stability.
CAUTION
A pulsating sound will be audible when the system is actively operating and is normal.
Traction control (TC)This function is designed to help reduce wheel spin by transferring power from a drivewheel that begins to lose traction to thewheel on the opposite side of the vehicle (onthe same axle). TC is most active at low speeds.This is one of DSTC's permanent functions and cannot be switched off.
Active Yaw Control (AYC)This function helps maintain directional stabil-ity, for example when cornering, by brakingone or more of the wheels if the vehicleshows a tendency to skid or slide laterally. This is one of DSTC's permanent functions and cannot be switched off.
Spin control (SC)The spin control function is designed to helpprevent the drive wheels from spinning whilethe vehicle is accelerating.
Operation
Sport modeThe stability system is always activated and cannot be switched off. However, the driver can select
Sport mode,
which offers more active driving characteris- tics. In this mode, the engine managementsystem monitors movement of the acceleratorpedal and steering wheel for sportier drivingby allowing more lateral movement of the rearwheels before DSTC is activated. Under certain circumstances, such as when driving with snow chains, or driving in deep snow or loose sand, it may be advisable totemporarily use
Sport mode for maximum
tractive force. If the driver releases pressure on the acceler- ator pedal, DSTC will also activate to helpstabilize the vehicle. To switch to Sport mode:
1. Press the My Car button in the center
console control panel and select
My S80
DSTC in the menu.
2. Unselect the symbol and leave the menu by pressing EXIT.
> This puts DSTC in Sport mode.
Sport mode remains active until the driver
switches it off in the menu or until the engine is switched off. DSTC will return to normalmode when the engine is restarted.

286* Option/accessory, for more information, see Introduction. General information .............................................................................. 288 Tire inflation........................................................................................... 291
Inflation pressure .................................................................................293
Tire designations ..................................................................................294
Glossary of tire terminology ................................................................. 296Vehicle loading ..................................................................................... 297
Uniform Tire Quality Grading ............................................................... 299
Snow chains, snow tires, studded tires ............................................... 300
Temporary Spare ................................................................................. 301
Tire Sealing System*............................................................................. 302
Changing a wheel ................................................................................ 308
Tire Pressure Monitoring System (TPMS)............................................. 311

08 Wheels and tires

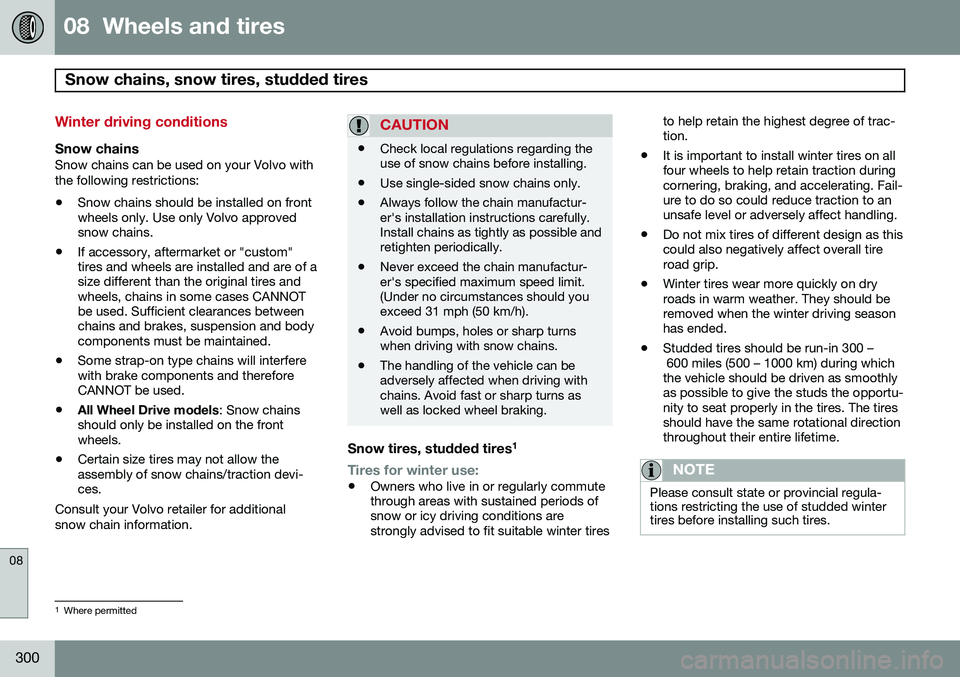

Snow chains, snow tires, studded tires
08
300
Winter driving conditions
Snow chainsSnow chains can be used on your Volvo with the following restrictions:• Snow chains should be installed on front wheels only. Use only Volvo approvedsnow chains.
• If accessory, aftermarket or "custom"tires and wheels are installed and are of asize different than the original tires andwheels, chains in some cases CANNOTbe used. Sufficient clearances betweenchains and brakes, suspension and bodycomponents must be maintained.
• Some strap-on type chains will interferewith brake components and thereforeCANNOT be used.
• All Wheel Drive models
: Snow chains
should only be installed on the frontwheels.
• Certain size tires may not allow theassembly of snow chains/traction devi-ces.
Consult your Volvo retailer for additional
snow chain information.
CAUTION
• Check local regulations regarding the use of snow chains before installing.
• Use single-sided snow chains only.
• Always follow the chain manufactur-er's installation instructions carefully.Install chains as tightly as possible andretighten periodically.
• Never exceed the chain manufactur-er's specified maximum speed limit.(Under no circumstances should youexceed 31 mph (50 km/h).
• Avoid bumps, holes or sharp turnswhen driving with snow chains.
• The handling of the vehicle can beadversely affected when driving withchains. Avoid fast or sharp turns aswell as locked wheel braking.
Snow tires, studded tires 1
Tires for winter use:
•
Owners who live in or regularly commute through areas with sustained periods ofsnow or icy driving conditions arestrongly advised to fit suitable winter tires to help retain the highest degree of trac-tion.
• It is important to install winter tires on allfour wheels to help retain traction duringcornering, braking, and accelerating. Fail-ure to do so could reduce traction to anunsafe level or adversely affect handling.
• Do not mix tires of different design as thiscould also negatively affect overall tireroad grip.
• Winter tires wear more quickly on dryroads in warm weather. They should beremoved when the winter driving seasonhas ended.
• Studded tires should be run-in 300 – 600 miles (500 – 1000 km) during whichthe vehicle should be driven as smoothlyas possible to give the studs the opportu-nity to seat properly in the tires. The tiresshould have the same rotational directionthroughout their entire lifetime.
NOTE
Please consult state or provincial regula- tions restricting the use of studded wintertires before installing such tires.
1
Where permitted

11 Index
11
374
Seat beltsAutomatic locking retractor/Emer-
gency locking retractor......................... 38
buckling................................................ 18
maintenance......................................... 18
pretensioners........................................ 18
reminder................................................ 18
reminder warning light.......................... 80securing child restraint
systems.................................... 42, 44, 46
unbuckling............................................ 18
use during pregnancy........................... 20
using..................................................... 18
Seats, front.......................................... 86, 87
Sensus..................................................... 190
Shiftlock....................................................... 9 override............................................... 124
Side door mirrors..................................... 106
Side impact airbags................................... 30
Side marker lights, changing bulbs......... 329
Sign information (RSI).............................. 138SiriusXM ™ satellite radio......................... 238
Snow chains............................................ 300
Snow tires................................................ 300
Spare tire................................................. 301 Speed-dependent steering...................... 216
Spin control............................................. 136
SRS............................................................ 21
Stability system............................... 136, 137
indicator light........................................ 79
Starting the engine.................................. 116 remote start........................................ 118
with keyless drive............................... 116
Starting the vehicle after a crash (crash mode).................... 35
Start inhibitor (immobilizer)........................ 56 Steering wheel adjusting............................................... 92
heated................................................... 93
horn....................................................... 92
keypad.................................. 92, 193, 225
Steering wheel paddles............................. 92
Stone chips, touching up......................... 351
Storage spaces........................................ 217
Studded tires........................................... 300
Sunroof (moonroof).................................. 111
Sun shade........................................ 104, 105
Supplemental restraint system.................. 21 warning light......................................... 80 Symbols, overview................................... 364
T
Temperature sensor
ambient................................................. 82
Temporary spare tire............................... 301
Three-way catalytic converter................. 274
Tire designations..................................... 294
Tire inflation pressure.............................. 293
Tire Pressure Monitoring System.... 311, 312 indicator light........................................ 79
Tires......................................................... 288 age...................................................... 288
changing from summer to winter........ 289
glossary of terms................................ 296
improving economy............................ 289
inflation pressure................................ 291
inflation pressure table....................... 293
load ratings......................................... 292
rotation............................................... 288
Self-supporting run flat tires (SST)..... 313
snow................................................... 300
spare................................................... 301
specifications...................................... 292
speed ratings...................................... 292
