2014 VOLVO S80 power steering fluid

09 Maintenance and specifications
Hood and engine compartment09
321
Opening and closing the hood
G010951
Pull the lever located under the left side of the dash to release the hood lock.
Lift the hood slightly. Press the release control (located under the right front edgeof the hood) to the left, and lift the hood.
WARNING
Check that the hood locks properly when closed.
Engine compartment, overview
Coolant expansion tank
Power steering fluid reservoir
Dipstick-engine oil
Filler cap-engine oil
Cover over brake fluid reservoir
Battery
Relay/fuse box
Washer fluid reservoir
The appearance of the engine compartment may vary depending on engine model.
WARNING
The cooling fan (located at the front of the engine compartment, behind the radiator)may start or continue to operate (for up to6 minutes) after the engine has beenswitched off.
WARNING
Before performing any operations in the engine compartment, the ignition shouldalways be completely switched off (inmode 0, see page 85) and there should be
no remote keys in the passenger compart-ment. The gear selector should be in the P
(park) position. If the engine has been run-ning, wait until it has cooled before touch-ing any components in the engine com-partment. The distributor ignition system operates at very high voltages. Special safety precau-tions must be followed to prevent injury.Always turn the ignition off when:
• Replacing distributor ignition compo- nents e.g. plugs, coil, etc.
• Do not touch any part of the distributorignition system while the engine is run-ning. This may result in unintendedmovements and body injury.

09 Maintenance and specifications
Fluids09
325
The brake fluid should always be between the MIN
and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, thatthere is sufficient fluid in the reservoir. Fluid type : DOT 4 boiling point >536 °F
(>280 °C).Replace : The fluid should be replaced
according to the intervals specified in the Warranty and Service Records Informationbooklet. When driving under extremely hard condi- tions (mountain driving, etc), it may be neces-sary to replace the fluid more often. Consult atrained and qualified Volvo service technician. Always entrust brake fluid changing to a trained and qualified Volvo service technician.
WARNING
• If the fluid level is below the
MIN mark
in the reservoir or if a brake-related message is shown in the informationdisplay: DO NOT DRIVE . Have the car
towed to a trained and qualified Volvoservice technician and have the brakesystem inspected.
• Dot 4 should never be mixed with anyother type of brake fluid.
Filling1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the
fluid. The level must be between the MIN
and MAX marks.
Power steering fluid
Check the level frequently. The fluid does not require changing. The fluid level must bebetween the MIN and MAX marks. For
capacities and recommended fluid grade, seepage 362.
WARNING
If a problem should occur in the power steering system or if the vehicle has noelectrical current and must be towed, it isstill possible to steer the vehicle. However,keep in mind that greater effort will berequired to turn the steering wheel.
CAUTION
Keep the area around the power steering fluid reservoir clean when checking.

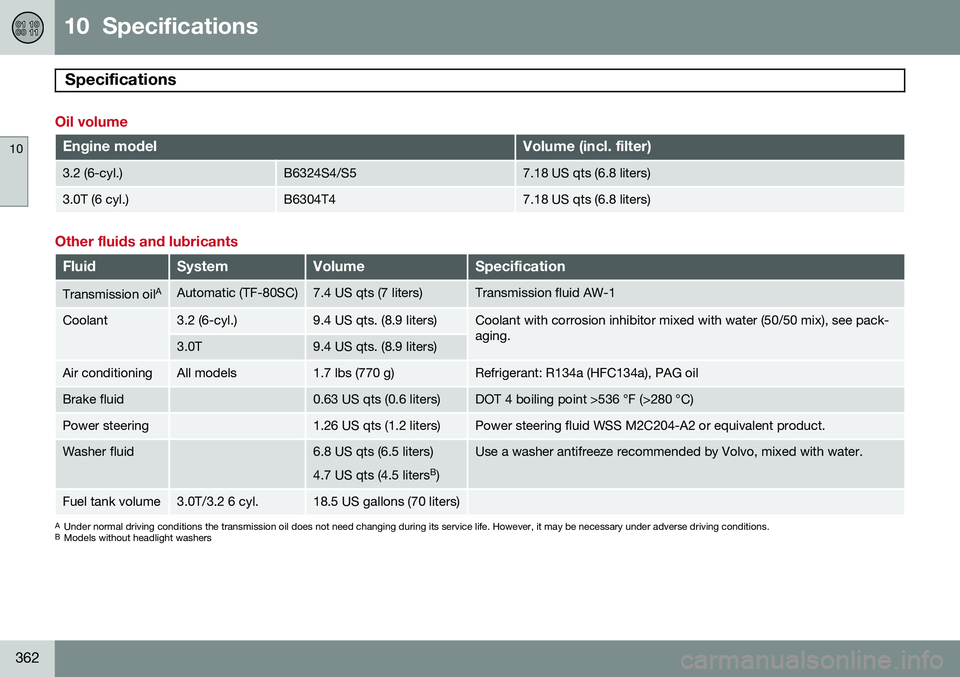

10 Specifications
Specifications
10
362
Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 liters B
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers

11 Index
11
373
Parking brake
electric, applying/releasing................. 130
warning light......................................... 79
Parking lights............................................. 98 changing bulbs................................... 329
Personal Car Communicator, unique
functions.................................................... 58
Polishing.................................................. 349Power front seat memory function................................... 87
with keyless drive................................. 88
Power meter............................................ 125
Power mirrors.......................................... 106 defroster............................................. 107
Power moonroof...................................... 111Power steering fluid..................................................... 325
speed-dependent............................... 216
Power steering fluid................................. 362
Power windows....................................... 104 laminated glass................................... 105
Pregnancy, using seat belts during........... 20
Private locking........................................... 63
PROPOSITION 65 WARNING.. 119, 337, 363
R
Radio SiriusXM ™ satellite radio.................... 238
Radio functions........................................ 234 HD digital radio................................... 236
Rain sensor.............................................. 102
Rear fog lights............................................ 98
Rear park assist............................... 176, 178Rear seats center head restraint............................. 89
folding................................................... 89
heated................................................. 203
Rearview mirror auto-dim function............................... 107
compass............................................. 109
Rear window defroster............................ 107
Recalls, child restraints.............................. 39
Refrigerant............................................... 362
Refueling.......................................... 271, 272 fuel filler cap....................................... 274
fuel filler door...................................... 273
fuel tank volume................................. 362
Registering child restraints........................ 39 Remote control
private locking...................................... 63
Remote key................................................ 54 approach lighting.................................. 57
immobilizer........................................... 56
key blade.................................. 54, 60, 63
locking the vehicle................................ 57
Personal Car Communicator.......... 57, 58
replacing the battery............................. 61
unlocking the vehicle............................ 57
Remote key/PCC common functions................................ 57
Reporting safety defects............................ 17
Roadside Assistance............................... 367
Road sign information (RSI)..................... 138
Roof loads............................................... 278
S
Safety, occupant........................................ 16
Safety defects, reporting........................... 17Seat belt reminder................................................ 19
