2014 VAUXHALL VIVARO key

Keys, doors and windows31Heated rear window
Operated by pressing the Ü button.
Heating functions with the engine running and is switched off
automatically after a short time.
Climate control system 3 84.
Sun visors The sun visors can be folded down orswivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors,
the mirror covers should be closed
when driving.

Instruments and controls73Engine oil pressureI illuminates red.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.
Illuminates when the engine isrunningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop 3 117.
Low fuel
Y illuminates yellow.
Illuminates when level in fuel tank is
too low; refuel immediately 3 110
Catalytic converter 3 96.
Bleeding the diesel fuel system
3 123.
Exterior light
9 illuminates green.
Illuminated when the exterior lights
are on 3 79.
High beam
P illuminates blue.
Illuminated when high beam is on and during headlight flash 3 80.
Fog light > illuminates green.
Illuminated when the front fog lights
are on 3 81.
Rear fog light
r illuminates yellow.
Illuminated when the rear fog light is
on 3 82.
Cruise control
m , U illuminates green.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter
U illuminates yellow.

76Instruments and controls
When the vehicle is parked and/or the driver's door is opened: ■ When the key has been left in the ignition.
■ With exterior lights on.
■ If the vehicle has manual transmission automated; neutral is
not selected or the foot brake has
not been depressed.
Engine oil level
If the minimum engine oil level is
reached, the message OIL is
displayed in the Driver Information
Centre for 30 seconds after the
ignition is switched on. Check oil level 3 117.
The oil level message will only be reset if the ignition has been switched
off for more than 2 minutes.
To gain a more accurate indication of the oil level, press the button on the
end of the wiper lever within
30 seconds of switching on the
ignition. Engine oil level monitor
3 67.Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated electronically.
Depending on vehicle, the following
functions can be selected by pressing the button repeatedly on the end of
the wiper lever:
■ Fuel used
■ Average consumption
■ Instantaneous consumption
■ Range

Lighting83
Operated by tilting the lens to one of3 positions, i.e.:
■ On
■ Controlled by the function of the front interior light
■ Off
When the front interior light is
functioning as a courtesy light, move
the lens of the load compartment light
to its central position; the load
compartment light functions as a
courtesy light and also illuminates
when the side or rear doors are
opened.
When the doors are closed, the
courtesy light extinguishes after
approx. 20 seconds or immediately
after the ignition is switched on.
Reading lights
A separate spotlight for the front passenger side may be located
alongside the front interior light.
Operated with the switch.Lighting features
Exit lighting
Headlights come on for approx.
30 seconds after the vehicle is parked and the system is activated.
Activating 1. Switch off ignition.
2. Remove ignition key.
3. Open driver's door.
4. Pull turn signal lever towards steering wheel.
This action can be repeated up to four
times to a maximum period of
2 minutes.
The lighting is turned off immediately
by switching on the ignition or turning the light switch.

94Driving and operatingStarting and operating
New vehicle running-in Do not brake unnecessarily hard for
the first few journeys and after new
disc brake pads have been fitted.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period fuel and engine oil consumption may be
higher and the cleaning process of the diesel particle filter may take
place more often.

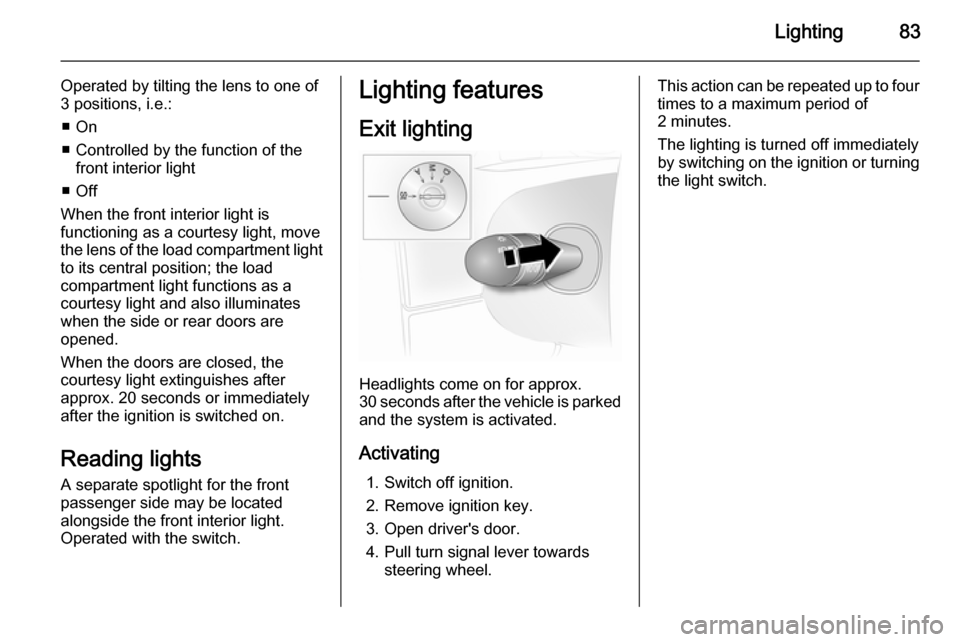

Diesel particle filter 3 95.Ignition switch positionsSt=Ignition offA=Steering wheel lock released,
ignition offM=Ignition on. Diesel engines:
preheatingD=StartingStarting the engine
Manual transmission: operate clutch.
Manual transmission automated:
operate brake; transmission
automatically shifts to N.
Do not accelerate.
Diesel engines: turn the key to
position M for preheating until control
indicator ! extinguishes from the
Driver Information Centre.
Turn key to position D and release.

Driving and operating95
The increased engine speed
automatically returns to normal idling
speed as the engine temperature
rises.
Start attempts should not last longer
than 15 seconds. If engine does not
start, wait 15 seconds before
repeating starting procedure. If
necessary, depress accelerator
before repeating starting procedure.
Before restarting or to switch off the
engine, turn key back to St.
Overrun cut-off The fuel supply is automatically cut off
during overrun, i.e. when the vehicle
is driven with a gear engaged but
accelerator is released.
Parking ■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
■ Always apply parking brake without
pressing release button. Apply as firmly as possible on a downhill oruphill slopes. Operate the foot
brake at the same time to reduce
operating force.
■ Switch off the engine and ignition. Turn the steering wheel until the
steering wheel lock is felt to
engage.
■ If the vehicle is on a level surface or
uphill slope, engage first gear
before switching off the ignition. On an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill slope,
engage reverse gear before
switching off the ignition. Turn the
front wheels towards the kerb.
■ Lock the vehicle and activate the anti-theft locking and anti-theft
alarm systems.Engine exhaust9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
If exhaust gases enter the interior
of the vehicle, open the windows.
Have the cause of the fault
rectified by a workshop.
Avoid driving with an open load
compartment, otherwise exhaust
gases could enter the vehicle.
Diesel particle filter
The diesel particle filter system filters
harmful soot particles out of the
exhaust gases. The system includes
a self-cleaning function that runs
automatically during driving without
any notification. The filter is cleaned
by periodically burning off the soot
particles at high temperature. This

Driving and operating111
To unlock and open the fuel filler cap,insert key and turn anticlockwise.
When refuelling is complete, replace
the filler cap and turn key clockwise
as far as it will go.
Caution
Wipe off any overflowing fuel
immediately.
Fault
Should an interruption to the power supply occur, central locking will not
unlock the fuel filler flap. In such
cases release manually.
To open
■ Reposition left front seat to access the release cover.
■ Remove the release cover and position the seat belt to one side.
■ Raise fuel filler release to unlock the fuel filler flap.
To close ■ Close the fuel filler flap and lower fuel filler release to lock the fuel
filler flap.
■ Replace the release cover.
■ Reposition left front seat.
If the cause of the interruption to the
power supply is not a discharged
vehicle battery, consult a workshop.
Fuel consumption - CO 2-
Emissions
The fuel consumption (combined) of
the Vauxhall Vivaro is within a range
of 35 to 43 mpg.
The CO 2 emission (combined) is
within a range of 210 to 171 g/km.

Vehicle care131Vehicle tools
Tools
The jack, adapters, ratchet, torx key,
hub cap hook, towing eye and spare
wheel security tool are contained in a
unit, stowed under the driver's seat.
Spare wheel 3 138.
Vehicles with a tyre repair kit: The
towing eye and torx key are stored
within the tyre repair kit case, stowed
under the front seat.
Tyre repair kit 3 133.
Wheels and tyres
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
Tyres
Factory-fitted tyres are matched to the chassis and offer optimum driving comfort and safety.
Winter tyres Winter tyres improve driving safety attemperatures below 7 °C and shouldtherefore be fitted on all wheels.In accordance with country-specific
regulations, a notice indicating the
maximum permissible speed for the
tyres must be affixed within the
driver's field of vision.
Tyre designations E.g. 195/65 R 16 C 88 Q195=Tyre width, mm65=Cross-section ratio (tyre
height to tyre width), %R=Belt type: RadialRF=Type: RunFlat16=Wheel diameter, inchesC=Cargo or commercial use88=Load index e.g. 88 is
equivalent to 567 kgQ=Speed code letter
Speed code letter:
Q=up to 100 mphS=up to 112 mphT=up to 118 mphH=up to 130 mphV=up to 150 mphW=up to 168 mph
