2014 VAUXHALL MOVANO_B steering

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Seat position 3 36, Seat adjustment
3 37.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever.Allow the seat to
engage audibly.
Seat position 3 36, Seat adjustment
3 37.
Seat height
Lever motion
up=seat higherdown=seat lower
Seat position 3 36, Seat adjustment
3 37.

In brief9

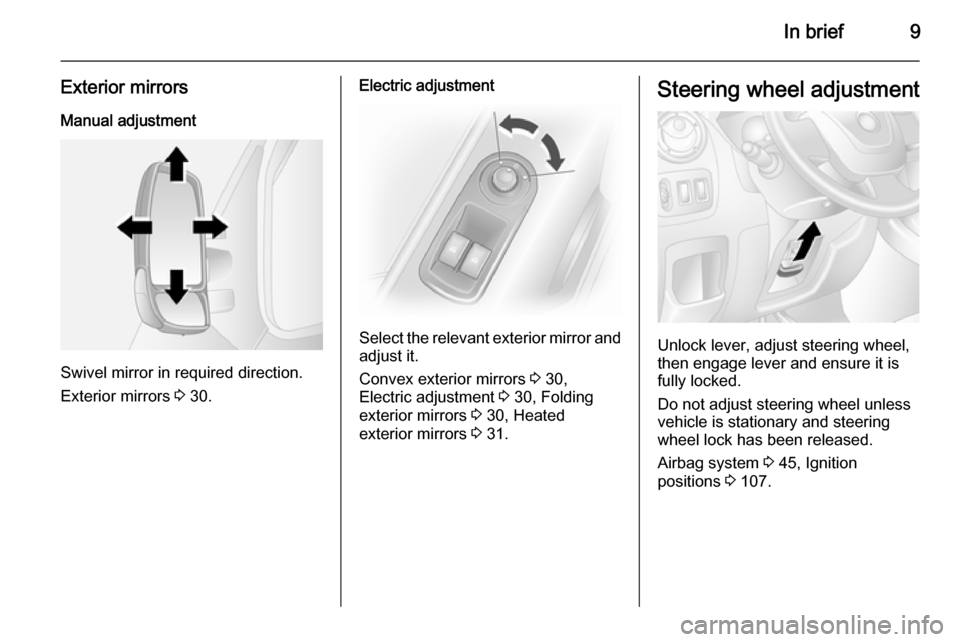

Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 30.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 30, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 45, Ignition
positions 3 107.

In brief11
1Fixed air vents .................... 104
2 Headlight range
adjustment ........................... 88
Ultrasonic parking assist .....124
Traction control system ......119
Electronic stability program 120
3 Side air vents .....................103
4 Light switch .......................... 87
Turn and lane-change
signals .................................. 89
High beam and low beam,
headlight flash ......................88
Sidelights .............................. 87
Automatic light control .......... 87
Exit lighting ........................... 92
Front fog lights .....................89
Rear fog light ........................ 90
5 Instruments .......................... 73
Transmission display ............75
Driver Information Centre ...... 836 Horn ..................................... 69
Driver airbag ........................ 49
7 Remote control on
steering wheel .......................68
Cruise control .....................121
8 Windscreen wiper,
windscreen washer system ..69
Trip computer ........................ 85
9 Coin tray ............................... 60
10 Power outlet ......................... 71
11 Centre air vents .................. 103
12 Front passenger airbag .........49
Storage compartment ..........60
13 Glovebox .............................. 61
14 Cupholders ........................... 61
15 Climate control system ......... 94
16 Cigarette lighter .................... 72
Power outlet ......................... 71
17 Gear lever, Manual
transmission ........................ 113
Manual transmission
automated ........................... 11418Cruise control and speed
limiter ................................. 121
Manual transmission
automated,
Winter and Laden modes ....116
Idle speed control ...............108
Stop-start system ................108
19 Ignition switch with
steering wheel lock ............107
20 Steering column controls .....69
21 Steering wheel adjustment ..68
22 Bonnet release lever ..........133
23 Auxiliary heater ...................100
24 Storage compartment ..........60
Fuse box ............................ 149

16In brief
Manual transmission automatedN=neutralo=drive+=higher gear-=lower gearA/M=switch between automatic
and manual modeR=reverse gear
Manual transmission automated
3 114.
Starting off
Check before starting off ■ Tyre pressure and condition 3 152,
3 189.
■ Engine oil level and fluid levels 3 134.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats and seat belts 3 30, 3 36,
3 44.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position A
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ do not operate accelerator pedal
■ turn the key to position M for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre
■ turn key to position D and release
Starting the engine 3 107.

In brief17
Stop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ shift the selector lever to N
■ release the clutch pedal
An Autostop is indicated when Ï
illuminates green in the instrument
cluster.
To restart the engine, depress the clutch pedal again.
Stop-start system 3 108.
ParkingCaution
Do not park the vehicle on an
easily ignitable surface. The high
temperature of the exhaust
system could ignite the surface.
■ Always apply parking brake without
pressing release button. Apply as
firmly as possible on a downhill
slope or uphill slope. Depress foot
brake at the same time to reduce
operating force.
■ If the vehicle is on a level surface or
uphill slope, engage first gear
before switching off the ignition. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill slope, engage reverse gear before
switching off the ignition. Turn the
front wheels towards the kerb.
■ After running at high engine speeds
or with high engine loads, operate the engine briefly at a low load or
run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
■ Switch off the engine. Turn the ignition key to position St and
remove it. Turn steering wheel until
it locks.
■ Close the windows.
■ Lock the vehicle. Activate the anti-theft alarm system
3 27.
■ The engine cooling fans may run after the engine has been switchedoff 3 133.
Keys, locks 3 18, Laying the vehicle
up for a long period of time 3 132.

36Seats, restraints
Removal
Press both catches, pull the head
restraint upwards and remove.
Stow head restraints securely in load
compartment.Do not drive with head
restraints removed if the seat is
occupied.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 68.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 35.
■ Adjust the height of the seat belt 3 44.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine 3 37.

Seats, restraints37Seat adjustment9Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
Seat positioning
Pull handle, slide seat, release
handle.
Suspension seat positioning
Pull handle, slide seat, release
handle.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

46Seats, restraints
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate escaping hot gases may cause burns.
Control indicator v for airbag systems
3 78.
Child restraint systems on front
passenger seat with airbag
systems Warning according to ECE R94.02:
EN: NEVER use a rear-facing child
restraint system on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro de MUERTE o LESIONES GRAVES
para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts
gericht kinderzitje op een stoel met
een ACTIEVE AIRBAG ervoor, om
DODELIJK of ERNSTIG LETSEL van het KIND te voorkomen.
