In brief11
1Fixed air vents .................... 104
2 Headlight range
adjustment ........................... 88
Ultrasonic parking assist .....124
Traction control system ......119
Electronic stability program 120
3 Side air vents .....................103
4 Light switch .......................... 87
Turn and lane-change
signals .................................. 89
High beam and low beam,
headlight flash ......................88
Sidelights .............................. 87
Automatic light control .......... 87
Exit lighting ........................... 92
Front fog lights .....................89
Rear fog light ........................ 90
5 Instruments .......................... 73
Transmission display ............75
Driver Information Centre ...... 836 Horn ..................................... 69
Driver airbag ........................ 49
7 Remote control on
steering wheel .......................68
Cruise control .....................121
8 Windscreen wiper,
windscreen washer system ..69
Trip computer ........................ 85
9 Coin tray ............................... 60
10 Power outlet ......................... 71
11 Centre air vents .................. 103
12 Front passenger airbag .........49
Storage compartment ..........60
13 Glovebox .............................. 61
14 Cupholders ........................... 61
15 Climate control system ......... 94
16 Cigarette lighter .................... 72
Power outlet ......................... 71
17 Gear lever, Manual
transmission ........................ 113
Manual transmission
automated ........................... 11418Cruise control and speed
limiter ................................. 121
Manual transmission
automated,
Winter and Laden modes ....116
Idle speed control ...............108
Stop-start system ................108
19 Ignition switch with
steering wheel lock ............107
20 Steering column controls .....69
21 Steering wheel adjustment ..68
22 Bonnet release lever ..........133
23 Auxiliary heater ...................100
24 Storage compartment ..........60
Fuse box ............................ 149

12In briefExterior lighting
Turn light switch:
7=Off0=Sidelights9 P=HeadlightsAUTO=Automatic light control:
Headlights are switched
on and off automatically.>=Front fog lightsr=Rear fog lights
Lighting 3 87, Headlight warning
device 3 84, Adaptive forward
lighting 3 89.
Front and rear fog lights
Turn light switch:
>=Front fog lightsr=Rear fog lightsHeadlight flash, high beam and
low beam
Pull lever.
High beam 3 88, Headlight flash
3 88.

82Instruments and controls
Illuminates when the engine isrunning
Indicates the presence of water in the
diesel. Seek the assistance of a
workshop immediately.
Stop-start system Ï illuminates or flashes yellow /
green.
Illuminates
Illuminates green during an Autostop.
If Ï illuminates yellow there is a fault
in the stop-start system. Seek the
assistance of a workshop.
Flashes Flashes green during an automatic
restart.
Stop-start system 3 108.
Exterior light 9 illuminates green.
Illuminated when the exterior lights
are on 3 87.High beam
P illuminates blue.
Illuminated when high beam is on and during headlight flash 3 88.
Fog light > illuminates green.
Illuminated when the front fog lights
are on 3 89.
Rear fog light
r illuminates yellow.
Illuminated when the rear fog light is
on 3 90.
Cruise control m , U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter U illuminates yellow.U
illuminates yellow when the
system is on.
Cruise control, Speed limiter 3 121.
Tachograph & illuminates when there is a fault
3 86.
Door open
U illuminates red.
Illuminates with the ignition switched
on when a door or the tailgate is open.
Vehicles with manual transmission
automated; control indicator
illuminates in transmission display
indicating relevant open door.

Lighting87LightingExterior lighting............................ 87
Interior lighting ............................. 90
Lighting features ..........................92Exterior lighting
Light switch
Turn light switch:
7=Off0=Sidelights9 P=HeadlightsAUTO=Automatic light control>=Front fog lightsr=Rear fog lights
High beam control indicator P 3 82.
Low beam control indicator 9 3 82.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights (where fitted) and headlights,
depending on the lighting conditions.
For reasons of safety, the light switch
should always remain in the AUTO
position.
Daytime running lights 3 88.
Automatic headlight activation
During poor lighting conditions the
headlights are switched on.

88LightingHigh beam
To change between low and high
beam, pull lever until a click is felt.

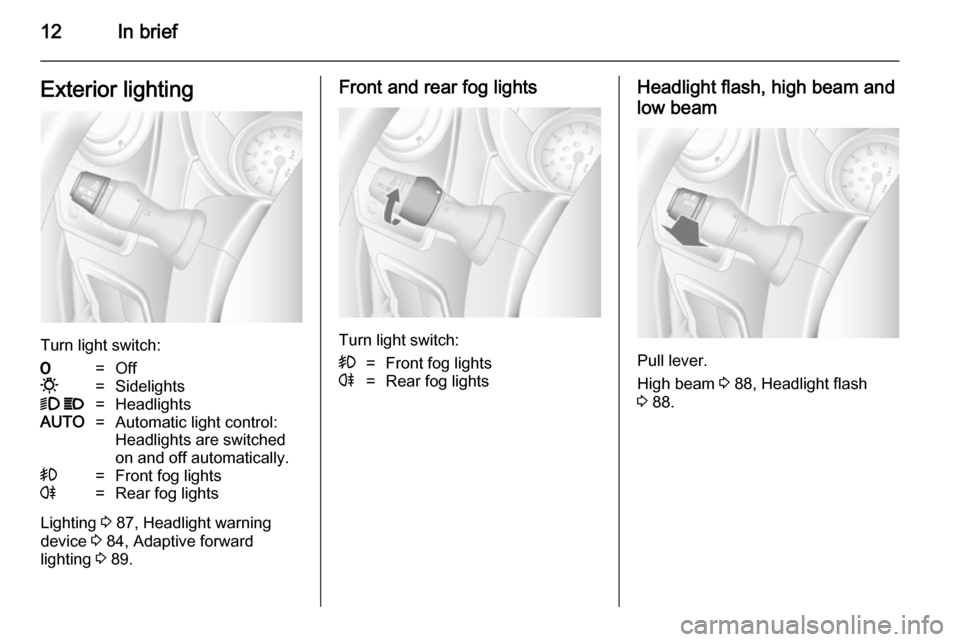

Headlight flash To activate the headlight flash, pull
lever.
Headlight range
adjustment
Manual headlight range
adjustment
Adapt the headlight range to suit the
vehicle load to prevent dazzling of
oncoming traffic.
Turn knurled wheel to required position:
0=Front seat occupied4=Loaded up to permissible
maximum weightHeadlights when driving
abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road at the passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights to prevent dazzling of oncoming
traffic.
Have the headlights adjusted by a
workshop.
Daytime running lights
Daytime running lights increase
visibility of the vehicle during daylight.
The lights operate automatically
when the ignition is switched on.
If the vehicle is equipped with the automatic light control function, the
system switches between daytime
running lights and headlights
automatically depending on the
lighting conditions. Automatic light
control 3 87.

140Vehicle careBulb replacement
Switch off the ignition and turn off the relevant switch or close the doors.
Only hold a new bulb at the base. Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Bulb checkAfter a bulb replacement, switch on
the ignition, operate and check the
lights.Headlights
Headlights have separate systems for high beam 1 and low beam 2.
High beam
1. Remove headlamp protective
cover.
2. Detach wiring connector from bulb.

142Vehicle care
Sidelights
1. Remove protective cover.
2. Detach wiring connector from bulb.
3. Rotate bulb holder anti-clockwise to disengage.
4. Withdraw bulb holder from reflector housing.
5. Detach bulb from bulb holder andrenew the bulb.
6. Insert the bulb holder, engaging the two lugs in the reflectorhousing and rotate clockwise to
secure.
7. Reattach wiring connector to bulb.
8. Replace protective cover.
Adaptive forward lighting
Cornering light

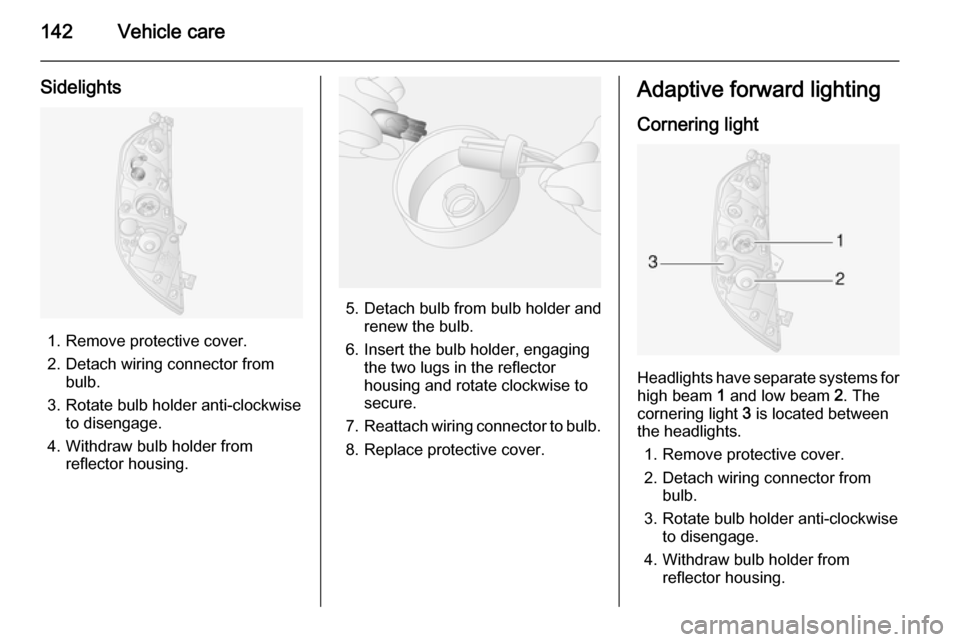

Headlights have separate systems forhigh beam 1 and low beam 2. The
cornering light 3 is located between
the headlights.
1. Remove protective cover.
2. Detach wiring connector from bulb.
3. Rotate bulb holder anti-clockwise to disengage.
4. Withdraw bulb holder from reflector housing.

Vehicle care149
To help in replacing fuses, a fuse
extractor is located in the instrument
panel fuse box.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fusebox
Located below the coolant expansion tank.
Some circuits may be protected by
several fuses.
Due to restricted accessibility, have
fuses replaced by a workshop.SymbolCircuitSRight side lightsTLeft side lightsWRight low beamaLeft low beam>Front fog lightLLeft high beamNRight high beamuABSKWindscreen wipernAir conditioningVHeated windscreenInstrument panel fuse box
Located behind the trim panel on the
left-hand side of the instrument panel. Pull upper part of trim panel to
remove.
Do not store any objects behind this
panel.
Some circuits may be protected by
several fuses.
