Storage55Glovebox
To open, pull the handle.
The glovebox should be closed while
driving.
Cupholders
The cupholders are located in the
centre console and rear part of the
centre console.
To use the rear seat cupholder, pull the strap in the rear seat armrest.

56StorageSunglasses storage
Fold down and open.
Do not use for storing heavy objects.
Underseat storage
Lift drawer at the front and pull out. To close, push the drawer in and
engage.
Centre console storage
Push down the button and slide cover backwards.

Storage57Rear carrier systemRear carrier system for three
bicycles
The rear carrier system (Flex-Fix
system) allows one bicycle to be attached to a pull-out carrier
integrated into the vehicle floor. It is possible to attach two further bicycles
on an adapter. The transportation of
other objects is not permitted.
The maximum load of the rear carrier
system is 60 kg with attached adapter and 30 kg without attached adapter.This allows the attachment of an
electrically-powered bicycle to the
pull-out carrier. The maximum load
per bicycle on the adapter is 20 kg.
The wheelbase of a bicycle must not
exceed 1.15 metres. Otherwise the
secure fastening of a bicycle is not
possible.
If not in use, the carrier system must
be slid back into the vehicle floor.
There must not be any objects on the
bicycles that could become loose
during transportation.Caution
If the rear carrier system is
extended and the vehicle is fully
loaded, the chassis clearance will
be reduced.
Drive carefully whenever the road has a strong inclination or when
driving over a ramp, bump, etc.
Caution
Consult your bicycle dealer before
attaching bicycles with carbon
frames. The bicycles might get
damaged.
Extending
Open the tailgate.
9 Warning
No-one should be in the extension
zone of the rear carrier system,
risk of injury.

58Storage
Pull release lever up. The rear carriersystem disengages and travels
quickly out of the rear bumper.
Completely pull out the rear carrier
system until you hear it engage.
Ensure that it is not possible to push in the rear carrier system without
pulling the release lever again.
9 Warning
It is only permissible to fit objects
to the rear carrier system if the
system has been correctly
engaged. If the rear carrier system
will not engage correctly, do not fit
objects to the system and slide the system back. Seek the assistance
of a workshop.
Unfold number plate holder
Lift the number plate holder and fold
it backwards.
Affix the number plate before first
usage of the rear carrier system.
Fold out tail lamps
To install the tail lamps, remove both
screws ( 1). Pull tail lamps out of the
retainer to the front ( 2) and
downwards and swivel them to the
side.

Storage59
Push the tail lamps into the retainer
( 1 ) and reinstall screws ( 2) to fix the
lamps.
Fold out wheel recess
Remove strap and fold out the wheel
recess.
Lock the rear carrier system
Remove strap and swivel both
clamping levers sidewards as far as
they will go.
Otherwise safe functionality is not
guaranteed.

60Storage
Assembling the bicycle rack
Lift the rack at the rear (1) and pull it
backwards.
Fold up the rack ( 2).
Push down the rack ( 1) and swivel
handle ( 2) backwards to engage.
Swivel clamp sidewards ( 1) and pull
out locking pin.
Remove left part of rack ( 2).
Insert left part of rack into the right
part ( 1).
Insert locking pin in and swivel clamp
sidewards ( 2).

Storage61
Attaching a bicycle
1.Rotate the pedals into position, as
shown in the illustration, and put
the bicycle on the wheel recess.
Make sure that the bicycle stands centrally on the wheel recesses.
2. Attach the short mounting bracket
to the bicycle frame. Turn the
knob clockwise to fasten.
3. Secure both bicycle wheels to the
wheel recesses using the strap
retainers.
4. Check the bicycle to make sure it is secure.Caution
Ensure gap between bicycle and
vehicle is at least 5 cm. If
necessary, loosen handlebar and swivel sideways.
Attaching the adapter
When carrying more than one bicycle, the adapter must be fixed.

62Storage

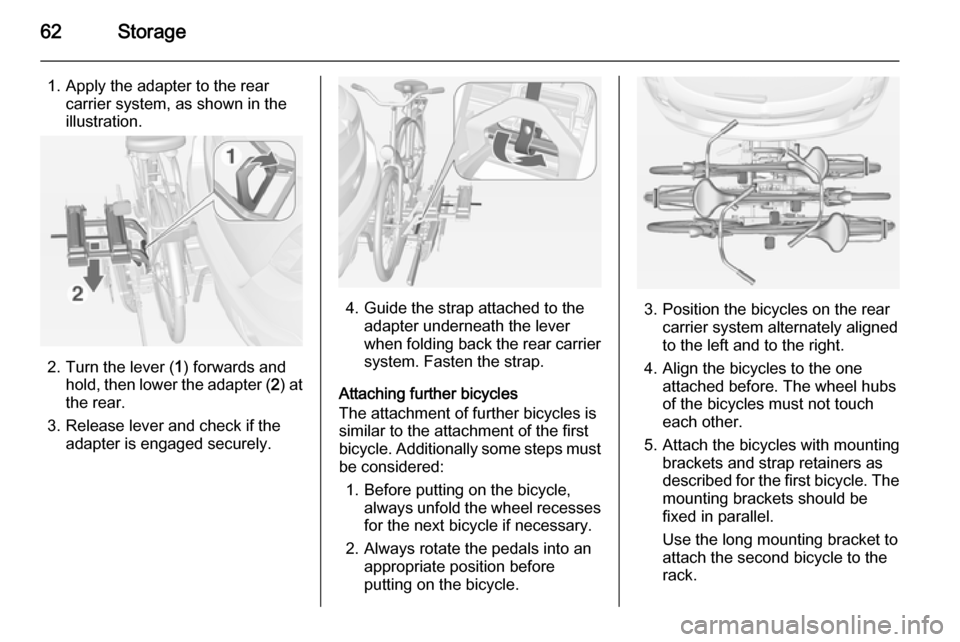

1. Apply the adapter to the rearcarrier system, as shown in the
illustration.
2. Turn the lever ( 1) forwards and
hold, then lower the adapter ( 2) at
the rear.
3. Release lever and check if the adapter is engaged securely.
4. Guide the strap attached to theadapter underneath the lever
when folding back the rear carrier system. Fasten the strap.
Attaching further bicycles
The attachment of further bicycles is
similar to the attachment of the first
bicycle. Additionally some steps must
be considered:
1. Before putting on the bicycle, always unfold the wheel recessesfor the next bicycle if necessary.
2. Always rotate the pedals into an appropriate position before
putting on the bicycle.3. Position the bicycles on the rear carrier system alternately aligned
to the left and to the right.
4. Align the bicycles to the one attached before. The wheel hubs
of the bicycles must not touch
each other.
5. Attach the bicycles with mounting brackets and strap retainers as
described for the first bicycle. The mounting brackets should be
fixed in parallel.
Use the long mounting bracket to
attach the second bicycle to the
rack.
