2014 TOYOTA VERSO S display

292
3-2. Using the audio system
VERSO-S_EE

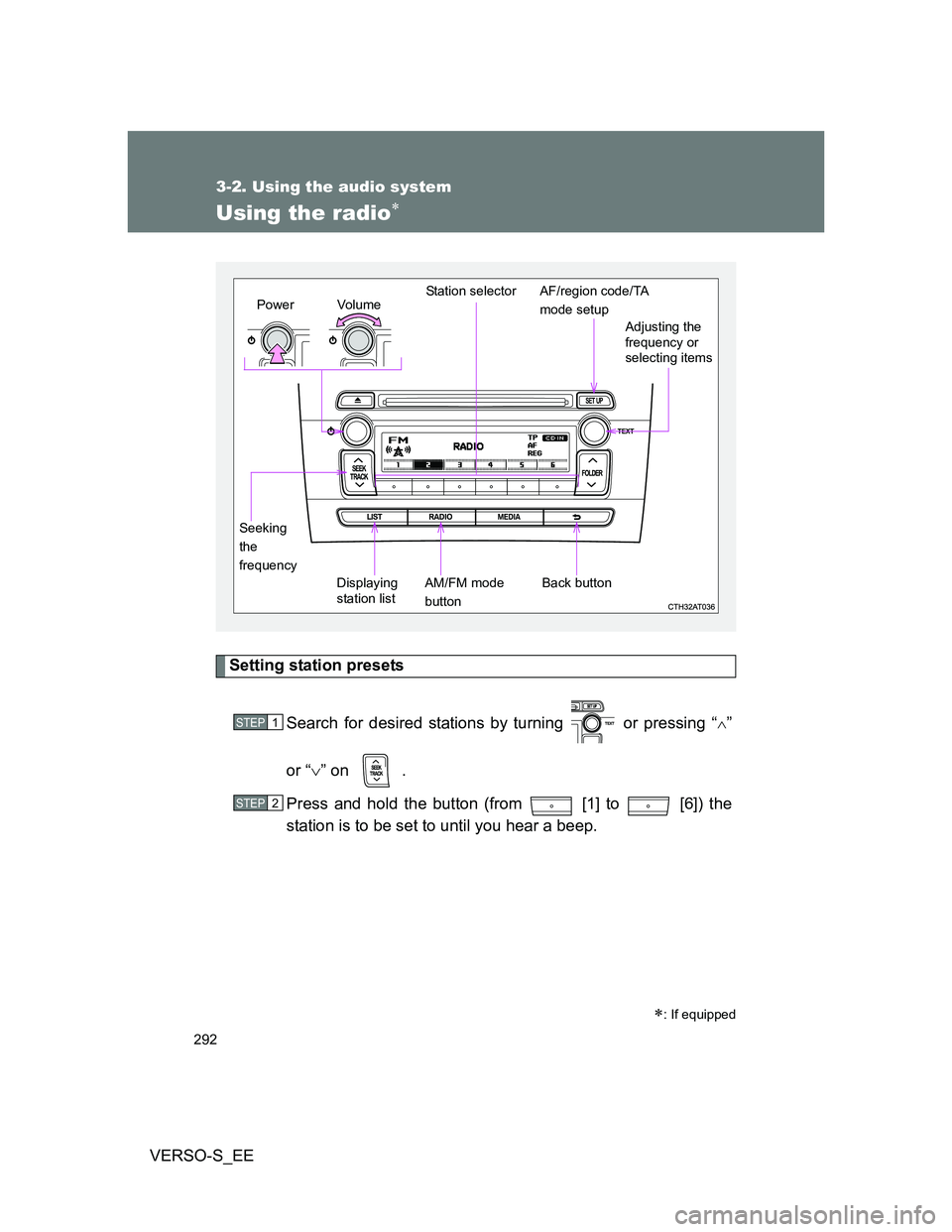

Using the radio
Setting station presets
Search for desired stations by turning or pressing “
”
or “” on .
Press and hold the button (from [1] to [6]) the
station is to be set to until you hear a beep.
: If equipped
Vo lu m e
Displaying
station listStation selector
Seeking
the
frequencyAdjusting the
frequency or
selecting items
AM/FM mode
buttonPowerAF/region code/TA
mode setup
Back button
STEP1
STEP2

293 3-2. Using the audio system
3
Interior features
VERSO-S_EE

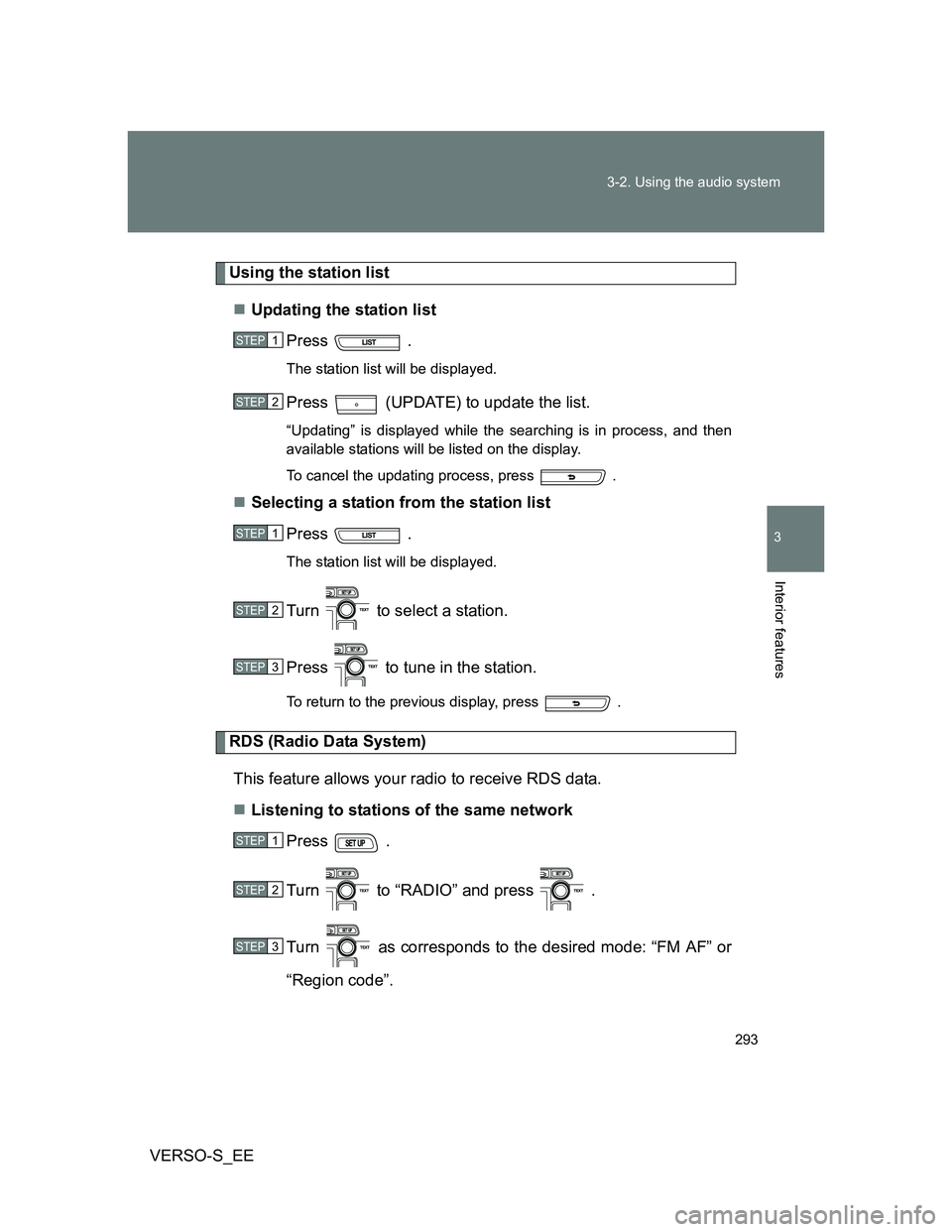

Using the station list
Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then
available stations will be listed on the display.
To cancel the updating process, press .
Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
RDS (Radio Data System)
This feature allows your radio to receive RDS data.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

296
3-2. Using the audio system
VERSO-S_EE

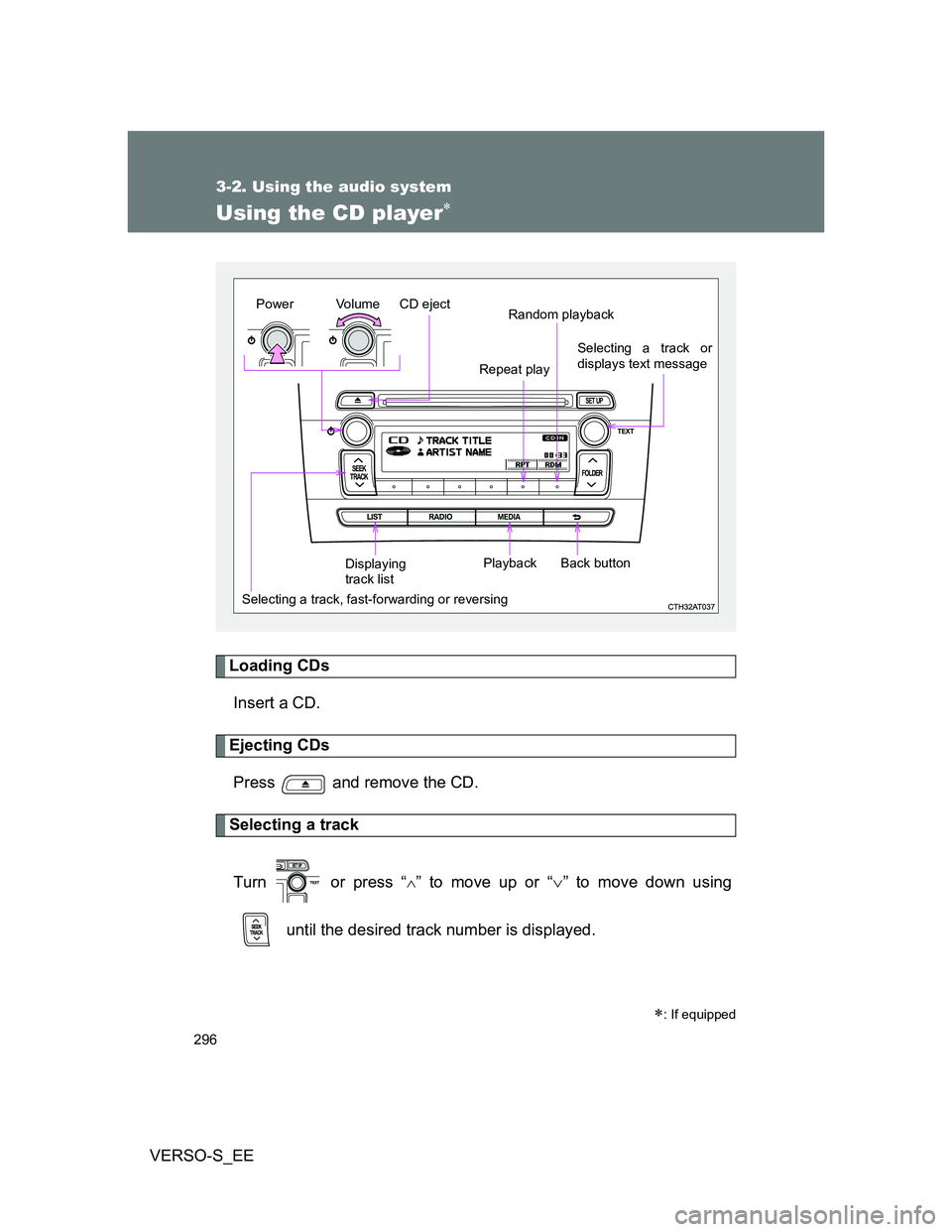

Using the CD player
Loading CDs
Insert a CD.
Ejecting CDs
Press and remove the CD.
Selecting a track
Turn or press “
” to move up or “” to move down using
until the desired track number is displayed.
: If equipped
Vo lu m e
Random playback
Selecting a track, fast-forwarding or reversingRepeat play
Playback PowerCD eject
Selecting a track or
displays text message
Displaying
track listBack button

297 3-2. Using the audio system
3
Interior features
VERSO-S_EE

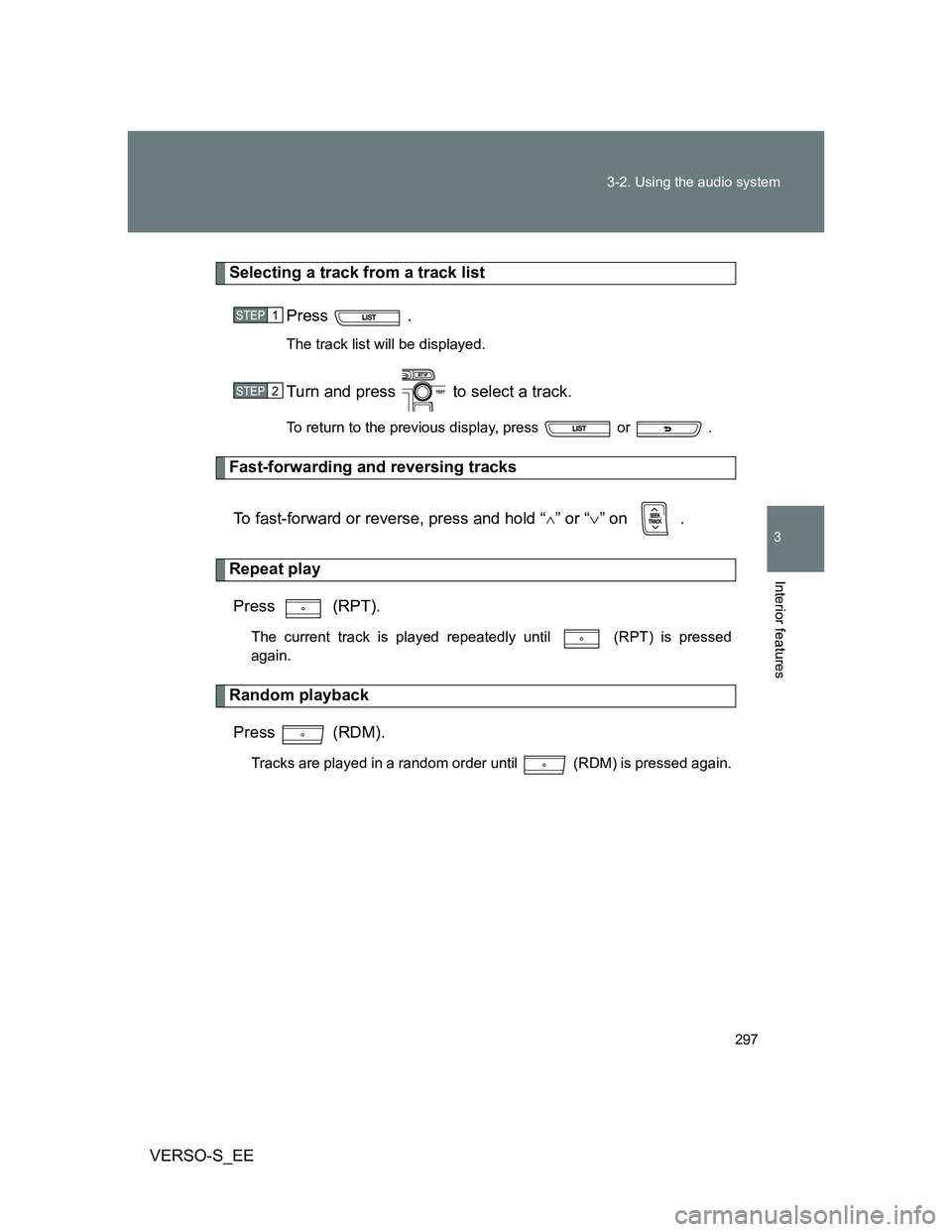

Selecting a track from a track list
Press .
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or .
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “
” or “” on .
Repeat play
Press (RPT).
The current track is played repeatedly until (RPT) is pressed
again.
Random playback
Press (RDM).
Tracks are played in a random order until (RDM) is pressed again.
STEP1
STEP2

298 3-2. Using the audio system
VERSO-S_EE
Switching the display
Press .
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press or .
Display
Up to 24 characters can be displayed.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . Contact
any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional if the CD still cannot be
played.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.

301
3-2. Using the audio system
3
Interior features
VERSO-S_EE

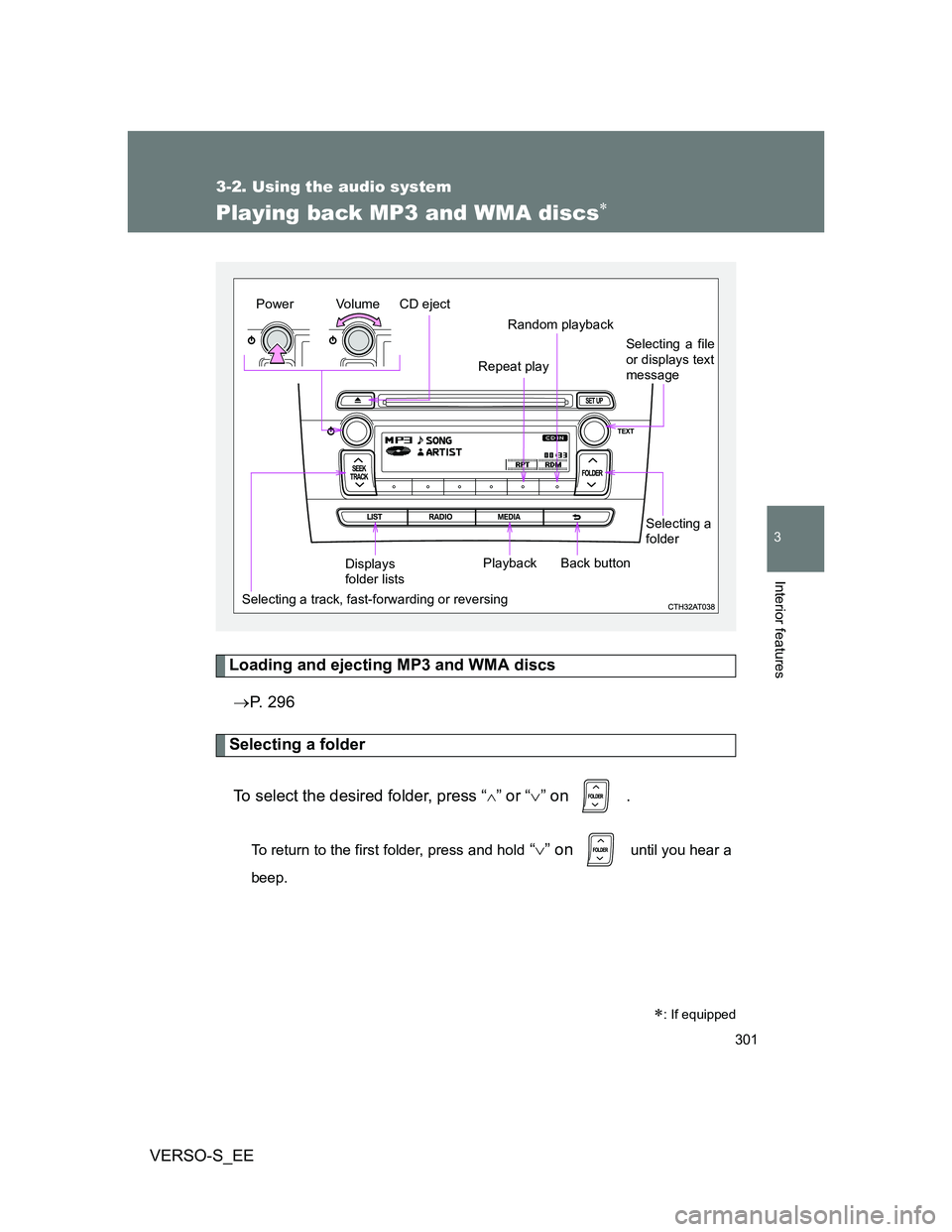

Playing back MP3 and WMA discs
Loading and ejecting MP3 and WMA discs
P. 296
Selecting a folder
To select the desired folder, press “
” or “” on .
To return to the first folder, press and hold “” on until you hear a
beep.
: If equipped
Vo lu m e
Random playback
Selecting a track, fast-forwarding or reversingRepeat play
Playback PowerCD eject
Selecting a file
or displays text
message
Displays
folder listsBack button
Selecting a
folder

302 3-2. Using the audio system

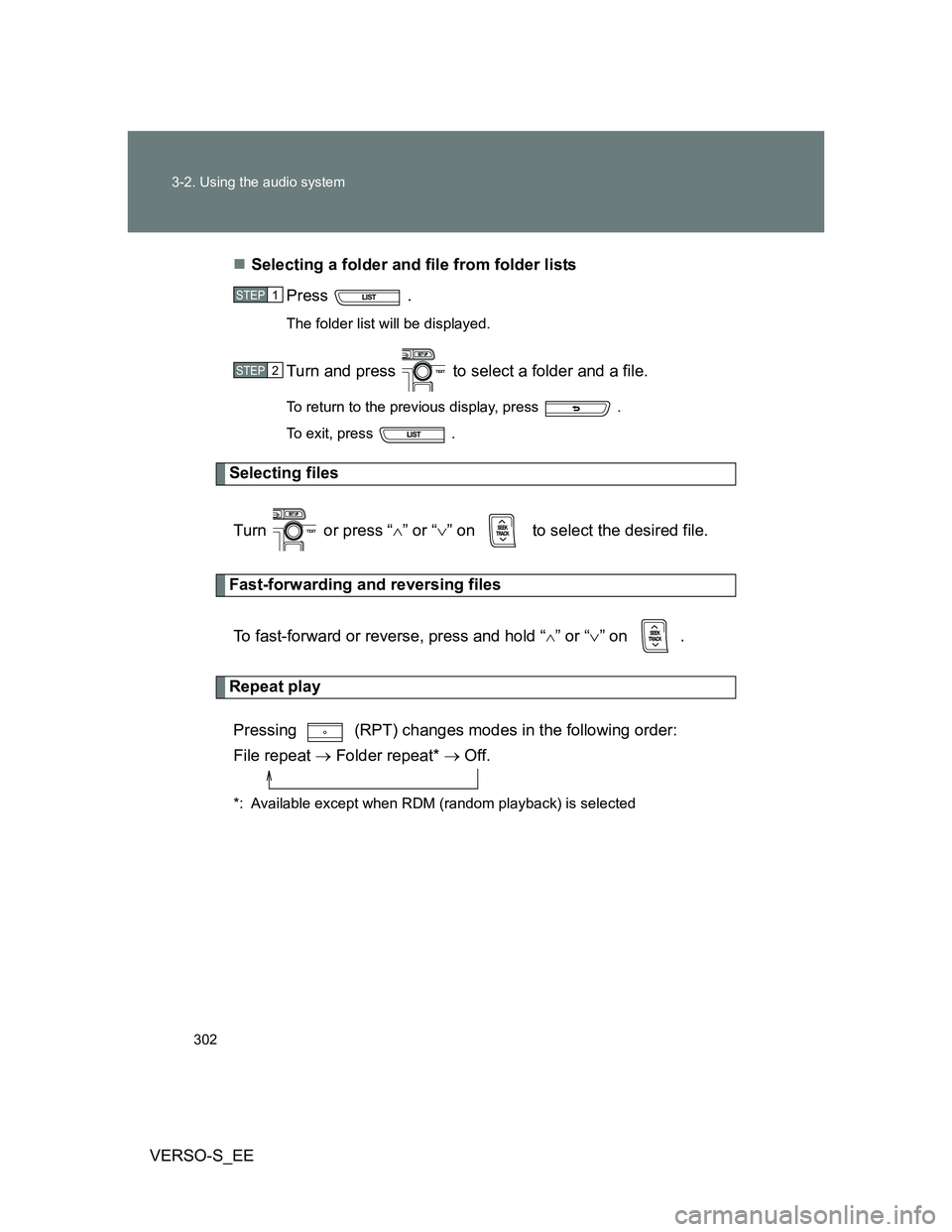

VERSO-S_EESelecting a folder and file from folder lists
Press .
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press .
To exit, press .
Selecting files
Turn or press “” or “” on to select the desired file.
Fast-forwarding and reversing files
To fast-forward or reverse, press and hold “
” or “” on .
Repeat play
Pressing (RPT) changes modes in the following order:
File repeat  Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
STEP1
STEP2

303 3-2. Using the audio system
3
Interior features
VERSO-S_EE

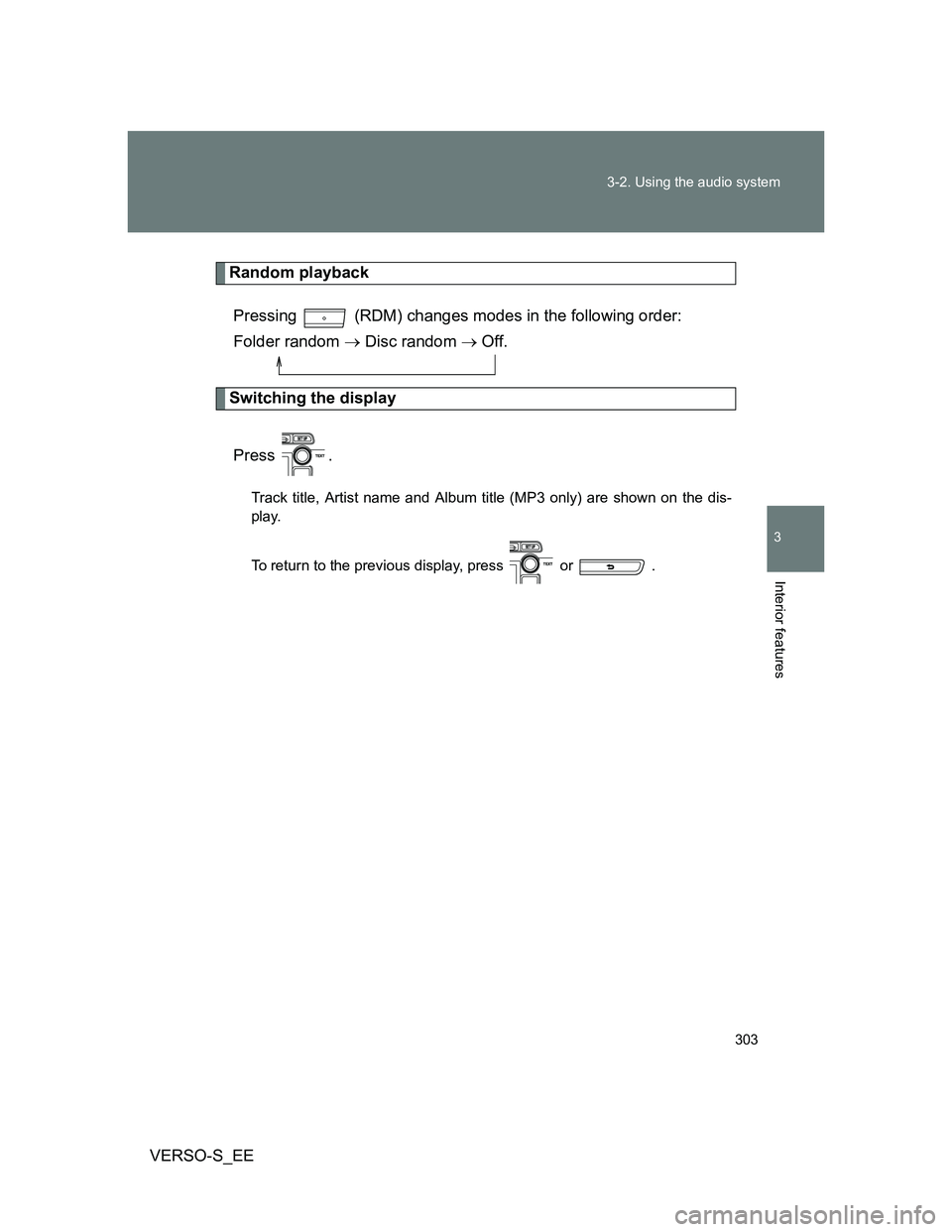

Random playback
Pressing (RDM) changes modes in the following order:
Folder random  Disc random  Off.
Switching the display
Press .
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press or .
