528 6-1. Specifications
VERSO-S_EE
Electrical system
Multidrive
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Battery
Open voltage* at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights turned
off)
Charging rates 5 A max.
Fluid capacity (Reference) 6.42 L (6.79 qt., 5.65 Imp. qt.)
Fluid type Toyota Genuine CVT FLUID FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT FLUID FE” may
cause deterioration in shift quality, locking up of your transmission accompa-
nied by vibration, and ultimately damage the transmission of your vehicle.

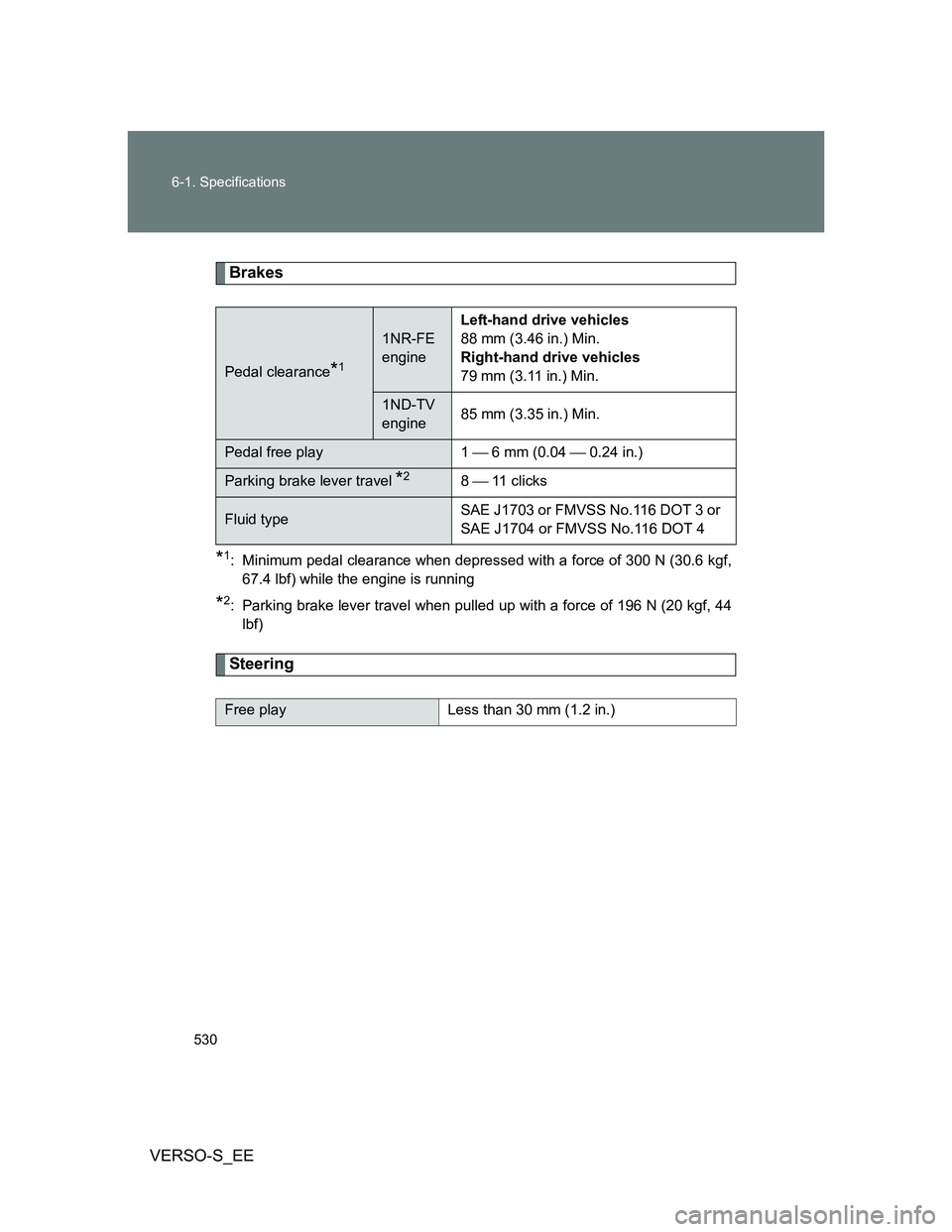

530 6-1. Specifications
VERSO-S_EE
Brakes
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44
lbf)
Steering
Pedal clearance*1
1NR-FE
engineLeft-hand drive vehicles
88 mm (3.46 in.) Min.
Right-hand drive vehicles
79 mm (3.11 in.) Min.
1ND-TV
engine85 mm (3.35 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *28  11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)

533
6-1. Specifications
6
Vehicle specifications
VERSO-S_EE
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to Euro-
pean standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or less
of sulfur and has a cetane number of 48 or higher.

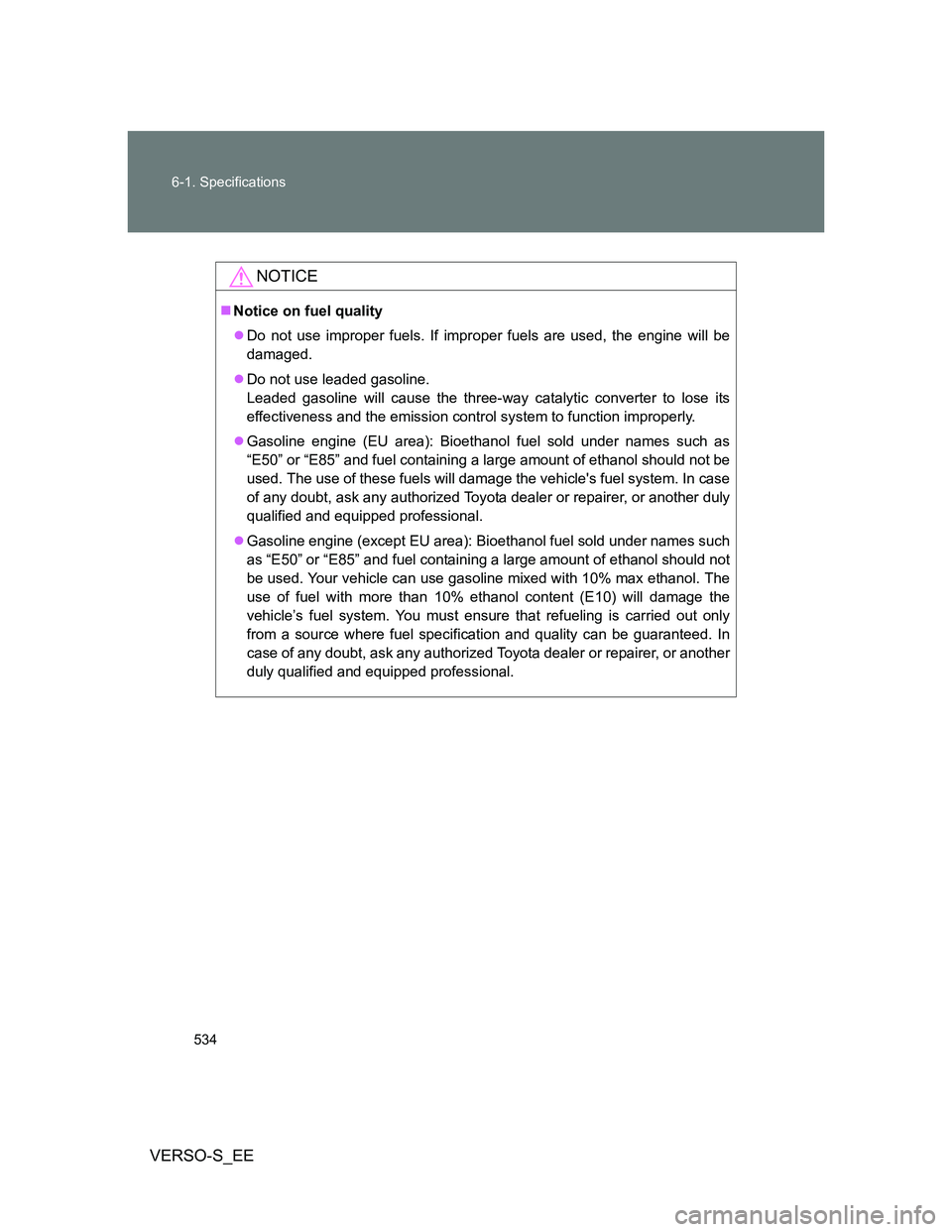

534 6-1. Specifications
VERSO-S_EE
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle's fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

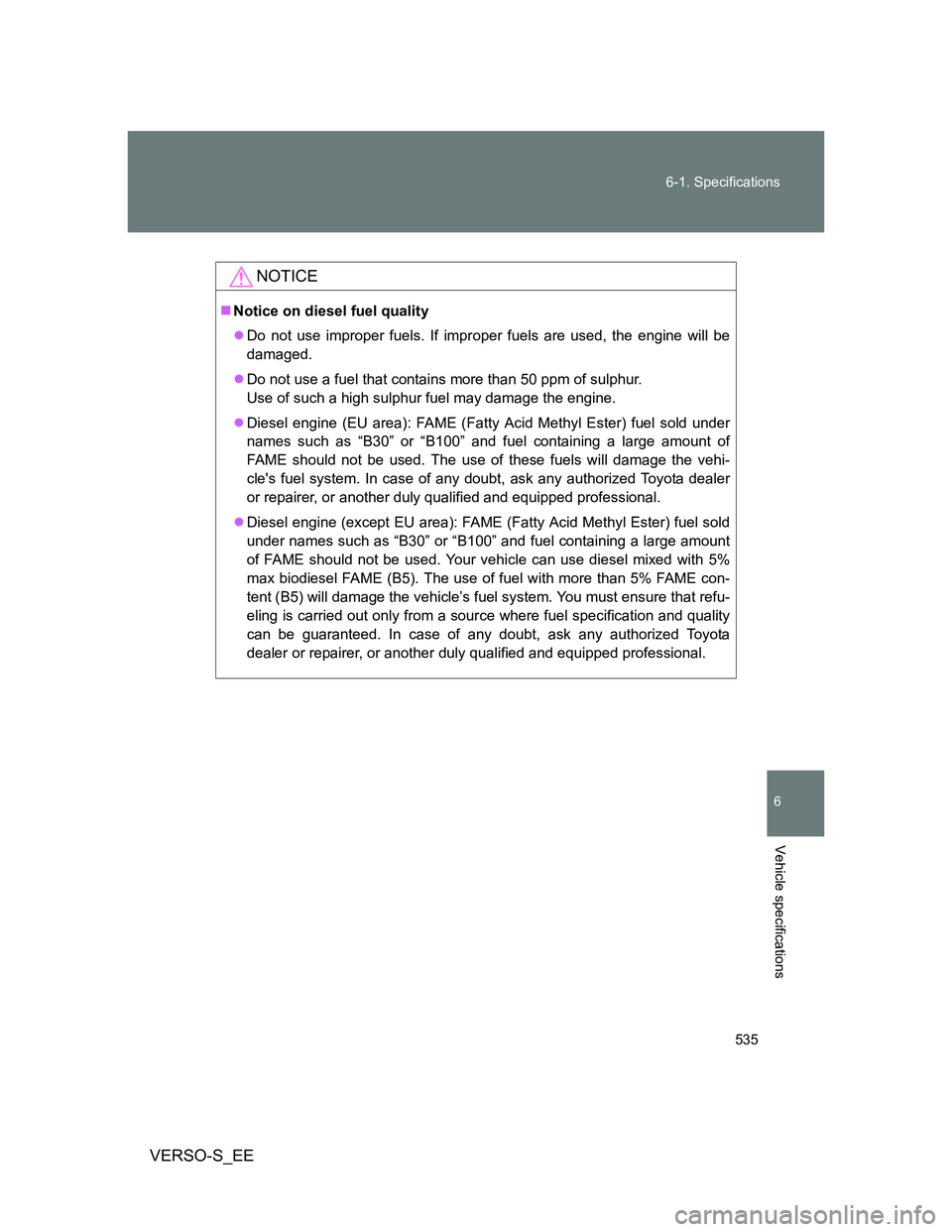

535 6-1. Specifications
6
Vehicle specifications
VERSO-S_EE
NOTICE
Notice on diesel fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use a fuel that contains more than 50 ppm of sulphur.
Use of such a high sulphur fuel may damage the engine.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle's fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

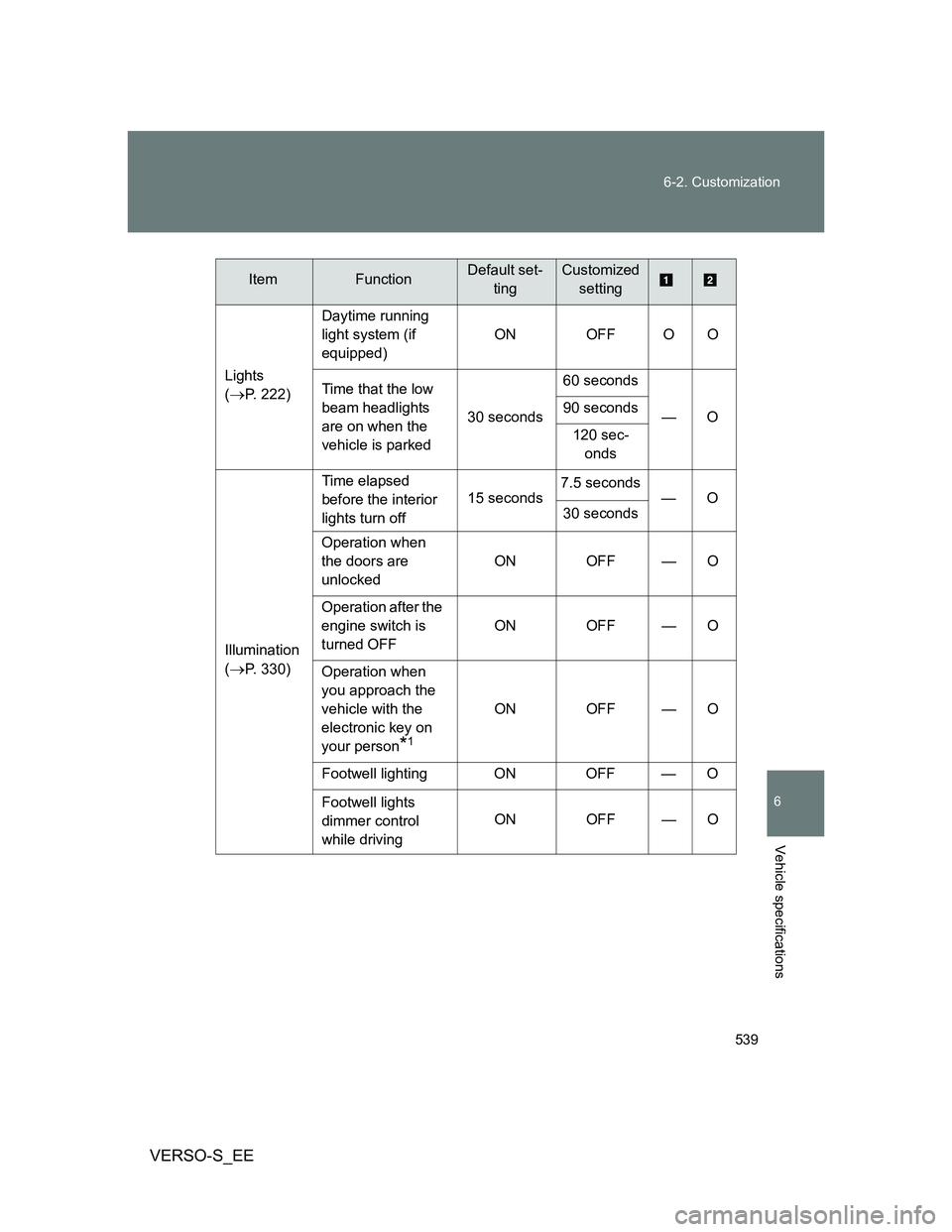

539 6-2. Customization
6
Vehicle specifications
VERSO-S_EE
Lights
(
P. 222)Daytime running
light system (if
equipped)ON OFF O O
Time that the low
beam headlights
are on when the
vehicle is parked30 seconds60 seconds
—O 90 seconds
120 sec-
onds
Illumination
(
P. 330)Time elapsed
before the interior
lights turn off15 seconds7.5 seconds
—O
30 seconds
Operation when
the doors are
unlockedON OFF — O
Operation after the
engine switch is
turned OFFON OFF — O
Operation when
you approach the
vehicle with the
electronic key on
your person
*1
ON OFF — O
Footwell lighting ON OFF — O
Footwell lights
dimmer control
while drivingON OFF — O
ItemFunctionDefault set-
tingCustomized
setting

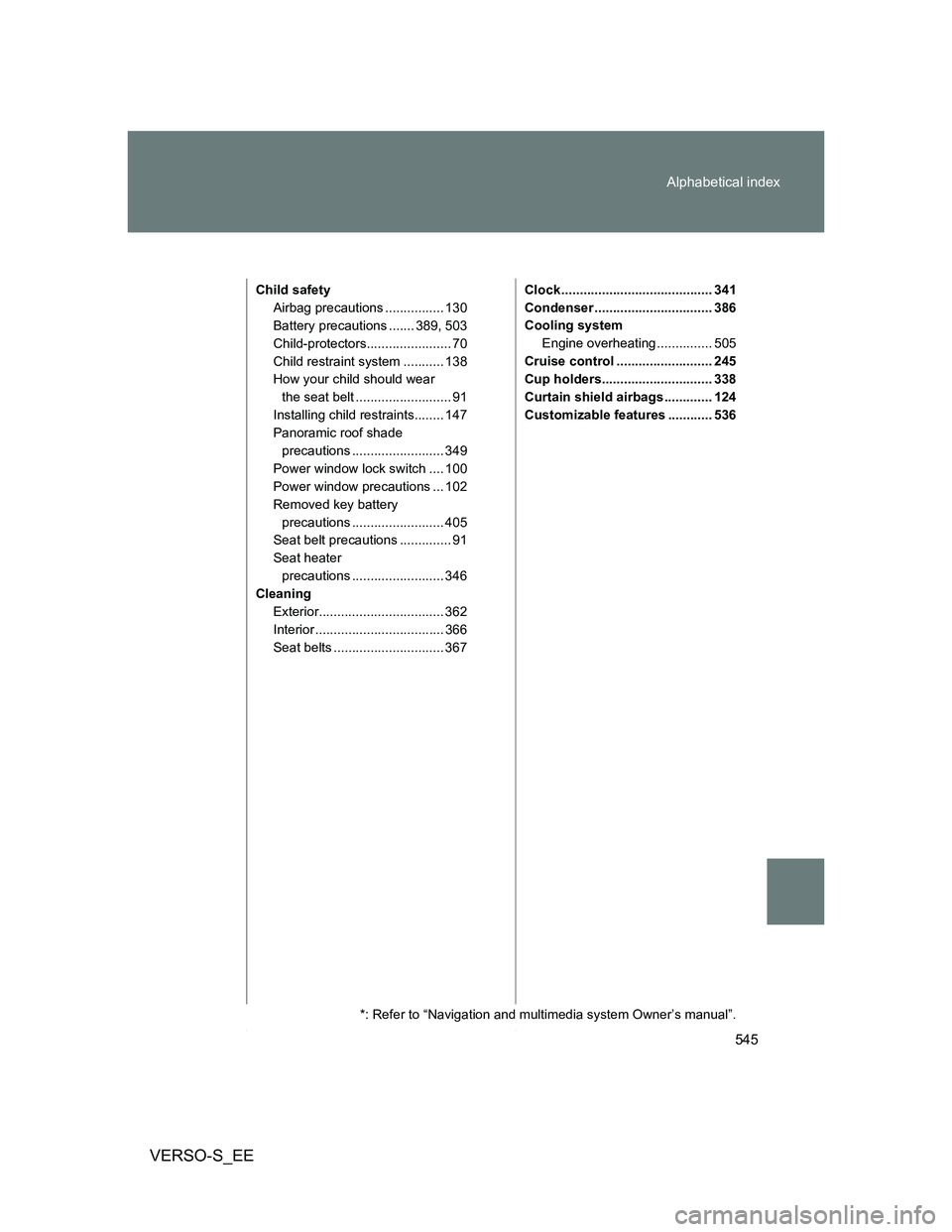

545 Alphabetical index
VERSO-S_EE
Child safety
Airbag precautions ................ 130
Battery precautions ....... 389, 503
Child-protectors....................... 70
Child restraint system ........... 138
How your child should wear
the seat belt .......................... 91
Installing child restraints........ 147
Panoramic roof shade
precautions ......................... 349
Power window lock switch .... 100
Power window precautions ... 102
Removed key battery
precautions ......................... 405
Seat belt precautions .............. 91
Seat heater
precautions ......................... 346
Cleaning
Exterior.................................. 362
Interior ................................... 366
Seat belts .............................. 367Clock ......................................... 341
Condenser ................................ 386
Cooling system
Engine overheating ............... 505
Cruise control .......................... 245
Cup holders.............................. 338
Curtain shield airbags ............. 124
Customizable features ............ 536
*: Refer to “Navigation and multimedia system Owner’s manual”.

546 Alphabetical index
VERSO-S_EE
Daytime running light
system .................................... 225
Deck board ............................... 354
Defogger
Rear window ......................... 288
Side mirror ............................ 288
Dimension ................................ 518
Display
Trip information ..................... 219
Do-it-yourself maintenance .... 372
Doors
Door lock ..................... 33, 59, 68
Door windows ....................... 100
Double locking system .......... 117
Side mirrors............................. 98
DPF
Diesel Particulate Filter
system ................................ 255
Warning light ......................... 447
Driver's seat belt reminder
light ......................................... 447
Driving
Break-in tips .......................... 165
Correct posture ..................... 122
Procedures............................ 160
Winter driving tips ................. 259
Dual-level deck board.............. 354Electric power steering ........... 249
Electronic key
If the electronic key does
not operate properly ........... 492
Replacing the battery ............ 402
Emergency flashers
Switch ................................... 432
Emergency, in case of
If the electronic key does not
operate properly ................. 492
If the engine will not start ...... 486
If the shift lever cannot be
shifted ................................. 490
If the shift lever cannot be
shifted from P ..................... 489
If the vehicle has a
discharged battery .............. 497
If the warning buzzer
sounds ................................ 443
If the warning light
turns on .............................. 443
If you have a flat tire .... 456, 469
If you lose your keys ............. 491
If you run out of fuel and
the engine stalls ................. 510
If you think something is
wrong.................................. 441
If your vehicle becomes
stuck ................................... 512
If your vehicle has to be
stopped in an
emergency.......................... 514
If your vehicle needs to be
towed .................................. 433
If your vehicle overheats ....... 505DE
