2014 TOYOTA SEQUOIA clock

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap, turning it counterclockwise.
Add engine oil slowly.
Checking the dipstick.
Reinstall the filler cap, turning it clockwise.
The approximate quantity of oil needed to raise the level between low and
full on the dipstick is indicated as follows:
1.6 qt. (1.5 L, 1.3 lmp.qt.)
Engine oil selection P. 608
ItemsClean funnel

502 4-3. Do-it-yourself maintenance
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures. (Fluid
temperature, 140°F - 175°F [60°C - 80°C])
Cold: Engine has not been run for about 5 hours. (Room tem- perature, 50°F - 85°F[10°C - 30°C])
■ Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
Fluid type Automatic transmission fluid DEXRON® II or III
Items Rag or paper towel and funnel (only for adding fluid)

541
4-3. Do-it-yourself maintenance
4
Maintenance and care

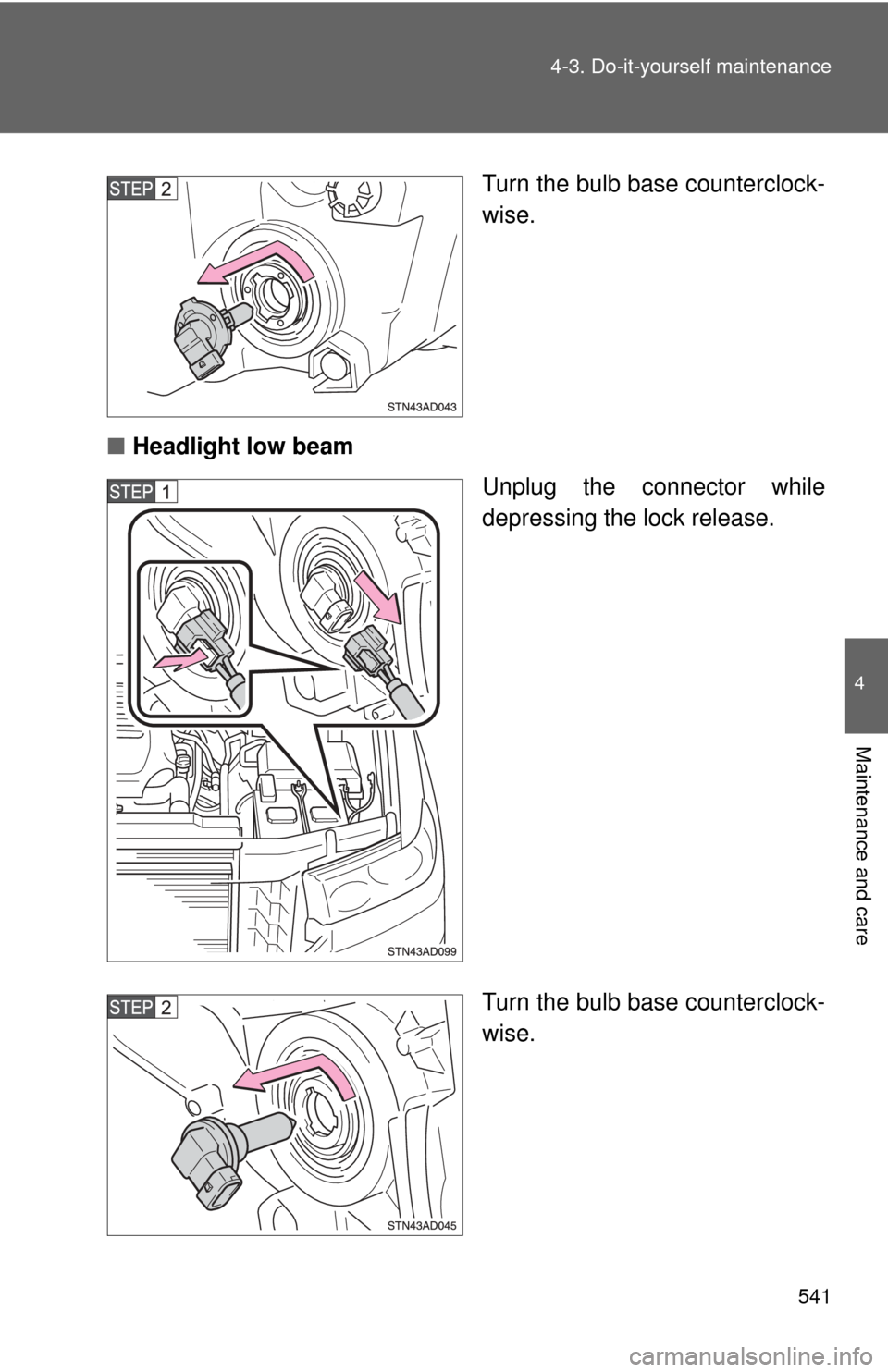

Turn the bulb base counterclock-
wise.
■ Headlight low beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

542 4-3. Do-it-yourself maintenance
■Front turn signal/parking lights and daytime running lights
(if equipped)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

543
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Front side marker lights
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.

544 4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Front fog lights (if equipped)
Remove the bolts and partly
remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.

546 4-3. Do-it-yourself maintenance
Left side (vehicles with speaker in the luggage)Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
or equivalent and cover as shown
in the illustrations.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light

548 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.Tail light
Back-up light
Remove the light bulb. Tail light
Back-up light
■ License plate lights
Remove the screws and light
unit.
