2014 TOYOTA RAV4 parking sensors

253
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
4
Driving
Intuitive parking assist
Rear corner sensors
Rear center sensors
Turns intuitive parking assist on/
off
When on, the indicator light
comes on to inform the driver that
the system is operational.
: If equipped
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the indicator and a buzzer.
Always check the surrounding area when using this system.
Types of sensors
1
2
Intuitive parking assist switch

254
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are indicated and the buzzer sounds.
■Intuitive parking assist indicator
Vehicle indicator
Rear corner indicators
Rear center indicator
■Sensor operation and distance to an obstacle
The system operates when the vehicle approaches an obstacle, as
shown by the following table.
When 2 or more obstacles are detected simultaneously, the buzzer sys-
tem responds to the nearest obstacle.
Rear corner sensors
Rear center sensors
The indicator and buzzer
1
2
3
Approximate distance to obstacleIndicator and buzzer
1.6 ft. (50 cm) to 1.3 ft. (40 cm)Intermittent
1.3 ft. (40 cm) to 1.0 ft. (30 cm)Fast intermittent
Less than 1.0 ft. (30 cm)Continuously
Approximate distance to obstacleIndicator and buzzer
4.9 ft. (150 cm) to 2.0 ft. (60 cm)Intermittent
2.0 ft. (60 cm) to 1.5 ft. (45 cm)Fast intermittent
1.5 ft. (45 cm) to 1.1 ft. (35 cm)Very fast intermittent
Less than 1.1 ft. (35 cm)Continuously

RAV4_OM_OM42A04U_(U)
2554-5. Using the driving support systems
4
Driving
■Detection range of the sensorsApproximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm)
The diagram shows the detec-
tion range of the sensors. Note
that the sensors may not be
able to detect obstacles that are
extremely close to the vehicle.
The range of the sensors may
change depending on the shape
of the object etc.
■Intuitive parking assist can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position and the shift lever is in R.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode and the shift lever is in R.
1
2

256
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
■Sensor detection information
●The sensor’s detection areas are limited to the areas around the vehicle’s
rear bumper.
● Certain vehicle conditions and the surrounding environment may affect the
ability of a sensor to correctly detect an obstacle. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on a sensor. (Wiping the sensors will resolve
this problem.)
• A sensor is frozen. (Thawing the area will resolve this problem.)
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or radio antenna.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or right-angled curb.
• In harsh sunlight or intense cold weather.
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of
their shape, signs and other objects may be judged by a sensor to be closer
than they are.

258
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
CAUTION
■Caution when using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
●Do not use the sensor at speeds in excess of 6 mph (10 km/h).
● The sensors’ detection areas and reaction times are limited. When revers-
ing, check the areas surrounding the vehicle (especially the sides of the
vehicle) for safety, and drive slowly, using the brake to control the vehicle’s
speed.
● Do not attach any accessories within the sensor range.
NOTICE
■When using intuitive parking assist
In the following situations, the system may not function correctly due t\
o a
sensor malfunction etc. Have the vehicle checked by your Toyota dealer.
●A beep does not sound when you turn the main switch on.
● The corner and center indicators flash, and a beep sounds when no obsta-
cles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the corner and center indicators show continuously without a beep.
● If a indicator error occurs, first check the sensor.
If the error occurs even if there is no ice, snow or mud on the sensor, it is
likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

286
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
■Conditions under which the Rear Cr oss Traffic Alert function will not
detect a vehicle
The Rear Cross Traffic Alert function is not designed to detect the following
types of vehicles and/or objects.
● Small motorcycles, bicycles, pedestrians, etc.
*
●Vehicles approaching from directly behind
● Guardrails, walls, signs, parked vehicles and similar stationary objects
*
●Vehicles moving away from your vehicle
● Vehicles approaching from the parking spaces next to your vehicle
*
●Vehicles backing up in the parking space next to your vehicle*
*
: Depending on conditions, detection of a vehicle and/or object may occur.
■ Conditions under which the Rear Cross Traffic Alert function may not
function correctly
The Rear Cross Traffic Alert function may not detect vehicles correctly in the
following conditions:
● When ice, mud, etc. is attached to the rear bumper
● During bad weather such as heavy rain, fog, snow, etc.
● When multiple vehicles approach continuously
● Shallow angle parking
● When a vehicle is approaching at high speed
● When parking on a steep incline, such as hills, a dip in the road, etc.
● Directly after the BSM main switch is set to on
● Directly after the engine is started with the BSM main switch on
● When towing a trailer
● Vehicles that the sensors cannot detect
because of obstacles

6177-2. Steps to take in an emergency
RAV4_OM_OM42A04U_(U)
7
When trouble arises
Dynamic Torque Control
AWD system warning light
(if equipped)
When the light blinks:
The system has been over-
loaded and front-wheel drive
has been automatically
engaged.Drop your speed or stop the
vehicle until the light stops
blinking. (Do not stop the
engine.)
When the light comes on:
Malfunction in the Dynamic
Torque Control AWD system.Have the system checked by
your Toyota dealer.
Intuitive parking assist
indicator (warning
buzzer)
*4 (if equipped)
Indicates that the intuitive
parking assist sensor is
dirty or covered with ice.Clean the sensors.
Warning lightWarning light/DetailsCorrection procedure

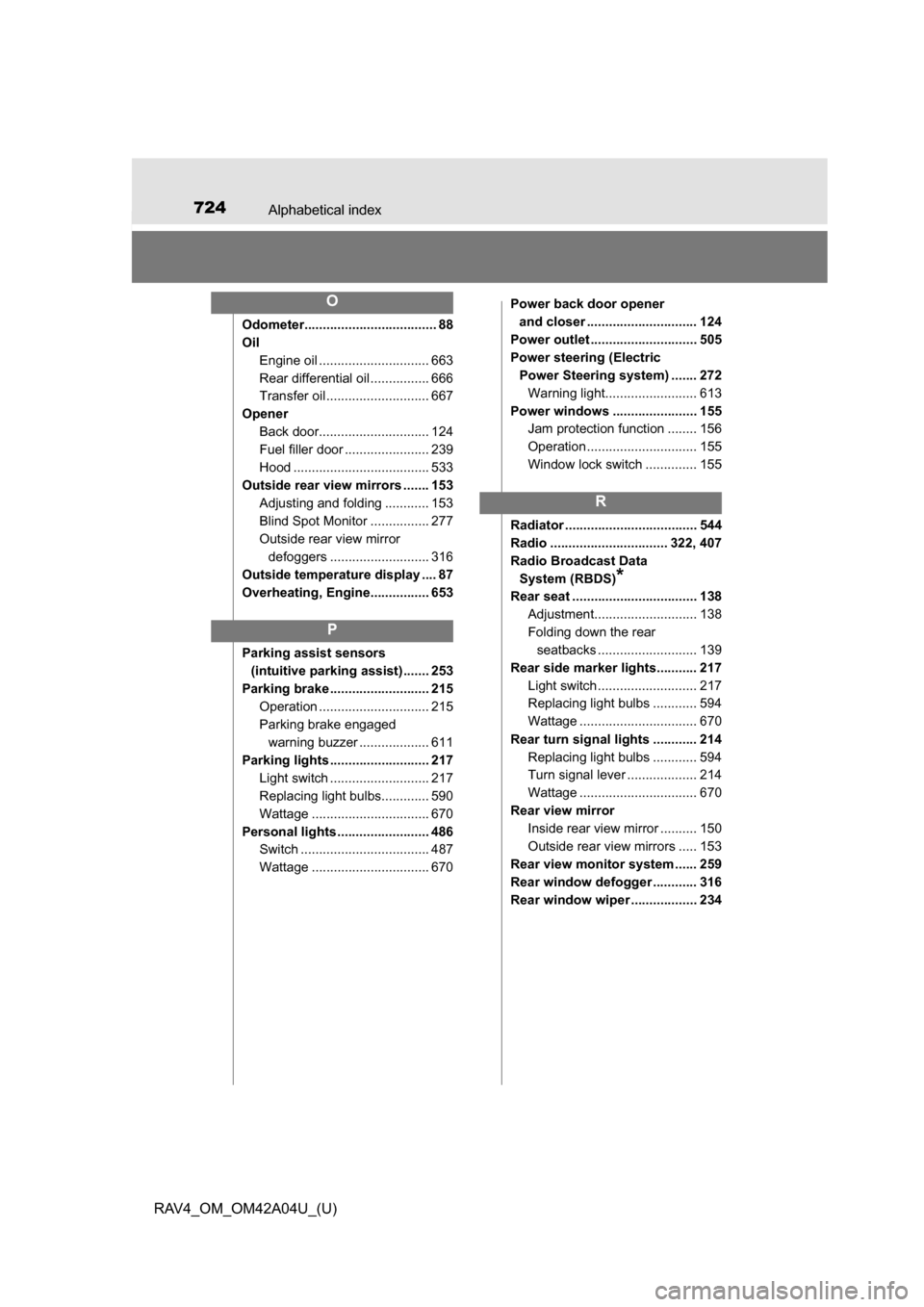

724Alphabetical index
RAV4_OM_OM42A04U_(U)
Odometer.................................... 88
OilEngine oil .............................. 663
Rear differential oil ................ 666
Transfer oil ............................ 667
Opener Back door.............................. 124
Fuel filler door ....................... 239
Hood ..................................... 533
Outside rear view mirrors ....... 153 Adjusting and folding ............ 153
Blind Spot Monitor ................ 277
Outside rear view mirror defoggers ........................... 316
Outside temperature display .... 87
Overheating, Engine................ 653
Parking assist sensors (intuitive parking assist) ....... 253
Parking brake ........................... 215 Operation .............................. 215
Parking brake engaged warning buzzer ................... 611
Parking lights ........................... 217 Light switch ........................... 217
Replacing light bulbs............. 590
Wattage ................................ 670
Personal lights ......................... 486 Switch ................................... 487
Wattage ................................ 670 Power back door opener
and closer .............................. 124
Power outlet ............................. 505
Power steering (Electric Power Steering system) ....... 272
Warning light......................... 613
Power windows ....................... 155 Jam protection function ........ 156
Operation .............................. 155
Window lock switch .............. 155
Radiator .................................... 544
Radio ................................ 322, 407
Radio Broadcast Data System (RBDS)
*
Rear seat .................................. 138 Adjustment............................ 138
Folding down the rear seatbacks ........................... 139
Rear side marker lights........... 217 Light switch ........................... 217
Replacing light bulbs ............ 594
Wattage ................................ 670
Rear turn signal lights ............ 214 Replacing light bulbs ............ 594
Turn signal lever ................... 214
Wattage ................................ 670
Rear view mirror Inside rear view mirror .......... 150
Outside rear view mirrors ..... 153
Rear view monitor system ...... 259
Rear window defogger ............ 316
Rear window wiper .................. 234
