19Pictorial index
PRIUS +_OM_OM47888E_(EE)Instrument cluster light control button . . . . . . . . . . . . . . . . P. 112
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 333
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s Manual”.
1
2
3

27Pictorial index
PRIUS +_OM_OM47888E_(EE)Instrument cluster light control button . . . . . . . . . . . . . . . . P. 112
MPH or km/h button
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 333
*1: Refer to “Navigation and multimedia system Owner’s Manual”.
*2: If equipped
1
2
3

1192. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47888E_(EE)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Clock
Show the current time on the display.
Select to display the cruise control/dynamic radar cruise control infor-
mation, when the system is used. (→P. 227, 231)
The displayed icon changes depending on the system used.
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( →P. 388)
Settings display
Select to change the meter display settings. ( →P. 465)
Cruise control/Dynamic radar cruise control display
(if equipped)

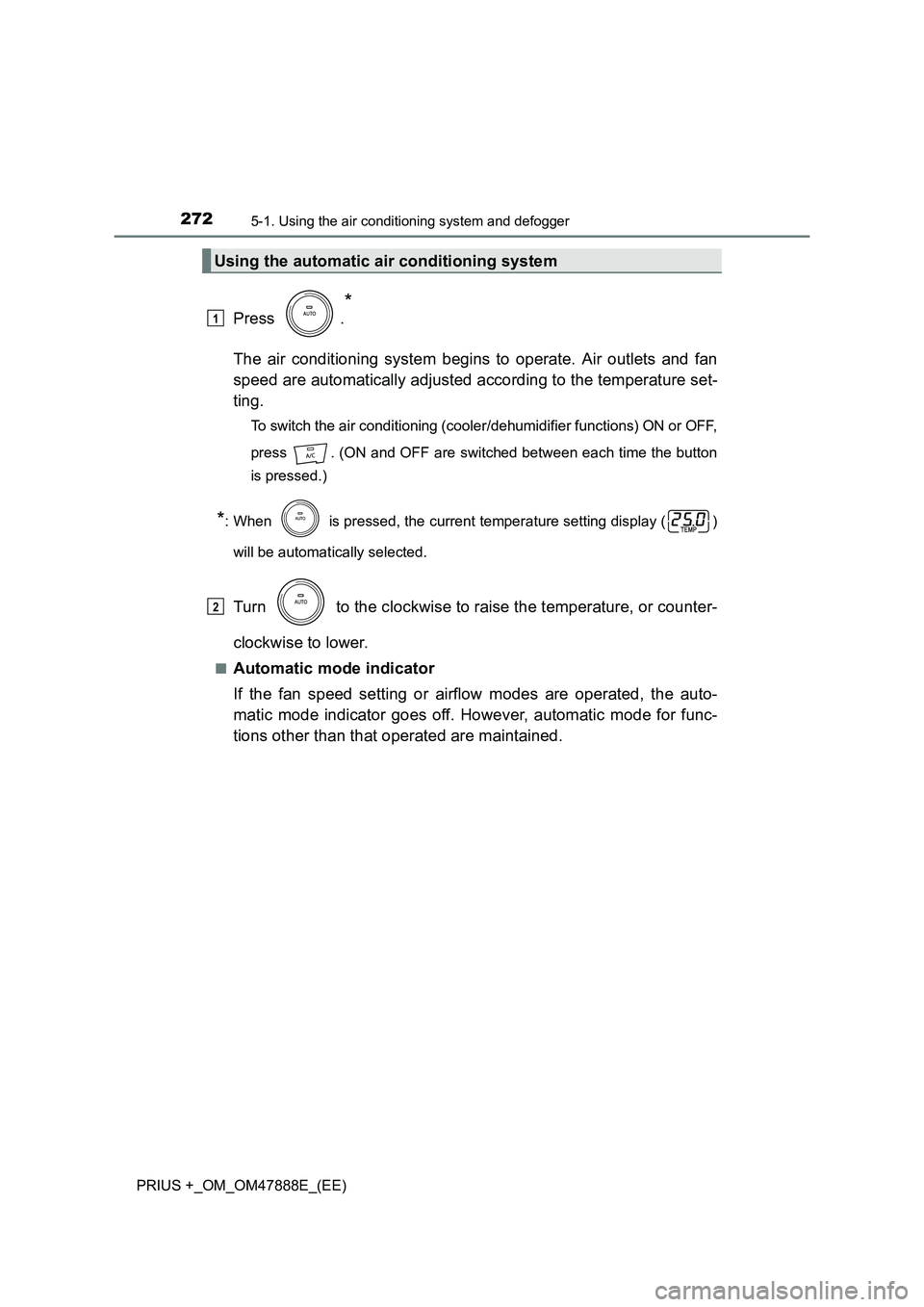

2725-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47888E_(EE)
Press .
*
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
To switch the air conditioning (cooler/dehumidifier functions) ON or OFF,
press . (ON and OFF are switched between each time the button
is pressed.)
*: When is pressed, the current temperature setting display ( )
will be automatically selected.
Turn to the clockwise to raise the temperature, or counter-
clockwise to lower.
■Automatic mode indicator
If the fan speed setting or airflow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
Using the automatic air conditioning system
1
2

3606-3. Do-it-yourself maintenance
PRIUS +_OM_OM47888E_(EE)
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner
bolts.
4
5
6

490Alphabetical index
PRIUS +_OM_OM47888E_(EE)
Steering wheelAdjustment ............................ 180
Audio switches
*
DISP button........................... 113
Meter control switches .......... 118
Telephone switches
*
TRIP button........................... 112
Stop/tail lights .......................... 364
Storage feature ........................ 283
Storage precautions ................ 283
Stuck If the vehicle becomes
stuck ................................... 449
Sun visors ................................ 292
Sunshade Panoramic roof shades ......... 296
Rear door .............................. 298
Switch
Audio remote control switches
*
Climate remote control switches.............................. 278
Clock adjustment buttons...... 293
Cruise control switch ..... 227, 231
DISP button........................... 113
Door lock switch .................... 144
Driving mode select switch ... 247
Emergency flashers switch ... 368
Engine switch ........................ 201
EV drive mode switch ........... 206
Fog light switch ..................... 218 Intrusion sensor cancel
switch ................................. 100
Ignition switch ....................... 201
Light switches ....................... 215
Meter control switches .......... 118
MPH or km/h button .............. 111
Outside rear view mirror switches.............................. 184
Panoramic roof shades ......... 296
PCS switch ........................... 255
Power door lock switch ......... 144
Power switch......................... 201
Power window switch............ 186
Rear window wiper and washer switch..................... 223
Rear window and outside rear view mirror defoggers
switch ................................. 273
Seat heater switches ............ 279
Talk switch
*
Telephone switches*
Tire pressure warning reset switch ........................ 333
TRIP button........................... 112
Vehicle-to-vehicle distance
button ................................. 234
Window lock switch............... 186
Windshield wipers and washer switch..................... 219
