2014 TOYOTA PRIUS C windshield wipers

1
2
3
4
5
6
7
3
2-2. Instrument clusterGauges and meters ............ 181
Indicators and warning lights ................................. 184
Multi-information display ..... 187
2-3. Operating the lights and wipers
Headlight switch .................. 204
Fog light switch ................... 208
Windshield wipers and washer .............................. 210
Rear window wiper and washer .............................. 214
2-4. Using other driving systems
Cruise control ...................... 217
Driving assist systems ........ 221
2-5. Driving information Cargo and luggage ............. 226
Vehicle load limits ............... 230
Winter driving tips ............... 231
Trailer towing ...................... 235
Dinghy towing ..................... 236 3-1. Using the air conditioning
system and defogger
Automatic air conditioning system.......... 238
Rear window and outside rear view mirror
defoggers ......................... 247
3-2. Using the audio system Audio system types ............ 248
Using the radio ................... 254
Using the CD player ........... 256
Playing back MP3 and WMA discs ....................... 261
Operating an iPod .............. 268
Operating a USB memory ............................ 276
Optimal use of the audio system .............................. 284
Using the AUX port............. 287
Using the steering wheel audio switches.................. 288
3-3. Using the Bluetooth
®
audio system
Bluetooth
® audio/phone ..... 291
Using the Bluetooth®
audio/phone ..................... 295
Operating a Bluetooth
®
enabled portable player.... 300
Making a phone call ........... 303
Using the “SET UP” menu (“Bluetooth” menu) ........... 308
Using the “SET UP” menu (“Phone” menu) ................ 314
3Interior features

6
Pictorial indexExterior
Outside rear view mirrors
P. 96
Front turn signal lights P. 178
Front side marker lights
P. 204
Hood P. 364
Front fog lights  P. 208
Side turn signal lights
P. 178
Parking lights P. 204
Headlights (low beam) P. 204Headlights (high beam) and
daytime running lights
P. 204
Windshield wipers P. 210

When driving2
149
2-1. Driving proceduresDriving the vehicle............ 150
Engine (ignition) switch ............................. 160
Power (ignition) switch ..... 164
EV drive mode ................. 172
Hybrid transmission ......... 175
Turn signal lever .............. 178
Parking brake ................... 179
Horn ................................. 180
2-2. Instrument cluster Gauges and meters ......... 181
Indicators and warning lights ................. 184
Multi-information display............................ 187
2-3. Operating the lights and wipers
Headlight switch ............... 204
Fog light switch ................ 208
Windshield wipers and washer .................... 210
Rear window wiper and washer .................... 214 2-4. Using other driving
systems
Cruise control ................... 217
Driving assist systems ..... 221
2-5. Driving information Cargo and luggage .......... 226
Vehicle load limits ............ 230
Winter driving tips ............ 231
Trailer towing ................... 235
Dinghy towing .................. 236

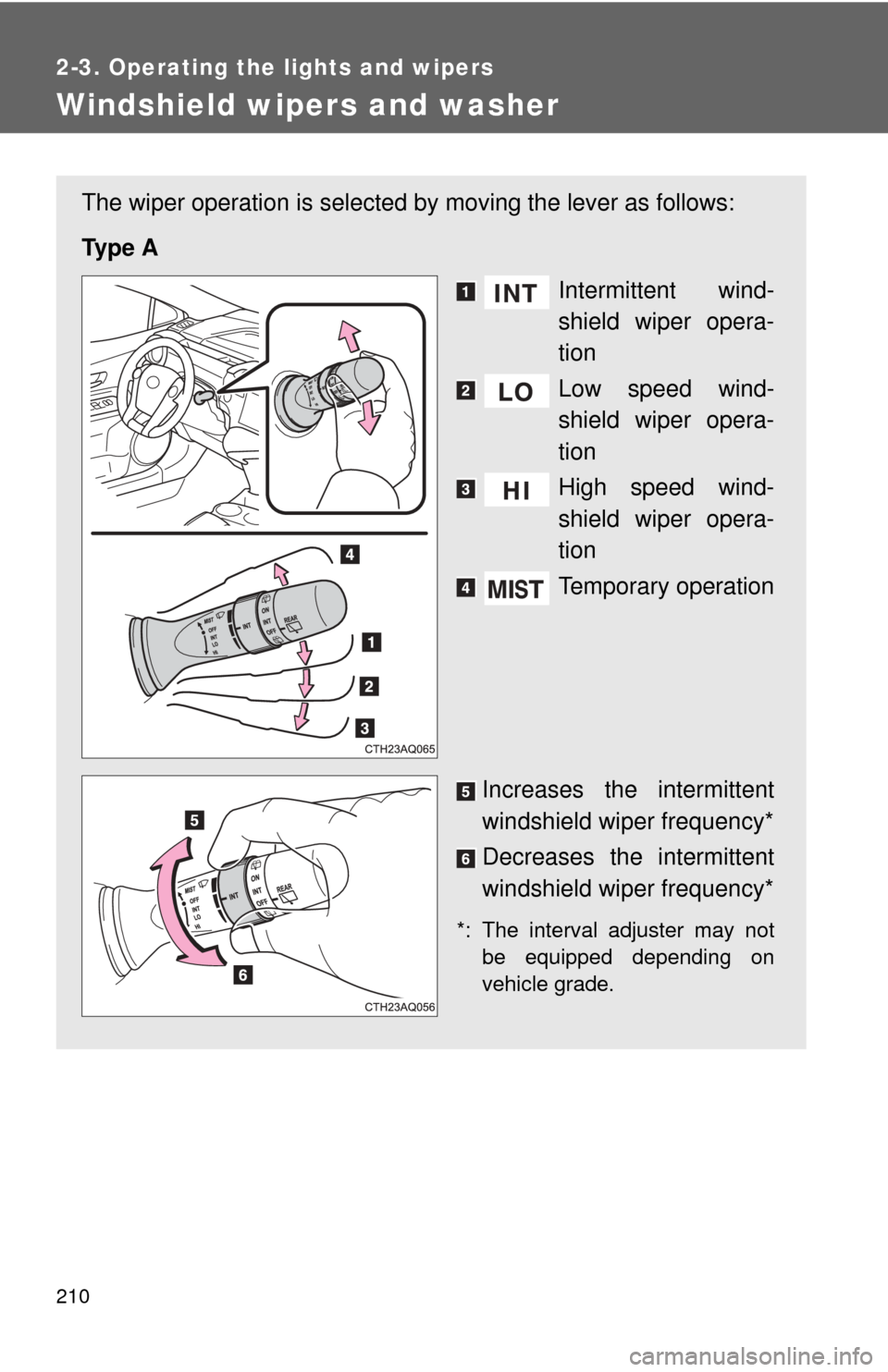

210
2-3. Operating the lights and wipers
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows:
Ty p e A Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency*
Decreases the intermittent
windshield wiper frequency*
*: The interval adjuster may not be equipped depending on
vehicle grade.

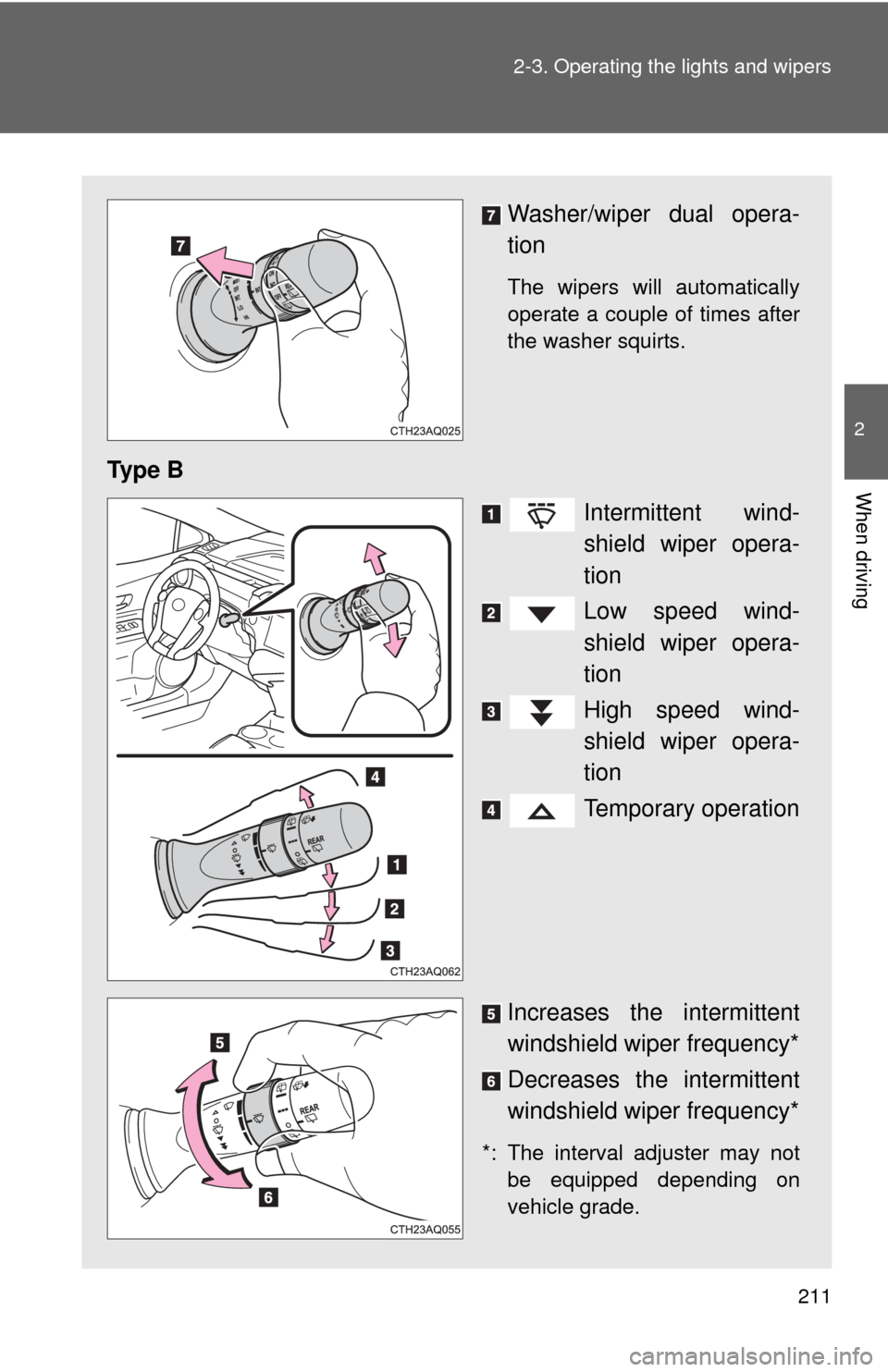

211
2-3. Operating the lights and wipers
2
When driving
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency*
Decreases the intermittent
windshield wiper frequency*
*: The interval adjuster may not be equipped depending on
vehicle grade.

212 2-3. Operating the lights and wipers
■The windshield wipers and washer can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

213
2-3. Operating the lights and wipers
2
When driving
NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

358 4-2. Maintenance
Vehicle exterior
ItemsCheck points
Doors • Do the doors operate smoothly?
Engine hood • Does the engine hood lock sys-
tem work properly?
Fluid leaks • There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires • Is the tire inflation pressure cor-
rect?
• The tires should not be dam- aged or excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear window
wiper (if equipped) • The wiper blades should not
show any signs of cracking,
splitting, wear, contamination or
deformation.
• The wiper blades should clear the windshield/rear window
without streaking or skipping.
CAUTION
■ If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.
