2014 TOYOTA PRIUS C fog light

Interior features3
237
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ........................... 238
Rear window and outside rear view
mirror defoggers ............ 247
3-2. Using the audio system Audio system types .......... 248
Using the radio ................. 254
Using the CD player ......... 256
Playing back MP3 and WMA discs .............. 261
Operating an iPod ............ 268
Operating a USB memory .......................... 276
Optimal use of the audio system.................. 284
Using the AUX port .......... 287
Using the steering wheel audio switches ..... 288
3-3. Using the Bluetooth
®
audio system
Bluetooth
® audio/
phone ............................. 291
Using the Bluetooth
®
audio/phone ................... 295
Operating a Bluetooth
®
enabled portable
player ............................. 300
Making a phone call ......... 303 Using the “SET UP” menu
(“Bluetooth” menu) ......... 308
Using the “SET UP” menu (“Phone” menu).............. 314
3-4. Using the interior lights Interior lights list ............... 321
• Interior lights/personal lights................ 322
3-5. Using the storage features
List of storage features .... 324
• Glove box........................ 325
• Console box ................... 325
• Auxiliary boxes ............... 327
• Cup holders ................... 329
• Bottle holders ................. 330
3-6. Other interior features Sun visors ........................ 332
Vanity mirrors ................... 333
Outside temperature display............................ 334
Power outlet ..................... 336
Seat heaters..................... 337
Coat hooks ....................... 339
Assist grips....................... 340
Floor mat .......................... 341
Luggage cover ................. 343

412 4-3. Do-it-yourself maintenance
Under the driver’s side instrument panel
FuseAmpereCircuit
1 TAIL 10 A Parking lights, side marker lights,
tail lights, license plate lights, front
fog lights, gauge and meters
2 PANEL 5 A Instrument panel lights
3 DOOR R/R 20 A Rear power window (right side)
4 DOOR P 20 A Front power window (right side)
5 ECU-IG NO.1 5 A Rear window defogger, tire pres-
sure warning system, main body
ECU, brake system, vehicle stabil-
ity control system, power door lock
system, smart key system
6 ECU-IG NO.2 5 A Electric power steering system
7HTR-IG 7.5 A Air conditioning system, PTC
heater
8 GAUGE 10 A Back-up lights, audio system, shift
lock control system, moon roof,
vehicle control and operation data
recording, vehicle proximity notifi-
cation system
9 WASHER 15 A Windshield wipers and washer
10 WIPER 25 A Windshield wipers and washer
11 WIPER RR 15 A Windshield wipers and washer
12 P/W 30 A Power window

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 DOOR R/L 20 A Rear pow
er window (left side)
14 DOOR D 20 A Front power window (left side)
15 CIG 15 A Power outlet
16 ACC 5 A Main body ECU, audio system, out-
side rear view mirrors, shift lock
control system
17 D/L 25 A Power door lock system
18 OBD 7.5 A On-board diagnosis
19 STOP 7.5 A Starter system, shift lock control
system, vehicle proximity notifica-
tion system, brake system, stop
lights, high mounted stoplight
20 AM1 7.5 A Starter system
21 FOG FR 15 A Front fog lights
22 S/ROOF 25 A Moon roof
23 S/HTR 15 A Seat heaters, air conditioning sys-
tem
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 415)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 505)
■ Front bulb locations
Front side
marker
lights
Front turn signal lights
Parking lights
Headlights (low beam)
Headlights (high beam) and daytime running lights
Front fog lights (if equipped)

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector while
pushing the lock release.
High beam and daytime run-
ning lights
Low beam
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights and daytime running
lights and headlight low beams on
once and visually confirm that no
light is leaking through the mount-
ing.
■ Front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1

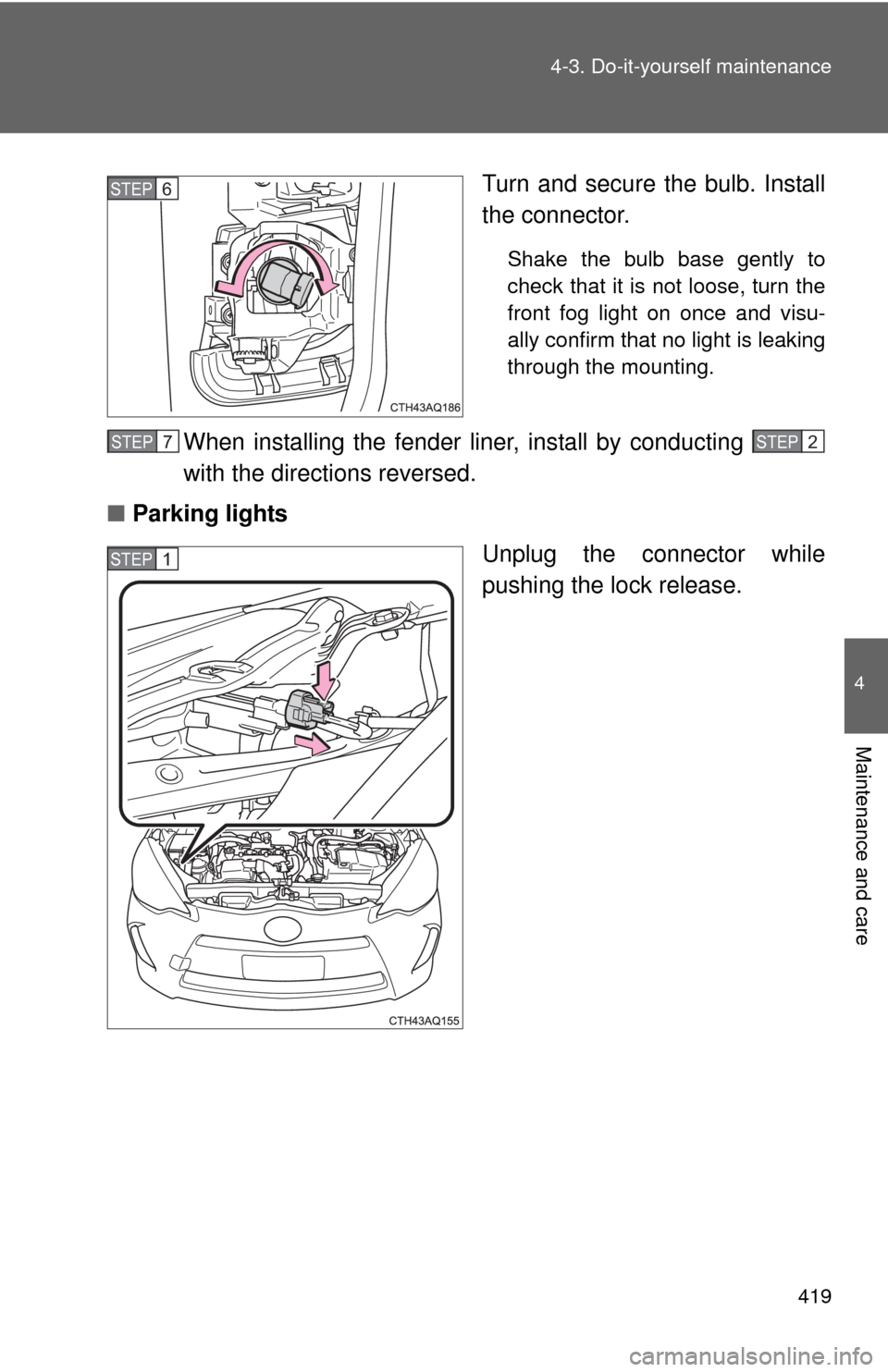

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
with the directions reversed.
■ Parking lights
Unplug the connector while
pushing the lock release.
STEP6
STEP5STEP7STEP5STEP7STEP2
STEP1

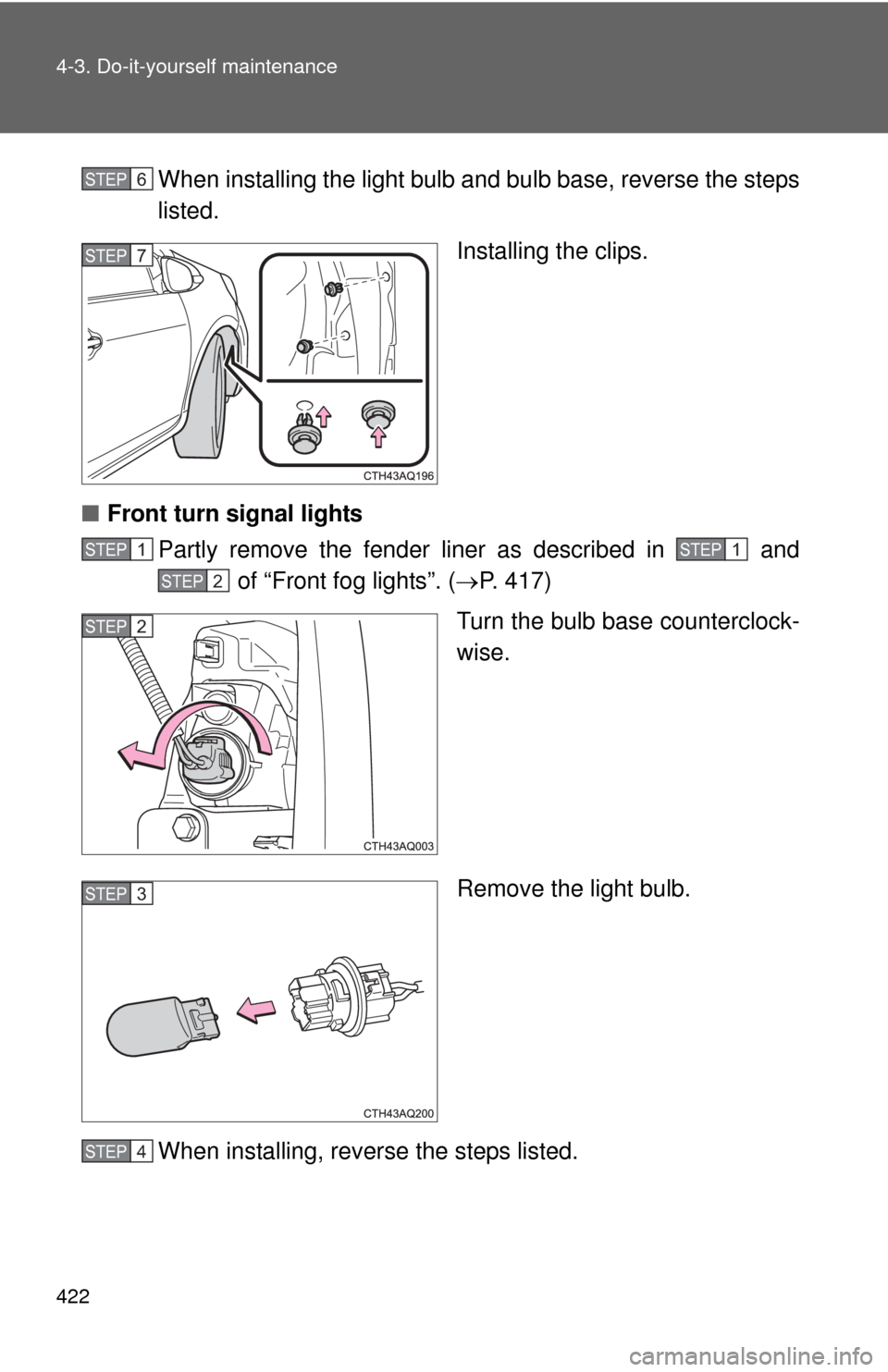

422 4-3. Do-it-yourself maintenance
When installing the light bulb and bulb base, reverse the steps
listed.
Installing the clips.
■ Front turn signal lights
Partly remove the fender liner as described in and of “Front fog lights”. ( P. 417)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.STEP6
STEP7
STEP1STEP1
STEP2
STEP2
STEP3
STEP4

505
6-1. Specifications
6
Vehicle specifications
Light bulbs
*1: If equipped
*
2: Side turn signal lights should be replaced as an assembly.
A: H11 halogen bulbs B: HB3 halogen bulbs
C: H16 halogen bulbs D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
Light bulbsBulb NoWTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Parking lights 5D
Front turn signal lights 21 E
Front fog lights*
1 19 C
Tail and rear side marker
lights 
5D
License plate lights 5D
Back-up lights 16 D
Side turn signal lights 5E*
2
Front side marker lights 5D
Rear turn signal lights 21 E
Interior Interior lights/personal
lights

5D
Luggage compartment
light*
1 5D
