22Pictorial index
HIGHLANDER_U (OM48A12U)

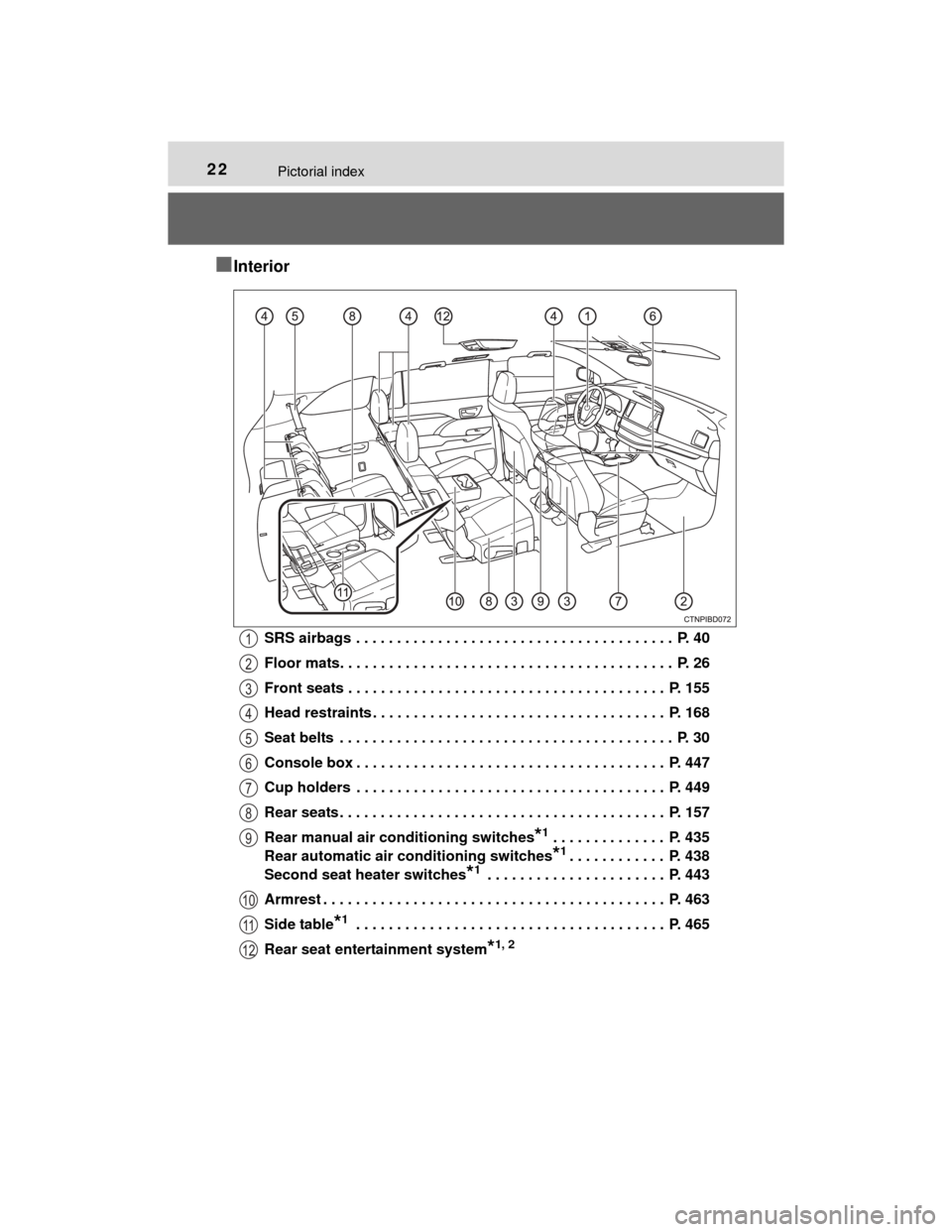

■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 447
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 449
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
Rear manual air conditioning switches
*1 . . . . . . . . . . . . . . P. 435
Rear automatic air conditioning switches
*1. . . . . . . . . . . . P. 438
Second seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . P. 443
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 463
Side table
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 465
Rear seat entertainment system
*1, 2
1
2
3
4
5
6
7
8
9
10
11
12

25
For safety and security1
HIGHLANDER_U (OM48A12U)1-1. For safe use
Before driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 40
Front passenger occupant classification system ......... 53
Safety information for children ............................. 60
Child restraint systems........ 61
Installing child restraints...... 65
Exhaust gas precautions..... 79
1-2. Theft deterrent system Engine immobilizer system .............................. 80
Alarm................................... 82
Theft prevention labels (U.S.A.) ............................. 85

401-1. For safe use
HIGHLANDER_U (OM48A12U)
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
