15Pictorial index
COROLLA_TMMMS_TMMC_U (OM12F00U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 216
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 448
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Checking/rotation/tire pressure warning system
*1 . . . . . . . P. 448
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 184
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 184
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . . P. 184
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . P. 172, 174, 176, 180
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 470, Watts: P. 553)
*1: If equipped
*2: Vehicles with a drive monitor display
*3: Vehicles with a multi-information display
8
9
10
11
12
13
14
15
4707-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)
Check the wattage of the light bulb to be replaced. (P. 553)
■Front

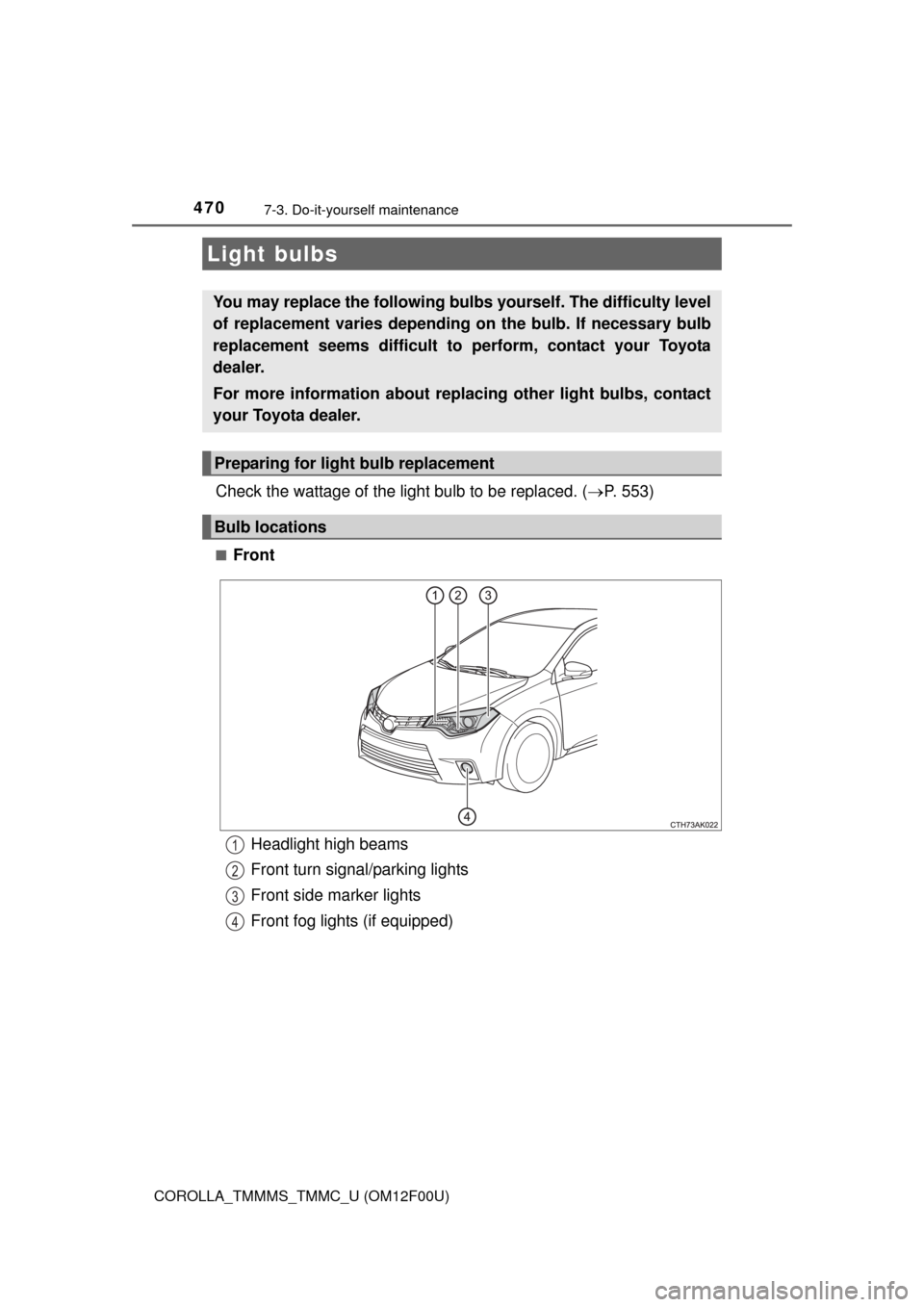

Light bulbs
You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight high beams
Front turn signal/parking lights
Front side marker lights
Front fog lights (if equipped)1
2
3
4
4717-3. Do-it-yourself maintenance
7
Maintenance and care

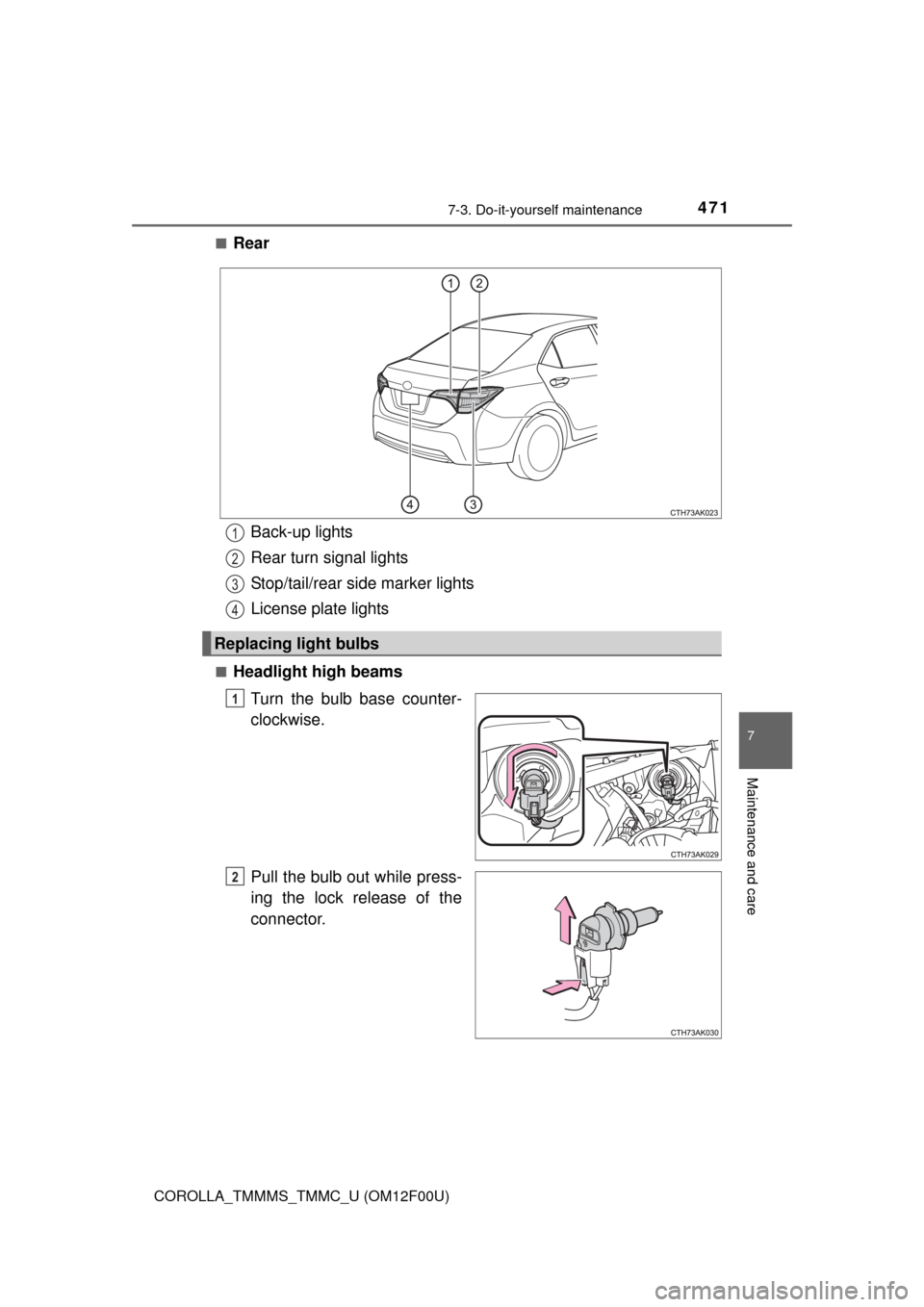

COROLLA_TMMMS_TMMC_U (OM12F00U)■
Rear
■Headlight high beams
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Back-up lights
Rear turn signal lights
Stop/tail/rear side marker lights
License plate lights
Replacing light bulbs
1
2
3
4
1
2
4727-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)

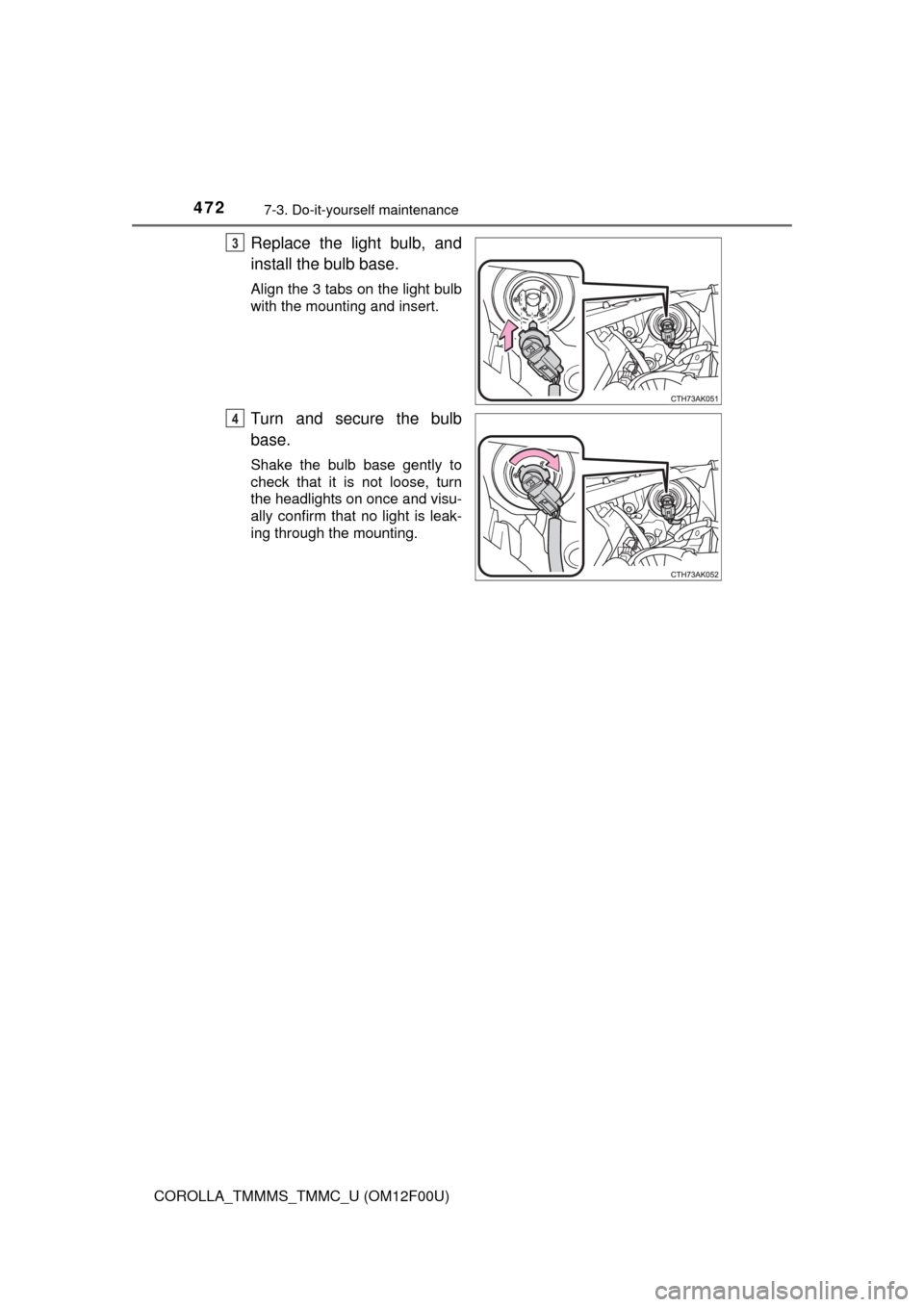

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
3
4
4807-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
●Headlight low beams/daytime running lights
●High mounted stoplights
●Side turn signal lights (if equipped)
■LED light bulbs
The high mounted stoplights and headlight low beams/daytime running lights
consist of a number of LEDs. If any of the LEDs burns out, take your vehicle
to your Toyota dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
5539-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12F00U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam 9005 60 A
Front side marker
lights5B
Front turn signal/park-
ing lights7444NA 28/8 C
Front fog lights
*19 D
Side turn signal
lights
*5C
Rear turn signal lights21 C
Stop/tail and rear side
marker lights 7443 21/5 B
License plate lights5B
Back-up lights 921 16 B
InteriorFront personal/inte-
rior lights (vehicles
without a moon roof)8B
Front personal/inte-
rior lights (vehicles
with a moon roof)5B
Rear interior light8E
Trunk light3.8 B
A: HB3 halogen bulbs
C: Wedge base bulbs (amber)
E: Double end bulbs
*: If equippedB: Wedge base bulbs (clear)
D: H16 halogen bulbs
605Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
Hands-free system
(for cellular phone)........ 255, 320
Head restraints ........................ 124
Headlights ................................ 184
Light switch ........................... 184
Replacing light bulbs..... 471, 480
Wattage ................................ 553
Heaters
Outside rear view
mirrors ........................ 381, 389
Seat heaters ......................... 411
Hood ......................................... 431
Hooks
Retaining hooks (floor mat)..... 24
Horn .......................................... 127
I/M test ...................................... 427
Identification ............................ 544
Engine................................... 545
Vehicle .................................. 544
Ignition switch
(engine switch) .............. 161, 164
Illuminated entry system ........ 397
Immobilizer system ................... 66
Indicators ................................... 75
Initialization
Moon roof.............................. 139
Power windows ..................... 135
Tire pressure
warning system .................. 449
Inside rear view mirror ............ 129
Instrument panel light
control ................................ 78, 83
Interior lights............................ 395Jack
Positioning the jack............... 433
Vehicle-equipped jack .......... 515
Jack handle .............................. 515
Jam protection function
Moon roof ............................. 138
Power window ...................... 134
Keyless entry
Smart key system ........... 97, 106
Wireless remote
control .......................... 97, 107
Keys ............................................ 92
Battery-saving function ......... 114
Electronic key ......................... 92
Engine switch ............... 161, 164
If the electronic key does
not operate properly ........... 529
Key number plate ................... 92
Keyless entry .......................... 93
Mechanical key ....................... 93
Replacing the battery............ 464
Warning buzzer .................... 112
Wireless remote control .......... 93
Knee airbags .............................. 34
H
I
J
K
606Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
LATCH anchors ......................... 58
Lever
Auxiliary catch lever .............. 431
Hood lock
release lever ....................... 431
Shift lever ...... 172, 174, 176, 180
Turn signal lever ................... 182
Wiper lever............................ 192
License plate lights ................. 184
Light switch ........................... 184
Replacing light bulbs............. 479
Wattage ................................ 553
Light bulbs
Replacing .............................. 470
Wattage ................................ 553
Lights
Fog light switch ..................... 191
Front Interior light.................. 396
Headlight switch.................... 184
Illuminated entry system ....... 397
Interior lights list .................... 395
Personal lights ...................... 396
Rear interior light .................. 397
Replacing light bulbs............. 470
Trunk light ............................. 108
Turn signal lever ................... 182
Wattage ................................ 553
Lock steering column ..... 162, 169Maintenance
Do-it-yourself maintenance... 428
General maintenance ........... 423
Maintenance data ................. 544
Maintenance
requirements ...................... 420
Reset the maintenance
data .................................... 421
Malfunction indicator lamp..... 493
Manual air conditioning
system.................................... 380
Manual transmission............... 180
Master warning light ............... 494
Meter ..................................... 77, 82
Drive monitor display .............. 77
Indicators ................................ 75
Meters............................... 77, 82
Multi-information display ......... 82
Warning lights ......................... 73
Mirrors
Inside rear view mirror .......... 129
Outside rear view mirror
defoggers ................... 381, 389
Outside rear view mirrors ..... 131
Vanity mirrors ....................... 403
Moon roof ................................. 137
Jam protection function ........ 138
Operation .............................. 137
MP3 disc ........................... 232, 302
Multi-information display.......... 82
Customizing vehicle
features ................................ 86
Drive monitor .......................... 84
Switching the display .............. 82
Trip information....................... 84
Warning message................. 504
LM
