4707-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)
Check the wattage of the light bulb to be replaced. (P. 553)
■Front
Light bulbs
You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight high beams
Front turn signal/parking lights
Front side marker lights
Front fog lights (if equipped)1
2
3
4

4737-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12F00U)■
Front fog lights (if equipped)

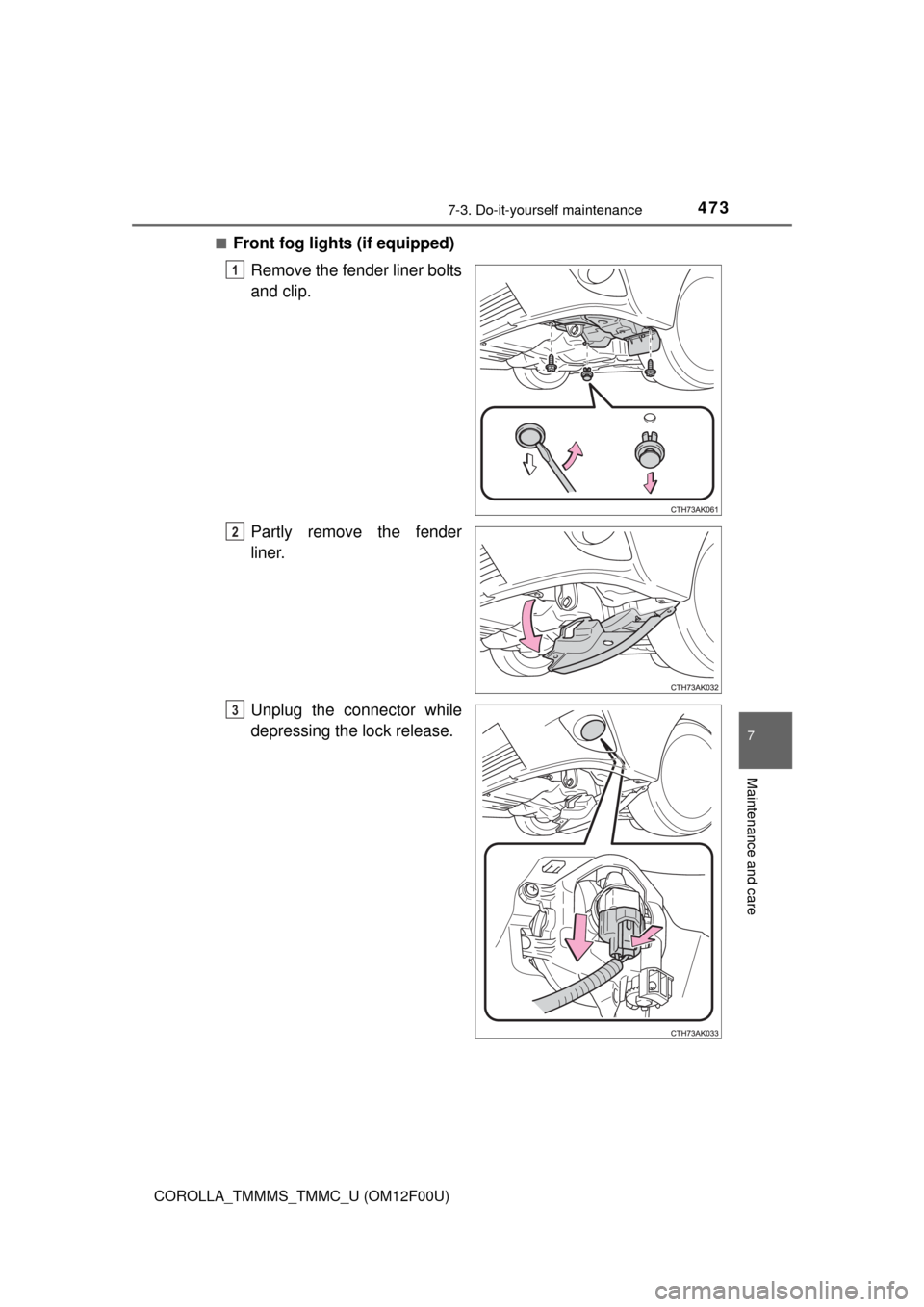

Remove the fender liner bolts
and clip.
Partly remove the fender
liner.
Unplug the connector while
depressing the lock release.
1
2
3

4747-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)
Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
4
5
6
721

5539-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12F00U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam 9005 60 A
Front side marker
lights5B
Front turn signal/park-
ing lights7444NA 28/8 C
Front fog lights
*19 D
Side turn signal
lights
*5C
Rear turn signal lights21 C
Stop/tail and rear side
marker lights 7443 21/5 B
License plate lights5B
Back-up lights 921 16 B
InteriorFront personal/inte-
rior lights (vehicles
without a moon roof)8B
Front personal/inte-
rior lights (vehicles
with a moon roof)5B
Rear interior light8E
Trunk light3.8 B
A: HB3 halogen bulbs
C: Wedge base bulbs (amber)
E: Double end bulbs
*: If equippedB: Wedge base bulbs (clear)
D: H16 halogen bulbs
