2014 TOYOTA CAMRY engine coolant

558 6-1. Specifications
Cooling system
Ignition system
Capacity
(Reference)2.5 L 4-cylinder (2AR-FE) engine
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.5 L V6 (2GR-FE) engine
9.6 qt. (9.1 L, 8.0 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
Gap 2.5 L 4-cylinder (2AR-FE) engine
DENSO SK16HR11
3.5 L V6 (2GR-FE) engine
DENSO FK20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

575
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressure Cold tire inflation pressure recommended by a
manufacturer
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

609
Alphabetical index
Electric power steering........... 209
Electronic key
If the electronic key does not operate properly ........... 536
Emergency flashers
Switch ................................... 498
Emergency, in case of If a warning light turns on ..... 505
If the electronic key does
not operate properly ........... 536
If the engine will not start...... 532
If the shift lever cannot be
shifted from P ..................... 534
If the vehicle has
discharged battery ............. 539
If the warning buzzer sounds ............................... 505
If you have a flat tire ............ 520
If you lose your keys............. 535
If you think something is wrong ................................. 503
If your vehicle becomes stuck................................... 547
If your vehicle has to be stopped in an emergency... 548
If your vehicle needs to
be towed ............................ 499
If your vehicle overheats ...... 544 Engine
Compartment ........................440
Engine switch ................147, 150
Hood......................................437
How to start the
engine .........................147, 150
Identification number .............552
If the engine will not start ......532
Ignition switch................147, 150
Overheating...........................544
Engine coolant
Capacity ................................558
Checking ...............................447
Preparing and checking before winter .......................229
Engine coolan t temperature
display ....................................172
Engine immobilizer system.......96
Engine oil Capacity ................................556
Checking ...............................442
Preparing and checking before winter .......................229
Engine switch light ..................371
EPS ............................................209
Event data recorder ...................24E

615
Alphabetical index
Warning buzzers
Brake system........................ 505
Downshifting ................. 160, 166
Electric power steering system................................ 506
Open door ............................ 508
Seat belt reminder ................ 508
Warning lights
Anti-lock brake system ......... 506
Blind Spot Monitor ................ 506
Brake assist system ............. 506
Brake system........................ 505
Charging system .... .............. 506
Cruise control indicator
light .................................... 506
Electric power steering system................................ 506
Engine coolant temperature........................ 506
Engine oil pressure............... 506
Low fuel level........................ 508
Maintenance reminder light .................................... 508
Malfunction indicator lamp.... 506
Open door ............................ 508
Pretensioners ....................... 506
Seat belt reminder light ........ 508
Slip indicator ......................... 506
Smart key system ... .............. 512
SRS airbags ......................... 506
Tire pressure warning light .................................... 508
Washer fluid ......................... 508 Washer
Preparing and checking
before winter .......................229
Refilling .................................453
Switch....................................200
Washing and waxing ...............420
Weight Cargo capacity ......................224
Load limits .............................228
Weight ...................................552
Wheels ......................................464
Window glasses ........................84
Window lock switch ...................84
Windows
Power windows .......................84
Rear window defogger ..........253
Washer ..................................200
Windshield wipers ...................200
Wireless remote control key Replacing the battery ............469
Wireless remote control ..........49
WMA disc ..................................280W

616

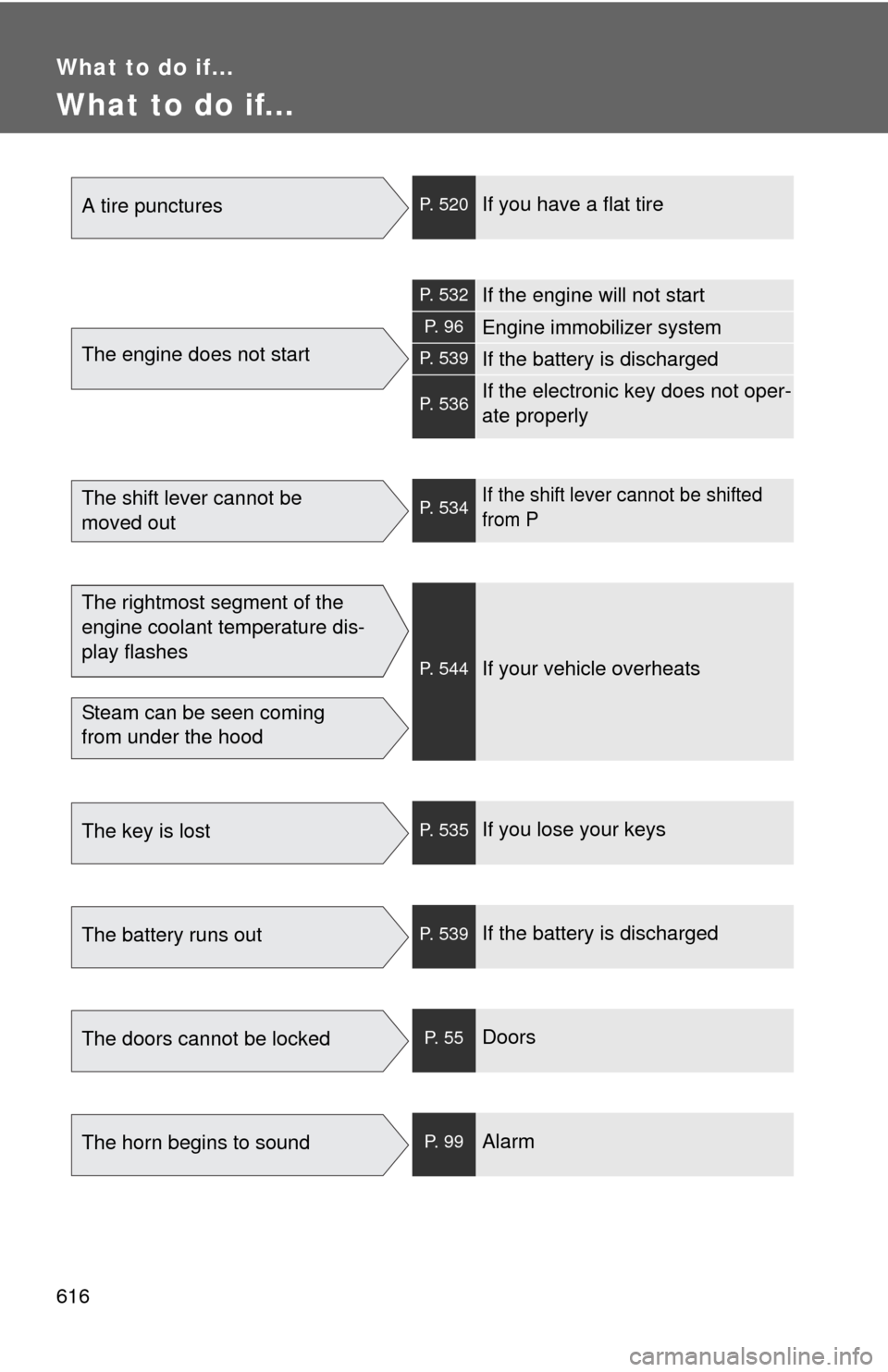

What to do if...
What to do if...
A tire puncturesP. 520If you have a flat tire
The engine does not start
P. 532If the engine will not start
P. 9 6Engine immobilizer system
P. 539If the battery is discharged
P. 536If the electronic key does not oper-
ate properly
The shift lever cannot be
moved outP. 534If the shift lever cannot be shifted
from P
The rightmost segment of the
engine coolant temperature dis-
play flashes
Steam can be seen coming
from under the hood
P. 544If your vehicle overheats
The key is lostP. 535If you lose your keys
The battery runs outP. 539If the battery is discharged
The doors cannot be lockedP. 5 5Doors
The horn begins to soundP. 9 9Alarm

619
What to do if...
P. 5 0 8P. 506
or
P. 506
*1: The light comes on in yellow to indicate a malfunction.
*2: The light flashes in yellow to indicate a malfunction. The light flashes quickly in green to indicate that the steering lock has not been
released.
Maintenance required
reminder lightSmart key system indi-
cator light
*2
High engine cool-
ant temperature
warning light (the
rightmost seg-
ment of the engine
coolant tempera-
ture display
flashes)
