444 4-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 5 5 6
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 lmp. qt.)
Items
Clean funnel
STEP1
STEP2
STEP3

480 4-3. Do-it-yourself maintenance
*1: 3.5 L V6 (2GR-FE) engine
*
2: 2.5 L 4-cylinder (2AR-FE) engine
*
3:Vehicles with halogen headlight
*4:Vehicles with discharge headlight
35 RADIO-B 20 A Audio system, navigation system
36 DOME 7.5 AClock, vanity lights, interior lights,
personal lights, trunk light, door
courtesy lights
37 ECU-B NO.1 10 A Multiplex communication system,
smart key system, gauge and
meters, tire pressure warning sys-
tem, wireless remote control, steer-
ing sensor, front passenger
occupant classification system,
Blind Spot Monitor
38 SPARE 25 A Spare fuse
39 SPARE 30 A Spare fuse
FuseAmpereCircuit

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
23 STOP
7.5 ATail lights, multiport fuel injection
system/sequential multiport fuel
injection system, vehicle stability
control system, anti-lock brake sys-
tem, electronic controlled transmis-
sion, high mounted stoplight, smart
key system, shift lock control sys-
tem
24 P/SEAT RR 30 A No circuit
25 A/C-B 7.5 A Air conditioning system
26 S/ROOF 10 A Moon roof
27 P/SEAT FR 30 A Power seats
28 PSB 30 A No circuit
29 D/L-AM1 20 AMultiplex communication system,
power door lock, trunk opener
switch
30 TI&TE 20 A No circuit
31 A/B 10 AFront passenger occupant classifi-
cation system, SRS airbag system
32 ECU-IG2 NO.1 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system
33 ECU-IG2 NO.2 7.5 A Smart key system, Blind Spot Mon-
itor
34 CIG&P/
OUTLET 15 A Power outlet
35 ECU-ACC 7.5 A Clock, outside rear view mirrors,
multiplex communication system,
audio system, navigation system
36 S/HTR&FAN F/
R 10 A Seat heaters
37 S/HTR RR 20 A No circuit
FuseAmpereCircuit

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlight high beam and daytime running light
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■Rear bulb locations
Rear turn signal light
Stop/tail light License plate lightsBack-up light
Rear side marker light
STEP1
STEP2

488 4-3. Do-it-yourself maintenance
■Headlight low beam (halogen bulb)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Fog light (if equipped)
Turn the steering wheel in the
opposite direction of the fog light
that you wish to replace.
For example, if you wish to
replace the fog light on the left
side, turn the steering wheel to
the right.
STEP1
STEP2
STEP1

489
4-3. Do-it-yourself maintenance
4
Maintenance and care

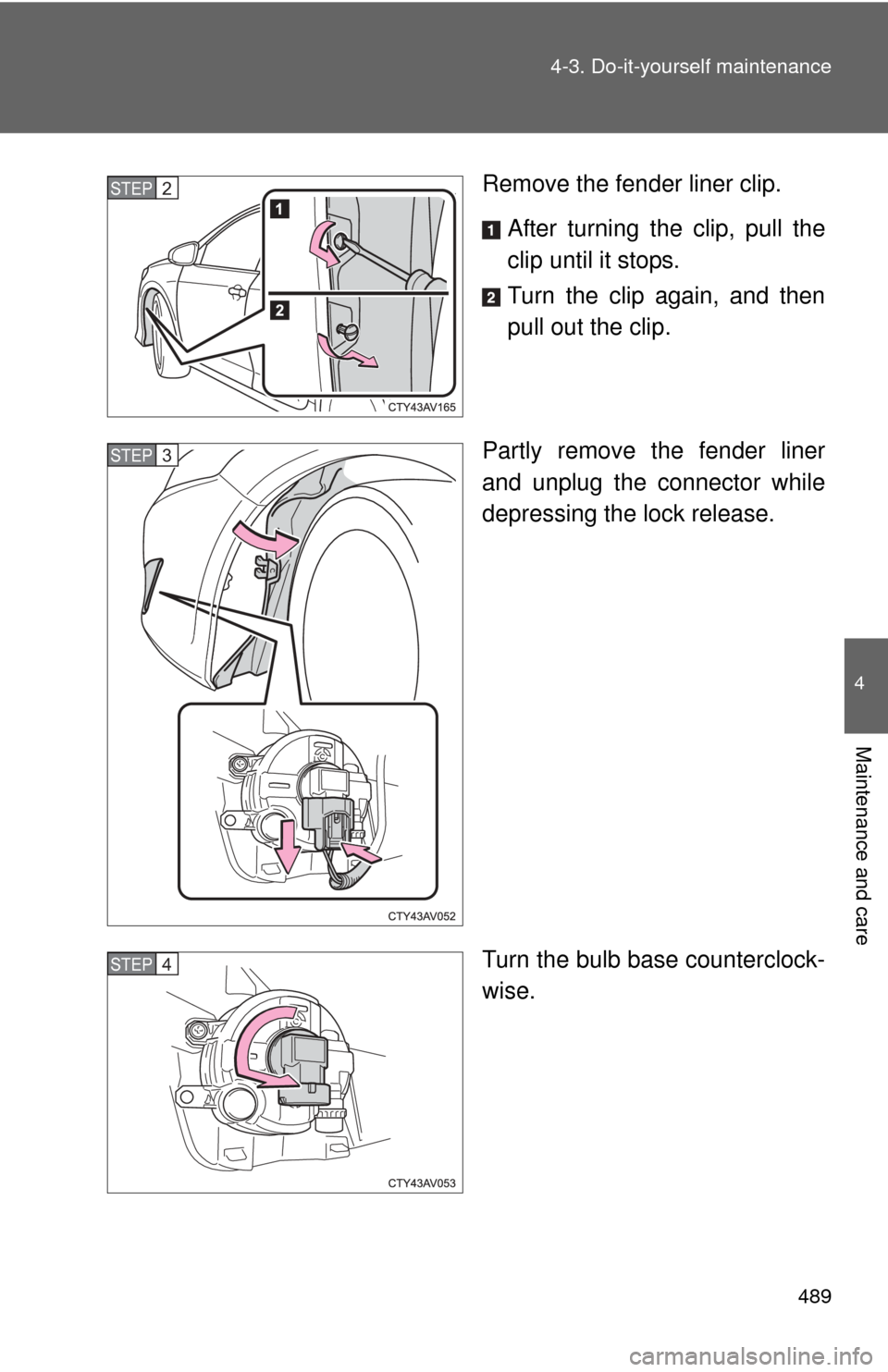

Remove the fender liner clip.
After turning the clip, pull the
clip until it stops.
Turn the clip again, and then
pull out the clip.
Partly remove the fender liner
and unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.STEP2
STEP3
STEP4

490 4-3. Do-it-yourself maintenance
■Front turn signal/parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front side marker light
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP1

492 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.Rear side marker light
Rear turn signal light
Stop/tail light
Remove the light bulb. Rear side marker light
Rear turn signal light
Stop/tail light
■ Back-up light
Open the trunk lid and remove
the clips. Then partly remove the
trunk panel cover.
Unplug the connector while
depressing the lock release.STEP4
STEP5
STEP1
STEP2
