Page 5 of 632

5
1
8 7
6
5
4
3
2
Auris Touring Sports_EE (OM12G98E)6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........392
Cleaning and protecting
the vehicle interior ...........396
6-2. Maintenance
Maintenance
requirements....................399
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ......................402
Hood ..................................405
Positioning a floor jack .......407
Engine compartment..........409
Tires ...................................426
Tire inflation pressure ........436
Wheels ...............................438
Air conditioning filter ..........441
Wireless remote control/
electronic key battery.......443
Checking and replacing
fuses ................................446
Light bulbs .........................4637-1. Essential information
Emergency flashers .......... 480
If your vehicle has to
be stopped in an
emergency ...................... 481
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 483
If you think something is
wrong .............................. 489
Fuel pump shut off
system............................. 490
If a warning light turns
on or a warning buzzer
sounds ............................ 491
If a warning message or
indicator is displayed....... 507
If you have a flat tire
(vehicles with a
spare tire) ........................ 527
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit) .......... 540
If the engine will not
start ................................. 564
If the shift lever cannot
be shifted from P ............. 566
6Maintenance and care7When trouble arises
Page 313 of 632

3135-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G98E)
5
Interior features
CAUTION
To prevent burns or damage to your vehicle
NOTICE
To prevent damage to your vehicle
Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.
Page 425 of 632
4256-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
Turn the drain plug counter-
clockwise about 2 to 2 1/2
turns.
Operate the priming pump
until fuel begins to run out.
After draining, tighten the drain plug by hand.3
4
5
Page 451 of 632

4516-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
10ICS/ALT-S5 ACharging system
11EFI-MAIN
25 A*1Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump
20 A*2
12HORN10 AHorn
13D/C CUT30 ADOME, ECU-B NO.1, RADIO
14AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, Stop & Start system
15ECU-B NO.35 AElectric power steering
16ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, outside rear
view mirrors, gauge and meters
17SPARE30 ASpare fuse
18HTR50 AAir conditioning system
19ABS NO.150 AABS, VSC
20DEF30 ARear window defogger, outside rear view
mirror defoggers
21RDI40 AElectric cooling fan
22ABS NO.230 AABS, VSC
23DRL10 ADaytime running lights
24RADIO20 AAudio system
25DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
26ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system, tire pressure
warning system
27SPARE20 ASpare fuse
28EFI NO.210 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit
Page 479 of 632

479
7When trouble arises
Auris Touring Sports_EE (OM12G98E)7-1. Essential information
Emergency flashers ........... 480
If your vehicle has to
be stopped in an
emergency ....................... 481
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 483
If you think something is
wrong ............................... 489
Fuel pump shut off
system ............................. 490
If a warning light turns
on or a warning
buzzer sounds ................. 491
If a warning message or
indicator is displayed ....... 507
If you have a flat tire
(vehicles with a
spare tire) ........................ 527
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit)........... 540
If the engine will not
start ................................. 564If the shift lever cannot
be shifted from P ............. 566
If the electronic key does
not operate properly ........ 567
If the vehicle battery is
discharged ....................... 570
If your vehicle overheats .... 577
If you run out of fuel and
the engine stalls............... 580
If the vehicle becomes
stuck ................................ 581
Page 490 of 632
4907-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system (gasoline engine
only)
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

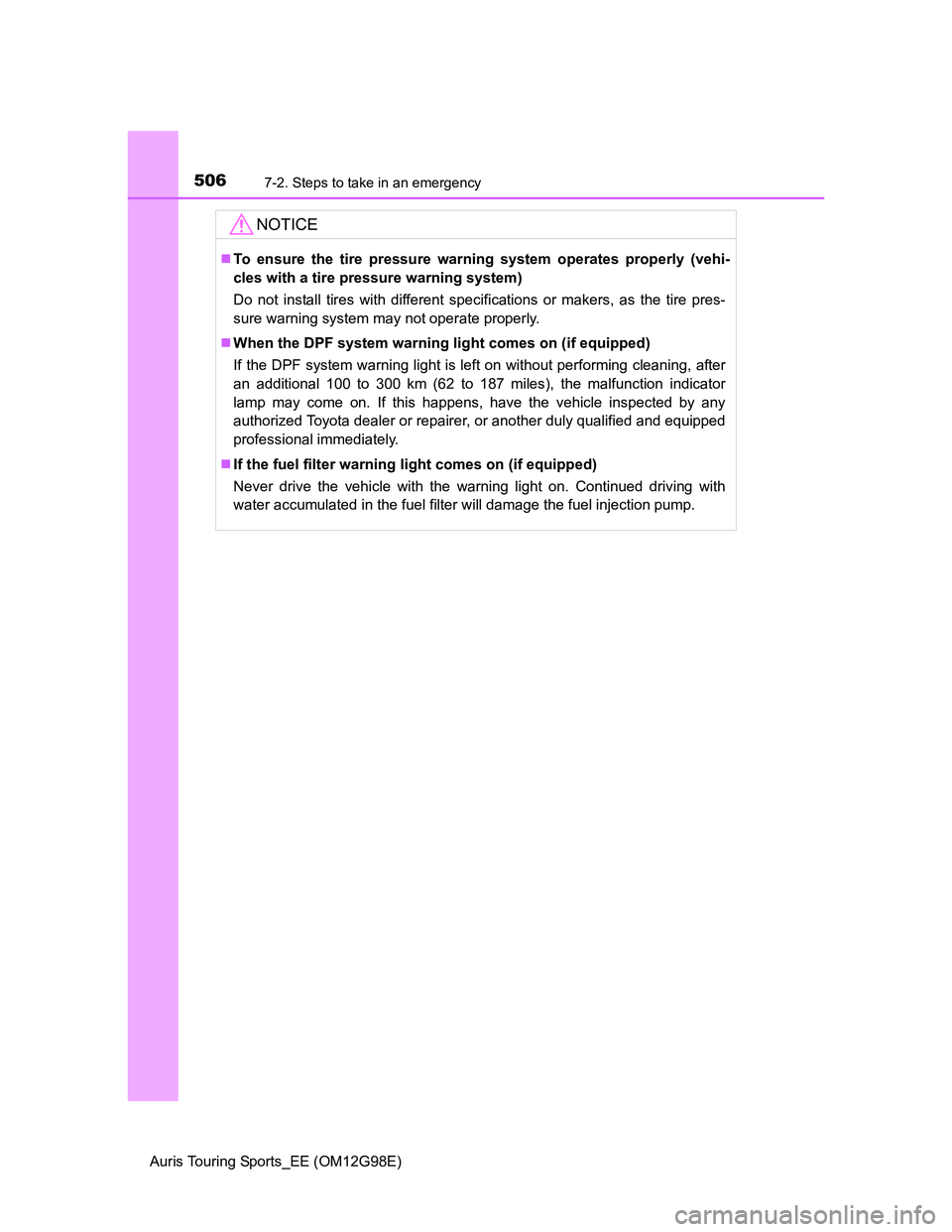

Page 506 of 632
5067-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
NOTICE
To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
When the DPF system warning light comes on (if equipped)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning light comes on (if equipped)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
Page 526 of 632

5267-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)Engine oil change reminder message comes on (diesel engine)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 15000 km (9300 miles)
based on a usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 30000 km (18000 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 30000 km (18000 miles)
based on a usage or driving condition.
CAUTION
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.
