5898-1. Specifications
Auris Touring Sports_EE (OM12G98E)
8
Vehicle specifications
Diesel engine
Model 1ND-TV, 1AD-FTV
Ty p e4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
1ND-TV engine
73  81.5 mm (2.87  3.21 in.)
1AD-FTV engine
86  86 mm (3.39  3.39 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu. in.)
1AD-FTV engine
1998 cm
3 (121.9 cu. in.)
Valve clearance (engine
cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1AD-FTV engine
Automatic adjustment
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

616What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G98E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 495)
The brake system warning light is on
Is the parking brake released? (P. 218)
Depending on the situation, other types of warning buzzer may also
sound. (P. 491, 507)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)

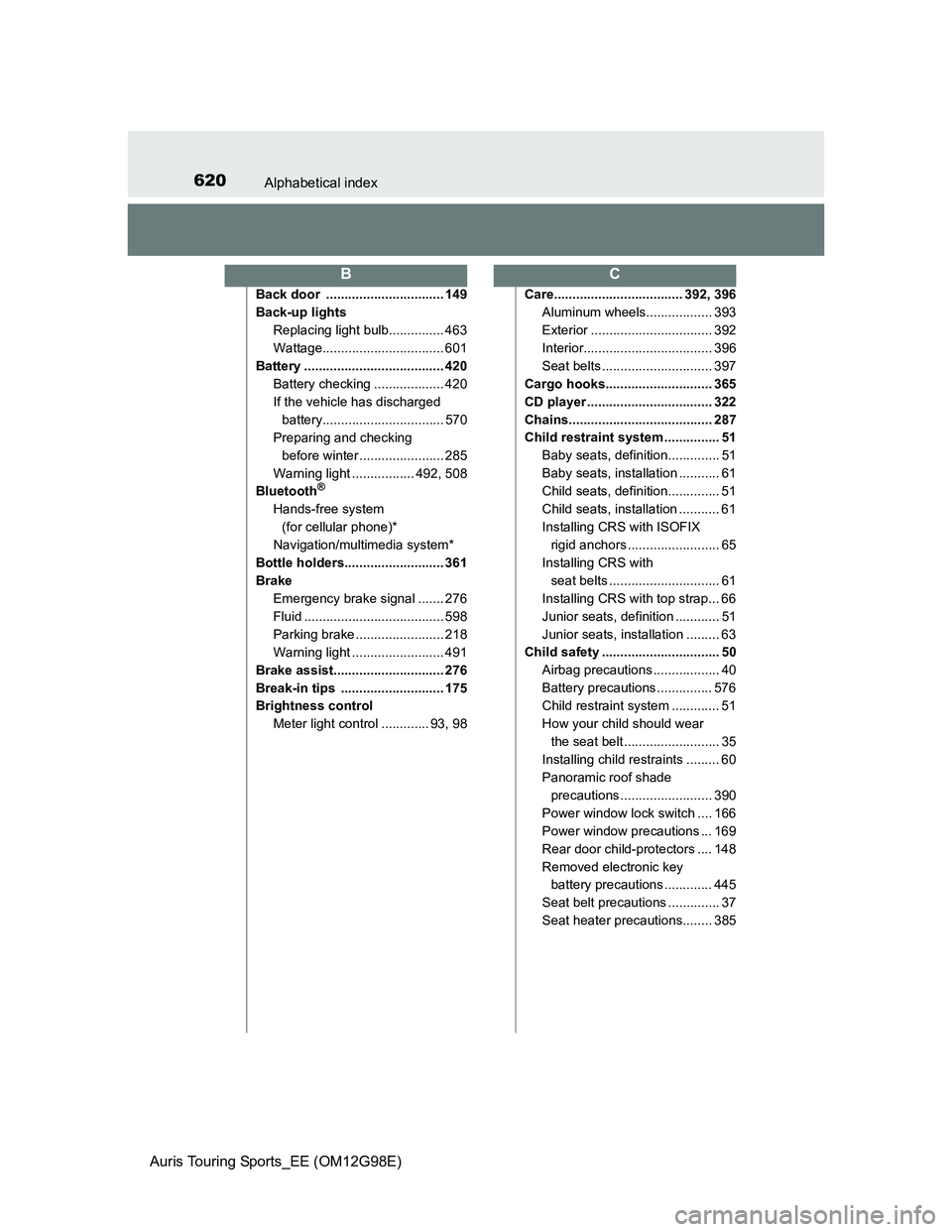

620Alphabetical index
Auris Touring Sports_EE (OM12G98E)
Back door ................................ 149
Back-up lights
Replacing light bulb............... 463
Wattage................................. 601
Battery ...................................... 420
Battery checking ................... 420
If the vehicle has discharged
battery................................. 570
Preparing and checking
before winter ....................... 285
Warning light ................. 492, 508
Bluetooth
®
Hands-free system
(for cellular phone)*
Navigation/multimedia system*
Bottle holders........................... 361
Brake
Emergency brake signal ....... 276
Fluid ...................................... 598
Parking brake ........................ 218
Warning light ......................... 491
Brake assist.............................. 276
Break-in tips ............................ 175
Brightness control
Meter light control ............. 93, 98Care................................... 392, 396
Aluminum wheels.................. 393
Exterior ................................. 392
Interior................................... 396
Seat belts .............................. 397
Cargo hooks............................. 365
CD player .................................. 322
Chains....................................... 287
Child restraint system ............... 51
Baby seats, definition.............. 51
Baby seats, installation ........... 61
Child seats, definition.............. 51
Child seats, installation ........... 61
Installing CRS with ISOFIX
rigid anchors ......................... 65
Installing CRS with
seat belts .............................. 61
Installing CRS with top strap... 66
Junior seats, definition ............ 51
Junior seats, installation ......... 63
Child safety ................................ 50
Airbag precautions .................. 40
Battery precautions ............... 576
Child restraint system ............. 51
How your child should wear
the seat belt .......................... 35
Installing child restraints ......... 60
Panoramic roof shade
precautions ......................... 390
Power window lock switch .... 166
Power window precautions ... 169
Rear door child-protectors .... 148
Removed electronic key
battery precautions ............. 445
Seat belt precautions .............. 37
Seat heater precautions........ 385
BC

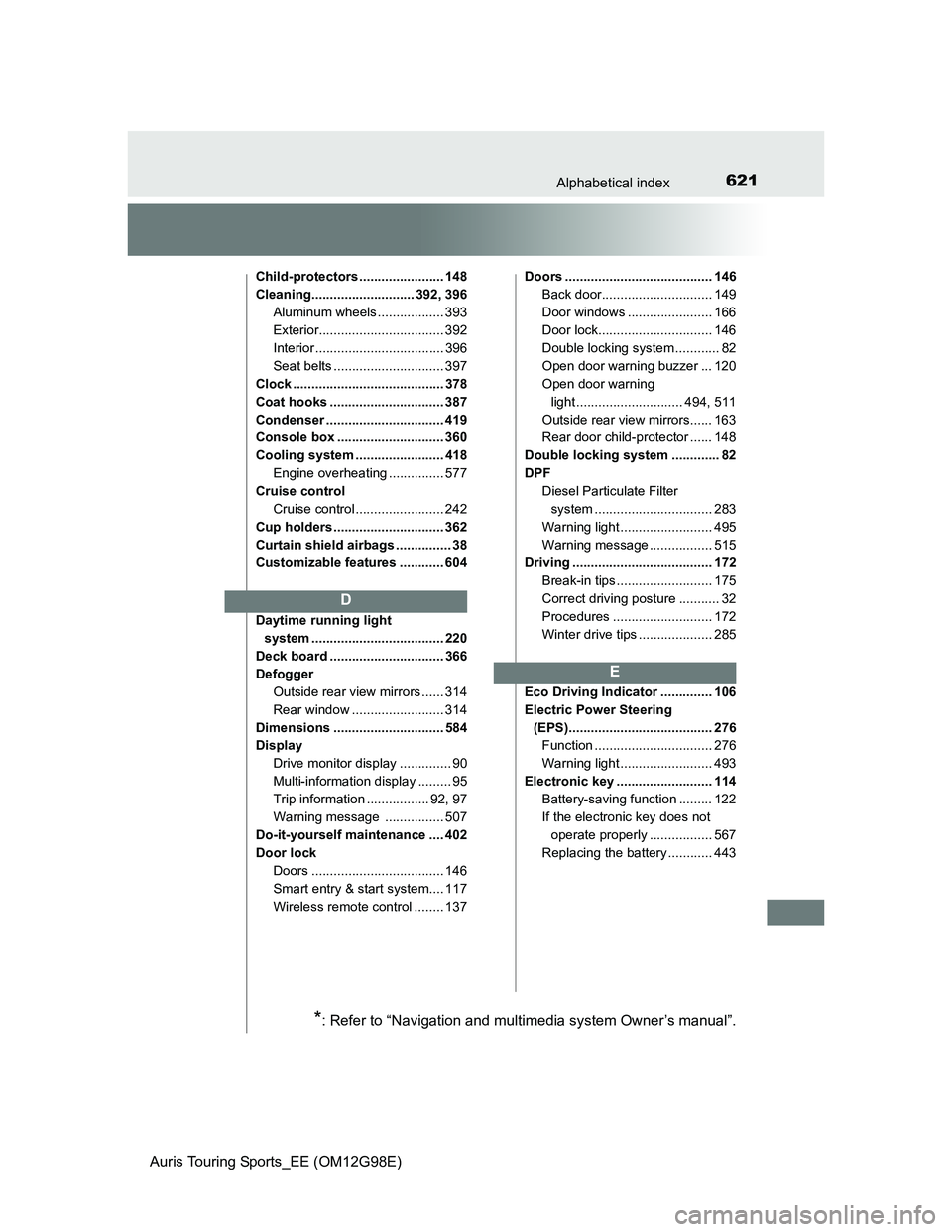

621Alphabetical index
